2008 DODGE RAM 3500 GAS jump start

WARNING!
Do not attempt to push or tow your vehicle to get it
started. Vehicles equipped with an automatic trans-
mission cannot be started this way. Unburned fuel
could enter the catalytic converter and once the
engine has started, ignite and damage the converter
and vehicle.
If the vehicle has a discharged battery, booster cables
may be used to obtain a start from a booster battery
or the battery in another vehicle. This type of start
can be dangerous if done improperly. Refer to ªJump
Startingº in Section 6.If the engine has been flooded, it may start to run, but not
have enough power to continue running when the key is
released. If this occurs, continue cranking with the accel-
erator pedal pushed all the way to the floor. Release the
accelerator pedal and the key once the engine is running
smoothly.
If the engine shows no sign of starting after two 15-
second periods of cranking with the accelerator pedal
held to the floor, the normal starting procedure should be
repeated.
After Starting
The idle speed is automatically controlled and will de-
crease as the engine warms up.
STARTING AND OPERATING 281
5

WHAT TO DO IN EMERGENCIES
CONTENTS
mHazard Warning Flasher..................416
mJacking And Tire Changing................417
NJack Location........................417
NReinstalling The Scissors-Type Jack And Tools
(1500 Models)........................419
mJacking Instructions.....................422
NRemoving The Spare Tire................422
NTire Changing Procedure................423mHoisting.............................434
mJump-Starting Procedures.................434
mFreeing A Stuck Vehicle..................437
mEmergency Tow Hooks Ð If Equipped........438
mTowing A Disabled Vehicle................439
N4-Wheel Drive Vehicles.................439
N2±Wheel Drive Vehicles.................439
6

HOISTING
A conventional floor jack may be used at the jacking
locations. Refer to the graphics that show jacking loca-
tions. However, a floor jack or frame hoist must never be
used on any other parts or the underbody.
CAUTION!
Never use a floor jack directly under the differential
housing of a loaded truck or damage to your vehicle
may result.
JUMP-STARTING PROCEDURES
Do not attempt to push or tow your vehicle to get it
started. Vehicles equipped with an automatic transmis-
sion cannot be started this way. Pushing or towing a
vehicle equipped with a manual transmission may over-
heat and damage the catalytic converter. Also, there is a
greater risk of an accident when a vehicle is being pushed
or towed. If the vehicle has a discharged battery, booster
cables may be used to obtain a start from a booster
battery or the battery in another vehicle. This type of start
can be dangerous if done improperly, so follow this
procedure carefully.
434 WHAT TO DO IN EMERGENCIES

5. Connect the other cable; first to the negative terminal
of the booster battery, and then to the engine of the
vehicle with the discharged battery. Make sure you have
a good contact on the engine.
WARNING!
²You should not try to start your vehicle by pushing
or towing.
²Do not connect the cable to the negative post of the
discharge battery. The resulting electrical spark
could cause the battery to explode.
²During cold weather when temperatures are be-
low freezing point, electrolyte in a discharged
battery may freeze. Do not attempt jump-starting
because the battery could rupture or explode. The
battery temperature must be brought up above
freezing point before attempting jump-start.
6. Start the engine in the vehicle which has the booster
battery, let the engine idle a few minutes, then start the
engine in the vehicle with the discharged battery.
436 WHAT TO DO IN EMERGENCIES

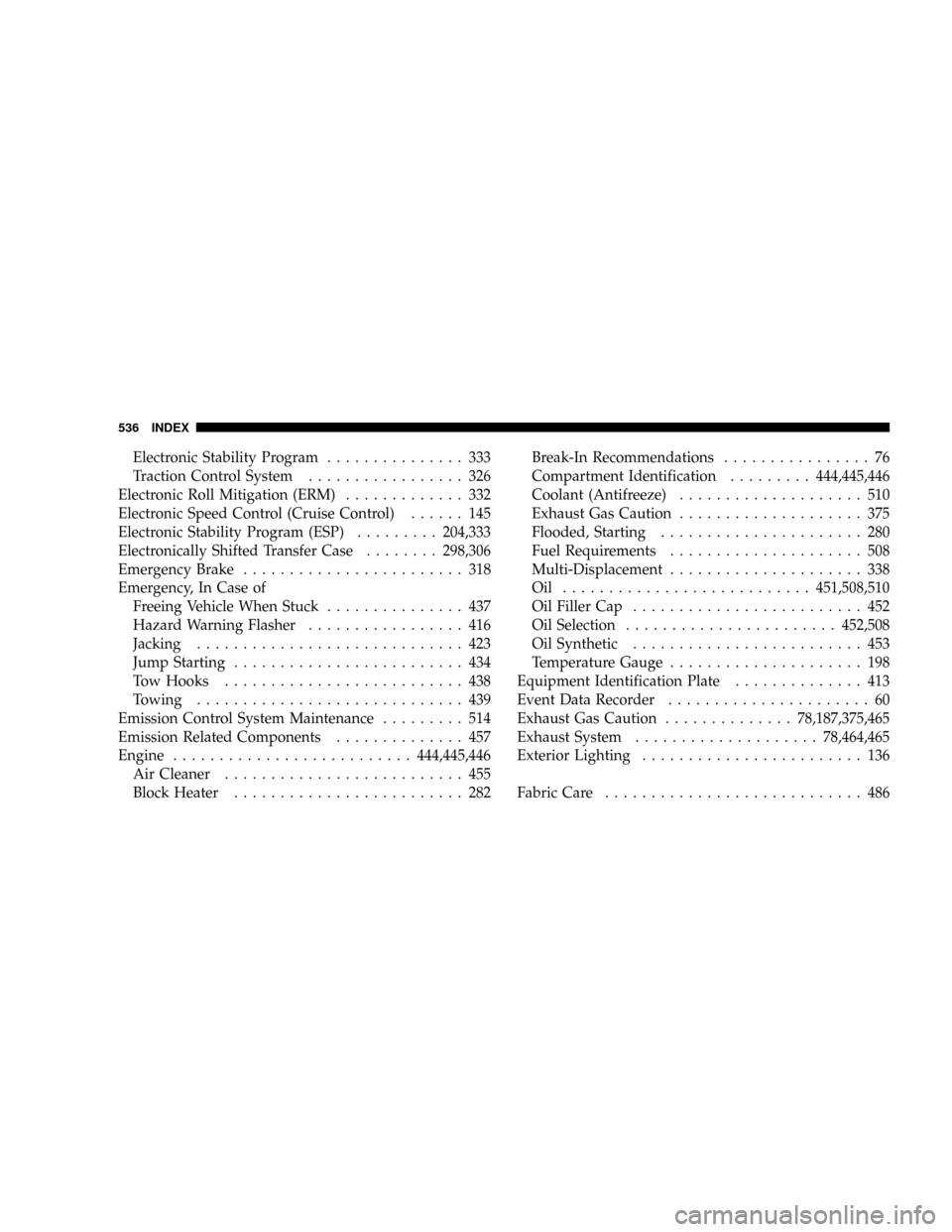

Electronic Stability Program............... 333
Traction Control System................. 326
Electronic Roll Mitigation (ERM)............. 332
Electronic Speed Control (Cruise Control)...... 145
Electronic Stability Program (ESP).........204,333
Electronically Shifted Transfer Case........298,306
Emergency Brake........................ 318
Emergency, In Case of
Freeing Vehicle When Stuck............... 437
Hazard Warning Flasher................. 416
Jacking............................. 423
Jump Starting......................... 434
Tow Hooks.......................... 438
Towing............................. 439
Emission Control System Maintenance......... 514
Emission Related Components.............. 457
Engine..........................444,445,446
Air Cleaner.......................... 455
Block Heater......................... 282Break-In Recommendations................ 76
Compartment Identification.........444,445,446
Coolant (Antifreeze).................... 510
Exhaust Gas Caution.................... 375
Flooded, Starting...................... 280
Fuel Requirements..................... 508
Multi-Displacement..................... 338
Oil ...........................451,508,510
Oil Filler Cap......................... 452
Oil Selection.......................452,508
Oil Synthetic......................... 453
Temperature Gauge..................... 198
Equipment Identification Plate.............. 413
Event Data Recorder...................... 60
Exhaust Gas Caution..............78,187,375,465
Exhaust System....................78,464,465
Exterior Lighting........................ 136
Fabric Care............................ 486
536 INDEX

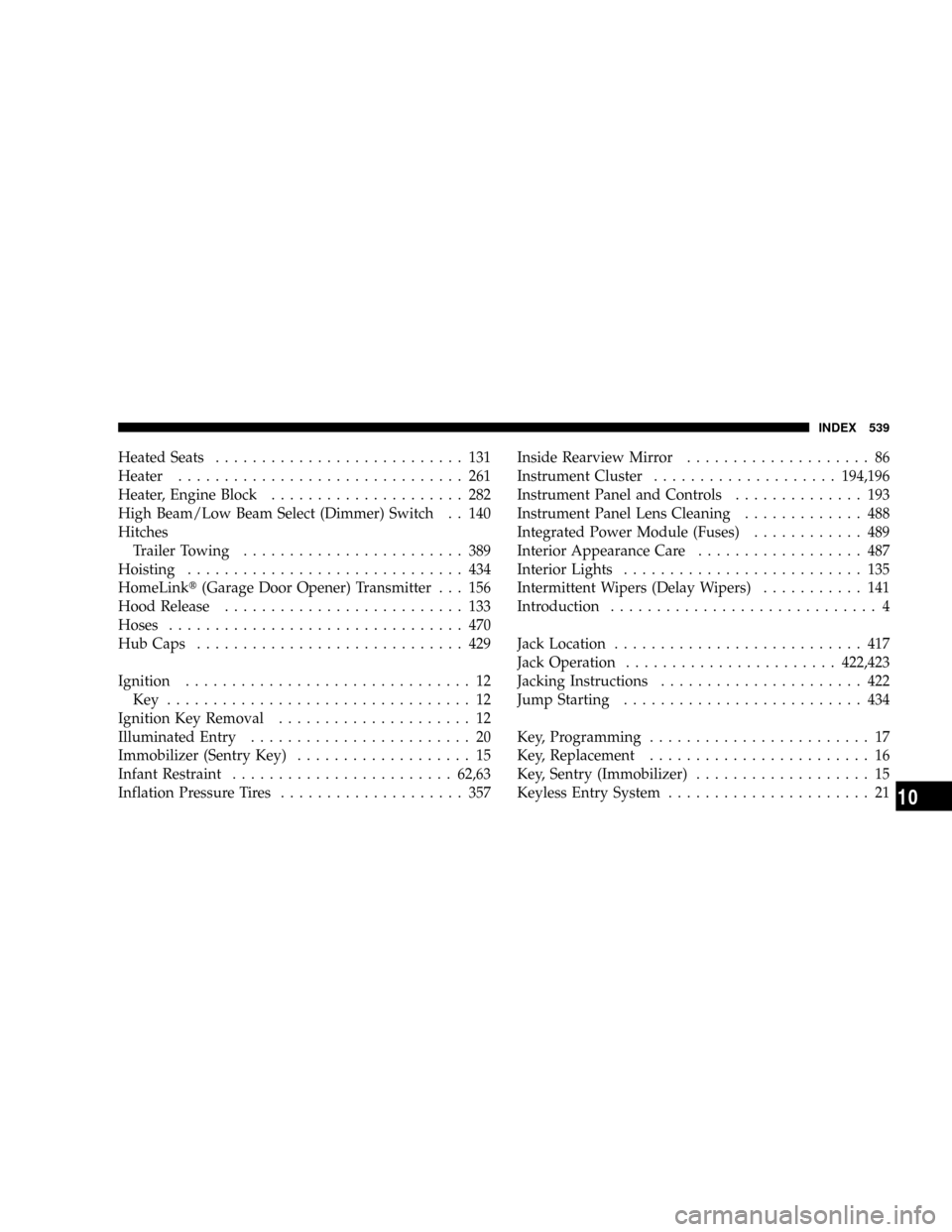

Heated Seats........................... 131
Heater............................... 261
Heater, Engine Block..................... 282
High Beam/Low Beam Select (Dimmer) Switch . . 140
Hitches
Trailer Towing........................ 389
Hoisting.............................. 434
HomeLinkt(Garage Door Opener) Transmitter . . . 156
Hood Release.......................... 133
Hoses................................ 470
Hub Caps............................. 429
Ignition............................... 12
Key ................................. 12
Ignition Key Removal..................... 12
Illuminated Entry........................ 20
Immobilizer (Sentry Key)................... 15
Infant Restraint........................62,63
Inflation Pressure Tires.................... 357Inside Rearview Mirror.................... 86
Instrument Cluster....................194,196
Instrument Panel and Controls.............. 193
Instrument Panel Lens Cleaning............. 488
Integrated Power Module (Fuses)............ 489
Interior Appearance Care.................. 487
Interior Lights.......................... 135
Intermittent Wipers (Delay Wipers)........... 141
Introduction............................. 4
Jack Location........................... 417
Jack Operation.......................422,423
Jacking Instructions...................... 422
Jump Starting.......................... 434
Key, Programming........................ 17
Key, Replacement........................ 16
Key, Sentry (Immobilizer)................... 15
Keyless Entry System...................... 21
INDEX 539
