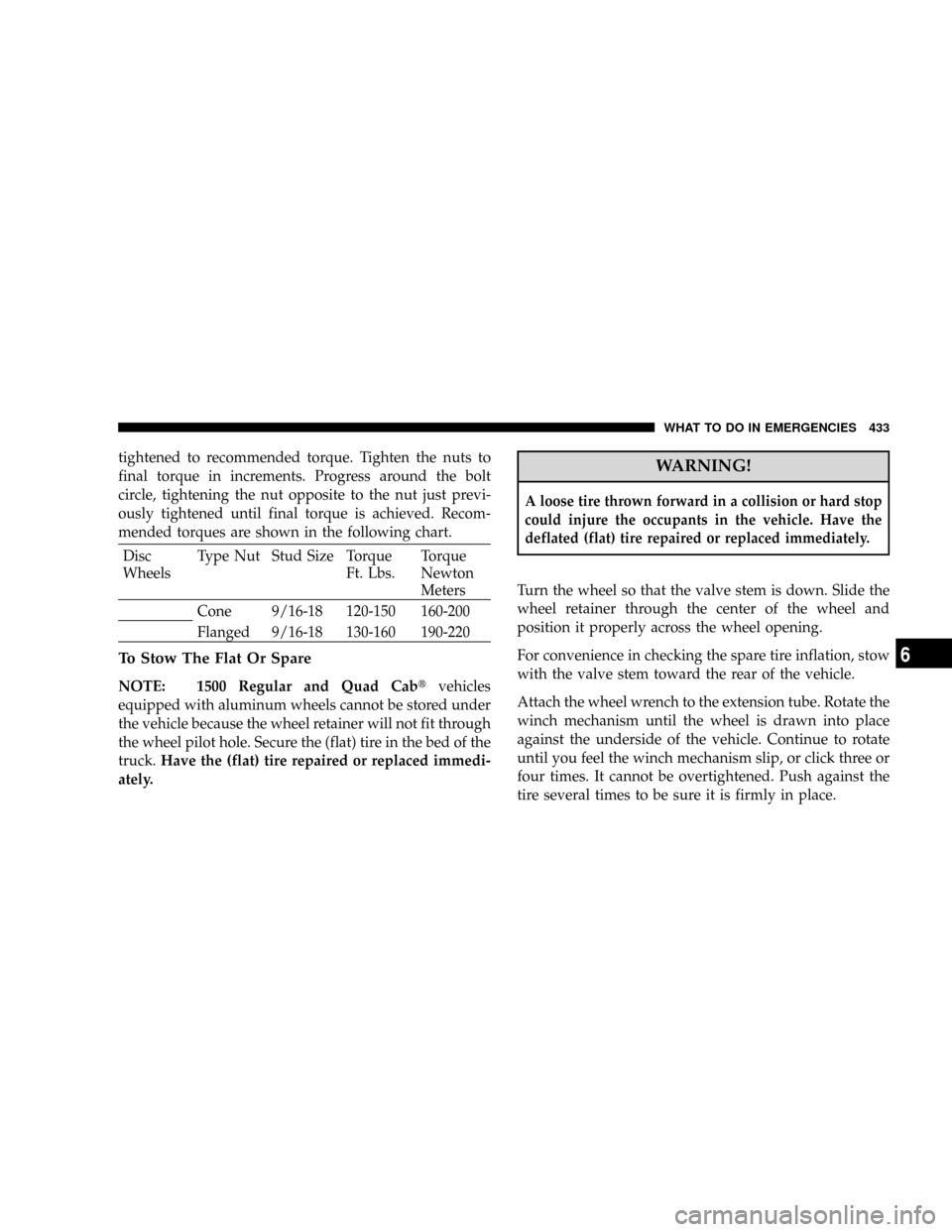

tightened to recommended torque. Tighten the nuts to
final torque in increments. Progress around the bolt
circle, tightening the nut opposite to the nut just previ-
ously tightened until final torque is achieved. Recom-
mended torques are shown in the following chart.
Disc
WheelsType Nut Stud Size Torque
Ft. Lbs.Torque
Newton
Meters
Cone 9/16-18 120-150 160-200
Flanged 9/16-18 130-160 190-220
To Stow The Flat Or Spare
NOTE: 1500 Regular and Quad Cabtvehicles
equipped with aluminum wheels cannot be stored under
the vehicle because the wheel retainer will not fit through
the wheel pilot hole. Secure the (flat) tire in the bed of the
truck.Have the (flat) tire repaired or replaced immedi-
ately.
WARNING!
A loose tire thrown forward in a collision or hard stop
could injure the occupants in the vehicle. Have the
deflated (flat) tire repaired or replaced immediately.
Turn the wheel so that the valve stem is down. Slide the
wheel retainer through the center of the wheel and
position it properly across the wheel opening.
For convenience in checking the spare tire inflation, stow
with the valve stem toward the rear of the vehicle.
Attach the wheel wrench to the extension tube. Rotate the
winch mechanism until the wheel is drawn into place
against the underside of the vehicle. Continue to rotate
until you feel the winch mechanism slip, or click three or
four times. It cannot be overtightened. Push against the
tire several times to be sure it is firmly in place.
WHAT TO DO IN EMERGENCIES 433
6

CAUTION!
Using a transmission fluid other than the manufac-
turer's recommended fluid may cause deterioration
in transmission shift quality and/or torque converter
shudder. Using a transmission fluid other than the
manufacturer's recommended fluid will result in
more frequent fluid and filter changes. Refer to
ªFluids, Lubricants and Genuine Partsº in this sec-
tion for correct fluid type.
Fluid Level Check
If equipped with a dipstick, use the following procedure.
If your vehicle has a capped dipstick tube, it is sealed and
should not be tampered with. Your authorized dealer has
the proper tools to ensure that the fluid level is set
properly. The fluid level should be checked when theengine is fully warmed up and the fluid in the transmis-
sion is at normal operating temperature. Operation of the
transmission with an improper fluid level will greatly
reduce the life of the transmission and of the fluid. Check
the fluid level whenever the vehicle is serviced.
Fluid Level Check ± 545RFE/42RLE
Check the fluid level while the transmission is at normal
operating temperature 82ÉC (180ÉF). This occurs after at
least 15 mi (25 km) of driving. At normal operating
temperature the fluid cannot be held comfortably be-
tween the fingertips.
To check the automatic transmission fluid level properly,
the following procedure must be used:
1. Operate the engine at idle speed and normal operating
temperature.
2. The vehicle must be on level ground.
MAINTAINING YOUR VEHICLE 477
7

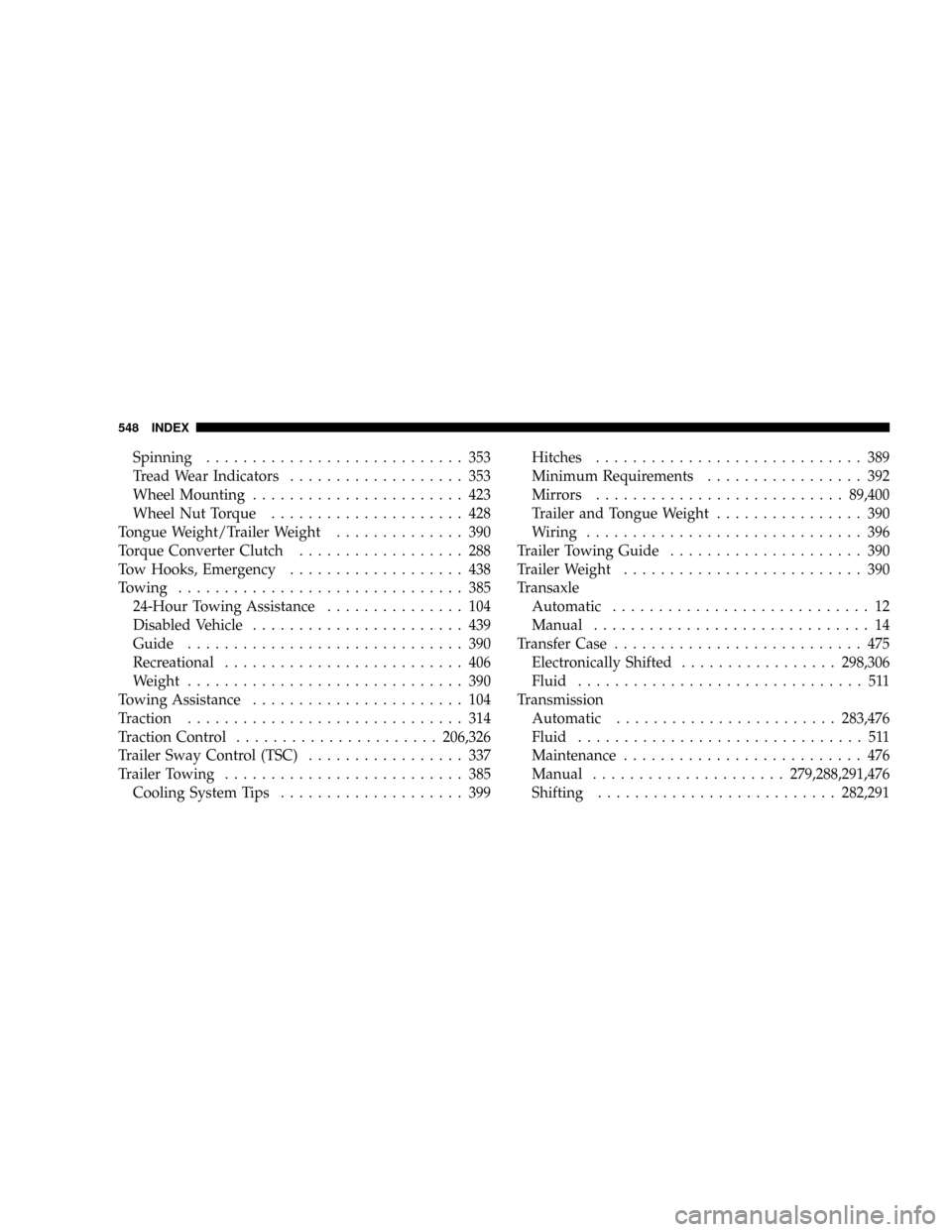

Spinning............................ 353
Tread Wear Indicators................... 353
Wheel Mounting....................... 423
Wheel Nut Torque..................... 428
Tongue Weight/Trailer Weight.............. 390
Torque Converter Clutch.................. 288
Tow Hooks, Emergency................... 438
Towing............................... 385
24-Hour Towing Assistance............... 104
Disabled Vehicle....................... 439
Guide.............................. 390
Recreational.......................... 406
Weight.............................. 390
Towing Assistance....................... 104
Traction.............................. 314
Traction Control......................206,326
Trailer Sway Control (TSC)................. 337
Trailer Towing.......................... 385
Cooling System Tips.................... 399Hitches............................. 389
Minimum Requirements................. 392
Mirrors...........................89,400
Trailer and Tongue Weight................ 390
Wiring.............................. 396
Trailer Towing Guide..................... 390
Trailer Weight.......................... 390
Transaxle
Automatic............................ 12
Manual.............................. 14
Transfer Case........................... 475
Electronically Shifted.................298,306
Fluid............................... 511
Transmission
Automatic........................283,476
Fluid............................... 511
Maintenance.......................... 476
Manual.....................279,288,291,476
Shifting..........................282,291
548 INDEX

Transmitter, Garage Door Opener (HomeLinkt) . . 156
Tread Wear Indicators.................... 353
Trip Computer.......................... 149
Trip Odometer.......................199,207
Turn Signals...................139,196,495,499
UConnectt(Hands-Free Phone).............. 91
Underhood Fuses........................ 489
Uniform Tire Quality Grades................ 528
Universal Transmitter..................... 156
Variance, Compass....................... 155
Vehicle Identification Number (VIN)............ 7
Vehicle Loading......................344,381
Vehicle Modifications/Alterations.............. 7
Vehicle Storage......................... 493
Video Entertainment SystemŸ
(Rear Seat Video System).................. 251
Voltmeter............................. 196Warning Lights
(Instrument Cluster Description)............. 196
Warnings and Cautions..................... 6
Warranty Information..................... 526
Washers, Windshield..................142,463
Washing Vehicle......................... 484
Water
Driving Through...................... 315
Wheel Alignment and Balance............... 356
Wheel and Wheel Trim.................... 486
Wheel and Wheel Trim Care................ 486
Wheel Cover........................... 429
Wheel Mounting........................ 423
Wheel Nut Torque....................428,432
Wind Buffeting.......................34,166
Window Fogging........................ 269
Windows.............................. 32
Power............................... 32
Rear Sliding.......................... 183
INDEX 549
