2008 DODGE MAGNUM SRT windshield wipers

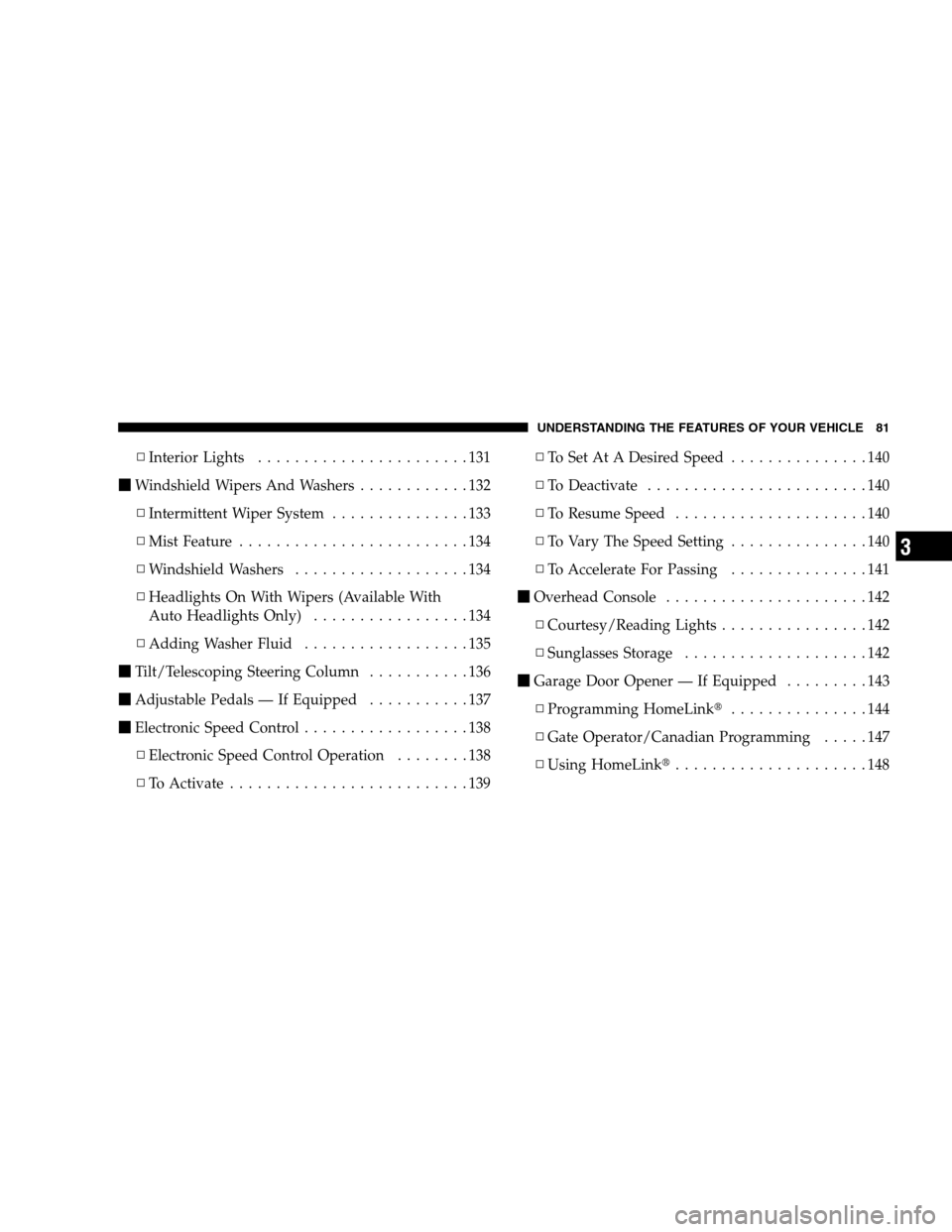

▫Interior Lights.......................131

Windshield Wipers And Washers............132
▫Intermittent Wiper System...............133
▫Mist Feature.........................134
▫Windshield Washers...................134
▫Headlights On With Wipers (Available With
Auto Headlights Only).................134
▫Adding Washer Fluid..................135

Tilt/Telescoping Steering Column...........136

Adjustable Pedals — If Equipped...........137

Electronic Speed Control..................138
▫Electronic Speed Control Operation........138
▫To Activate..........................139▫To Set At A Desired Speed...............140
▫To Deactivate........................140
▫To Resume Speed.....................140
▫To Vary The Speed Setting...............140
▫To Accelerate For Passing...............141

Overhead Console......................142
▫Courtesy/Reading Lights................142
▫Sunglasses Storage....................142

Garage Door Opener — If Equipped.........143
▫Programming HomeLink...............144
▫Gate Operator/Canadian Programming.....147
▫Using HomeLink.....................148
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81
3

because a door is open. This includes the glove box light.
To restore interior light operation, either turn the ignition
switch ON or cycle the light switch.
Dimmer Control
The dimmer control is part of the
HEADLIGHT switch and is located on
the left side of the instrument panel.
With the parking lights or headlights
on, rotating the dimmer control up-
ward will increase the brightness of
the instrument panel lights and, if so
equipped, the lighting in the door map pockets and
cupholders.
Dome Light Position
Rotate the dimmer control completely upward to the
second detent to turn on the interior lights. The interior
lights will remain on when the dimmer control is in this
position.
Interior Light Defeat (OFF)
Rotate the dimmer control to the extreme bottom OFF
position. The interior lights will remain off when the
doors are open.
Parade Mode (Daytime Brightness Feature)
Rotate the dimmer control upward to the first detent.
This feature brightens all text displays such as the
odometer, Electronic Vehicle Information Center (EVIC),
and radio when the parking lights or headlights are on.
WINDSHIELD WIPERS AND WASHERS
The multifunction lever operates the windshield
wipers and washer when the ignition switch is in
the ON position. The lever is located on the left
side of the steering column.
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Rotate the end of the multifunction lever to the first
detent past the intermittent settings for low speed wiper
operation, or to the second detent past the intermittent
settings for high speed wiper operation.
CAUTION!
Turn the windshield wipers off when driving
through an automatic car wash. Damage to the wind-
shield wipers may result if the WIPER switch is left
in any position other than OFF.
Intermittent Wiper System
Use the intermittent wiper when weather conditions
make a single wiping cycle with a variable pause be-
tween cycles desirable. Rotate the end of the multifunc-
tion lever to the first detent position, and then turn the
end of the lever to select the desired delay interval. There
are six delay settings, which allow you to regulate the
wipe interval from a minimum of one cycle every second
to a maximum of approximately 23 seconds between
cycles.
Windshield Wiper/Washer Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133
3

WARNING!
Sudden loss of visibility through the windshield
could lead to an accident. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use.
Mist Feature
Push the multifunction lever inward (toward the steering
column) to the first detent to activate a single wipe cycle
to clear off road mist or spray from a passing vehicle. The
wipers will continue to operate until you release the
lever.
Windshield Washers
To use the washer, push the multifunction lever inward
(toward the steering column) to the second detent and
hold it for as long as washer spray is desired.
If you activate the washer while the windshield wiper
control is in the delay range, the wipers will operate for
two wipe cycles after releasing the lever and then resume
the intermittent interval previously selected.
If you activate the washer while the windshield wiper is
turned off, the wipers will operate for three wipe cycles
and then turn off.
Headlights On with Wipers (Available with Auto
Headlights Only)
When this feature is active, the headlights will turn on
approximately 10 seconds after the wipers are turned ON
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

if the HEADLIGHT switch is placed in the AUTO posi-
tion. In addition, the headlights will turn off when the
wipers are turned OFF if they were turned ON by this
feature.
The Headlights On With Wipers feature can be enabled
or disabled. Refer to ”Headlights On with Wipers,”
under “Personal Settings (Customer Programmable Fea-
tures),” under “Electronic Vehicle Information Center” in
Section 4.
Adding Washer Fluid
The windshield washer fluid reservoir is located in the
front of the engine compartment. Be sure to check the
fluid level in the reservoir at regular intervals. Fill the
reservoir with windshield washer solvent (not radiator
antifreeze) and operate the system for a few seconds to
flush out the residual water.The fluid reservoir will hold nearly 1 gal (4 l) of washer
fluid when the message “Low Washer Fluid” appears in
the Electronic Vehicle Information Center (EVIC).
Washer Fluid Reservoir
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135
3

WARNING!
•Use only refrigerants and compressor lubricants
approved by the manufacturer for your air condi-
tioning system. Some unapproved refrigerants are
flammable and can explode, injuring you. Other
unapproved refrigerants or lubricants can cause
the system to fail, requiring costly repairs. Refer to
Section 3 of the Warranty Information book for
further warranty information.
•The air conditioning system contains refrigerant
under high pressure. To avoid risk of personal
injury or damage to the system, adding refrigerant
or any repair requiring lines to be disconnected
should be done by an experienced technician.
Refrigerant Recovery and Recycling
R-134a Air Conditioning Refrigerant is a hydrofluorocar-
bon (HFC) that is endorsed by the Environmental Pro-
tection Agency and is an ozone-saving product. How-
ever, the manufacturer recommends that air conditioning
service be performed by authorized dealers or other
service facilities using recovery and recycling equipment.
NOTE:Use only manufacturer approved A/C system
sealers, stop leak products, seal conditioners, compressor
oil, and refrigerants.
A/C Air Filter — If Equipped
The filter is located in the fresh air inlet under the hood,
behind a removable panel in the cowl on the passenger
side of the vehicle, next to the windshield wipers. When
installing a new filter, ensure its proper orientation. To
replace the filter, remove the access door in the cowl
screen by pressing the retaining clips. Slide the lid on the
filter adapter forward and down and remove the used
MAINTAINING YOUR VEHICLE 393
7

Steering Linkage
The tie rod end ball joints should be inspected for
external leakage or damage when other maintenance is
performed.
Body Lubrication
Locks and all body pivot points, including seat tracks,
door hinges, liftgate hinges, and hood hinges, should be
lubricated periodically to assure quiet, easy operation
and to protect against rust and wear. Prior to the appli-
cation of any lubricant, the parts concerned should be
wiped clean to remove dust and grit; after lubricating,
excess oil and grease should be removed. Particular
attention should also be given to hood latching compo-
nents to ensure proper function. When performing other
underhood services, the hood latch, release mechanism,
and safety catch should be cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a smallamount of a high quality lubricant such as MoparLock
Cylinder Lubricant or equivalent directly into the lock
cylinder.
Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield and rear window periodically with a sponge
or soft cloth and a mild nonabrasive cleaner. This will
remove accumulations of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield or rear window.
Avoid using the wiper blades to remove frost or ice from
the windshield or rear window. Keep the blade rubber
out of contact with petroleum products such as engine
oil, gasoline, etc.
MAINTAINING YOUR VEHICLE 395
7

Selection of Coolant (Antifreeze)......398,429,430
Corrosion Protection..................... 408
Cruise Control (Speed Control).............. 138
CruiseLight ........................... 175
CupHolder .........................155,412
Customer Assistance..................... 443
Data Recorder, Event...................... 61
Daytime Brightness, Interior Lights........... 132
Daytime Running Lights................... 129
Dealer Service.......................... 384
Defroster, Rear Window................... 271
Defroster, Windshield................ 76,259,265
Delay (Intermittent) Wipers..............133,269
Diagnostic System, Onboard................ 381
Digital Video Disc (DVD) Player..........205,225
Dimmer Switch, Headlight................. 130
Dipsticks
Oil (Engine).......................... 385Disabled Vehicle Towing................... 375
Disposal
Antifreeze (Engine Coolant)............... 401
Engine Oil........................... 387
Door Locks............................. 27
Door Locks, Automatic.................... 28
Door Opener, Garage..................... 143
DriveBelts ............................ 387
Driving
On Slippery Surfaces.................... 292
Through Flowing, Rising, or Shallow
Standing Water......................... 293
DVD Player (Video Entertainment System)...... 247
Electric Remote Mirrors.................... 85
Electrical Power Outlets................... 153
Electronic Brake Control System............. 300
Electronic Power Distribution Center (Fuses).... 413
Electronic Speed Control (Cruise Control)...... 138
456 INDEX
