procedure. This procedure consists of programming a
blank fob to the vehicle electronics. A blank fob is one
that has never been programmed.
NOTE:When having the Sentry KeyImmobilizer
System serviced, bring all vehicle fobs with you to the
authorized dealer.
Customer Sentry Key(Fob) Programming
If you have two valid Sentry Keys, you can program
new Sentry Keysto the system by performing the
following steps:
1. Insert the first valid key into the ignition switch and
turn the ignition switch to the ON position for at least
three seconds, but no longer than 15 seconds. Turn the
ignition switch to the OFF position and remove the first
key.
2. Insert the second valid key and turn the ignition
switch to the ON position within 15 seconds. After 10seconds, a chime will sound and the Vehicle Security
Alarm Indicator Light will begin to flash. Turn the
ignition switch OFF and remove the second key.
3. Insert a blank Sentry Keyinto the ignition switch and
turn the ignition switch to the ON position within 60
seconds. After 10 seconds, a single chime will sound and
the Vehicle Security Alarm Indicator Light will stop
flashing, turn on again for three seconds, and then turn
off.
The new Sentry Keyis programmed.The Keyless Entry
Transmitter will also be programmed during this pro-
cedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key, contact your
authorized dealer for details.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2

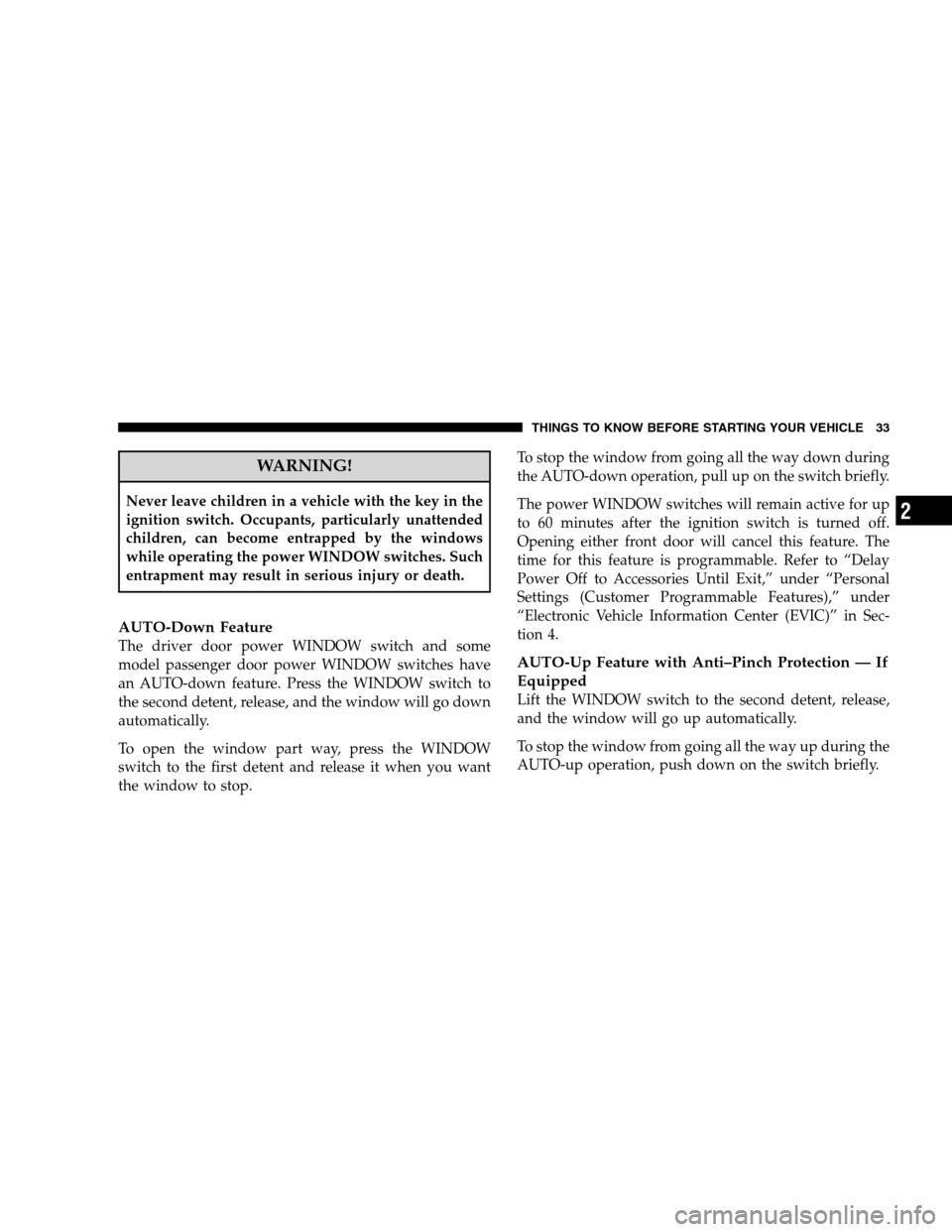

WARNING!
Never leave children in a vehicle with the key in the
ignition switch. Occupants, particularly unattended
children, can become entrapped by the windows
while operating the power WINDOW switches. Such
entrapment may result in serious injury or death.
AUTO-Down Feature
The driver door power WINDOW switch and some
model passenger door power WINDOW switches have
an AUTO-down feature. Press the WINDOW switch to
the second detent, release, and the window will go down
automatically.
To open the window part way, press the WINDOW
switch to the first detent and release it when you want
the window to stop.To stop the window from going all the way down during
the AUTO-down operation, pull up on the switch briefly.
The power WINDOW switches will remain active for up
to 60 minutes after the ignition switch is turned off.
Opening either front door will cancel this feature. The
time for this feature is programmable. Refer to “Delay
Power Off to Accessories Until Exit,” under “Personal
Settings (Customer Programmable Features),” under
“Electronic Vehicle Information Center (EVIC)” in Sec-
tion 4.
AUTO-Up Feature with Anti–Pinch Protection — If
Equipped
Lift the WINDOW switch to the second detent, release,
and the window will go up automatically.
To stop the window from going all the way up during the
AUTO-up operation, push down on the switch briefly.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33
2
To close the window part way, lift the WINDOW switch
to the first detent and release it when you want the
window to stop.
The power WINDOW switches will remain active for up
to 60 minutes after the ignition switch is turned off.
Opening either front door will cancel this feature. The
time for this feature is programmable. Refer to “Delay
Power Off to Accessories Until Exit,” under “Personal
Settings (Customer Programmable Features),” under
“Electronic Vehicle Information Center (EVIC)” in Sec-
tion 4.
NOTE:
•If the window runs into any obstacle during auto-
closure, it will reverse direction and then stop. Remove
the obstacle and use the WINDOW switch again to
close the window.
•Any impact due to rough road conditions may trigger
the auto-reverse function unexpectedly during auto-
closure. If this happens, pull the switch lightly to the
first detent and hold to close the window manually.
WARNING!
There is no anti-pinch protection when the window
is almost closed. Be sure to clear all objects from the
window before closing.
Window LOCKOUT Switch
The window LOCKOUT switch on the driver’s door trim
panel allows you to disable the window controls on the
passenger doors. To disable the window controls, press
and release the window LOCKOUT button (setting it in
the down position). To enable the window controls, press
and release the window LOCKOUT button again (setting
it in the up position).
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Research has shown that seat belts save lives, and they
can reduce the seriousness of injuries in a collision. Some
of the worst injuries happen when people are thrown
from the vehicle. Seat belts reduce the possibility of
ejection and the risk of injury caused by striking the
inside of the vehicle.Everyonein a motor vehicle should
be belted at all times.
Lap/Shoulder Belts
All seating positions in your vehicle are equipped with
lap/shoulder belts.
The belt webbing retractor is designed to lock during
very sudden stops or impacts. This feature allows the
shoulder part of the belt to move freely with you under
normal conditions. However, in a collision, the belt will
lock and reduce your risk of striking the inside of the
vehicle or being thrown out.
WARNING!
•It is extremely dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding in these
areas are more likely to be seriously injured or killed.
•Do not allow people to ride in any area of your vehicle that
is not equipped with seats and seat belts.
•Be sure everyone in your vehicle is in a seat and using a seat
belt properly.
•Wearing a seat belt incorrectly is dangerous. Seat belts are
designed to go around the large bones of your body. These
are the strongest parts of your body and can take the forces
of a collision best.
•Wearing your belt in the wrong place could make your
injuries in a collision much worse. You might suffer internal
injuries, or you could even slide out of part of the belt.
Follow these instructions to wear your seat belt safely and to
keep your passengers safe, too.
•Two people should never be belted into a single seat belt.
People belted together can crash into one another in an
accident, hurting one another badly. Never use a lap/
shoulder belt or a lap belt for more than one person, no
matter what their size. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 392
WARNING!
•A belt that is buckled into the wrong buckle will not
protect you properly. The lap portion could ride too high
on your body, possibly causing internal injuries. Always
buckle your belt into the buckle nearest you.
•A belt that is too loose will not protect you as well. In a
sudden stop, you could move too far forward, increasing
the possibility of injury. Wear your seat belt snugly.
•A belt that is worn under your arm is very dangerous.
Your body could strike the inside surfaces of the vehicle in
a collision, increasing head and neck injury. A belt worn
under the arm can cause internal injuries. Ribs aren’t as
strong as shoulder bones. Wear the belt over your shoulder
so that your strongest bones will take the force in a
collision.
•A shoulder belt placed behind you will not protect you
from injury during a collision. You are more likely to hit
your head in a collision if you do not wear your shoulder
belt. The lap and shoulder belt are meant to be used
together.
Connecting Latch Plate To Buckle
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41
2
Enhanced Accident Response System
In the event of an impact that causes airbag deployment,
with the vehicle stopped, and the vehicle communication
network intact, and the power intact, the Enhanced
Accident Response System performs the following func-
tions:
•Cuts off fuel to the engine.
•Flashes hazard lights.
•Turns on the interior lights, which remain on as long as
the battery has power or until the ignition key is
removed.
•Unlocks the doors automatically.
NOTE:The interior lights can only be deactivated if the
key is removed from the ignition switch or the vehicle is
driven.
Maintaining Your Airbag System
WARNING!
•Modifications to any part of the airbag system
could cause it to fail when you need it. You could
be injured because the airbags are not there to
protect you. Do not modify the components or
wiring, including adding any kind of badges or
stickers to the steering wheel hub trim cover or the
upper passenger side of the instrument panel. Do
not modify the front bumper, vehicle body struc-
ture, or frame.
•You need proper knee impact protection in a
collision. Do not mount or locate any aftermarket
equipment on or behind the knee impact bolster.
•It is dangerous to try to repair any part of the
airbag system yourself. Be sure to tell anyone who
works on your vehicle that it has airbags.
60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Here are some tips on getting the most out of your child
restraint:
•Before buying any restraint system, make sure that it
has a label certifying that it meets all applicable Safety
Standards. We also recommend that you make sure
that you can install the child restraint in the vehicle
where you will use it before you buy it.
•The restraint must be appropriate for your child’s
weight and height. Check the label on the restraint for
weight and height limits.
•Carefully follow the instructions that come with the
restraint. If you install the restraint improperly, it may
not work when you need it.
•Buckle the child into the seat according to the child
restraint manufacturer’s directions.
•When your child restraint is not in use, secure it in the
vehicle with the seat belt or remove it from the vehicle.Do not leave it loose in the vehicle. In a sudden stop or
collision, it could strike the occupants or seatbacks and
cause serious personal injury.
LATCH — Child Seat Anchorage System (Lower
Anchors and Tether for CHildren)
Your vehicle’s rear seat is equipped with the child
restraint anchorage system called LATCH. The LATCH
system provides for the installation of the child restraint
without using the vehicle’s seat belts, instead securing
the child restraint using lower anchorages and upper
tether straps from the child restraint to the vehicle
structure.
LATCH-compatible child restraint systems are now avail-
able. However, because the lower anchorages are to be
introduced over a period of years, child restraint systems
having attachments for those anchorages will continue to
have features for installation using the vehicle’s seat
belts. Child restraints having tether straps and hooks for
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 67
2
7. Electronic Throttle Control (ETC) Light
This light will turn on briefly as a bulb check
when the ignition switch is turned ON. This
light will also turn on while the engine is
running if there is a problem with the Elec-
tronic Throttle Control system.
If the light comes on while the engine is running, safely
bring the vehicle to a complete stop as soon as possible,
place the shift lever in PARK, and cycle the ignition key.
The light should turn off. If the light remains lit with the
engine running, your vehicle will usually be drivable.
However, see your authorized dealer for service as soon
as possible.If the light is flashing when the engine is running,
immediate service is required. In this case, you may
experience reduced performance, an elevated/rough idle
or engine stall, and your vehicle may require towing.
Also, have the system checked by an authorized dealer if
the light does not come on during starting.
8. Temperature Gauge
The temperature gauge shows engine coolant tempera-
ture. Any reading within the normal range indicates that
the engine cooling system is operating satisfactorily.
The gauge pointer will likely indicate a higher tempera-
ture when driving in hot weather, up mountain grades,
or when towing a trailer. It should not be allowed to
exceed the upper limits of the normal operating range.
176 UNDERSTANDING YOUR INSTRUMENT PANEL
