2008 DODGE MAGNUM SRT check engine light

Have the transmission checked at your authorized dealer
as soon as possible.
If the problem has been momentary, the transmission can
be reset to regain all forward gears.
Permanent Transmission Limp Home Mode
Permanent Limp Home Mode will be activated if the
transmission enters temporary Limp Home Mode three
times. Follow the reset procedure described under “Tem-
porary Transmission Limp Home Mode” in this section.
In Permanent Limp Home Mode, PARK, REVERSE, and
NEUTRAL will continue to operate. Second gear will
operate in the DRIVE position. The Malfunction Indicator
Light (MIL) may illuminate.
AUTOSTICK
Autostickis a driver-interactive transmission that offers
manual gear shifting to provide you with more control of
the vehicle. Autostickallows you to maximize engine
braking, eliminate undesirable upshifts and downshifts,
and improve overall vehicle performance. This system
can also provide you with more control during passing,
city driving, cold slippery conditions, mountain driving,
trailer towing, and many other situations.
AutostickOperation
By placing the shift lever in the DRIVE position, it can be
moved from side to side. This allows the driver to select
a higher or lower range of gears. Moving the shift lever to
the Left (-) triggers a downshift and to the Right (+) an
upshift. The gear position will display in the instrument
cluster on the transmission range indicator.
290 STARTING AND OPERATING

BRAKE SYSTEM
Your vehicle is equipped with dual hydraulic
brake systems. If either of the two hydraulic
systems loses normal capability, the remaining
system will still function. There will be some
loss of overall braking effectiveness. This may be evident
by increased pedal travel during application, greater
pedal force required to slow or stop, and potential
activation of the Brake Warning Light.
In the event power assist is lost for any reason (for
example, repeated brake applications with the engine off)
the brakes will still function. The effort required to brake
the vehicle will be much greater than that required with
the power system operating.
Anti-Lock Brake System
The Anti-Lock Brake System provides increased vehicle
stability and brake performance under most braking
conditions. The system automatically “pumps” the
brakes during severe braking conditions to prevent
wheel lock-up.
The electronic brake force distribution (EBD) prevents the
rear wheels from over-braking and provides greater
control of available braking forces applied to the rear
axle.
When the vehicle is driven over 7 mph (11 km/h), you
may also hear a slight clicking sound as well as some
related motor noises. These noises are the system per-
forming its self check cycle to ensure that the ABS system
is working properly. This self check occurs each time the
vehicle is started and accelerated past 7 mph (11 km/h).
STARTING AND OPERATING 297
5

Indicator Light should go out. However, if the light
remains on, have the ESP and BAS checked at your
authorized dealer as soon as possible.
ESP/BAS Malfunction Indicator Light and
ESP/TCS Indicator Light
The Malfunction Indicator Light for the ESP is
combined with the BAS indicator. The yellow
“ESP/BAS Malfunction Indicator Light” and
the yellow “ESP/TCS Indicator Light” in the
instrument cluster both come on when the ignition
switch is turned to the ON position. They should go out
with the engine running.
The system will turn the “ESP/BAS Malfunction Indica-
tor Light” on continuously while the engine running if it
detects a malfunction in either the ESP or the BAS or
both. If the light remains on after several ignition cycles
and you have driven the vehicle several miles (kilome-
ters) at speeds greater than 30 mph (48 km/h), and theESP is synchronized (refer to Synchronizing ESP), see
your authorized dealer as soon as possible to have the
problem diagnosed and corrected.
NOTE:
•TheESP/TCS Indicator Lightand theESP/BAS
Malfunction Indicator Lightwill turn on momentarily
each time the ignition switch is turned ON.
•Each time the ignition is turned ON, the ESP System
will be on even if it was turned off previously.
•The ESP Control System will make buzzing or clicking
sounds when it is active. This is normal; the sounds
will stop when ESP becomes inactive following the
maneuver that caused the ESP activation.
STARTING AND OPERATING 307
5

WARNING!
•Never have any smoking materials lit in or near
the vehicle when the gas cap is removed or the
tank filled.
•Never add fuel to the vehicle when the engine is
running.
•A fire may result if gasoline is pumped into a
portable container that is inside of a vehicle. You
could be burned. Always place gas containers on
the ground while filling.
NOTE:
•Tighten the gas cap until you hear a “clicking” sound.
This is an indication that the gas cap is tightenedproperly. The Malfunction Indicator Light in the in-
strument cluster may turn on if the gas cap is not
secured properly. Make sure that the gas cap is tight-
ened each time the vehicle is refueled.
•When the fuel nozzle “clicks” or shuts off, the fuel
tank is full.
Loose Fuel Filler Cap Message
If the vehicle diagnostic system determines that the fuel
filler cap is loose, improperly installed, or damaged, a
“Check Gascap” message will display in the Electronic
Vehicle Information Center (EVIC). If this occurs, tighten
the fuel filler cap properly and press the TRIP ODOM-
ETER button to turn off the message. If the problem
continues, the message will appear the next time the
vehicle is started.
A loose, improperly installed, or damaged fuel filler cap
may also turn on the Malfunction Indicator Light (MIL).
Refer to “Onboard Diagnostic System” in Section 7.
STARTING AND OPERATING 343
5

Master Cylinder - Brake Fluid Level Check
Check the fluid level in the master cylinder immediately
if the brake system warning light indicates system fail-
ure.
Check the fluid level in the master cylinder when per-
forming underhood services.
Clean the top of the master cylinder area before removing
the cap. Add fluid to bring the level up to the top of the
“FULL” mark on the side of the master cylinder reservoir.
Overfilling of fluid is not recommended because it may
cause leaking in the system.
Add enough fluid to bring the level up to the require-
ments described on the brake fluid reservoir. With disc
brakes, fluid level can be expected to fall as the brake
pads wear. However, low fluid level may be caused by a
leak and a checkup may be needed.Use only manufacturer’s recommended brake fluid. Re-
fer to “Fluids, Lubricants, and Genuine Parts” in this
section for the correct fluid type.
WARNING!
•Overfilling the brake fluid reservoir can result in
spilling brake fluid on hot engine parts and the
brake fluid catching fire.
•Use of a brake fluid that may have a lower initial
boiling point, or is unidentified as to specification,
may result in sudden brake failure during hard
prolonged braking. You could have an accident.
Use only brake fluid that has been in a tightly closed
container to avoid contamination from foreign matter or
moisture.
MAINTAINING YOUR VEHICLE 405
7

At Each Stop for Fuel
•Check the engine oil level. Refer to “Engine Oil” under
“Maintenance Procedures” in Section 7.
•Check the windshield washer solvent and add if
required.
Once a Month
•Check tire pressure and look for unusual wear or
damage.
•Inspect the battery, and clean and tighten the terminals
as required.
•Check the fluid levels of coolant reservoir and brake
master cylinder, and add as needed.
•Check all lights and other electrical items for correct
operation.
At Each Oil Change
•Change the engine oil filter.
•Inspect the brake hoses and lines.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
MAINTENANCE SCHEDULES 435
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

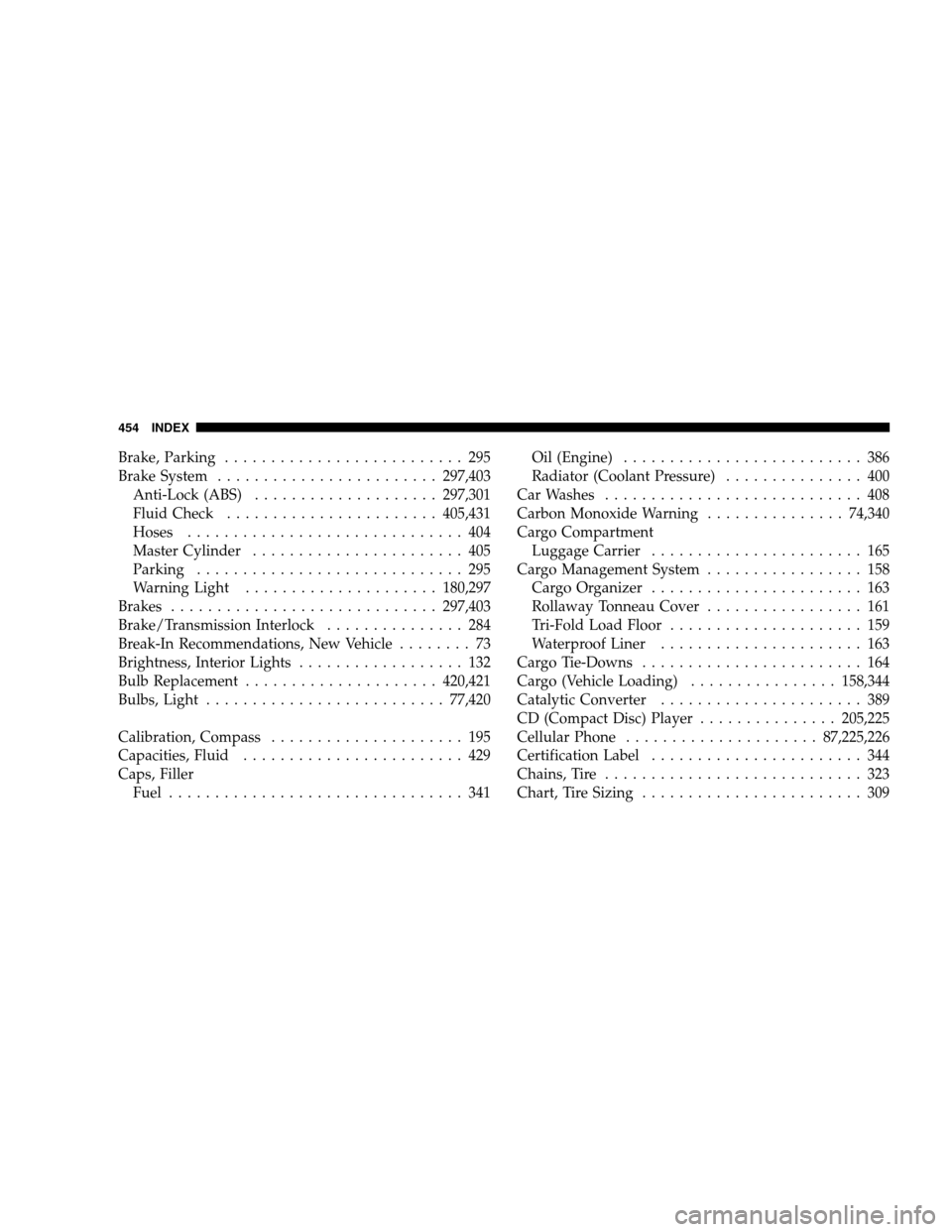

Brake, Parking.......................... 295
Brake System........................297,403
Anti-Lock (ABS)....................297,301
Fluid Check.......................405,431
Hoses.............................. 404
Master Cylinder....................... 405
Parking............................. 295
Warning Light.....................180,297
Brakes.............................297,403
Brake/Transmission Interlock............... 284
Break-In Recommendations, New Vehicle........ 73
Brightness, Interior Lights.................. 132
Bulb Replacement.....................420,421
Bulbs,Light .......................... 77,420
Calibration, Compass..................... 195
Capacities, Fluid........................ 429
Caps, Filler
Fuel................................ 341Oil (Engine).......................... 386
Radiator (Coolant Pressure)............... 400
Car Washes............................ 408
Carbon Monoxide Warning............... 74,340
Cargo Compartment
Luggage Carrier....................... 165
Cargo Management System................. 158
Cargo Organizer....................... 163
Rollaway Tonneau Cover................. 161
Tri-Fold Load Floor..................... 159
Waterproof Liner...................... 163
Cargo Tie-Downs........................ 164
Cargo (Vehicle Loading)................158,344
Catalytic Converter...................... 389
CD (Compact Disc) Player...............205,225
Cellular Phone..................... 87,225,226
Certification Label....................... 344
Chains, Tire............................ 323
Chart, Tire Sizing........................ 309
454 INDEX

Check Engine Light (Malfunction
Indicator Light)......................... 382
Checking Your Vehicle For Safety............. 74
Checks, Safety........................... 74
Child Restraint.................... 63,65,69,70
Child Restraint Tether Anchors............. 67,69
Child Safety Locks........................ 30
Clean Air Gasoline....................... 338
Cleaning
Wheels............................. 410
Windshield Wiper Blades................. 395
Climate Control......................... 258
Clock ........................207,210,226,231
CoinHolder ........................... 157
Cold Weather Operation................... 279
Compact Disc (CD) Maintenance............. 257
Compass.............................. 195
Compass Calibration..................... 195
Compass Variance....................... 196Computer, Trip/Travel.................... 189
Connector
UCI ................................ 251
Universal Consumer Interface (UCI)......... 251
Console, Floor.......................... 157
Console, Overhead....................... 142
Contract, Service........................ 445
Converter, Catalytic...................... 389
Coolant Pressure Cap (Radiator Cap).......... 400
Cooling System......................... 397
Adding Coolant (Antifreeze).............. 399
Coolant Capacity...................... 429
Coolant Level......................398,401
Disposal of Used Coolant................ 401
Drain, Flush, and Refill.................. 398
Inspection........................... 401
Points to Remember.................... 401
Pressure Cap......................... 400
Radiator Cap......................... 400
INDEX 455
10
