2008 DODGE GRAND CARAVAN wheel torque

to the ABS system is required. Consult with your autho-
rized dealer service center as soon as possible.
ELECTRONIC BRAKE CONTROL SYSTEMS
Your vehicle is equipped with an advanced electronic
brake control system that includes TCS (Traction Control
System), BAS (Brake Assist System) and ESP (Electronic
Stability Program). These systems complement the Anti-
Lock Brake System (ABS) by optimizing the vehicle
braking capability during emergency braking maneu-
vers.
Traction Control System (TCS)
This system monitors the amount of wheel spin of each of
the driven wheels. If wheel spin is detected, brake
pressure is applied to the slipping wheel(s) and engine
power is reduced to provide enhanced acceleration and
stability. A feature of the TCS system functions similar to
a limited slip differential and controls the wheel spin
across a driven axle. If one wheel on a driven axle isspinning faster than the other, the system will apply the
brake of the spinning wheel. This will allow more engine
torque to be applied to the wheel that is not spinning.
This feature remains active even if the ESP is in the
ªPartial Offº mode.
The Traction Control System (TCS) Indicator
Light, located in the instrument cluster, starts
to flash as soon as the tires lose traction and the
wheels begin to spin. This indicates that the
TCS is active. If the indicator light flashes during accel-
eration, ease up on the accelerator and apply as little
throttle as possible. Be sure to adapt your speed and
driving to the prevailing road conditions, and do not
switch off the ESP or TCS.
340 STARTING AND OPERATING

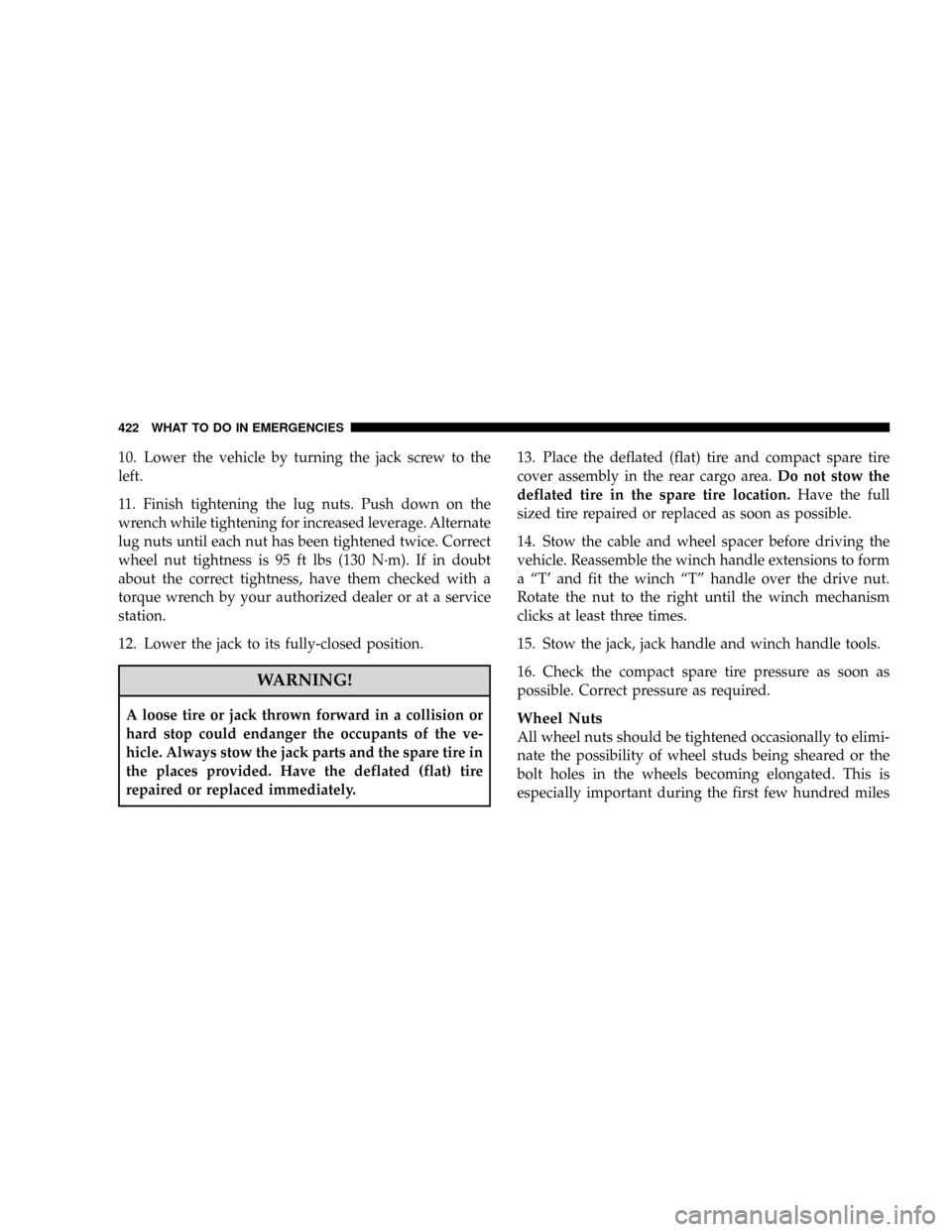

10. Lower the vehicle by turning the jack screw to the
left.
11. Finish tightening the lug nuts. Push down on the
wrench while tightening for increased leverage. Alternate
lug nuts until each nut has been tightened twice. Correct
wheel nut tightness is 95 ft lbs (130 N´m). If in doubt
about the correct tightness, have them checked with a
torque wrench by your authorized dealer or at a service
station.
12. Lower the jack to its fully-closed position.
WARNING!
A loose tire or jack thrown forward in a collision or
hard stop could endanger the occupants of the ve-
hicle. Always stow the jack parts and the spare tire in
the places provided. Have the deflated (flat) tire
repaired or replaced immediately.13. Place the deflated (flat) tire and compact spare tire
cover assembly in the rear cargo area.Do not stow the
deflated tire in the spare tire location.Have the full
sized tire repaired or replaced as soon as possible.
14. Stow the cable and wheel spacer before driving the
vehicle. Reassemble the winch handle extensions to form
a ªT' and fit the winch ªTº handle over the drive nut.
Rotate the nut to the right until the winch mechanism
clicks at least three times.
15. Stow the jack, jack handle and winch handle tools.
16. Check the compact spare tire pressure as soon as
possible. Correct pressure as required.Wheel Nuts
All wheel nuts should be tightened occasionally to elimi-
nate the possibility of wheel studs being sheared or the
bolt holes in the wheels becoming elongated. This is
especially important during the first few hundred miles
422 WHAT TO DO IN EMERGENCIES

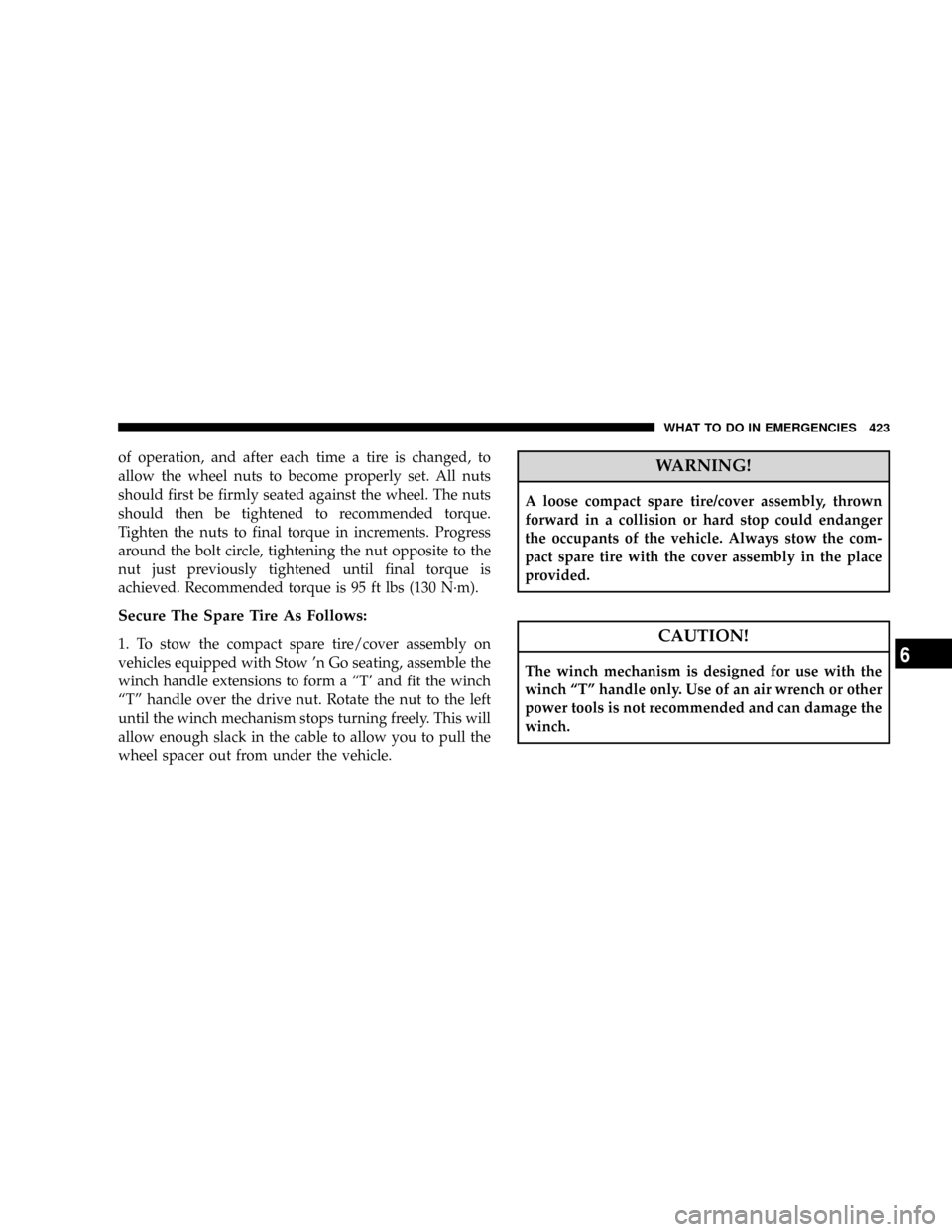

of operation, and after each time a tire is changed, to
allow the wheel nuts to become properly set. All nuts
should first be firmly seated against the wheel. The nuts
should then be tightened to recommended torque.
Tighten the nuts to final torque in increments. Progress
around the bolt circle, tightening the nut opposite to the
nut just previously tightened until final torque is
achieved. Recommended torque is 95 ft lbs (130 N´m).
Secure The Spare Tire As Follows:
1. To stow the compact spare tire/cover assembly on
vehicles equipped with Stow 'n Go seating, assemble the
winch handle extensions to form a ªT' and fit the winch
ªTº handle over the drive nut. Rotate the nut to the left
until the winch mechanism stops turning freely. This will
allow enough slack in the cable to allow you to pull the
wheel spacer out from under the vehicle.
WARNING!
A loose compact spare tire/cover assembly, thrown
forward in a collision or hard stop could endanger
the occupants of the vehicle. Always stow the com-
pact spare tire with the cover assembly in the place
provided.
CAUTION!
The winch mechanism is designed for use with the
winch ªTº handle only. Use of an air wrench or other
power tools is not recommended and can damage the
winch.
WHAT TO DO IN EMERGENCIES 423
6

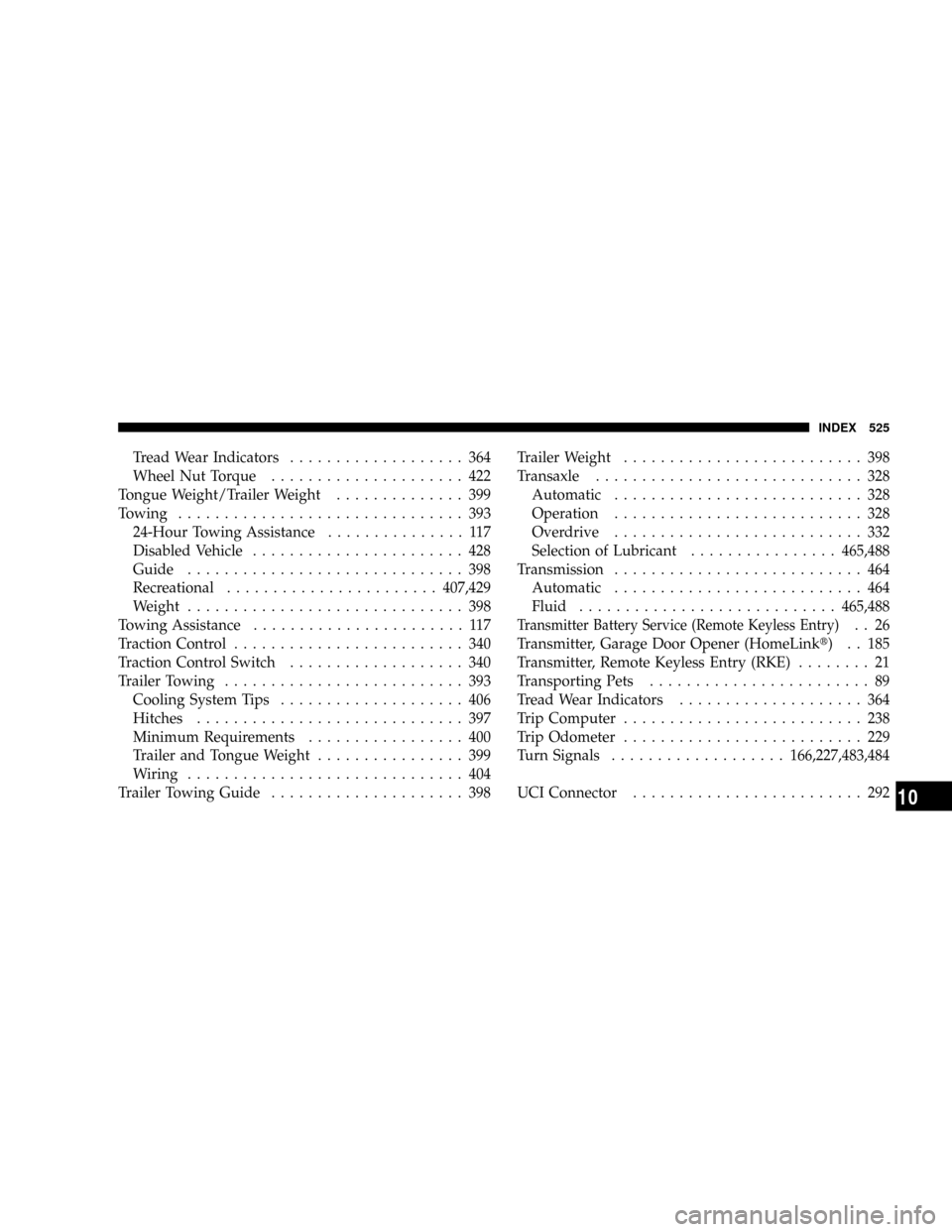

Tread Wear Indicators................... 364
Wheel Nut Torque..................... 422
Tongue Weight/Trailer Weight.............. 399
Towing............................... 393
24-Hour Towing Assistance............... 117
Disabled Vehicle....................... 428
Guide.............................. 398
Recreational.......................407,429
Weight.............................. 398
Towing Assistance....................... 117
Traction Control......................... 340
Traction Control Switch................... 340
Trailer Towing.......................... 393
Cooling System Tips.................... 406
Hitches............................. 397
Minimum Requirements................. 400
Trailer and Tongue Weight................ 399
Wiring.............................. 404
Trailer Towing Guide..................... 398Trailer Weight.......................... 398
Transaxle............................. 328
Automatic........................... 328
Operation........................... 328
Overdrive........................... 332
Selection of Lubricant................465,488
Transmission........................... 464
Automatic........................... 464
Fluid............................465,488
Transmitter Battery Service (Remote Keyless Entry).. 26
Transmitter, Garage Door Opener (HomeLinkt) . . 185
Transmitter, Remote Keyless Entry (RKE)........ 21
Transporting Pets........................ 89
Tread Wear Indicators.................... 364
Trip Computer.......................... 238
Trip Odometer.......................... 229
Turn Signals...................166,227,483,484
UCI Connector......................... 292
INDEX 525
10

UConnectŸ (Hands-Free Phone)..........104,283
Uniform Tire Quality Grades................ 505
Universal Consumer Interface (UCI) Connector . . . 292
Universal Joints......................... 454
Universal Serial Bus (USB) Port...........280,283
Universal Transmitter..................... 185
Unleaded Gasoline....................... 377
Upholstery Care........................ 470
USB Port...........................280,283
Vanity Mirrors.......................... 101
Variance, Compass....................240,247
Vehicle Certification Label................. 389
Vehicle Identification Number (VIN)............ 6
Vehicle Loading...................354,388,391
Vehicle Modifications/Alterations.............. 7
Vehicle Storage.......................318,481
Video Entertainment System
(Rear Seat Video System).................. 297Warning Flasher, Hazard.................. 410
Warning Lights (Instrument Cluster Description)... 226
Warnings and Cautions..................... 6
Warranty Information..................... 502
Washer, Adding Fluid..................... 455
Washing Vehicle......................... 468
Water
Driving Through...................... 346
Wheel Alignment and Balance............... 366
Wheel and Wheel Trim.................... 470
Wheel and Wheel Trim Care................ 470
Wheel Bearings......................... 467
Wheel Nut Torque....................... 422
Wind Buffeting.......................41,194
Window Fogging........................ 318
Windows.............................. 36
Power............................... 37
Rear Vent............................ 36
Windshield Washers...................168,455
526 INDEX
