2008 DODGE CHALLENGER radio controls

Ignition Key Removal
Place the shift lever in PARK. Turn the key to the LOCK
position and then remove the key.
NOTE:The power window switches, radio, power
sunroof (if equipped), and ignition-powered power out-
lets will remain active for up to 60 minutes after the
ignition switch is turned to the LOCK position. Opening
either door will cancel this feature. The time for this
feature is programmable. Refer to “Delay Power Off to
Accessories Until Exit,” under “Personal Settings (Cus-
tomer Programmable Features),” under “Electronic Ve-
hicle Information Center (EVIC)” in Section 4.WARNING!
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don’t leave the key in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
ProCarManuals.com

▫Operating Instructions - Satellite Mode ......197
▫ Operating Instructions - Hands-Free Phone
(If Equipped) ........................199

Kicker High Performance Sound System With
Driver-Selectable Surround (DSS) –
If Equipped ...........................200

Remote Sound System Controls .............201

CD/DVD Disc Maintenance ...............202

Radio Operation And Cellular Phones ........202

Climate Controls .......................203
▫ Manual Air Conditioning And Heating
System .............................203
▫ Operating Tips .......................206
UNDERSTANDING YOUR INSTRUMENT PANEL 147
4
ProCarManuals.com

•Surround Sound Modes (If Equipped with Driver-
Selectable Surround [DSS])
•Performance Features
The system allows the driver to select information by
pressing the following buttons mounted on the steering
wheel.
MENU Button Press and release the MENU button and the
mode displayed will change between Trip
Functions, Performance Pages, Navigation (If
Equipped), System Warnings, System Status,
Personal Settings, Telephone (If Equipped), and Sur-
round Sound (If Equipped).
FUNCTION SELECT Button Press the FUNCTION SELECT button to accept
a selection. The FUNCTION SELECT button also functions as a remote sound system control. Refer to
“Remote Sound System Controls” in this section.
SCROLL Button
Press the SCROLL button to scroll through Trip
Functions, Performance Pages, Navigation (If
Equipped), System Status Messages, and Per-
sonal Settings (Customer Programmable Fea-
tures). The SCROLL button also functions as a remote
sound system control. Refer to “Remote Sound System
Controls” in this section.
AUDIO MODE Button Press the AUDIO MODE button to select the
Compass/Temp/Audio screen. Along with
compass reading and outside temperature, this
screen will display radio and media mode
information depending on which radio is in the vehicle.
Refer to “Remote Sound System Controls” in this section.
160 UNDERSTANDING YOUR INSTRUMENT PANEL
ProCarManuals.com

NOTE:The radio, steering wheel radio controls, and
6-disc CD/DVD changer (if equipped) will remain active
for up to 60 minutes after the ignition switch is turned
OFF. Opening either door will cancel this feature. The
time is programmable. Refer to “Delay Power Off to
Accessories Until Exit,” under “Personal Settings (Cus-
tomer Programmable Features),” under “Electronic Ve-
hicle Information Center (EVIC)” in Section 4.

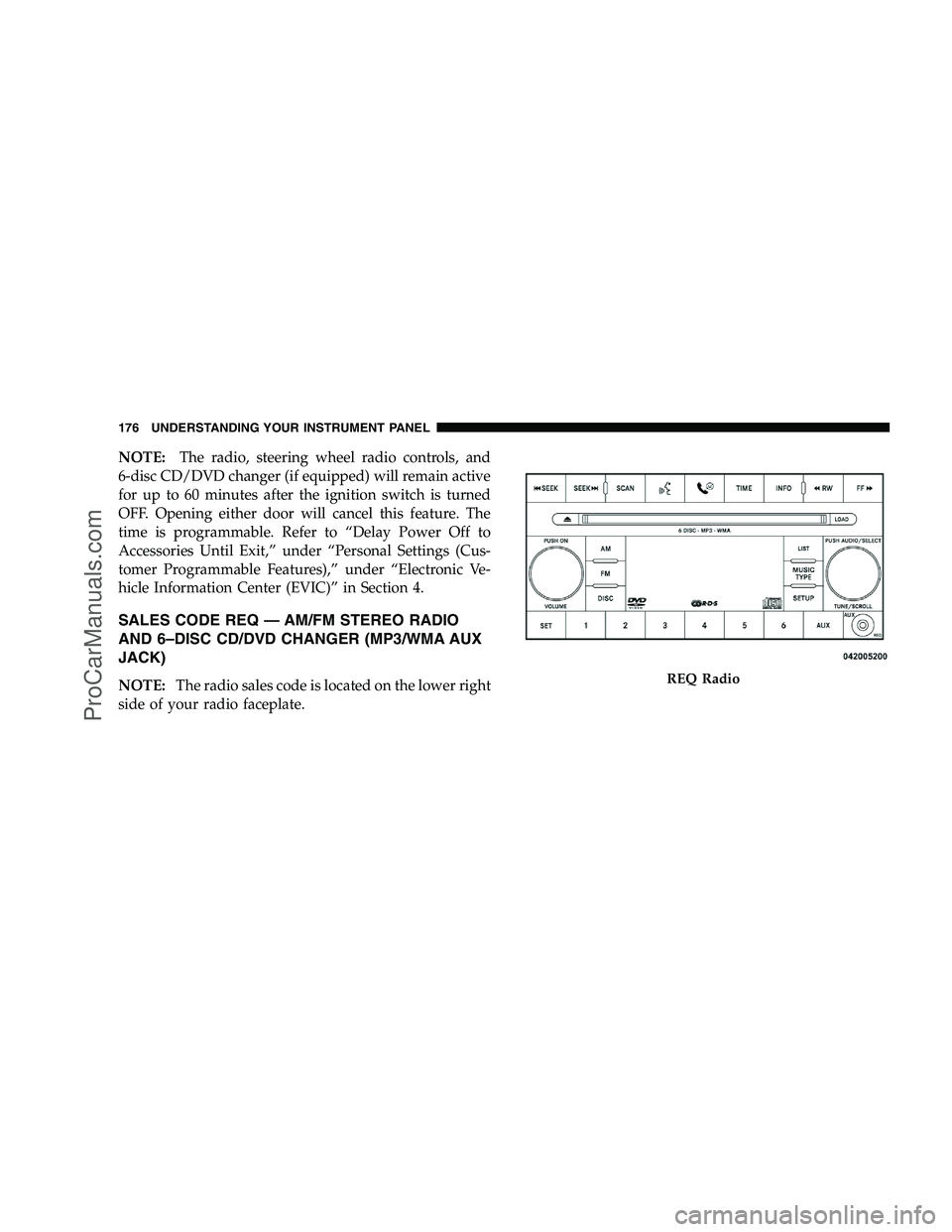

SALES CODE REQ — AM/FM STEREO RADIO
AND 6–DISC CD/DVD CHANGER (MP3/WMA AUX
JACK)
NOTE: The radio sales code is located on the lower right
side of your radio faceplate.REQ Radio
176 UNDERSTANDING YOUR INSTRUMENT PANEL
ProCarManuals.com

NOTE:If your vehicle is not equipped with UConnect ,
the unit will respond with a “Not Equipped With
UConnect ” message when selecting controls related to
this feature.
A 6.5 in (16.5 cm) touch screen allows easy menu selec-
tion, while the Advanced Voice Dialog System recognizes
more than 1,000 words for audio, navigation, entertain-
ment, and hands-free mobile phone use.
The satellite navigation capability combines a Global-
Positioning System (GPS)-based navigation system with
an integrated color screen to provide maps, turn identi-
fication, selection menus, and instructions for selecting a
variety of destinations and routes.
A shared HDD for the navigation system, the database,
and other radio features allows uploads of music and
photos from CDs or through the USB port. The Gracenote
database finds the artist, track, and title for the music. Other special features include direct tune, music type
selections, traffic messaging (optional), easy store presets,
backup camera display for vehicles equipped with a
backup camera, and on some models, a dual display
screen operation. Refer to your “Navigation User’s
Manual” for detailed operating instructions.
Operating Instructions — Satellite Radio
Refer to your “Navigation User’s Manual” for detailed
operating instructions.
Operating Instructions — Hands-Free
Communication (UConnect
) (If Equipped)
Refer to your “Navigation User’s Manual” for detailed
operating instructions.
192 UNDERSTANDING YOUR INSTRUMENT PANEL
ProCarManuals.com

REMOTE SOUND SYSTEM CONTROLS
The remote sound system controls are located on the
surface of the steering wheel at the 3 and 9 o’clock
positions.
Vehicles equipped with steering wheel-mounted buttons
are also equipped with the Electronic Vehicle Information
Center (EVIC). The EVIC features a driver-interactive
display. This is located in the instrument cluster below
the speedometer.
VOLUME ButtonThe VOLUME button controls the sound level
of the sound system. Press the top of the
VOLUME button to increase the sound level.
Press the bottom of the VOLUME button to
decrease the sound level. AUDIO MODE Button
Press the AUDIO MODE button to select the
Compass/Temp/Audio screen. This screen
displays radio and media mode information
depending on which radio is in the vehicle.
If the Compass/Temp/Audio screen is already displayed
when the AUDIO MODE button is pressed, then the
mode will change (i.e., from AM to FM, to Media mode,
etc., depending on which radio is in the vehicle).
FUNCTION SELECT Button When the EVIC is in the Compass/Temp/
Audio screen, press the FUNCTION SELECT
button to operate various radio, media, and
Universal Customer Interface (UCI) functions
(i.e., advance presets, select next folder, jump to or start
playing songs in playlists, etc., depending on which radio
is in the vehicle and if equipped with UCI).
UNDERSTANDING YOUR INSTRUMENT PANEL 201
4
ProCarManuals.com

Keyless Go
This function allows the driver to
operate the ignition switch with
the push of a button, as long as the
ENGINE START/STOP button is
installed and the Keyless Go igni-
tion key (FOBIK) is in the passen-
ger compartment.
Installing And Removing The Engine Start/Stop
Button
1. Remove the ignition key (FOBIK).
2. Insert the ENGINE START/STOP button into the
ignition switch.
NOTE:The ENGINE START/STOP button can be re-
moved from the ignition switch (WIN) for regular igni-
tion key (FOBIK) use. Keyless Go Functions — With Driver’s Foot Off The
Brake Pedal (In PARK Position)
•Press the ENGINE START/STOP button
onceto acti-
vate the radio, wipers, and windows.
•Press the ENGINE START/STOP button twiceto
activate the heating/air conditioning (HVAC) controls,
and the instrument cluster.
•Press the ENGINE START/STOP button three timesto
turn off the ignition switch.
Keyless Go Functions - With Driver’s Foot On The
Brake Pedal (PARK or NEUTRAL Gear Position Only)
•Press the ENGINE START/STOP button onceto oper-
ate all of the accessories.
•Press the ENGINE START/STOP button twiceto start
the engine.
216 STARTING AND OPERATING
ProCarManuals.com

About Your Brakes.................... 232,234
ABS (Anti-Lock Brake System) ............235,238
Adding Engine Coolant (Antifreeze) .......... 316
Adding Fuel ........................... 274
Adding Washer Fluid .................. 124,312
Additives, Fuel ......................... 272
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 304
Air Conditioner Maintenance ............... 309
Air Conditioning ........................ 203
Air Conditioning Controls ................. 203
Air Conditioning Filter .................208,310
Air Conditioning, Operating Tips ............ 209
Air Conditioning Refrigerant .............309,310
Air Conditioning System ................203,309
Air Pressure, Tires .................... 156,255
Airbag ................................ 46
Airbag Deployment ..................... 51,53
Airbag Light ..................... 52,55,70,152
Airbag Maintenance ....................... 55 Airbag, Side
.......................... 47,53
Airbag, Window (Side Curtain) ............. 47,53
Alarm, Panic ............................ 25
Alarm (Security Alarm) ................. 18,156
Alarm System (Security Alarm) ............... 18
Alignment and Balance ................... 261
Alterations/Modifications, Vehicle ............. 7
Antenna, Satellite Radio ................... 196
Antifreeze (Engine Coolant) ...........315,316,341
Disposal ............................ 317
Anti-Lock Brake System (ABS) ............235,238
Anti-Lock Warning Light ...............158,236
Anti-Theft Security Alarm (Theft Alarm) ........ 18
Anti-Theft System ....................... 156
Appearance Care ........................ 324
Arming Theft System (Security Alarm) ......... 18
Assistance Towing ........................ 91
Audio Systems (Radio) .................... 191
Auto Down Power Windows ................ 34
362 INDEX
ProCarManuals.com
