WARNING!
²The warning words ªDO NOT OPEN HOTº on
the cooling system pressure cap are a safety pre-
caution. Never add coolant when the engine is
overheated. Do not loosen or remove the cap to
cool an overheated engine. Heat causes pressure to
build up in the cooling system. To prevent scald-
ing or injury, do not remove the pressure cap while
the system is hot or under pressure.
²Do not use a pressure cap other than the one
specified for your vehicle. Personal injury or en-
gine damage may result.
Disposal of Used Engine Coolant
Used ethylene glycol based engine coolant is a regulated
substance requiring proper disposal. Check with your
local authorities to determine the disposal rules for yourcommunity. To prevent ingestion by animals or children
do not store ethylene glycol based engine coolant in open
containers or allow it to remain in puddles on the
ground. If ingested by a child, contact a physician
immediately. Clean up any ground spills immediately.
Coolant Level
The coolant bottle provides a quick visual method for
determining that the coolant level is adequate. With the
engine idling and warm to normal operating tempera-
ture, the level of the coolant in the bottle should be
between the ªADDº and ªFULLº lines, shown on the
bottle.
The radiator normally remains completely full, so there is
no need to remove the radiator cap unless checking for
coolant freeze point or replacing coolant. Advise your
service attendant of this. As long as the engine operating
temperature is satisfactory, the coolant bottle need only
be checked once a month.
312 MAINTAINING YOUR VEHICLE

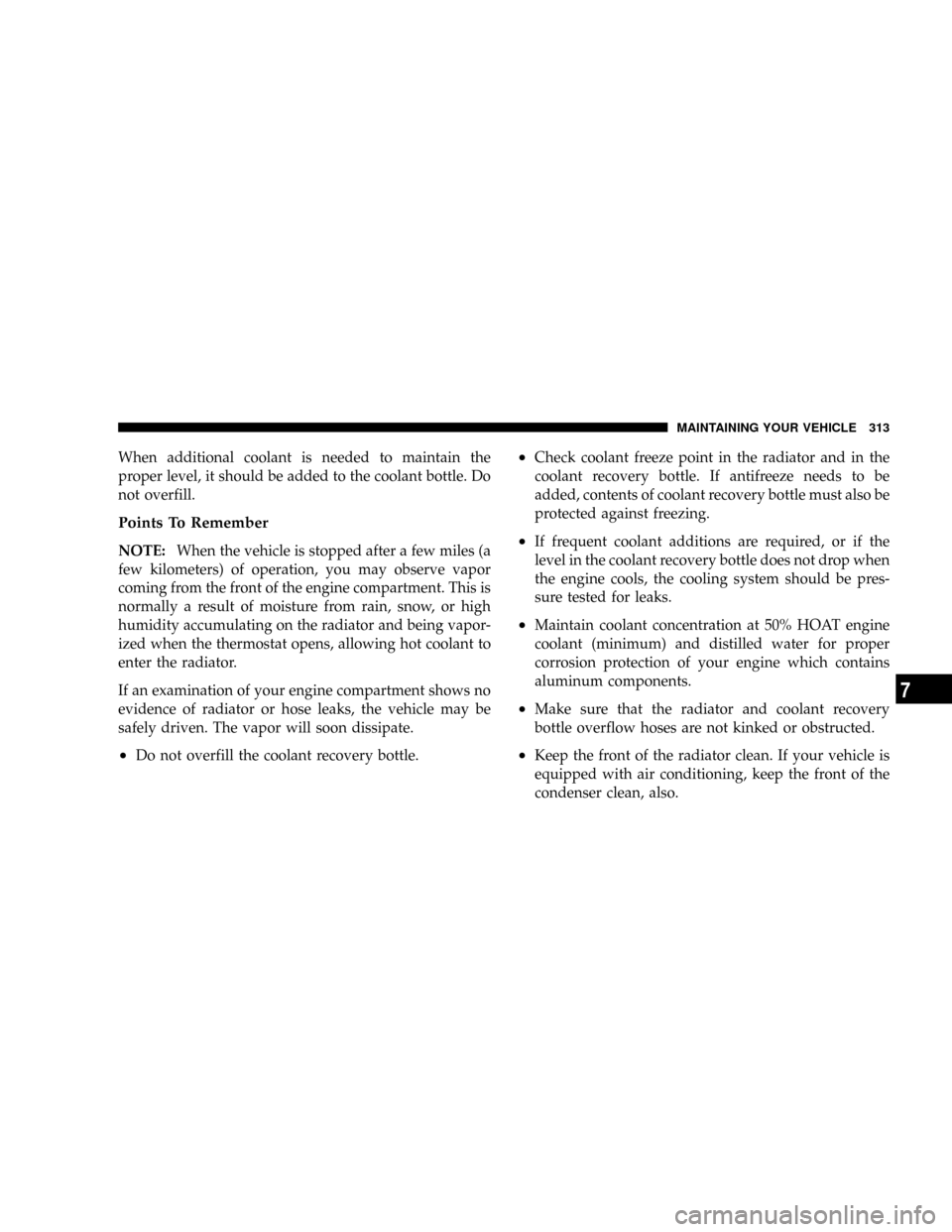

When additional coolant is needed to maintain the
proper level, it should be added to the coolant bottle. Do
not overfill.
Points To Remember
NOTE:When the vehicle is stopped after a few miles (a
few kilometers) of operation, you may observe vapor
coming from the front of the engine compartment. This is
normally a result of moisture from rain, snow, or high
humidity accumulating on the radiator and being vapor-
ized when the thermostat opens, allowing hot coolant to
enter the radiator.
If an examination of your engine compartment shows no
evidence of radiator or hose leaks, the vehicle may be
safely driven. The vapor will soon dissipate.
²Do not overfill the coolant recovery bottle.
²Check coolant freeze point in the radiator and in the
coolant recovery bottle. If antifreeze needs to be
added, contents of coolant recovery bottle must also be
protected against freezing.
²If frequent coolant additions are required, or if the
level in the coolant recovery bottle does not drop when
the engine cools, the cooling system should be pres-
sure tested for leaks.
²Maintain coolant concentration at 50% HOAT engine
coolant (minimum) and distilled water for proper
corrosion protection of your engine which contains
aluminum components.
²Make sure that the radiator and coolant recovery
bottle overflow hoses are not kinked or obstructed.
²Keep the front of the radiator clean. If your vehicle is
equipped with air conditioning, keep the front of the
condenser clean, also.
MAINTAINING YOUR VEHICLE 313
7

NOTE:Inspection of brake hoses should be done when-
ever the brake system is serviced and at every engine oil
change.
WARNING!
Worn brake hoses can burst and cause brake failure.
You could have an accident. If you see any signs of
cracking, scuffing, or worn spots, have the brake
hoses replaced immediately.
Brake Master Cylinder
The fluid level in the master cylinder should be checked
when performing under hood services, or immediately if
the brake system warning lamp is on.
Be sure to clean the top of the master cylinder area before
removing the cap. If necessary, add fluid to bring the
fluid level up to the requirements described on the brakefluid reservoir. Fluid level can be expected to fall as the
brake pads wear. Brake fluid level should be checked
when pads are replaced. However, low fluid level may be
caused by a leak and a checkup may be needed.
NOTE:The Brake Fluid Reservoir supplies fluid to both
the Brake System and the Clutch Release System. The
two systems are separated in the reservoir and a leak in
one system will not affect the other system. TheManual
TransaxleClutch Release System should not require fluid
replacement during the life of the vehicle. If the Brake
Fluid Reservoir is low, and the brake system does not
indicate any leaks or other problems, it may be a result of
a leak in the Hydraulic Clutch Release System. See your
local authorized dealer for service.
Use only manufacturers recommended brake fluid, refer
to ªFluids, Lubricants, and Genuine Partsº for correct
fluid type.
316 MAINTAINING YOUR VEHICLE

if it has been 6 months since your last oil change even
if the oil change indicator message is NOT illumi-
nated.
²Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.
²Under no circumstances should oil change intervals
exceed 6,000 miles (10,000 km) or 6 months, whichever
comes first.
Your dealer will reset the oil change indicator message
after completing the scheduled oil change. If this sched-
uled oil change is performed by someone other than your
dealer the message can be reset by referring to the steps
described under ªOil Change Requiredº in ªUse Factory
Settingsº of the EVIC section in this manual or under
ªOdometer/Trip Odometerº in the ªInstrument Cluster
Descriptions section of this manual.At Each Stop for Fuel
²Check the engine oil level about 5 minutes after a fully
warmed engine is shut off. Checking the oil level while
the vehicle is on level ground will improve the accu-
racy of the oil level reading. Add oil only when the
level is at or below the ADD or MIN mark.
²Check the windshield washer solvent and add if
required.
Once a Month
²Check tire pressure and look for unusual wear or
damage.
²Inspect the battery and clean and tighten the terminals
as required.
MAINTENANCE SCHEDULES 339
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

²Check the fluid levels of coolant reservoir, brake
master cylinder, power steering and transmission and
add as needed.
²Check all lights and other electrical items for correct
operation.At Each Oil Change
²Change the engine oil filter.
²Inspect the brake hoses and lines.
²Check the Manual Transmission fluid level.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
340 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

Chart, Tire Sizing........................ 239
Check Engine Light (Malfunction Indicator
Light)................................ 293
Child Restraint.......................... 56
Child Restraint Tether Anchors............... 60
Child Restraint with Automatic Belts........... 59
Child Safety Locks........................ 21
Child Seat.............................. 63
Clean Air Gasoline....................... 264
Cleaning
Wheels............................. 320
Climate Control......................... 213
Clock........................180,183,190,203
Clutch............................... 316
Clutch Fluid........................... 316
Coin Holder........................... 140
Compact Disc (CD) Maintenance............. 211
Compass.............................. 178
Compass Calibration..................... 178Compass Variance....................... 176
Console.............................. 140
Contract, Service........................ 349
Cool Down, Turbo....................... 226
Coolant (Antifreeze)...................333,334
Cooler, Beverage........................ 148
Cooling System......................... 309
Adding Coolant (Antifreeze).............. 311
Coolant Level......................309,312
Disposal of Used Coolant................ 312
Drain, Flush, and Refill.................. 309
Inspection........................... 312
Points to Remember................. 311,313
Pressure Cap......................... 311
Selection of Coolant (Antifreeze)........... 310
Corrosion Protection..................... 318
Crankcase Emission Control System.......... 301
Cruise Light........................... 160
Cup Holder............................ 140
358 INDEX

Break-In Recommendations................ 65
Checking Oil Level..................... 296
Cooling............................. 309
Exhaust Gas Caution.................... 267
Fuel Requirements..................... 264
Jump Starting......................... 284
Oil ...........................296,333,334
Oil Change Interval.................... 297
Oil Filler Cap......................291,298
Oil Filter............................ 334
Oil Selection.......................... 297
Operation............................ 65
Overheating.......................... 274
Temperature Gauge..................... 157
Enhanced Accident Response Feature.......... 53
Ethanol............................... 265
Event Data Recorder...................... 54
Exhaust Gas Caution..............31,65,267,308
Exhaust System......................... 308Filler Location Fuel...................... 157
Filters
Air Cleaner.......................... 302
Engine Fuel.......................... 302
Engine Oil........................299,334
Flashers.............................. 274
Hazard Warning....................... 274
Turn Signal.......................... 328
Flooded Engine Starting................... 225
Fluid, Brake........................... 335
Fluid Capacities......................... 333
Fluid Leaks............................. 67
Fluids................................ 334
Fluids, Lubricants and Genuine Parts.......... 334
Fog Lights....................... 113,162,328
Folding Rear Seat........................ 107
Folding Rear Seat (Sedan).................. 107
Freeing A Stuck Vehicle................... 286
Fuel..............................264,334
360 INDEX

Key-In Reminder......................... 12
Keyless Entry System (Sedan)................ 22
Keys................................. 12
Lane Change and Turn Signals...........162,328
Lap/Shoulder Belts....................... 33
Latches
Hood............................... 109
Lead Free Gasoline...................... 264
Life of Tires............................ 251
Liftgate (Sedan).......................... 29
Liftgate Window Wiper/Washer............. 146
Light Bulbs............................ 327
Lights..............................67,110
Airbag..........................54,66,158
Back-Up............................. 328
Brake Warning........................ 161
Bulb Replacement...................... 327
Cargo .............................. 141Center Mounted Stop................... 332
Daytime Running...................... 115
Dimmer Switch, Headlight................ 111
Electronic Stability Program (ESP)
Indicator...........................131,133
Engine Temperature Warning.............. 159
Fog .......................... 113,162,328
Headlight Switch...................... 111
Headlights........................... 111
High Beam Indicator.................... 165
Instrument Cluster..................... 111
License............................. 331
Lights On Reminder.................... 112
Low Fuel............................ 158
Malfunction Indicator (Check Engine)........ 164
Map Reading......................... 110
Oil Pressure.......................... 159
Seat Belt Reminder..................... 158
Security Alarm (Theft Alarm).............. 29
INDEX 363
10
