2008 Citroen JUMPER stop start

12
Familiarisation
SIT COMFORTABLY Side lights/PARK
Press this button, turning the ignition key
one notch in the opposite direction to
starting at the same time. You can then
remove the key: The side lights will remain
on while you are parked.

 41 Electric window controls

A. Driver's electric window control.

B. Passenger's electric window control.
The electric window functions are
deactivated one minute after the ignition is
switched off.

 70
Ignition switch
- PARK position.
- STOP position.
- RUNNING position.
- START position.

 37

1
17
Familiarisation
Cruise control
The cruise control is displayed on the
instrument panel by a warning light located
in the rev counter.

 43 Hill start assistance
This function, linked with the ESP, makes
hill starts easier and is activated in the
following conditions:
- the vehicle must be stationary, with the
engine running,
- the gradient of the road must be higher than 5 %.

 38 Pneumatic suspension
This equipment allows you to alter the
height of the rear sill to make loading or
unloading easier.
Press the control, release to stop the
movement. Each press increases by one
level: +1 to +3.
Press the control, release to stop the
movement. Each press decreases by one
level: -1 to -3.
Driving with the sill too high or too low may
damage the components under the body.

 78
Function deactivated.
Function selected.
DRIVE SAFELY
FAMILIARISATION

27
2
READY TO SET OFF
Instruments and controls

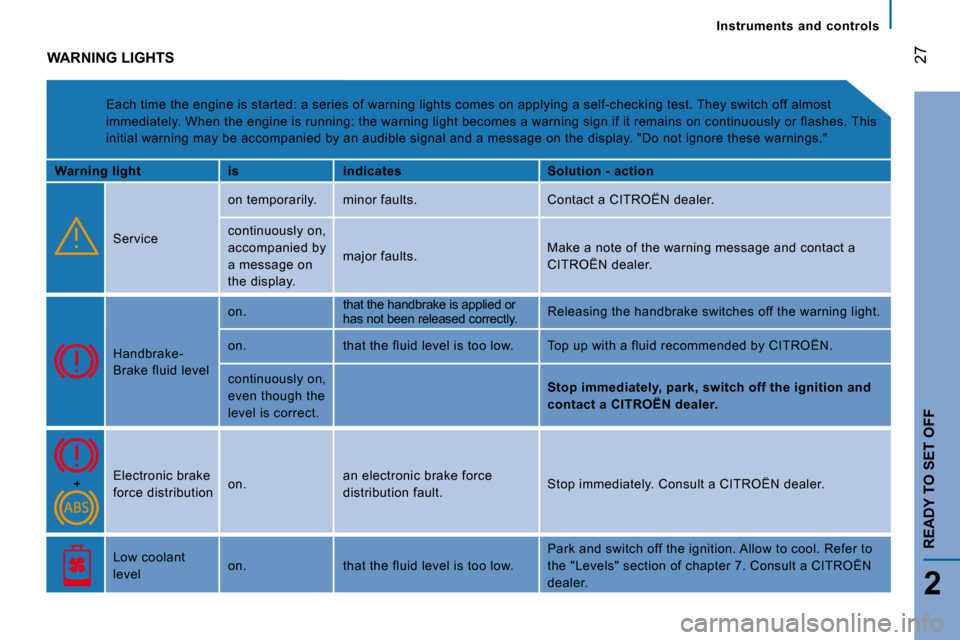

WARNING LIGHTS
Each time the engine is started: a series of warning lights comes on applying a self-checking test. T hey switch off almost
immediately. When the engine is running: the warnin g light becomes a warning sign if it remains on continuously or flashes. This
initial warning may be accompanied by an audible si gnal and a message on the display. "Do not ignore these warnings."

Warning light is indicates Solution - action
Service on temporarily. minor faults. Contact a CITRO
ËN dealer.
continuously on,
accompanied by
a message on
the display. major faults.
Make a note of the warning message and contact a

CITROËN dealer.
Handbrake-
Brake fluid level on.
that the handbrake is applied or
has not been released correctly. Releasing the handbrake switches off the warning l
ight.
on. that the fluid level is too low. Top up wi th a fluid recommended by CITROËN .
continuously on,
even though the
level is correct.

Stop immediately, park, switch off the ignition and
contact a CITROËN dealer.
+ Electronic brake
force distribution on. an electronic brake force
distribution fault. Stop immediately. Consult a CITROËN dealer.
Low coolant
level
on. that the fluid level is too low. Park and switch off the ignition. Allow to cool.
Refer to
the "Levels" section of chapter 7. Consult a CITRO ËN
dealer.

37
2
READY TO SET OFF
Starting and stopping
STARTING AND STOPPING

MAR position: running.
Certain accessories can be used.

AVV position: starter.
The starter is operated.

PARK position: parking.
The side lights can be left on, with the
ignition off.
Refer to "Side lights/parking lights"
in chapter 3.

STOP position: steering lock.
The ignition is off. Good practice when starting
Engine immobiliser warning light
If this comes on, use another key
and have the faulty key checked
by a CITROËN dealer.
Diesel pre-heating warning light
Turn the key to the MAR position.
In cold weather, wait for this
warning light to switch off then
operate the starter ( AVV position) until the
engine starts.
If the temperature is high enough, the
warning light comes on for less than one
second, you can start without waiting. Door or bonnet open warning light
If this comes on, a door or the
bonnet is not closed correctly,
check!

+ 5%+ 5%
2 s2 s
38
Starting and stopping
Hill start assistance
This function, linked with the ESP, makes
starting on a hill easier and is activated in
the following conditions:
- the vehicle must be stationary, with the engine running,
- the gradient of the road must be greater than 5 %, With the brake pedal pressed and the clutch
pedal pressed, when you release the brake
pedal you have approximately 2 seconds
without rolling back and without using the
handbrake within which to move off.
During the moving off phase, the function
is deactivated automatically with gradual
reduction of the braking pressure.
During this phase, a typical noise of
mechanical releasing of the brakes may be
heard, signalling the imminent movement of
the vehicle.

39
2
READY TO SET OFF
Starting and stopping
Fault When a malfunction of the
system occurs, this warning light
comes on accompanied by an
audible signal and confirmed by
a message on the display, if fitted in your
vehicle.
Contact a CITROËN dealer to have the
system checked.
The HHC (Hill Holder Control) or Hill Start
Assistance function is a driving comfort
feature. It is not an automatic vehicle
parking function or an automatic handbrake. Good practice when stopping
Minimise engine and gearbox wear
When switching off the ignition, let the
engine run for a few seconds to allow the
turbocharger to return to idle.
Do not press the accelerator when switching
off the ignition.
There is no need to engage a gear after
parking the vehicle.

41
3
ERGONOMICS AND COMFORT
Steering wheel controls
AUTOMATIC LIGHTING
If your vehicle is fitted with this function,
the side lights and dipped headlamps are
switched on automatically if the light is
poor and when continuous operation of the
windscreen wipers is detected.
In fog or snow, the brightness sensor may
detect sufficient light. Therefore, the lights
will not be switched on automatically. If
necessary, you must switch on the dipped
headlamps manually.
They are switched off when the light returns
to a sufficient level or after the windscreen
wipers are switched off. HEADLAMP BEAM
You are advised to adjust the height of the
headlamp beams in accordance with the
load in your vehicle.
This function can be accessed in the dipped
headlamps and main beam headlamps position. This system enables you to leave the side
lights on when parked; with the ignition off,
key in the
PARK position or key removed.
Activation Turn the ring to this position.
The lights are switched off
automatically when the ignition is
switched off.
Do not cover the brightness sensor at
the top centre of the windscreen. FOLLOW ME HOME LIGHTING
Ignition off or key in the STOP
position.
Within 2 minutes after switching
off the engine, position the ignition
key in the STOP position or remove it.
Pull the lights stalk towards the steering
wheel.
The indicator light comes on on the
instrument panel.
Each action on the lights stalk, pulled
towards the steering wheel, prolongs the
follow me home lighting by 30 seconds up
to approximately 3 minutes. When this time
has elapsed, the lights are switched off
automatically.
Deactivate this control by keeping the stalk
pulled towards the steering wheel for more
than 2 consecutive seconds. Press this control turning the
key one notch in the opposite
direction to starting at the same
time. You can then remove the
key.
If your vehicle is fitted with
this function: when you leave
your vehicle with the automatic
switching on of the lights
activated (ring in position A), the side lights
and dipped headlamps remain on for the
selected duration (when leaving a car park
for example).
Press these controls, located
on the fascia panel, several
times in succession to adjust the
headlamps.
An indicator light on the display
indicates the adjustment position
selected (0, 1, 2, 3).

Ventilation
VENTILATION
DE-ICING AND DEMISTING
Manual mode
Direct the control to this air
distribution setting.
For faster and more effective
de-icing and demisting of the
windscreen: De-icing the rear screen and mirrors
Only operates when the engine
is running. Pressing this button
activates the rapid demisting-
de-icing of the rear screen and
mirrors.
This function switches off automatically to
prevent excessive energy consumption. It
stops when the engine is switched off but
resumes when the engine is started again.
Pressing this button switches the function off.
- increase the air flow setting,
- move the exterior air intake control temporarily to air
recirculation.
Returning to the exterior air
intake position permits renewal
of the air in the passenger
compartment.
Windscreen and side windows
The ventilation outlets located at the base
of the windscreen and the side vents for the
side windows increase the effectiveness of
the de-icing and demisting. Do not obstruct
these air outlets.
The pollen filter permits continuous and
effective filtering of dust.
The air recirculation (which can be activated
by the driver or the passenger) isolates the
passenger compartment from the exterior
atmosphere. However, this position should
only be used temporarily, the norm is to
drive with the control positioned with the
exterior air intake open.
