IN BRIEF
1.
Volumetric alarm deactivation
switch.
2. Cruise control / speed limiter
controls.
3. Lighting, direction indicator
controls.
4. Driver’s airbag. Horn.
5. Multifunction display.
6. Radio controls under steering
wheel.
7. Screen wipe / screen wash /
trip computer controls.
8. Gear lever.
9. Ignition.
10. Headlamp height adjustment.
11. a/ ESP/ASR activation/
deactivation button.
b/ Parking assistance activation/deactivation button.
12. Steering column adjustment
control.
D A S H B O A R D
Page 6 of 194
I
IN BRIEF
D A S H B O A R D

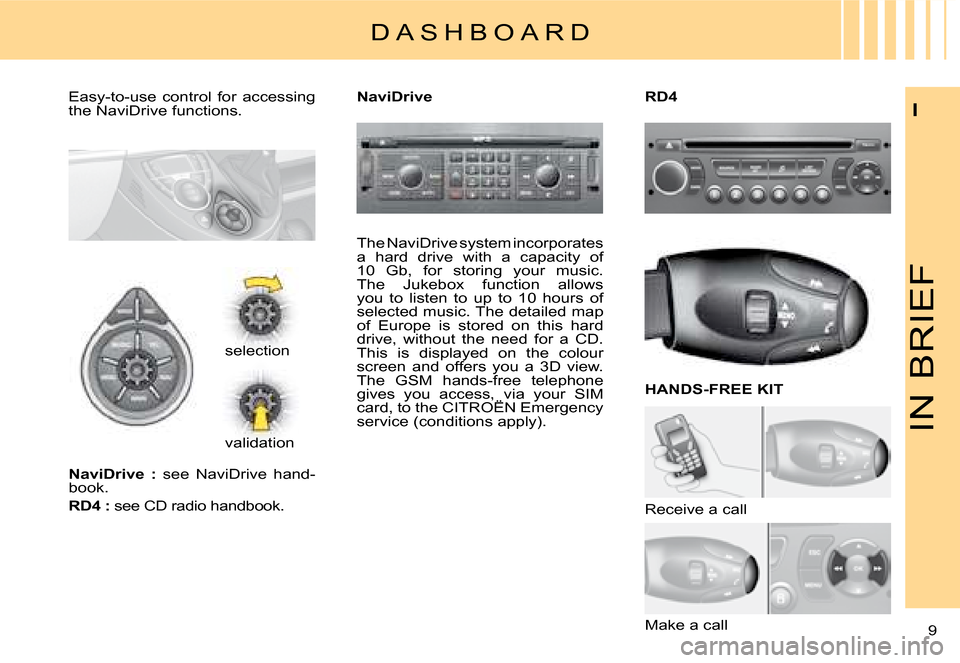

Easy-to-use control for accessing
the NaviDrive functions.
NaviDrive : see NaviDrive hand-
book.
RD4 : see CD radio handbook. NaviDrive
The NaviDrive system incorporates
a hard drive with a capacity of
10 Gb, for storing your music.
The Jukebox function allows
you to listen to up to 10 hours of
selected music. The detailed map
of Europe is stored on this hard
drive, without the need for a CD.
This is displayed on the colour
screen and offers you a 3D view.
The GSM hands-free telephone
gives you access, via your SIM
card, to the CITROËN Emergency
service (conditions apply).
RD4
HANDS-FREE KIT
Receive a call
Make a call
selection
validation
Page 11 of 194
14 I
IN BRIEF
T r a n s f o r m i n g
S e a t c o n i g u r a t i o n i s e x p l a i n e d
in Chapter III of this handbook.
To correctly move a seat, follow
the steps in order as described
in the handbook. Move the head
restraint to its lowest position, fold
the backrest onto the seat cushion,
ensuring that its resting position
is compatible with the seat type.
Place the front feet of the seat in
line with the sliders or the locking
c a t c h e s o n t h e l o o r b e f o r e s t a r t i n g
to re-engage the rear feet.
Automatic with separate regulation.
Press, AUTO is displayed, this is
the normal operating mode.
A i r c o n d i t i o n i n g
Manual adjustment. Press on
the on/off control . Choose the
distribution mode.
V E N T I L A T I O N
93
74 72
Page 21 of 194
2 II
D R I V E R ’ S I N S T R U M E N T P A N E L
MAINTENANCE INDICATOR
It tells you when the next service is due , i n c o n f o r m i t y w i t h t h e m a i n t e n a n c e s c h e d u l e i n t h e M a i n t e n a n c e g u i d e .
T h i s i n f o r m a t i o n i s c a l c u l a t e d a s a f u n c t i o n o f t w o p a r a m e t e r s : the mileage covered , and the time elapsed since
the last service.
Functioning
F r o m s w i t c h i n g o n t h e i g n i t i o n a n d
f o r a f e w s e c o n d s , t h e spanner
symbol for maintenance lights
up ; the instrument panel tells you
h o w m a n y m i l e s r e m a i n b e f o r e t h e
next service.
For example: you have the
f o l l o w i n g d i s t a n c e l e f t t o t r a v e l
before the next service:
Functioning if the distance to the
next service is less than 1 000 km
(approx. 600 miles)
E a c h t i m e t h e i g n i t i o n i s s w i t c h e d
o n , a n d f o r i v e s e c o n d s , t h e m a i n -
t e n a n c e s y m b o l a n d t h e m i l e a g e w i l l
l a s h .
Example: before the next service
there remain: 500 km (approx.
3 0 0 m i l e s ) . W h e n y o u s w i t c h o n t h e
ignition and for 5 seconds after that,
the instrument panel indicates: Functioning if the service
interval is exceeded
E a c h t i m e t h e i g n i t i o n i s s w i t c h e d
on, the maintenance symbol and
t h e e x t r a m i l e a g e t r a v e l l e d ( w i t h a
m i n u s i n f r o n t ) w i l l l a s h .
For example:
the preset service
distance has been exceeded by
300 km (approx. 10 miles). Your
vehicle must be serviced as soon
as possible.
A f e w s e c o n d s a f t e r t h a t , t h e e n g i n e
oil level indicator is displayed, then
the total mileage recorder resumes
its normal role. The instrument
p a n e l s h o w s y o u t h e t o t a l a n d t r i p
mileage counters. A f e w s e c o n d s a f t e r t h a t , t h e e n
-
gine oil level indicator is displayed,
then the total mileage recorder
resumes its normal role and the
maintenance symbol remains lit
up.
It informs you that a service is
imminently due. The instrument
panel gives you the total and trip
mileages. A f e w s e c o n d s a f t e r y o u h a v e
s w i t c h e d o n t h e i g n i t i o n , t h e
total mileage recorder returns
to its normal operation and
the
maintenance symbol remains
illuminated.
Page 23 of 194
2 II
3-PART INSTRUMENT PANEL
BIG SCREEN INSTRUMENT
PANEL
Speed
indicator NaviDrive
MULTIFUNCTION DISPLAY Rev counter
(In the period of running-in, see “Running-in”.)
Coolant temperature warning
lamp
Coolant temperature gaugeFuel
gauge
Low fuel level
warning C E N T R A L I N S T R U M E N T P A N E L
Coolant temperature
gauge
Coolant temperature
warning lamp
Low fuel level warning
Rev counter
(In the period of running-
in, see “Running-in”.)Speed
indicator Fuel
gauge
MULTIFUNCTION DISPLAY
Page 24 of 194
2
II
Coolant temperature gauge
With the needle or indicator in zone A, the temperature
is correct.
If the needle or indicator enters zone B, the temperature
is too high. The central STOP a l e r t w a r n i n g l a m p a n d
t h e e n g i n e c o o l a n t l e v e l o r t e m p e r a t u r e w a r n i n g l a m p
both light up, accompanied by an audible signal and a
message on the multifunction screen.
It is essential to stop the vehicle. 1 - Low fuel level
warning
I f t h e w a r n i n g l a m p c o m e s
on, accompanied by a mes-
sage on the MULTIFUNC-
TION DISPLAY, you still
h a v e f u e l s u f i c i e n t f o r a p -
prox. 30 miles.
I f i t l a s h e s , t h i s i n d i c a t e s
a malfunctioning of the fuel
gauge.
Consult your CITROËN
dealer.
2 - Coolant temperature warning lamp
T h e S T O P w a r n i n g l a m p
l a s h e s w h e n t h e c o o l a n t
t e m p e r a t u r e w a r n i n g l a m p
is lit.
T h e l i g h t i n g o f t h i s w a r n i n g
lamp is accompanied by an
audible signal and a mes-
sage on the MULTIFUNC-
TION DISPLAY.
It is essential to stop the vehicle, contact a CITROËN
dealer. 3-part instrument
panel
Big screen
instrument panel
Engine coolant level too low
E n g i n e c o o l a n t l e v e l t o o l o w i s i n d i c a t e d b y a n a u d i b l e
signal and a message on the MULTIFUNCTION
DISPLAY.
Big screen instrument
panel
3-part
instrument panel C E N T R A L I N S T R U M E N T P A N E L
Page 25 of 194
30 II
Lighting rheostat
When the vehicle lamps are on,
press on the button to alter the
b r i g h t n e s s f o r t h e w a r n i n g l a m p s
display, the instrument panel, the
air conditioning panel and the
multifunction screen. When the
lighting reaches the minimum (or
maximum) adjustment, release
the button then press again to
increase it (or decrease it).
As soon as the lighting reaches
the desired intensity, release the
button.
Night driving control
- A i r s t p r e s s o n t h e
DARK button puts the display to sleep. Only the time
and the temperature remain displayed.
- A s e c o n d p r e s s s w i t c h e s o f f t h e d i s p l a y a n d t h e i n s t r u m e n t p a n e l w i t h t h e
exception of the speedometer, its central display and the in formation on
automatic gearbox and cruise control / speed limiter if these ha ve been
activated.
Note: Timed lighting of functions if you:
- Press any of the display controls.
- Select Radio-CD.
- Operate any of the air conditioning controls.
All the displays light up if there is an alert.
- A third press brings back normal lighting. C E N T R A L I N S T R U M E N T P A N E L
Page 26 of 194
31
II
Imperative stop
warning lamp
W h e n t h e w a r n i n g
lamp comes on, it is
imperative to stop the vehicle and
s w i t c h o f f t h e e n g i n e .
This lamp is accompanied by a
STOP symbol on the display.
Contact a CITROËN dealer.
SERVICE warning lamp
T h i s w a r n i n g l a m p r e m a i n s
on for as long as the fault
a s s o c i a t e d w i t h t h e a l e r t
message is present (this in the
case of a serious fault).
Contact a CITROËN dealer as
soon as possible
The lamp stays on only for a short
time for a minor fault.
Contact a CITROËN dealer.
To recall the corresponding alert
message, see “Log of alerts”.
Battery charge
S h o u l d n o t b e l i t w h e n
the engine is running. If it
lights permanently, contact
a CITROËN dealer. Engine oil pressure and
temperature warning
lamp
I f i t l i g h t s w h i l e y o u a r e
driving, stop the engine, check the
level, (see Chapter IV - “Levels”).
If it remains lit despite the level
being correct, contact a CITROËN
dealer. Driver’s and/or
passenger’s seat belt
not fastened warning
lamp
Comes on if the driver’s and/
or passenger’s seat belt is not
fastened.
T h e l i g h t i n g o f t h e w a r n i n g l a m p
is accompanied by a sound
signal and a message for about
9 0 s e c o n d s w h e n t h e v e h i c l e
exceeds a speed of 25 km/h
(approx. 15 mph).
Warning lamp for
handbrake, brake
l u i d l e v e l a n d b r a k i n g
distribution fault.
When the engine is running, this
w a r n i n g l a m p i n d i c a t e s t h a t t h e
handbrake is applied or incom-
pletely released, that the brake
l u i d l e v e l i s i n s u f i c i e n t , o r t h a t t h e
braking system is malfunctioning.
I f t h e w a r n i n g l a m p r e m a i n s l i t
w h e n t h e h a n d b r a k e i s r e l e a s e d ,
stop immediately and contact a
CITROËN dealer. Airbags warning lamp
I t c o m e s o n f o r a f e w
seconds every time you
s w i t c h o n t h e i g n i t i o n .
Airbags malfunction
Flashing indicates that the airbags
are malfunctioning.
Contact a CITROËN dealer as
soon as possible.
Passenger’s airbag
deactivation
If the passenger’s airbag
i s d e a c t i v a t e d , t h e w a r n i n g
lamp remains on.
W A R N I N G L A M P S
