Page 27 of 194
32 II
ESP/ASR warning lamp
In operation
When either the ESP or
ASR system is brought into opera-
t i o n , t h e E S P / A S R w a r n i n g l a m p
l a s h e s .
In the event of a problem
Should there be a malfunction-
ing of the systems, the ESP/ASR
w a r n i n g l a m p c o m e s o n , a c -
companied by a message on the
MULTIFUNCTION DISPLAY and
by an audible signal. Consult a
CITROËN dealer to have the sys-
tem checked.
Deactivation
On deactivating the ESP/ASR sys-
tem, the lighting of the ESP/ASR
w a r n i n g l a m p i s a c c o m p a n i e d b y
an audible signal and the mes-
sage ESP/ASR DEACTIVATED
on the multifunction screen. Anti-lock Braking
System
T h e A B S w a r n i n g l a m p
l i g h t s w h e n t h e i g n i t i o n i s
s w i t c h e d o n a n d s h o u l d g o o u t
a f t e r a f e w s e c o n d s .
I f t h e w a r n i n g l a m p d o e s n o t
go out, there may be a system
malfunction. (See Chapter II -
“Brakes”). Depollution system
warning lamp
I f i t l a s h e s o r l i g h t s u p
w h i l e y o u a r e d r i v i n g , t h i s
indicates that the depollution sys-
tem has a functioning problem.
Contact a CITROËN dealer as
soon as possible.
LH direction indicator
See “Signalling” Diesel Preheater
See the instructions for
starting the engine.
Refer to section II - Driving
“Starting”.
RH direction indicator
See “Signalling”
A l l t h e d i r e c t i o n i n d i c a t o r s l a s h s i m u l t a n e o u s l y w h e n t h e h a z a r d
warning lamps are switched on.
Dipped beam
See “Signalling” Main beam
See “Signalling”
Foglamps
See “Signalling” Front foglamps
See “Signalling”
W A R N I N G L A M P S
Page 69 of 194
1
23
4
6
7
5
7 2 III

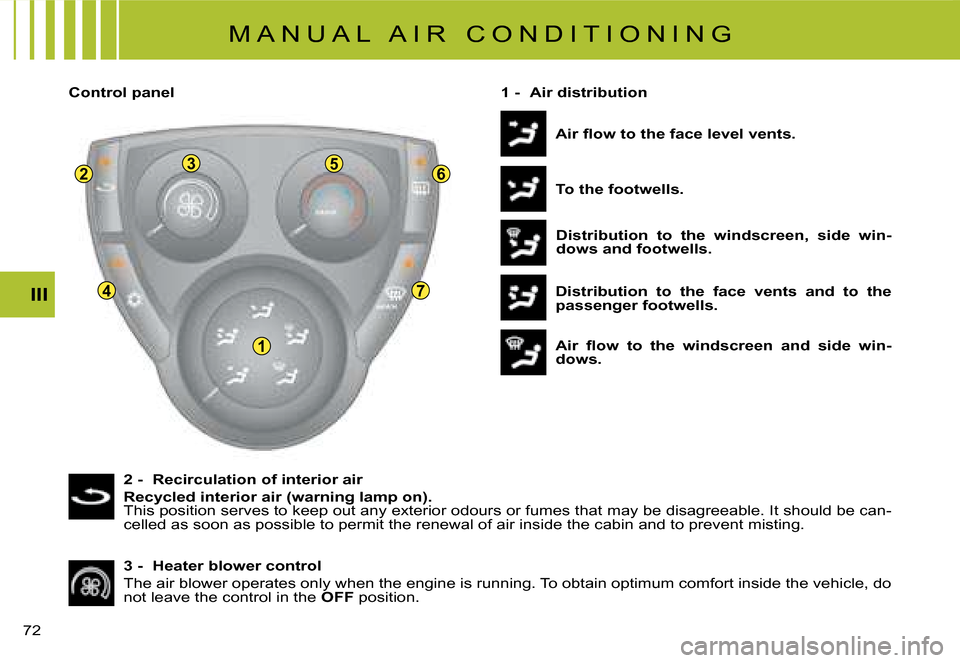

M A N U A L A I R C O N D I T I O N I N G
1 - Air distribution A i r l o w t o t h e f a c e l e v e l v e n t s .
To the footwells.
Distribution to the face vents and to the
passenger footwells.
A i r l o w t o t h e w i n d s c r e e n a n d s i d e w i n -
dows.
2 - Recirculation of interior air
Recycled interior air (warning lamp on).
T h i s p o s i t i o n s e r v e s t o k e e p o u t a n y e x t e r i o r o d o u r s o r f u m e s t h a t m a y b e d i s a g r e e a b l e . I t s h o u l d b e c a n-
c e l l e d a s s o o n a s p o s s i b l e t o p e r m i t t h e r e n e w a l o f a i r i n s i d e t h e c a b i n a n d t o p r e v e n t m i s t i n g .
3 - Heater blower control
T h e a i r b l o w e r o p e r a t e s o n l y w h e n t h e e n g i n e i s r u n n i n g . T o o b t a i n o p t i m u m c o m f o r t i n s i d e t h e v e h i c l e , d o
n o t l e a v e t h e c o n t r o l i n t h e OFF p o s i t i o n . Distribution to the windscreen, side win-
dows and footwells.
Control panel
Page 118 of 194
121 IV
Ref. Rating
Functions
F1 20 A Engine ECU - Exhaust Gas Recycling electrovalve - Diesel fuel high
pressure
regulation electrovalve - EGR electrovalve
F2 15 A Horn
F3 10 A Windscreen/rear screen wash pump
F4 20 A Headlamp wash pump
F5 15 A Fuel pump - Regulation electrovalve
F6 10 A G e a r b o x - P o w e r s t e e r i n g - A i r l o w m e t e r - P r e h e a t e r u n i t - E n g i n e o i l
l e v e l -
Brakes - Headlamps adjustment
F7 10 A ESP
F8 20 A Starter motor
F9 10 A Engine ECU
F10 30 A Electrovalves - Oxygen sensor - Injectors - Ignition coil - ECU -
Diesel fuel heater
F11 40 A A i r l o w
F12 30 A Windscreen wipe
F13 40 A Built-in Systems Interface (Ignition+)
F14 - Free
Fuses under the bonnet
F U S E S
