2008 Citroen C8 DAG display

5
II
Operation :
-
when you engage reverse gear , a sound signal informs you that the system is active. The vehicl e outline
appears on the display. Obstacles located to the rear or in f ront of the vehicle will be detected.
- when moving forward at a speed lower than approx. 6 mph, either in neutral or in gear, the vehicle outline
appears on the display as soon as an obstacle is detected in f ront of the vehicle. Obstacles located in front of the
vehicle will be detected.
Notes :
- The proximity sensors cannot detect obstacles located just below or above the bumpers.
- A thin object such as a spike, a bollard or other similar obje ct, will only be detected at the start of the manoeuvre
but not when the vehicle is up close to it.
- In bad weather and in winter, ensure that the sensors are not covered by dirt, ice or snow.
P A R K I N G A S S I S T A N C E
When engaging reverse gear, a short sound signal foll owed by
a different sound signal accompanied by a message and the lighting
of the SERVICE warning lamp, indicates that there is a malfunc tion.

74 III
2 - Automatic operation A U T O M A T I C A I R C O N D I T I O N I N G
This is the normal operating mode.
A press on this button, conirmed by a snowlake on
the display with the text AUTO, allows all the following
5 functions to be automatically managed in line with
the temperature selected:
- Flow of air.
- Cabin temperature.
- Distribution of air.
- Air conditioning.
- Recycling of air.
To enable the system to operate, all the air vents
should be kept open.
To revert to manual mode, press again on the button.
Note:
- When starting from cold, in order to avoid distributing too much cold air, the blower builds up to its normal
speed progressively as the engine warms up.
- An air low of zero will prevent the system from working and will stop the whole of the air conditioning
system.
1 - Display

11 IV
After a lengthy disconnection of the battery, it may be necessa
ry to reinitialise the following functions:
- the electric windows anti-pinch and sequential systems,
- the sun roof anti-pinch system,
- the multifunction display parameters (date, time, language, units of distance and temperature),
- the radio stations,
- the navigation reception (see NaviDrive instructions).
WARNING: if disconnecting the battery, check that the naviga tion reader has inished recording information
after switching off the ignition : the warning lamp should h ave gone out.
Starting the engine for the irst time after disconnecting and
connecting the battery
- Turn the ignition key.
- Wait about a minute before operating the starter to allo
w the electronic
systems to be reinitialised. B A T T E R Y

22
1
9
11
53
8
6724
10
D E S C R I P T I O N O F T H E C O N T R O L S
It is recommended that you do not use the NaviDrive controls while your vehicle is moving. In some countries, certain commands may be deactivated to comply with national regulations.
1CD eject.
2Call in progress:Shor t press: End a call.
3Shor t press: Answer call.Display of telephone menu.
4Shor t press: Access to the CITROËN ser vices menu.Long press: Direct call to the CITROËN assistance ser vice.
5CD aper ture.
6
Shor t press:Cancellation of the current operation.Deletion of a superimposed display.Long press:Close main menu and return to the welcome screen.

44
21
192018
2223
24
17

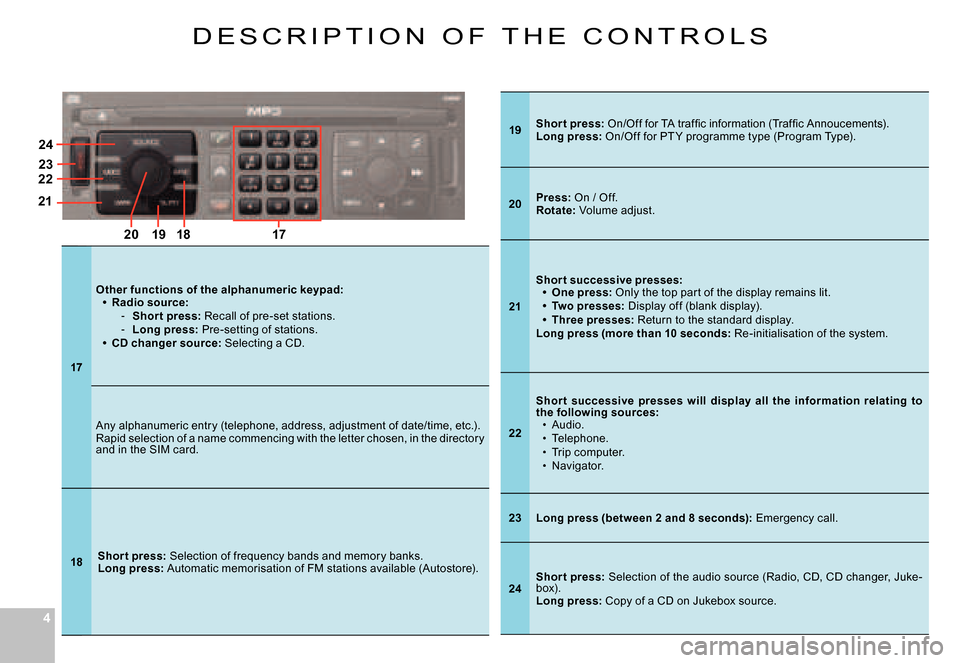

D E S C R I P T I O N O F T H E C O N T R O L S
19Shor t press: On/Off for TA traffi c information (Traffi c Annoucements).Long press: On/Off for PT Y programme type (Program Type).
20Press: On / Off.Rotate: Volume adjust.
21
Shor t successive presses:One press: Only the top par t of the display remains lit.Two presses: Display off (blank display).Three presses: Return to the standard display.Long press (more than 10 seconds: Re-initialisation of the system.

66
A
D ESCRIPTIO N O F TH E CO NTRO LS
ADDITIONAL CONTROL (C ONLY)
The “ESC” buttonShor t press: Cancel the current operation or delete a superimposed display.L o n g p r e s s: Ret u r n t o t h e p e r m a n e nt display.
The “MENU” buttonShor t press: At any time, access to the Main menu.Long press: At any time, access to the Help menu.In certain countries, this control is deacti-vated while the vehicle is moving.
The “MUSIC” buttonShor t press: Display of shortcut menu for the current audio source.
The “TEL” buttonShor t press: Display of shortcut menu for the telephone function, and to pick up an incoming call.
The “NAV” buttonShor t press: Display of the shortcut menu for the navigation function.
The “MAIN” buttonShor t press: Display of general informa-tion.
To access certain functions without needing to use the NaviDrive buttons, or to access the shortcut menus for certain functions.
The control AThis has two functions:By rotation, it allows you:To move in the display in order to choose a function, a parameter or a value.To decrease or to increase a value you wish to adjust.To scroll through the components you can select when a list is displayed.To modify the scale of the map on the screen.By pressing, it allows you:To access shortcut menus for certain functions of the application, displayed on the right hand side of the screen.To validate the function chosen or the value modifi ed.To select a parameter such as “lectadjust” or “list”, to be able to modify it.
The “MODE” buttonShor t press: For selection of the type of information to be displayed on the right of the screen (Radio, Navigation, Trip computer, etc.).Long press: Display of general informa-tion.

88
Press on the end of the lighting control stalk to start voice recognition and say "Help" or " What can I say " to display the list of voice commands that are available.
CD playerDetail page 3
CD player
RandomDetail page 2ListTrack number1-20Previous trackNext trackScanDetail page 2Detail page 2
FolderRepeatNextPreviousJukeboxDetail page 3Detail page 3
Jukebox
RandomDetail page 2Detail page 2ListTrack number1-20Previous trackNext trackScanDetail page 2Detail page 2
FolderRepeatNextPreviousCD changerDetail page 42
CD changer
Disc number1-5Detail page 42Detail page 42Previous discNext discRandomDetail page 2Detail page 2ListTrack number1-20Detail page 42Detail page 42Previous trackDetail page 42Detail page 42Next trackDetail page 42Detail page 42RepeatScanDetail page 2
Display
AudioDetail page 2NavigatorDetail page 12Trip computerTelephoneDetail page 45
Telephone
Voice mailDetail page 45Redial
Adress book“Pre-recorded label”Detail page 45
Call“Pre-recorded label”Detail page 47
MessageDisplayDetail page 4ReadDetail page 4
Navigator
StopDetail page 12
Adress book“Pre-recorded label”Detail page 13
Restar tDetail page 12
ShowDestinationDetail page 25VehicleDetail page 25Zoom outDetail page 1Zoom inDetail page 1Guide to“Pre-recorded label”
Traf fi c InfoDisplayDetail page 25ReadDetail page 25RadioDetail page 31
Radio
AutostoreDetail page 32ListDetail page 32Memor y1- Detail page 31PreviousDetail page 31NextDetail page 31
L I S T A N D S T R U C T U R E O F V O I C E
C O M M A N D S
HOW TO ACCESS THE LIST OF PRE -RECORDED VOICE COMMANDS ?

99
M A I N M E N U
To keep the display clean, it is recommended to wipe with a soft, non-abrasive cloth (e.g. for spectacles) without any cleaning product added.
HOW TO ACCESS THE MAIN MENU ?
Press on the MENU button.
TR AFFIC INFORMATION: TMC in-formation, messages, etc
AUDIO: radio, CD, Jukebox source , options, etc
T E L E M A T I C S : t e l e p h o n e , directory, SIM, services, etc
CONFIGUR ATION: vehicle param-eters, display, time, languages, voice, auxiliary socket, etc
VIDEO: activation, parameters, etc
VEHICLE DIAGNOSIS: log of alerts, etc
NAVIGATION - GUIDANCE: GPS, stages, options, etc
M AP: or ientation, details, display, etc
