M O N O Z O N E
3. Adjusting the air distribution
Press on buttons 3 to c h a n g e t h e a i r fl o w d i s -tribution. The symbol (arrows) corresponding to the chosen distribu-tion lights up:
Windscreen and front windows.
Front air vents (central, side and soft diffusion grille if open) and rear air vents.Front and rear footwells.Note: You cannot select distribu-tion to the windscreen/front win-dows and to the front/rear air vents at the same time.
Page 97 of 240
100
III81a2a3a4a858684b4b4b81b1b3b3b2b2b
978
AA
A U T O M A T I C A I R C O N D I T I O N I N G
D U A L - Z O N E
1a Driver's side automatic opera-tion
1b Passenger's side automatic operation
2a Adjustment of temperature on driver's side
2b Adjustment of temperature on passenger's side
3a Adjustment of air distribution on driver's side
3b Adjustment of air distribution on passenger's side
4a Driver's side display
4b Passenger's side display
5 A d j u s t i n g t h e a i r fl o w
6 Activation/deactivation of air conditioning
7 Air recirculation – Entry of air from outside
8 Rear demisting - deicing
9 Front demisting - deicing
This is the normal oper-ating mode for the sys-tem. Depending on the level of comfort chosen, a press on this button, c o n fi r m e d b y l i g h t Acoming on, allows all of the follow-ing functions to be automatically and simultaneously controlled:
A i r fl o w .
Cabin temperature.
Air distribution.
Air conditioning.
Automatic air recirculation.
It is recommended to keep all the air vents open. Just by press-ing any of the buttons, except for temperature 1a and 1b, you can change to manual mode. The light A goes out.
Page 98 of 240
101
III
A U T O M A T I C A I R C O N D I T I O N I N G
D U A L - Z O N E
Operating the air conditioning sys-tem on “AUTO” guarantees good ventilation inside the cabin.Note: The value indicated on the display corresponds to a comfort level and not to a temperature in Celsius or Fahrenheit.
Manual mode
One or more functions can be adjusted manually, while still retain-ing the other functions in automatic mode.
Press on any of the buttons, except for temperature 2a and 2b. Lights Aon buttons “AUTO” go out.
Changing to manual mode may result in a decrease in comfort level (temperature, humidity, smell, misting) and is not advised for opti-mum comfort.
To return to “AUTO” mode, press on buttons 1a and 1b. Lights Acome on.
3a-3b. Adjusting the air distribution
Press but-ton 3a to change the driver's side air fl o w d i s t r i b u -tion.
-
T h e a i r fl o w l e v e l i s i n d i c a t e d b y t h e progressive lighting of the ventilator blades.
B y r e d u c i n g t h e a i r fl o w t o i t s m i n i -mum setting, the air conditioning system switches itself off (OFF).
To prevent misting and poor air qual-ity in the passenger compartment, take c a r e t o m a i n t a i n a s u f fi c i e n t fl o w o f a i r .
4 . A d j u s t i n g t h e a i r fl o w
T h e a i r fl o w c a n o n l y b e a d j u s t e d with the engine running.
T o a d j u s t t h e a i r fl o w , p r e s s b u t t o n :
t o i n c r e a s e t h e a i r fl o w
t o r e d u c e t h e a i r fl o w
5. Air conditioning
Air conditioning only works with the engine running. The air blower button (air fl o w a d j u s t m e n t ) m u s t be activated to obtain air conditioning.Press on button 6. The warning lamp comes on. T o f u n c t i o n e f fi c i e n t l y , air conditioning should be used with the windows closed.
This button activates the recirculation of air in the passenger compart-ment and can function automatically.
6. Air recirculation – Entry of air from outside
Press button 3b to change the p a s s e n g e r ' s s i d e a i r fl o w d i s t r i -bution.
The symbol (arrows) correspond-ing to the chosen distribution lights up:Windscreen and front windows.Front air vents (central, side and soft diffusion grille if open) and rear air vents.
Front and rear footwells.
Note: You cannot select distribu-tion to the windscreen/front win-dows and to the front/rear air vents at the same time.
-
Page 99 of 240
102
III
A U T O M A T I C A I R C O N D I T I O N I N G
D U A L - Z O N E
Switching off the entry of air
Press button 6 to switch off the entry of air from outside.
Whilst retaining the other settings, this position allows the driver at any moment to exclude unpleas-ant smells or smoke/emissions coming from outside.
This mode should be cancelled as soon as possible to allow the redistribution of air in the pas-senger compartment.
Entry of air from outside
Press once on button 6 to return to the original status (Entry of air from outside).
7. Rear demisting - deicing
Press button 7, with the engine running, to start a rapid deicing or demisting of the rear screen and rear view mirrors. The warning lamp comes on.
This mode automatically stops depending on the outside tempera-ture. It can be interrupted by a fur-ther press on button 7 or by stop-ping the engine.
In some cases, “AUTO” mode may not be suf- fi c i e n t t o d e m i s t o r defrost the windows (e.g. humidity, several passengers, frost).
Press button 8 for rapid clear win-dows. The warning lamp comes on. This system controls air con-ditioning, temperature and air fl o w / e n t r y . I t d i s t r i b u t e s v e n t i l a t i o n towards the windscreen and the front windows.
You can manually exit “Demisting” mode. This mode should be can-celled as soon as possible to allow the redistribution of air in the pas-senger compartment.
A press on either of the buttons 1aor 1b allows you to return to “AUTO” mode.
8. Front demisting - deicing
Remarks:
When starting from cold, in order to prevent unwanted cold a i r , t h e a i r fl o w w i l l i n c r e a s e o n l y gradually to its optimum level.
If you enter the vehicle after a fairly prolonged stop and the temperature inside the vehicle is far from comfortable, it serves no purpose to modify the tem-perature that is displayed as an attempt to go immediately to the desired comfort level. The sys-tem automatically uses all of its power to compensate the tem-perature gap as quickly as pos-sible.
Water arising from the conden-sation in the air conditioning drains out through a hole pro-vided for this purpose ; a pool of water may thus form under-neath the vehicle when station-ary.
Whatever the time of year, even in cool weather the air condition-ing is useful in removing humid-ity and misting. Avoid driving for too long with air conditioning deactivated.
Page 101 of 240
104
III
3
2
6
7
2
3A7

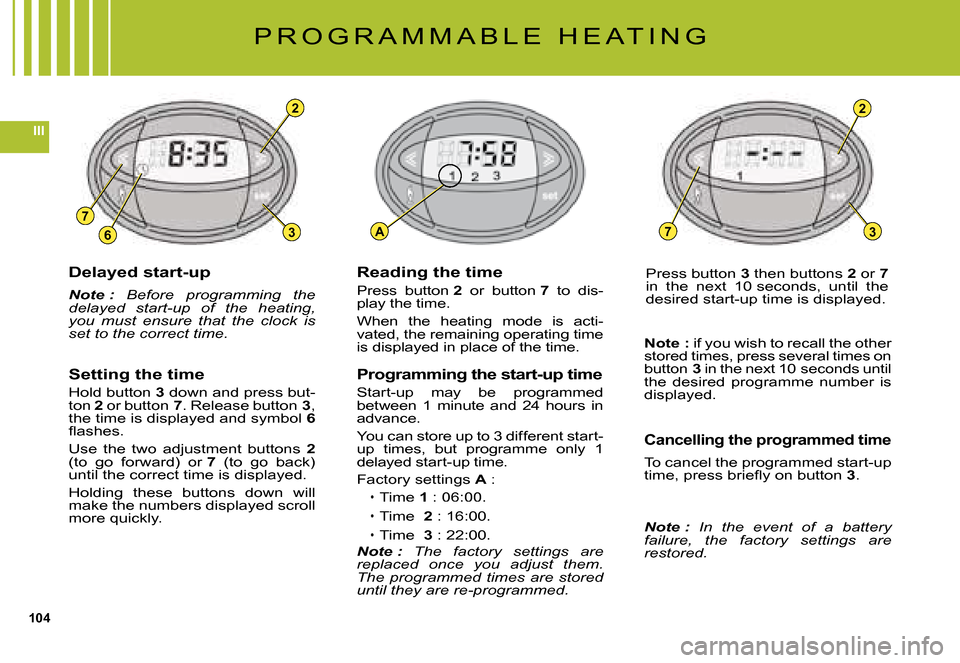

Delayed start-up
Note : Before programming the delayed start-up of the heating, you must ensure that the clock is set to the correct time.
P R O G R A M M A B L E H E A T I N G
Programming the start-up time
Start-up may be programmed between 1 minute and 24 hours in advance.
You can store up to 3 different start-up times, but programme only 1 delayed start-up time.
Factory settings A :
Time 1 : 06:00.
Time 2 : 16:00.
Time 3 : 22:00.
Note : The factory settings are replaced once you adjust them. The programmed times are stored until they are re-programmed.
Press button 3 then buttons 2 or 7 in the next 10 seconds, until the desired start-up time is displayed.
Note : In the event of a battery failure, the factory settings are restored.
Note : if you wish to recall the other stored times, press several times on button 3 in the next 10 seconds until the desired programme number is displayed.
Cancelling the programmed time
To cancel the programmed start-up t i m e , p r e s s b r i e fl y o n b u t t o n 3.
Setting the time
Hold button 3 down and press but-ton 2 or button 7. Release button 3, the time is displayed and symbol 6 fl a s h e s .
Use the two adjustment buttons 2(to go forward) or 7 (to go back) until the correct time is displayed.
Holding these buttons down will make the numbers displayed scroll more quickly.
Reading the time
Press button 2 or button 7 to dis-play the time.
When the heating mode is acti-vated, the remaining operating time is displayed in place of the time.
Page 102 of 240
105
III
34
2
3
8
76
Selection and activation of a programmed time
Press button 3 until the programme number corresponding to the required programmed time is dis-played. The chosen pre-selected time is automatically activated after 10 seconds if no other but-tons have been pressed.
T o c o n fi r m t h a t t h e m o d e i s a c t i -vated, symbols 4 and 8 fl a s h u n t i l the heating starts up.
When the heating starts up, the warning lamp 9 lights up on the dashboard and the programmer screen.
P R O G R A M M A B L E H E A T I N G
Adjusting the operating durationPress button 3 and hold it down. Press button 2 or 7 at the same time. Release button 3. The time and symbol 6 are displayed.Press again on button 3 and hold it down. Press button 2 or 7 at the same time. Release button 3. The operating duration and symbol 8 is displayed.Adjust the operating duration with button 2 or 7.
Note : The operating duration is memorised when the time indicated disappears or by pressing button 3.
Adjusting the remaining operating duration
When heating mode is activated, the remaining operating time can b e m o d i fi e d w i t h i n t h e r a n g e o f 1 0 to 60 minutes using buttons 2 or 7.
Note :The pre-selected start-up time c a n b e m o d i fi e d o r c a n c e l l e d b y following the instructions previ-ously given above.
In the event of a battery discon-nection, the programmer must be re-set (hours, minutes etc.)
Always switch off the additional heating when filling up with f u e l , t o p r e v e n t a n y r i s k o f fi r e or explosion.
To avoid any risk of intoxica-tion or asphyxiation, the addi-tional heating must not be used, even for short periods, in an enclosed area such as a garage or workshop not equipped with a system for the extraction of exhaust gases.
Do not park the vehicle over i n fl a m m a b l e m a t e r i a l s ( e . g . d r y grass, dead leaves or paper) as t h i s c o u l d p r e s e n t a fi r e r i s k .
The programmable heating sys-tem is supplied by the vehicle’s fuel tank. Before use, ensure that the remaining fuel level is s u f fi c i e n t . I f y o u a r e u s i n g t h e reserve fuel tank, we strongly advise you not to use the pro-grammable heating system.
Page 112 of 240
115
III
A
B
I N T E R I O R L I G H T I N G
Ambient dashboard lighting
Your vehicle is equipped with warm and welcoming ambient lighting.
A soft orange light is emitted.
Operation
When starting the engine, lights located along the dashboard are activated.
With the ignition on and the head-lamps on, button A allows you to activate or deactivate the ambient dashboard lighting.
Ambient central console lighting
These lights are located on the roof console, near the front interior lamp. They light up the central con-sole.
Operation
These lights are activated when the instrument panel comes on. They are deactivated when the instrument panel goes out.
The intensity of the lighting varies along with that of the instrument panel. Press buttons B to increase or reduce the intensity of the light-ing.
Door opening controls lighting
They are located on the front and rear interior door opening controls.
The rear door opening controls lighting is deactivated if child safety is activated.
