2008 Citroen C3 PLURIEL headlamp

V
114

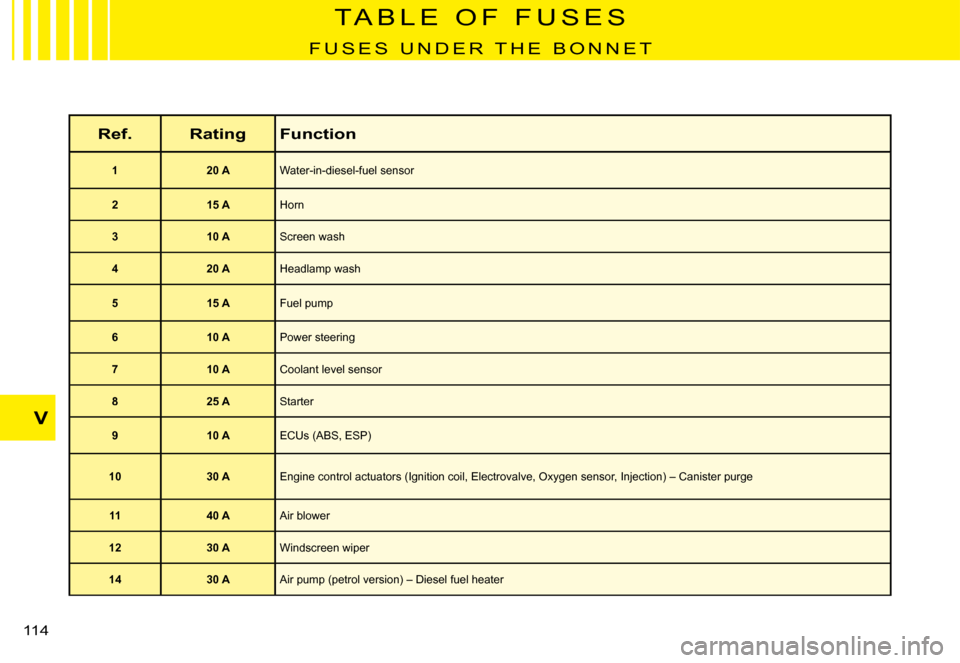

T A B L E O F F U S E S
F U S E S U N D E R T H E B O N N E T
Ref.RatingFunction
120 AWater-in-diesel-fuel sensor
215 AHorn
310 AScreen wash
420 AHeadlamp wash
515 AFuel pump
610 APower steering
710 ACoolant level sensor
825 AStarter
910 AECUs (ABS, ESP)
1030 AEngine control actuators (Ignition coil, Electrovalve, Oxygen sensor, Injection) – Canister purge
1140 AAir blower
1230 AWindscreen wiper
1430 AAir pump (petrol version) – Diesel fuel heater

1
3
2
4
VI
117
C H A N G I N G B U L B S
HEADLAMP UNIT1. Dipped beams2. Main beams3. Sidelamps4. The direction indicator warn-ing lampsNote: A light misting may appear on the headlamp surface in certain conditions of use.
Note: To change the bulbs in the LH headlamp lens:Remove the battery cover.
Detach the fusebox cover.
