Page 9 of 178
B
II
2 9
I N S T R U M E N T P A N E L
Display
As soon as you open the driver's door, the instrument panel displays the total mileage and trip mileage.
When you switch on the ignition, it scrolls through the following infor-mation:Maintenance indicator.
The engine oil level indicator.
Total mileage.
It also displays the trip mileage or trip computer information (depending on the memory status since the vehicle was last stopped).
Trip mileage recorder reset
This can operate when the ignition is switched on.
Press B to show the trip mileage, then give a long press on B to reset the counter to zero.
Page 10 of 178
BCD
AF
E
IJHG
II
2 8
I N S T R U M E N T P A N E L D I E S E L V E R S I O N
A. Control:Lighting rheostatNight driving (Black panel)B. Fuel gaugeC. Rev counterDuring the running-in period, see "Running-in".
D. Red zone of rev counter telling you of the need to change to a higher gear.Sport version: The warning lamp lights up in orange, then in red.
--
E. Electronic Gearbox System displayF. Control:Trip mileage recorder resetG. Display:Cruise contol/speed limiterTrip mileage recorderTrip computer
-
---
H. Display of warning lampsI. Speed indicatorJ. Display:Maintenance indicatorEngine oil level indicatorTotal mileage recorder
---
Page 11 of 178
B
II
2 9
I N S T R U M E N T P A N E L
Display
As soon as you open the driver's door, the instrument panel displays the total mileage and trip mileage.
When you switch on the ignition, it scrolls through the following infor-mation:Maintenance indicator.
The engine oil level indicator.
Total mileage.
It also displays the trip mileage or trip computer information (depending on the memory status since the vehicle was last stopped).
Trip mileage recorder reset
This can operate when the ignition is switched on.
Press B to show the trip mileage, then give a long press on B to reset the counter to zero.
Page 12 of 178
B
II
2 9
I N S T R U M E N T P A N E L
Display
As soon as you open the driver's door, the instrument panel displays the total mileage and trip mileage.
When you switch on the ignition, it scrolls through the following infor-mation:Maintenance indicator.
The engine oil level indicator.
Total mileage.
It also displays the trip mileage or trip computer information (depending on the memory status since the vehicle was last stopped).
Trip mileage recorder reset
This can operate when the ignition is switched on.
Press B to show the trip mileage, then give a long press on B to reset the counter to zero.
Page 16 of 178
AB
D
C
II
3 3

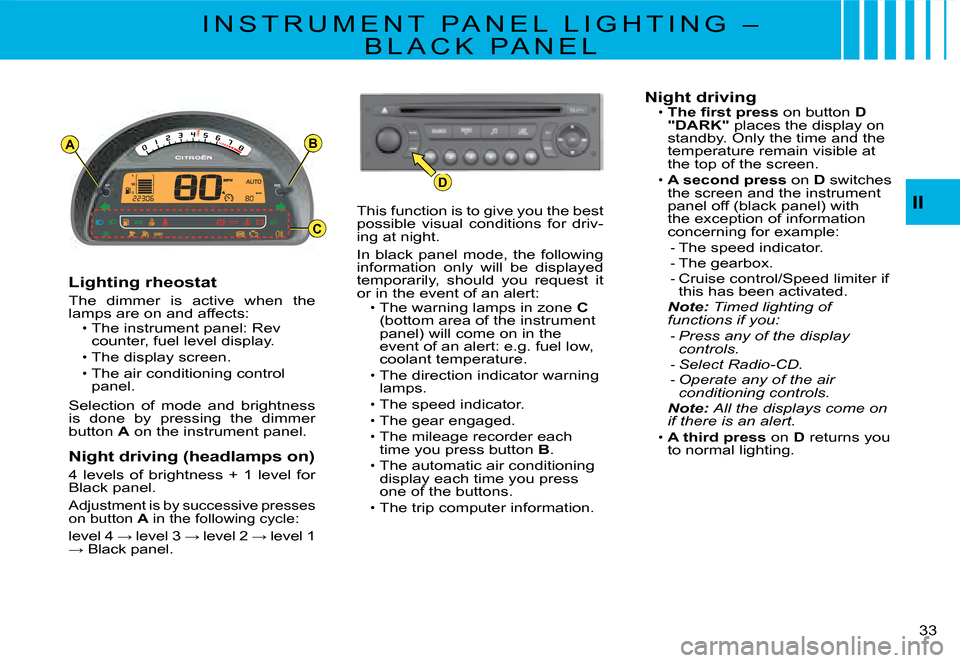

I N S T R U M E N T P A N E L L I G H T I N G –
B L A C K P A N E L
Lighting rheostat
The dimmer is active when the lamps are on and affects:The instrument panel: Rev counter, fuel level display.
The display screen.
The air conditioning control panel.
Selection of mode and brightness is done by pressing the dimmer button A on the instrument panel.
Night driving (headlamps on)
4 l e v e l s o f b r i g h t n e s s + 1 l e v e l f o r Black panel.
Adjustment is by successive presses on button A in the following cycle:
l e v e l 4 W l e v e l 3 W l e v e l 2 W level 1 W Black panel.
Page 24 of 178
II
4 1
T R I P C O M P U T E R
For selection and display of the various types of information, give short presses on the end of the windcsreen wiper stalk.
Instrument panel (For a version with digital clock)
T h e t r i p c o m p u t e r p r o v i d e s 4 t y p e s of information on the instrument panel, following the display of trip mileage:Range.
Instantaneous consumption.
Average consumption.Average speed.
Remark: If the cruise control/speed limiter is in operation, the display of trip computer information disap-pears after a few seconds.
Page 26 of 178
II
4 3
Range
This is the distance that can still be travelled on the amount of fuel remaining in the tank.
When the distance remaining to be travelled is l e s s t h a n a p p r o x . 2 5 k m ( 1 5 m i l e s ) , o n l y t h r e e dashes will be displayed.
Average consumption
This is the relationship between the fuel con-sumed and the distance travelled since the last reset to zero of the trip computer.
Instantaneous consumption
This is the result from the consumption r e c o r d e d w i t h i n t h e l a s t 2 s e c o n d s . T h i s f u n c -tion is only available when travelling at over 3 0 k m / h ( a p p r o x . 2 0 m p h ) .
Average speed
This is obtained, from the last reset to zero of the trip computer, by dividing the distance travelled by the time taken (with ignition switched on).
Distance travelled
This is the distance that has been travelled s i n c e t h e l a s t r e s e t t o z e r o o f t h e J o u r n e y selected.
Distance to be travelled
To enter it, see "Multifunction display".
Instrument panelDisplay version ADisplay version C
T R I P C O M P U T E R
Page 28 of 178
A
II
4 5
S I G N A L L I N G
Lighting control stalk
All vehicle lamps off
Sidelamps on
The instrument panel lights up.
Dipped beams/main beams onRotate the ring A forwards.
Rotate the ring A forwards.
Sidelamps and dipped beams come on automatically in poor ambient light, or if the wipers are in continuous operation. They go out as soon as the ambient light again b e c o m e s u f fi c i e n t o r w h e n t h e w i p -ers cease to operate.
Guide-me-home lighting
This function switches on your headlamps, to light your way when you wish to walk from a carpark, for example.
This function is activated:Manually by pulling the lighting stalk towards you, ignition off.
Automatically, provided:The automatic lighting of headlamps is activated.To activate the guide-me-home lighting function, select in the "Main menu", then in "Personalisation/ C o n fi g u r a t i o n " , t h e s u b - m e n u for lighting and signalling, then activate the function.See "Multifunction display".Note:It is possible to modify the duration of the guide-me-home lighting (approx. 60, 30 or 15 seconds) in the menu "Personalisation/ C o n fi g u r a t i o n " .
On screen A , t h e l e n g t h i s fi x e d .Note: On vehicles equipped with daytime running lamps, automatic headlamp lighting and guide-me-home lighting are not available.
