C H I L D S A F E T Y
V
98
ADVICE ON CHILD SEATS
The incorrect installation of a
child seat in a vehicle compromises
the child’s protection in the event of an
accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack in relation to the child’s body to a
minimum, even for short journeys.
For optimum installation of the “for-
ward facing” child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle’s seat and
that the head restraint does not cause
any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or at-
tached securely to prevent it from be-
ing thrown around the vehicle in the
event of sharp braking.
Children under the age of 10 must not
travel in the “forward facing” position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Disarm the passenger air bag when
a “rear facing” child seat is installed
on the front seat. Otherwise, the child
would risk being seriously injured or
k i l l e d i f t h e a i r b a g w e r e t o i n fl a t e . Installing a booster seat
The chest part of the seat belt must
be positioned on the child’s shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child’s
thighs.
CITROËN recommends the use of
a b o o s t e r s e a t w h i c h h a s a b a c k , fi t -
ted with a seat belt guide at shoulder
level.
As a safety precaution, do not leave:
- one or more children alone and un-
supervised in a vehicle,
- a child or an animal in a vehicle w h i c h i s e x p o s e d t o t h e s u n , w i t h
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors, use the “Child lock”.
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
rear windows.
Lower the control A to position 1 .
Locking
Unlocking
Raise the control A to position
2 .
Mechanical system to prevent opening
of the rear door using its interior con-
trol.
The control is located on the edge of
each rear door.
Page 105 of 216
S A F E T Y
VI
106
If the air bag warning light and the
display come on continuously,
do not install a “rear facing” child
seat on the front passenger seat.
Consult a CITROËN dealer.
Operating fault
If this warning light comes on on the
instrument panel and this display
appears on the instrument panel
display, contact a CITROËN dealer to
have the system checked. The air bags
may no longer be triggered in the event
of a serious impact.
To guarantee the safety of your
child, it is imperative that the
passenger air bag is disarmed
when you install a “rear facing” child
seat on the front passenger seat.
Otherwise, the child would risk being
seriously injured or killed if the air
bag were triggered.
This warning light comes on on the cen-
tre console front panel when the ignition
is on and until the air bag is re-armed. Reactivation
When you remove the child seat, turn
switch
A to the “ ON” position to re-arm
the air bag and so guarantee the safety
of your front passenger in the event of
an impact.
The associated warning light switches
off.
Deactivation
Only the front passenger’s air bag can
be disarmed:
with the ignition off , insert the key
in the passenger air bag disarming
switch
A ,
turn it to the “OFF” position,
remove the key.
Page 141 of 216
P R A C T I C A L I N F O R M A T I O N
IX
139
Fascia fuses
T h e f u s e b o x e s a r e p l a c e d i n t h e l o w e r
p a r t o f t h e f a s c i a b e h i n d t h e g l o v e b o x .
Access to the fuses
O p e n t h e g l o v e b o x ,
Push the two opening guides C inwards to
p a s s t h e fi r s t n o t c h ,
Remove the retaining tab D pulling it outwards,
Support the cover and tilt it downwards,
Change the fuse (refer to the corresponding
paragraph).
Fuse N° Rating Functions
1 *
30 A Heating.
2 15 A Brake lights, third brake light, built-in systems
interface.
3 10 A Rear fog lamps.
4 30 A Windscreen wipers and wash-wipe.
5 10 A Diagnostic socket.
6 20 A C e n t r a l l o c k i n g , e x t e r i o r m i r r o r s .
7 15 A Audio equipment, telematics, multifunction display,
hands-free kit, rear DVD player.
8 7.5 A Remote control key, air conditioning control unit,
instrument panel, controls bar, steering wheel
controls.
9 15 A Multifunction display, instrument panel.
10 15 A Built-in systems interface.
11 15 A Rear wiper.
12 7.5 A Instrument panel, 4 wheel drive control unit,
air conditioning control panel, ABS control
unit, multifunction display, automatic headlamp
adjustment, heated seats, air bags control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.
13 - Not used.
14 10 A Ignition switch.
15 20 A Sunroof.
16 10 A E x t e r i o r m i r r o r s , a u d i o e q u i p m e n t , t e l e m a t i c s , r e a r
DVD player.
Page 181 of 216
![Citroen C CROSSER 2008 1.G Owners Manual A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
178
Press E x p l a n a t i o n s Result
Press the MENU button.
Press [Address/Junction]. Press [Country] and enter the](/manual-img/9/4180/w960_4180-180.png "Citroen C CROSSER 2008 1.G Owners Manual A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
178
Press E x p l a n a t i o n s Result
Press the MENU button.
Press [Address/Junction]. Press [Country] and enter the")
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
178
Press E x p l a n a t i o n s Result
Press the MENU button.
Press [Address/Junction]. Press [Country] and enter the name of the country using the to uch key-
pad.
When a character of the name of the country is entered, if 5 countries or
fewer are recognised, you can select a country from a list which is dis-
played or press [List].
You can select one of the 5 most recently selected countries by
pressing [Last 5] on the “Country” line.
Press [City] then [Keyword] and enter the name of the city usin g the touch
keypad.
When a character of the name of the city is entered, if 5 ci ties or fewer are
recognised, you can select a city from a list which is displayed or press
[List].
You can select a city using the post code.
Press [Post Code] and enter the number.
You can select one of the 5 most recently selected cities by pre ss-
ing [Last 5] on the “City” line.
Entering an address and activating guidance (1/2)
Page 182 of 216
![Citroen C CROSSER 2008 1.G Owners Manual /
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
179
Entering an address and activating guidance (2/2) Press E x p l a n a t i o n s Result
Press [Street] and enter the na](/manual-img/9/4180/w960_4180-181.png "Citroen C CROSSER 2008 1.G Owners Manual /
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
179
Entering an address and activating guidance (2/2) Press E x p l a n a t i o n s Result
Press [Street] and enter the na")
/
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
179
Entering an address and activating guidance (2/2) Press E x p l a n a t i o n s Result
Press [Street] and enter the name of a street using the touch keypad.
When a character of the name of the street is entered, if 5 streets or fewer
are recognised, you can select a street from a list which is displa yed or
press [List].
Press [House #] and enter the number of the house using the touch key-
pad.
You can enter the name of a junction instead of the numb er
of the street. Press [Junction] and select the name from a
list which is displayed.
This is what you obtain once all of the information has b een entered:
If you agree with the information press [Set], otherwise press one of the
buttons to correct.
Press [Start] to start the navigation.
Page 204 of 216
DE
E1E2E3E4
D1D2
D3D4
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
201
Time and date, language, unit,
picture size
E - Choose the size of the DVD picture
for:
E1 - normal 4/3,
E 2 - e x t e n d s t h e p i c t u r e e v e n l y t o t h e r i g h t and to the left in wide screen mode,
E 3 - e x t e n d s t h e r i g h t a n d l e f t p a r t s o n l y
leaving the centre as it stands in wide
screen mode,
E4 - enlarges the picture in 4/3 format.The top and the bottom are outside the
frame.
D
- Choose the base settings of the
system for:
D1 - setting of the time by the RDS signal,
time zone, summer time,
D2 - the language (English, Français,
Deutsch, Nederlands, Portuguese,
Español, Svenska, Italiano, Dansk),
D3 - the units for calculation of the
distances (km or miles and °C or °F),
D4 - other settings such as:
- the voice guidance volume,
- the type of voice guidance voice (female or male),
- the volume of the operation bleeps (1 to 3 and 0=no bleep),
- the type of inputting keypad (alphabet or PC),
- the range of menu colours (red or blue),
- the displaying or not of the audio playing icons on the map screen,
- the reinitialisation of the vehicle sensor,
- the interruption or not of the display when the air conditioning is used.
Page 207 of 216
D
C
D1D2D3
D4D5
D6D7D8
D7
D9D10D11D12
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
204

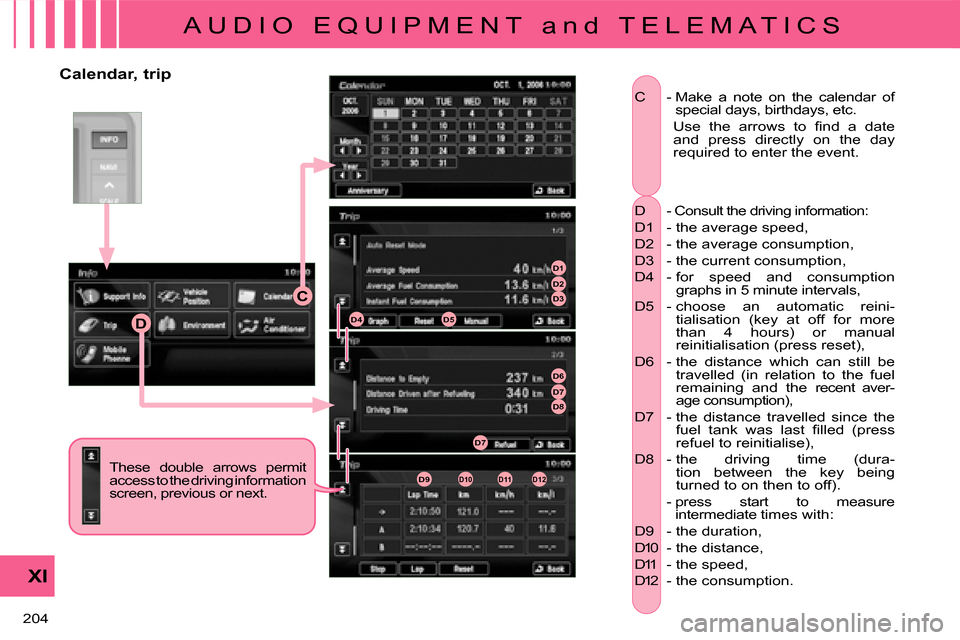

Calendar, trip These double arrows permit
access to the driving information
s c r e e n , p r e v i o u s o r n e x t .
D - Consult the driving information:
D1 - the average speed,
D2 - the average consumption,
D3 - the current consumption,
D4 - for speed and consumption
graphs in 5 minute intervals,
D5 - choose an automatic reini- tialisation (key at off for more
than 4 hours) or manual
reinitialisation (press reset),
D6 - the distance which can still be
travelled (in relation to the fuel
remaining and the recent aver-
age consumption),
D7 - the distance travelled since the f u e l t a n k w a s l a s t fi l l e d ( p r e s s
refuel to reinitialise),
D8 - the driving time (dura-
tion between the key being
turned to on then to off).
- press start to measure intermediate times with:
D9 - the duration,
D10 - the distance,
D11 - the speed,
D12 - the consumption.
C - Make a note on the calendar of
special days, birthdays, etc.
U s e t h e a r r o w s t o fi n d a d a t e
and press directly on the day
required to enter the event.
