2008 Citroen BERLINGO FIRST DAG window

5FAMILIARISATION-
INSTRUMENTS AND CONTROLS

12. Windscreen demisting vents.

13. Speaker (tweeter).

14. Side window demisting vents.

15. Side adjustable heating/
ventilation vents.

16. Passenger air bag disarming
control.

17. Upper glove box or passenger
air bag.

18. Lower glove box.

19. Audio RD3.

20. Heating/air conditioning controls.

21. Storage.

22. Removable ashtray.

23. Gear lever.

24. Lighter.

25. Handbrake.
26. Heated seats control.

27. Steering lock and ignition.

28. Steering wheel adjustment
control.

29. Bonnet release.

30. Fuse box.

31. Headlamp height adjustment.

32. Passenger's electric mirror
control.

1. Speed limiter/cruise control stalk.

2. Lights and direction indicators
stalk.

3. Driver's air bag.
Horn.

4. Instrument panel.

5. Audio equipment steering wheel
control.

6. Windscreen wipers/
wash-wipe stalk.

7. Central adjustable heating/
ventilation vents.

8. Hazard lights button.

9. Multifunction display or clock.

10. Central lockingbutton.

11. Controls:
- Electric windows.
- Demisting of rear door windows.
- Air conditioning.

FAMILIARISATION10 -
STEERING WHEEL HEIGHT ADJUSTMENT

 When stationary, push the control A
forwards to unlock the steering
wheel.

 Adjust the height of the steering
wheel.

 Lock it by pulling control A towards
you fully.
ELECTRIC WINDOWS

1. Driver's electric window.

2. Passenger's electric window.
EXTERIOR MIRRORS

 Move the manual control 3 in all
four directions to adjust.
Electric control for the
passenger's side mirror

 From the driver's seat, adjust in
all four directions by operating
the control 4 .
Manual mode:

 Press the switch. The window stops
as soon as the switch is released.
Automatic mode (driver):

 Press and hold the switch. One
touch completely opens or closes
the window.

 61
 62
 66

35COMFORT-
VENTILATION

1. Windscreen de-icing or
demisting vents.

2. Front window de-icing or
demisting vents.

3. Side vents.

4. Centre vents.

5. Air outlets to front footwells. The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
Operate the air conditioning system
for 5 to 10 minutes, once or twice a
month, to keep it in perfect working
order.
The water created by the air condi-
tioning condensation is discharged
via an opening provided for this pur-
pose. Therefore, a puddle of water
may form underneath the vehicle
when stationary.
If the system does not produce
cold air, do not use it and contact a
CITROËN dealer.
De-icing the rear windows and
mirrors
With the engine running, pressing
the control de-ices the rear windows
and mirrors.
It switches off automatically after
approximately twelve minutes.

Pressing the control again switches
the de-icing system on again for
twelve minutes.
It is possible to switch off the de-icing
by pressing the control before the
twelve minutes have elapsed.
Advice on operation
Select the air distribution most suited
to your requirements and the climatic
conditions.
Gradually adjust the temperature
setting for your comfort.
Position the air control in the ''Outside
Air'' position.
For perfectly even air distribution,
take care not to obstruct the exterior
air intake grille and the vents. Check
that the passenger compartment fi lter
is in good condition.
When the engine is cold, to prevent
too great a distribution of cold air, the
ventilation will increase to its optimum
level gradually.
In order to be effective, the air condi-
tioning (
A/C button), should only be
used with the windows closed.
If the interior temperature remains
very high following a prolonged period
parked in the sun, do not hesitate to
ventilate the passenger compartment
for a few minutes.

COMFORT36 - Intake of exterior air.

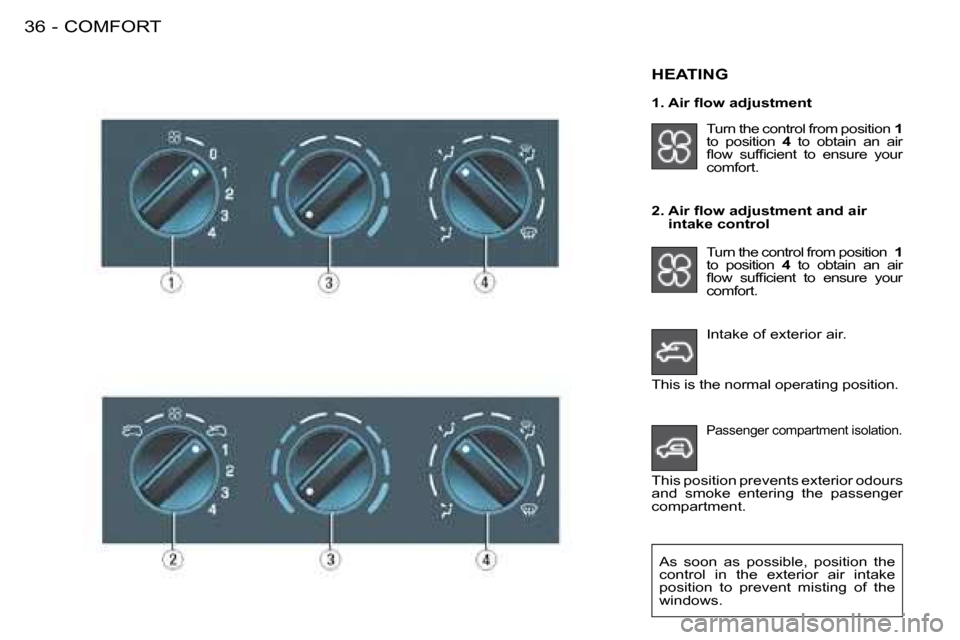

HEATING
Turn the control from position 1
to position 4 to obtain an air
fl ow suffi cient to ensure your
comfort.
2. Air fl ow adjustment and air intake control
Turn the control from position 1
to position 4 to obtain an air
fl ow suffi cient to ensure your
comfort.
As soon as possible, position the
control in the exterior air intake
position to prevent misting of the
windows.
This is the normal operating position.
Passenger compartment isolation.
This position prevents exterior odours
and smoke entering the passenger
compartment.
1. Air fl ow adjustment

37COMFORT-
These settings are recommended for
cold climates.
3. Temperature adjustment
To be adjusted to your requirements.
From blue (exterior temperature) to
red (hot).
4. Air distribution adjustment
This setting is recommended for high
temperatures.
Windscreen and side windows
(de-icing/demisting).
To quickly de-ice or demist the wind-
screen and side windows:
- position the air intake control in the ''Outside Air" position,
- turn the temperature and air fl ow controls to maximum,
- close the centre vents. Windscreen, side windows
and footwells.
Footwells.
Centre and side vents.

39COMFORT-
Additional heater
Vehicles which are fi tted with an HDI
engine may be fi tted with automatic
additional heating to improve your
comfort.
When the engine is idling or the vehi-
cle is stationary, it is quite normal to
notice a high-pitched whistling noise
and a slight emission of smoke and
odour.
Centre and side vents.
This setting is recommended for high
temperatures.
Recirculation of interior air.
This position prevents exterior odours
and smoke entering the passenger
compartment.
Used simultaneously with the air con-
ditioning, recirculation enables both
heating and cooling performance to
be improved.
Used without the air conditioning,
recirculation may result in misting of
the windows.
As soon as possible, position the
control in the exterior air intake posi-
tion.
3. Temperature adjustment
To be adjusted to your requirements.
From blue (cold when the air condi-
tioning is on) to red (hot). 4. Air distribution adjustment
Windscreen and side windows
(de-icing/demisting).
To quickly de-ice or demist the wind-
screen and side windows:
- turn the temperature and air fl ow controls to maximum,
- close the centre vents,
- position the air intake control in the "Outside Air" position,
- start the air conditioning.
Footwells.
These settings are recommended for
cold climates. Windscreen, side windows
and footwells.
Intake of exterior air.
This is the normal operating position.

49SEATS-
ADVICE ON CHILD SEATS
The incorrect installation of a
child seat in a vehicle com-
promises the child's protection in the
event of an accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack in relation to the child's body to
a minimum, even for short journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking. Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Disarm the passenger air bag when
a "rear facing" child seat is installed
on the front seat. Otherwise, the child
would risk being seriously injured or
killed if the air bag were to infl ate.
As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
CITROËN recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level. To prevent accidental open-
ing of the doors, use the
"Child lock".
Take care not to open the rear windows
by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.

49SEATS-
ADVICE ON CHILD SEATS
The incorrect installation of a
child seat in a vehicle com-
promises the child's protection in the
event of an accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack in relation to the child's body to
a minimum, even for short journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking. Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Disarm the passenger air bag when
a "rear facing" child seat is installed
on the front seat. Otherwise, the child
would risk being seriously injured or
killed if the air bag were to infl ate.
As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
CITROËN recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level. To prevent accidental open-
ing of the doors, use the
"Child lock".
Take care not to open the rear windows
by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
