5FAMILIARISATION-
INSTRUMENTS AND CONTROLS
12. Windscreen demisting vents.
13. Speaker (tweeter).
14. Side window demisting vents.
15. Side adjustable heating/
ventilation vents.
16. Passenger air bag disarming
control.
17. Upper glove box or passenger
air bag.
18. Lower glove box.
19. Audio RD3.
20. Heating/air conditioning controls.
21. Storage.
22. Removable ashtray.
23. Gear lever.
24. Lighter.
25. Handbrake.
26. Heated seats control.
27. Steering lock and ignition.
28. Steering wheel adjustment
control.
29. Bonnet release.
30. Fuse box.
31. Headlamp height adjustment.
32. Passenger's electric mirror
control.
1. Speed limiter/cruise control stalk.
2. Lights and direction indicators
stalk.
3. Driver's air bag.
Horn.
4. Instrument panel.
5. Audio equipment steering wheel
control.
6. Windscreen wipers/
wash-wipe stalk.
7. Central adjustable heating/
ventilation vents.
8. Hazard lights button.
9. Multifunction display or clock.
10. Central lockingbutton.
11. Controls:
- Electric windows.
- Demisting of rear door windows.
- Air conditioning.

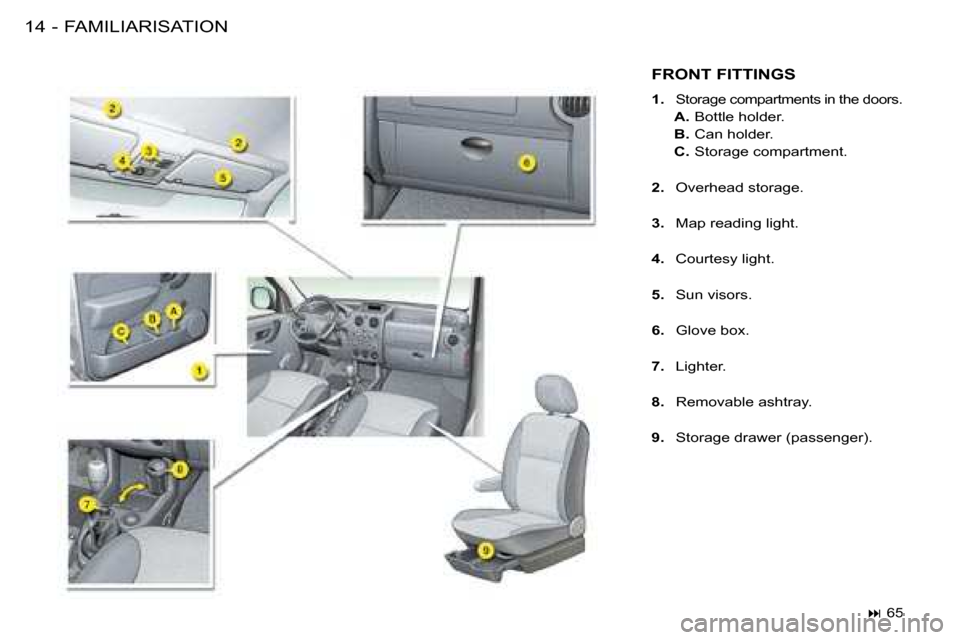

65COMFORT AND SAFETY-
FRONT LAYOUT
4. Courtesy lights 5. Sun visors
Permanently off.
On entering the vehicle: - they come on when the vehicle is unlocked or
when a door is opened,
- they switch off after approximately 30 seconds with the doors closed,
or when the ignition is switched on.
On leaving the vehicle:
- they come on when the key is removed from the ignition (timing
of approximately 30 seconds) or
when a door is opened,
- they switch off after approximately 30 seconds with all of the doors
closed, or immediately when the
vehicle is locked.
In this position, the courtesy light
m a y fl a s h w h i l e d r i v i n g i f a d o o r i s n o t
closed correctly.
If a door is open, it will switch off auto-
matically after approximately 10 minutes
or when the ignition is switched on. Permanently on when the
key is in the accessories po-
sition or the ignition is on.
1. Storage in the doors
A. Bottle holder.
B. Can holder.
C. Storage compartment.
2. Overhead storage
Maximum load: 5 kg .
3. Map reading lights
Turn the dial to the right or to the left
to switch them on.
Place the dial in the centre to switch
them off. 6. Glove box
7. Lighter
It permits the connection of a telephone
charger, a baby's bottle warmer, ...
8. Removable ashtray
Pull the cover to open the ashtray.
To empty, after opening, remove it by
pulling upwards.
9. Storage drawer (passenger)
To open the drawer, lift it slightly and
pull it forwards.
