3. To reassemble the transmitter case, snap the two
halves of the case together. Make sure there is an even
ªgapº between the two halves. If equipped, install and
tighten the screw until snug. Test transmitter operation.
REMOTE STARTING SYSTEM Ð IF EQUIPPED
Your vehicle may be equipped with a remote starting
system, which will allow the vehicle to be started from
distances up to approximately 300 ft (91 m) away from
the vehicle using the Remote Keyless Entry key fob
which is part of your ignition key.
In order to remote start your vehicle, the hood, liftgate,
and all the doors must be closed.
To remote start your vehicle, press the REMOTE START
button on the key fob twice within three seconds. To
indicate that the vehicle is about to start, the parking
lights will flash and the horn will sound briefly.Once the vehicle has started, the engine will run for 15
minutes. To cancel remote start, press the REMOTE
START button once.
Remote Start Transmitter
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To enter the vehicle while the engine is running during a
remote start, you must first unlock the vehicle using the
UNLOCK button on the key fob. After the vehicle is
unlocked, you have 60 seconds to enter the vehicle, insert
the key in the ignition and move it to the RUN position;
otherwise, the engine will cancel remote start and auto-
matically turn off.
Remote start will also cancel if any of the following occur:
²If the engine stalls or RPM exceeds 2500
²Any engine warning lamps come on
²The hood is opened
²The hazard switch is pressed
²The transmission is moved out of PARK
²The brake pedal is pressed.The vehicle can be started remotely up to a maximum of
two times. The vehicle is also allowed a maximum of one
failed start, where the remote start sequence was initiated
but the engine stopped cranking without starting. After
either of these conditions, or if the Security Alarm System
is alarming or if the PANIC button was pressed, the
vehicle must be reset by inserting a valid key into the
ignition and moving it to the RUN position, then back to
LOCK.
DOOR LOCKS
Manual Door Locks
All the doors can be ªmanuallyº locked from the inside
by pushing down the door lock plunger, located at the
rear of the door. Both front doors may be opened from the
inside with the door lock plunger in the down or locked
position.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29
2

LIFTGATE
The liftgate can be unlocked using the Remote Keyless
Entry (RKE) Transmitter or by activating the power door
lock switches located on the front doors.
NOTE:When the engine is running from a remote start
(if equipped), the vehicle must first be unlocked bypressing the remote transmitter UNLOCK button prior to
activating the power liftgate; otherwise, the engine will
stop automatically.
Once unlocked, the liftgate can be opened or closed. To
open the liftgate, pull the exterior handle and open the
liftgate with one fluid motion.
Window Lockout Switch
Power Liftgate Button
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37
2

Airbag System Components
The airbag system consists of the following:
²Occupant Restraint Controller
²Side Remote Acceleration Sensors
²Airbag Warning Light
²Driver Airbag
²Passenger Airbag
²Window Bags above Side Windows
²Steering Wheel and Column
²Instrument Panel
²Interconnecting Wiring
²Knee Impact Bolsters
²Front Acceleration Sensors
²Driver and Front Passenger Seat Belt Pretensioners
How the Airbag System Works
²
TheOccupant Restraint Controller (ORC)determines
if a frontal collision is severe enough to require the
airbags to inflate. The front airbag inflators are de-
signed to provide different rates of airbag inflation
from direction provided by the ORC. The ORC will
detect a roll over when equipped with side airbags.
The ORC also monitors the readiness of the electronic
parts of the system whenever the ignition switch is in
the START or RUN positions. These include all of the
items listed above except the steering wheel and
column, and knee bolsters. If the key is in the OFF
position, in the ACC position, or not in the ignition,
the airbags are not ªonº and will not inflate.
During a moderate-to-severe rear impact the ORC may
deploy the seat belt pretensioners alone.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57
2

If the rear wiper is operating when the ignition is turned
OFF, the wiper will automatically return to the Park
position. When the vehicle is restarted, the wiper will
resume operation.
Rear Window Defrosting
A pushbutton type switch is located in the climate
control panel. Press the switch and the rear win-
dow defroster and electric remote control heated mirrors
(if equipped) will turn on. An amber indicator on the
pushbutton will light when the defroster is turned on. A
symbol will be displayed when the defroster is turned on
with an ATC control. Push again to turn off prior to
time-out. The defroster will automatically turn off after
15 minutes. For 10 more minutes of operation, push the
button again. To prevent excessive battery drain, use the
defroster only when the engine is operating.
CAUTION!
Use care when washing the inside of the rear window
to prevent damage to heating elements. Use a soft
cloth and a mild washing solution, wiping parallel to
the heating elements. Also, keep all objects a safe
distance from the window to prevent damaging the
heating elements.
INSTRUMENT PANEL AND CONTROLS 265
4

Fuses (Power Distribution Center)
Your vehicle is equipped with an electrical power distri-
bution center located in the left side of the engine
compartment.
This center contains cartridge fuses, mini fuses and
relays. A description of each fuse and component may bestamped on the inside cover, otherwise the cavity num-
ber of each fuse is stamped on the inside cover that
corresponds to the following chart. These fuses and
relays can be obtained from your authorized dealer.
CavityCartridge
Fuse /
RelayMini
FuseDescription
1 30 Amp
PinkStarter
2 30 Amp
PinkFront Wiper
3 40 Amp
GreenBrake Batt
4 30 Amp
PinkJB Feed Acc # 2
5 40 Amp
GreenPower Seats
6 30 Amp
PinkRun Remote Relay
Feed
Power Distribution Center
MAINTAINING YOUR VEHICLE 423
7

CavityCartridge
Fuse /
RelayMini
FuseDescription
23 20 Amp
YellowTrailer Tow
24 15 Amp
BlueA/C Clutch
25 15 Amp
BlueStop Lamp Switch
26 Spare
27 20 Amp
YellowRun/Start Relay Feed
28 Spare
29 Relay Run Start
30 Relay Run Remote
31 Spare
32 Relay StarterCavityCartridge
Fuse /
RelayMini
FuseDescription
33 Relay Electronic Automatic
Transaxle (EATX)
34 Relay AC Clutch
35 Relay Fuel Pump Rly
36 Spare
37 Relay Stop Lamp Switch
38 Spare
39 Relay Blower Motor
40 Relay Auto Shut Down
(ASD) Rly
MAINTAINING YOUR VEHICLE 425
7

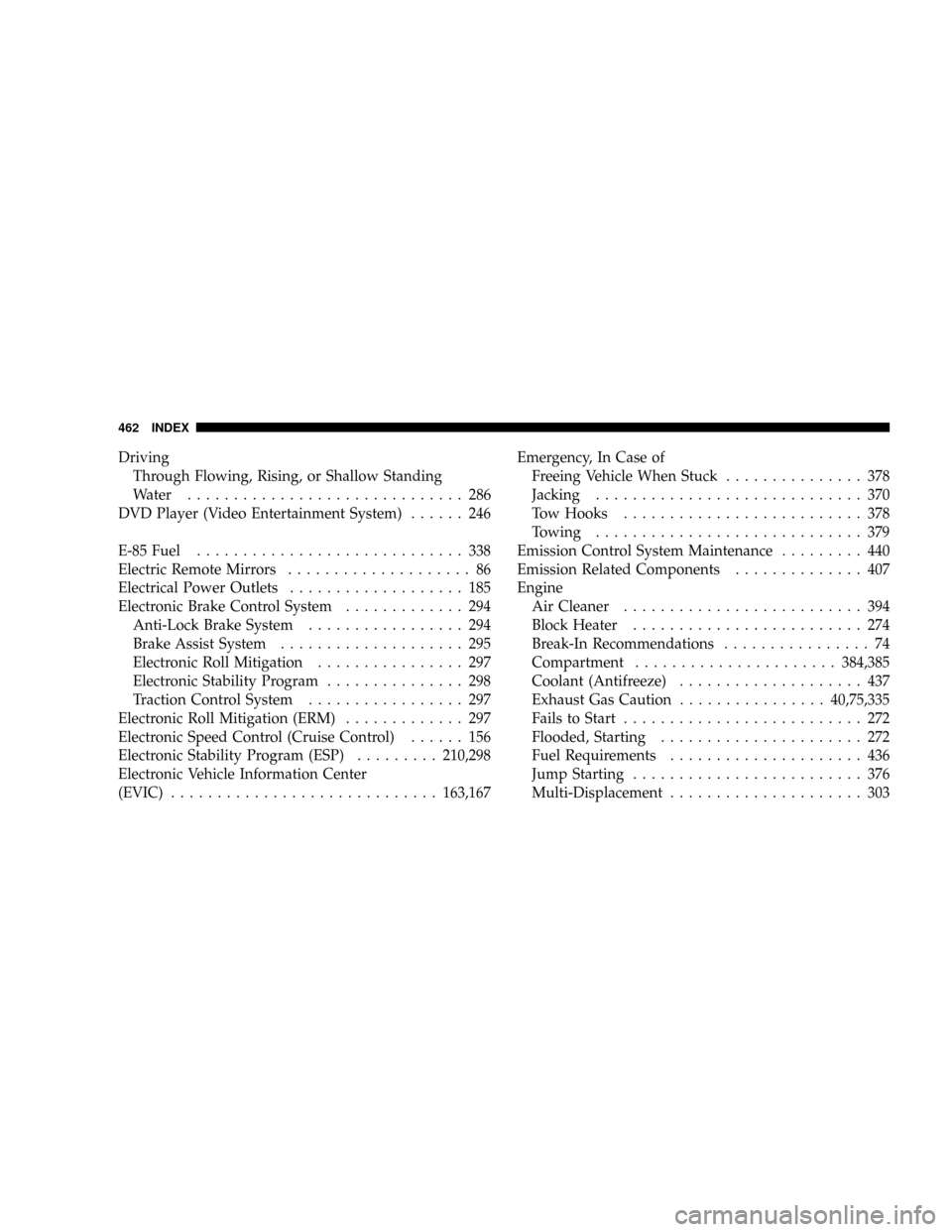

Driving
Through Flowing, Rising, or Shallow Standing
Water.............................. 286
DVD Player (Video Entertainment System)...... 246
E-85 Fuel............................. 338
Electric Remote Mirrors.................... 86
Electrical Power Outlets................... 185
Electronic Brake Control System............. 294
Anti-Lock Brake System................. 294
Brake Assist System.................... 295
Electronic Roll Mitigation................ 297
Electronic Stability Program............... 298
Traction Control System................. 297
Electronic Roll Mitigation (ERM)............. 297
Electronic Speed Control (Cruise Control)...... 156
Electronic Stability Program (ESP).........210,298
Electronic Vehicle Information Center
(EVIC).............................163,167Emergency, In Case of
Freeing Vehicle When Stuck............... 378
Jacking............................. 370
Tow Hooks.......................... 378
Towing............................. 379
Emission Control System Maintenance......... 440
Emission Related Components.............. 407
Engine
Air Cleaner.......................... 394
Block Heater......................... 274
Break-In Recommendations................ 74
Compartment......................384,385
Coolant (Antifreeze).................... 437
Exhaust Gas Caution................40,75,335
Fails to Start.......................... 272
Flooded, Starting...................... 272
Fuel Requirements..................... 436
Jump Starting......................... 376
Multi-Displacement..................... 303
462 INDEX
