Fuses (Power Distribution Centers)..........451
▫Fuses (Front Power Distribution Center).....451
▫Fuses (Rear Power Distribution Center)......453

Vehicle Storage........................458

Replacement Bulbs......................459

Bulb Replacement......................460
412 MAINTAINING YOUR VEHICLE

2.7L ENGINE COMPARTMENT
1 — Fuses (Front Power Distribution Center) 6 — Air Cleaner Filter
2 — Engine Oil Dipstick 7 — Coolant Pressure Cap
3 — Brake Fluid Reservoir Access Cover 8 — Engine Oil Fill
4 — Coolant Bottle 9 — Remote Jump-Start Positive Battery Post
5 — Power Steering Fluid 10 — Washer Fluid Bottle 414 MAINTAINING YOUR VEHICLE

3.5L ENGINE COMPARTMENT
1 — Fuses (Front Power Distribution Center) 6 — Coolant Bottle
2 — Air Cleaner Filter 7 — Engine Oil Fill
3 — Brake Fluid Reservoir Access Cover 8 — Engine Oil Dipstick
4 — Coolant Pressure Cap 9 — Washer Fluid Bottle
5 — Power Steering Fluid 10 — Remote Jump-Start Positive Battery PostMAINTAINING YOUR VEHICLE 415
7

5.7L ENGINE COMPARTMENT
1 — Fuses (Front Power Distribution Center) 6 — Air Cleaner Filter
2 — Coolant Pressure Cap 7 — Engine Oil Fill
3 — Brake Fluid Reservoir Access Cover 8 — Engine Oil Dipstick
4 — Coolant Bottle 9 — Remote Jump-Start Positive Battery Post
5 — Power Steering Fluid 10 — Washer Fluid Bottle 416 MAINTAINING YOUR VEHICLE

FUSES (POWER DISTRIBUTION CENTERS)
Fuses (Front Power Distribution Center)
A power distribution center is located in the engine
compartment. This center contains fuses and relays.
Cavity Car-
tridge
FuseMini
FuseDescription
1 — 15 Amp
BlueWasher Motor
2 — 25 Amp
NeutralPowertrain Control
Module (PCM)
3 — 25 Amp
NeutralIgnition Run/Start
4 — 25 Amp
NeutralAlternator/EGR Sole-
noid
5———
6 — 25 Amp
NeutralIgnition Coils/Injectors/
Short Runner Valve
7 — 25 Amp
NeutralHeadlight Washer - if
equipped
8 — 25 Amp
NeutralStarter
9———
Front Power Distribution Center
MAINTAINING YOUR VEHICLE 451
7

CAUTION!
•When installing the Power Distribution Center
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the Power Distribution
Center, and possibly result in an electrical system
failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
Fuses (Rear Power Distribution Center)
There is also a power distribution center located in the
trunk under the spare tire access panel. This center
contains fuses and relays.
Opening The Access Panel
MAINTAINING YOUR VEHICLE 453
7

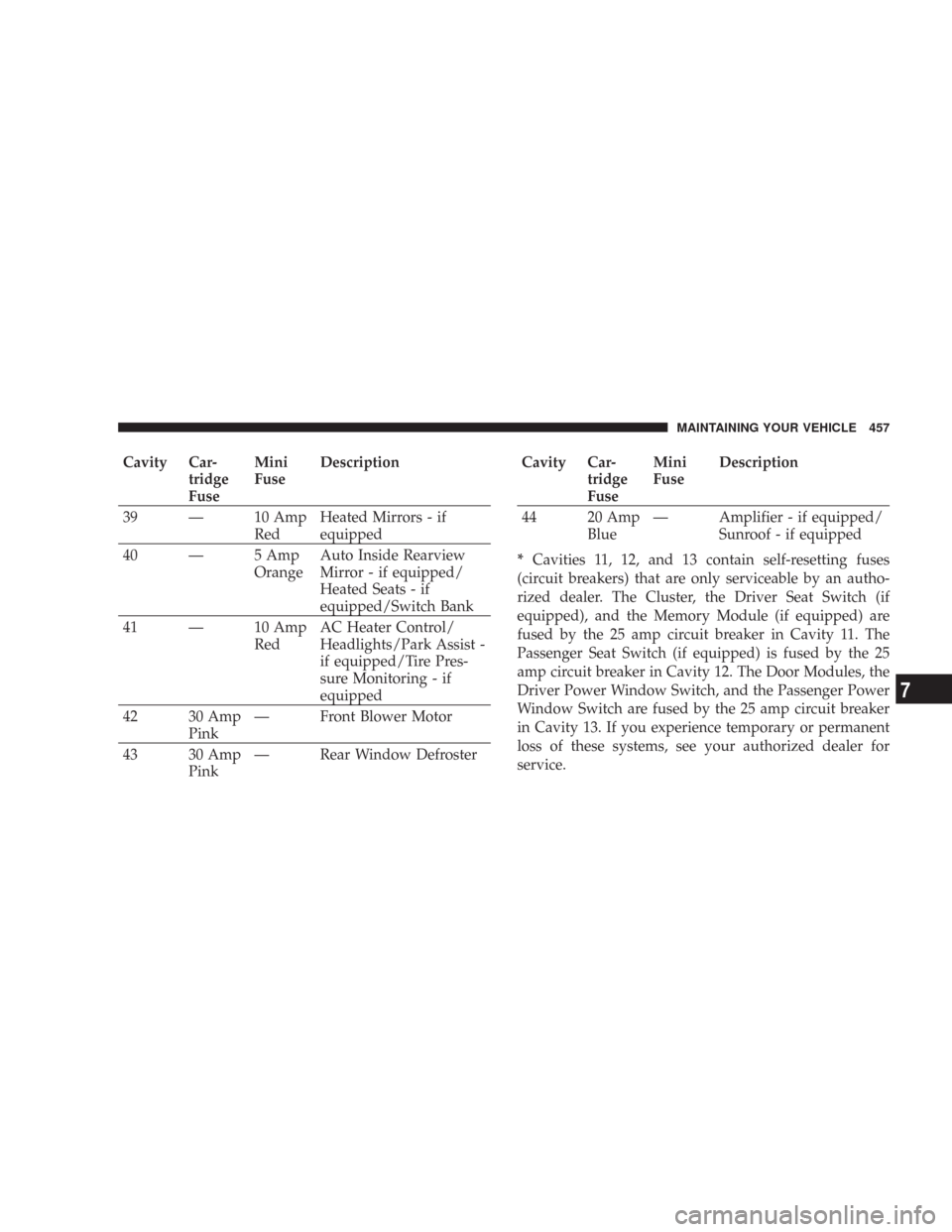

Cavity Car-
tridge
FuseMini
FuseDescription
39 — 10 Amp
RedHeated Mirrors - if
equipped
40 — 5 Amp
OrangeAuto Inside Rearview
Mirror - if equipped/
Heated Seats - if
equipped/Switch Bank
41 — 10 Amp
RedAC Heater Control/
Headlights/Park Assist -
if equipped/Tire Pres-
sure Monitoring - if
equipped
42 30 Amp
Pink— Front Blower Motor
43 30 Amp
Pink— Rear Window DefrosterCavity Car-
tridge
FuseMini
FuseDescription
44 20 Amp
Blue— Amplifier - if equipped/
Sunroof - if equipped
*Cavities 11, 12, and 13 contain self-resetting fuses
(circuit breakers) that are only serviceable by an autho-
rized dealer. The Cluster, the Driver Seat Switch (if
equipped), and the Memory Module (if equipped) are
fused by the 25 amp circuit breaker in Cavity 11. The
Passenger Seat Switch (if equipped) is fused by the 25
amp circuit breaker in Cavity 12. The Door Modules, the
Driver Power Window Switch, and the Passenger Power
Window Switch are fused by the 25 amp circuit breaker
in Cavity 13. If you experience temporary or permanent
loss of these systems, see your authorized dealer for
service.
MAINTAINING YOUR VEHICLE 457
