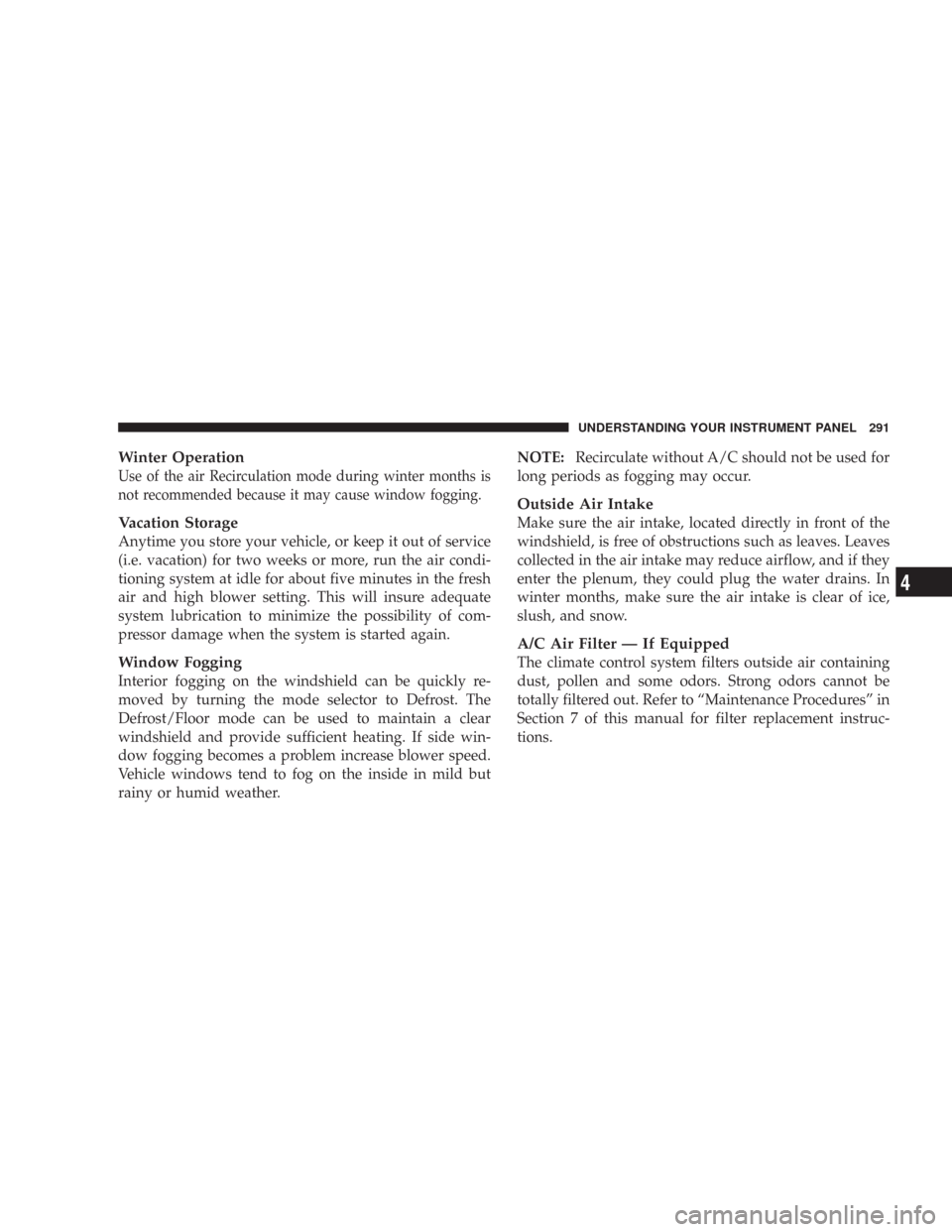

Winter Operation
Use of the air Recirculation mode during winter months is
not recommended because it may cause window fogging.
Vacation Storage
Anytime you store your vehicle, or keep it out of service
(i.e. vacation) for two weeks or more, run the air condi-
tioning system at idle for about five minutes in the fresh
air and high blower setting. This will insure adequate
system lubrication to minimize the possibility of com-
pressor damage when the system is started again.
Window Fogging
Interior fogging on the windshield can be quickly re-
moved by turning the mode selector to Defrost. The
Defrost/Floor mode can be used to maintain a clear
windshield and provide sufficient heating. If side win-
dow fogging becomes a problem increase blower speed.
Vehicle windows tend to fog on the inside in mild but
rainy or humid weather.NOTE:Recirculate without A/C should not be used for
long periods as fogging may occur.
Outside Air Intake
Make sure the air intake, located directly in front of the
windshield, is free of obstructions such as leaves. Leaves
collected in the air intake may reduce airflow, and if they
enter the plenum, they could plug the water drains. In
winter months, make sure the air intake is clear of ice,
slush, and snow.
A/C Air Filter — If Equipped
The climate control system filters outside air containing
dust, pollen and some odors. Strong odors cannot be
totally filtered out. Refer to “Maintenance Procedures” in
Section 7 of this manual for filter replacement instruc-
tions.
UNDERSTANDING YOUR INSTRUMENT PANEL 291
4

MAINTAINING YOUR VEHICLE
CONTENTS

2.7L Engine Compartment................414

3.5L Engine Compartment................415

5.7L Engine Compartment................416

Onboard Diagnostic System — OBD II........417
▫Loose Fuel Filler Cap..................417

Emissions Inspection And Maintenance
Programs............................418

Replacement Parts......................419

Dealer Service.........................420
Maintenance Procedures..................420
▫Engine Oil..........................421
▫Engine Oil Filter......................425
▫Drive Belts — Check Condition And Tension . . 425
▫Spark Plugs.........................426
▫Engine Air Cleaner Filter................426
▫Fuel Filter..........................426
▫Catalytic Converter....................427
▫Maintenance-Free Battery................428
7

▫Air Conditioner Maintenance.............430
▫A/C Air Filter — If Equipped............431
▫Power Steering — Fluid Check............432
▫Front & Rear Suspension Ball Joints........432
▫Steering Linkage......................433
▫Body Lubrication.....................433
▫Windshield Wiper Blades................433
▫Windshield Washers/Headlight Washers —
If Equipped.........................434
▫Exhaust System......................434
▫Cooling System.......................435
▫Hoses And Vacuum/Vapor Harnesses.......440
▫Fuel System.........................441▫Brake System........................441
▫Automatic Transmission................444
▫All Wheel Drive (AWD) — If Equipped.....445
▫Front And Rear Wheel Bearings...........446
▫Appearance Care And Protection From
Corrosion...........................446
▫Cleaning The Center Console Cup Holders . . . 450

Fuses (Power Distribution Centers)..........451
▫Fuses (Front Power Distribution Center).....451
▫Fuses (Rear Power Distribution Center)......453

Vehicle Storage........................458

Replacement Bulbs......................459

Bulb Replacement......................460
412 MAINTAINING YOUR VEHICLE

2.7L ENGINE COMPARTMENT
1 — Fuses (Front Power Distribution Center) 6 — Air Cleaner Filter
2 — Engine Oil Dipstick 7 — Coolant Pressure Cap
3 — Brake Fluid Reservoir Access Cover 8 — Engine Oil Fill
4 — Coolant Bottle 9 — Remote Jump-Start Positive Battery Post
5 — Power Steering Fluid 10 — Washer Fluid Bottle 414 MAINTAINING YOUR VEHICLE

3.5L ENGINE COMPARTMENT
1 — Fuses (Front Power Distribution Center) 6 — Coolant Bottle
2 — Air Cleaner Filter 7 — Engine Oil Fill
3 — Brake Fluid Reservoir Access Cover 8 — Engine Oil Dipstick
4 — Coolant Pressure Cap 9 — Washer Fluid Bottle
5 — Power Steering Fluid 10 — Remote Jump-Start Positive Battery PostMAINTAINING YOUR VEHICLE 415
7

5.7L ENGINE COMPARTMENT
1 — Fuses (Front Power Distribution Center) 6 — Air Cleaner Filter
2 — Coolant Pressure Cap 7 — Engine Oil Fill
3 — Brake Fluid Reservoir Access Cover 8 — Engine Oil Dipstick
4 — Coolant Bottle 9 — Remote Jump-Start Positive Battery Post
5 — Power Steering Fluid 10 — Washer Fluid Bottle 416 MAINTAINING YOUR VEHICLE

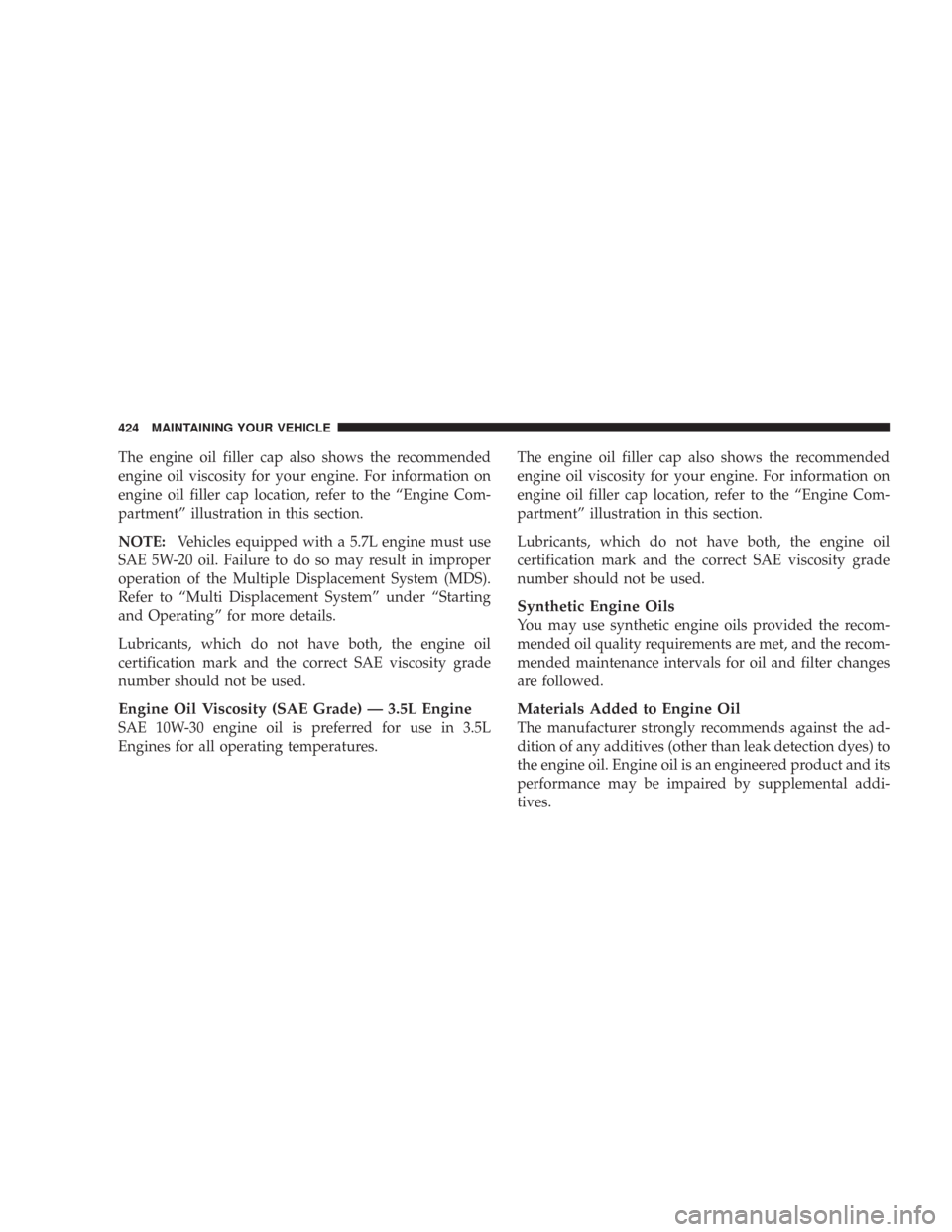

The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on
engine oil filler cap location, refer to the “Engine Com-
partment” illustration in this section.
NOTE:Vehicles equipped with a 5.7L engine must use
SAE 5W-20 oil. Failure to do so may result in improper
operation of the Multiple Displacement System (MDS).
Refer to “Multi Displacement System” under “Starting
and Operating” for more details.
Lubricants, which do not have both, the engine oil
certification mark and the correct SAE viscosity grade
number should not be used.
Engine Oil Viscosity (SAE Grade) — 3.5L Engine
SAE 10W-30 engine oil is preferred for use in 3.5L
Engines for all operating temperatures.The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on
engine oil filler cap location, refer to the “Engine Com-
partment” illustration in this section.
Lubricants, which do not have both, the engine oil
certification mark and the correct SAE viscosity grade
number should not be used.
Synthetic Engine Oils
You may use synthetic engine oils provided the recom-
mended oil quality requirements are met, and the recom-
mended maintenance intervals for oil and filter changes
are followed.
Materials Added to Engine Oil
The manufacturer strongly recommends against the ad-
dition of any additives (other than leak detection dyes) to
the engine oil. Engine oil is an engineered product and its
performance may be impaired by supplemental addi-
tives.
424 MAINTAINING YOUR VEHICLE

Spark Plugs
Spark plugs must fire properly to assure engine perfor-
mance and emission control. New plugs should be in-
stalled at the specified mileage. The entire set should be
replaced if there is any malfunction due to a faulty spark
plug. Malfunctioning spark plugs can damage the cata-
lytic converter. Refer to “Fluids, Lubricants, and Genuine
Parts” in this section for the proper type of spark plug for
use in your vehicle.
Engine Air Cleaner Filter
Refer to the “Maintenance Schedule” in Section 8 of this
manual for engine air cleaner filter maintenance inter-
vals.
NOTE:Be sure to follow the “dusty or off-road condi-
tions” maintenance interval if applicable.
WARNING!
The air induction system (air cleaner, hoses, etc) can
provide a measure of protection in the case of engine
backfire. Do not remove the air induction system (air
cleaner, hoses, etc) unless such removal is necessary
for repair or maintenance. Make sure that no one is
near the engine compartment before starting the
vehicle with the air induction system (air cleaner,
hoses, etc) removed. Failure to do so can result in
serious personal injury.
Fuel Filter
A plugged fuel filter can cause stalling, limit the speed at
which a vehicle can be driven or cause hard starting.
Should an excessive amount of dirt accumulate in the
fuel tank, filter replacement may be necessary. See your
authorized dealer for service.
