2008 CHRYSLER 300 C headlights

NOTE:If a programmed key is lost, see your dealer to
have all remaining keys erased from the systems
memory. This will prevent the lost key from starting your
vehicle. The remaining keys must then be repro-
grammed. All vehicle keys must be taken to the dealer at
the time of service to be reprogrammed.
General Information
The Sentry Key system complies with FCC rules part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
SECURITY ALARM SYSTEM — IF EQUIPPED
The Vehicle Security Alarm system monitors the vehicle
doors for unauthorized entry and the ignition switch for
unauthorized operation. If something triggers the alarm,
the system will prevent the vehicle from starting and
provide the following audible and visual signals: the
horn will pulse; the headlights will flash; the park lights
will flash; and the Vehicle Security Alarm Indicator light
in the instrument cluster will flash.
Rearming of the System:
If something triggers the alarm, and no action is taken to
disarm it, the system will turn off the horn after 3
minutes, turn off all of the visual signals after 15 minutes,
and then the system will rearm itself.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

1. Press and hold the UNLOCK button on a programmed
transmitter for at least 4 seconds, but no longer than 10
seconds. Then, press and hold the LOCK button while
still holding the UNLOCK button.
2. Release both buttons at the same time.
3. Test the feature while outside of the vehicle, by
pressing the LOCK/UNLOCK buttons on the transmitter
with the ignition switch in the LOCK position, and the
key removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Pressing the LOCK button on the transmitter
while you are in the vehicle will activate the Security
Alarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.Turn Headlights On with Remote Key Unlock
This feature activates the headlights for up to 90 seconds
when the doors are unlocked with the transmitter. The
time for this feature is programmable on vehicles
equipped with the Electronic Vehicle Information Center
(EVIC). For details, refer to “Turn Headlights On with
Remote Key Unlock,” under “Personal Settings (Cus-
tomer Programmable Features),” under “Electronic Ve-
hicle Information Center (EVIC)” in Section 4 of this
manual.
To lock the doors:
Press and release the LOCK button on the transmitter to
lock all doors. The turn signal lights will flash and the
horn will chirp to acknowledge the signal.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
2

Using The Panic Alarm:
To turn the panic alarm feature ON or OFF, press and
hold the PANIC button on the transmitter for at least one
second and release. When the panic alarm is on, the
headlights and park lights will flash, the horn will pulse
on and off, and the interior lights will turn on.
The panic alarm will stay on for 3 minutes unless you
turn it off by either pressing the PANIC button a second
time or drive the vehicle at a speed of 15 mph (24 km/h)
or greater.
NOTE:
•The interior lights will turn off if you turn the ignition
switch to the ACC or ON position while the panic
alarm is activated. However, the exterior lights and
horn will remain on.
•You may need to be less than 35 feet (11 meters) from
the vehicle when using the transmitter to turn off the
panic alarm due to the radio frequency noises emitted
by the system.
Programming Additional Transmitters
Refer to SENTRY KEY “Customer Key (Fob) Program-
ming.”(See page 17 for more information.)
If you do not have a programmed transmitter, contact
your dealer for details.
Transmitter Battery Service
The recommended replacement battery is one CR2032
battery.
NOTE:
•Perchlorate Material — special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
2

\3Advanced Phone Connectivity............107
\3Things You Should Know About Your
UConnect™ System....................109
\3General Information...................117
\1Seats................................117
\3Power Seats.........................117
\3Power Reclining Seats..................118
\3Lumbar Support......................119
\3Head Restraints......................120
\3Heated Seats — If Equipped.............120
\3Folding Rear Seat.....................123
\1Driver Memory Seat — If Equipped.........124
\3Programming The Memory Feature........124\3Linking & Unlinking The Remote Keyless
Transmitter To The Memory Feature........125
\3Memory Position Recall.................126
\3Easy Entry/Exit Seat
(Available With Memory Seat Only)........127
\1To Open And Close The Hood.............128
\1Lights...............................130
\3Headlight Switch.....................130
\3Automatic Headlights – If Equipped........131
\3Headlights On With Wipers
(Available With Auto Headlights Only)......132
\3SmartBeams — If Equipped..............132
\3Headlight Time Delay..................133
\3Daytime Running Lights — If Equipped.....134
82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

\3Lights-On Reminder...................134
\3Fog Lights — If Equipped...............134
\3Multi-Function Lever...................134
\3Overhead Console Map/Reading Lights.....136
\3Interior Lights.......................136
\1Windshield Wipers And Washers............138
\3Intermittent Wiper System...............138
\3Mist Feature.........................139
\3Windshield Washers...................139
\3Headlights On With Wipers
(Available With Auto Headlights Only)......139
\3Rain Sensing Wipers — If Equipped........140
\3Adding Washer Fluid..................141\1Headlight Washers — If Equipped...........142
\3Adding Washer Fluid..................143
\1Tilt/Telescoping Steering Column...........144
\1Power Tilt/Telescoping Steering Column —
If Equipped...........................145
\1Adjustable Pedals — If Equipped...........147
\1Electronic Speed Control..................148
\3Electronic Speed Control Operation........149
\3To Activate..........................149
\3To Set At A Desired Speed...............150
\3To Deactivate........................150
\3To Resume Speed.....................150
\3To Vary The Speed Setting...............150
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83
3

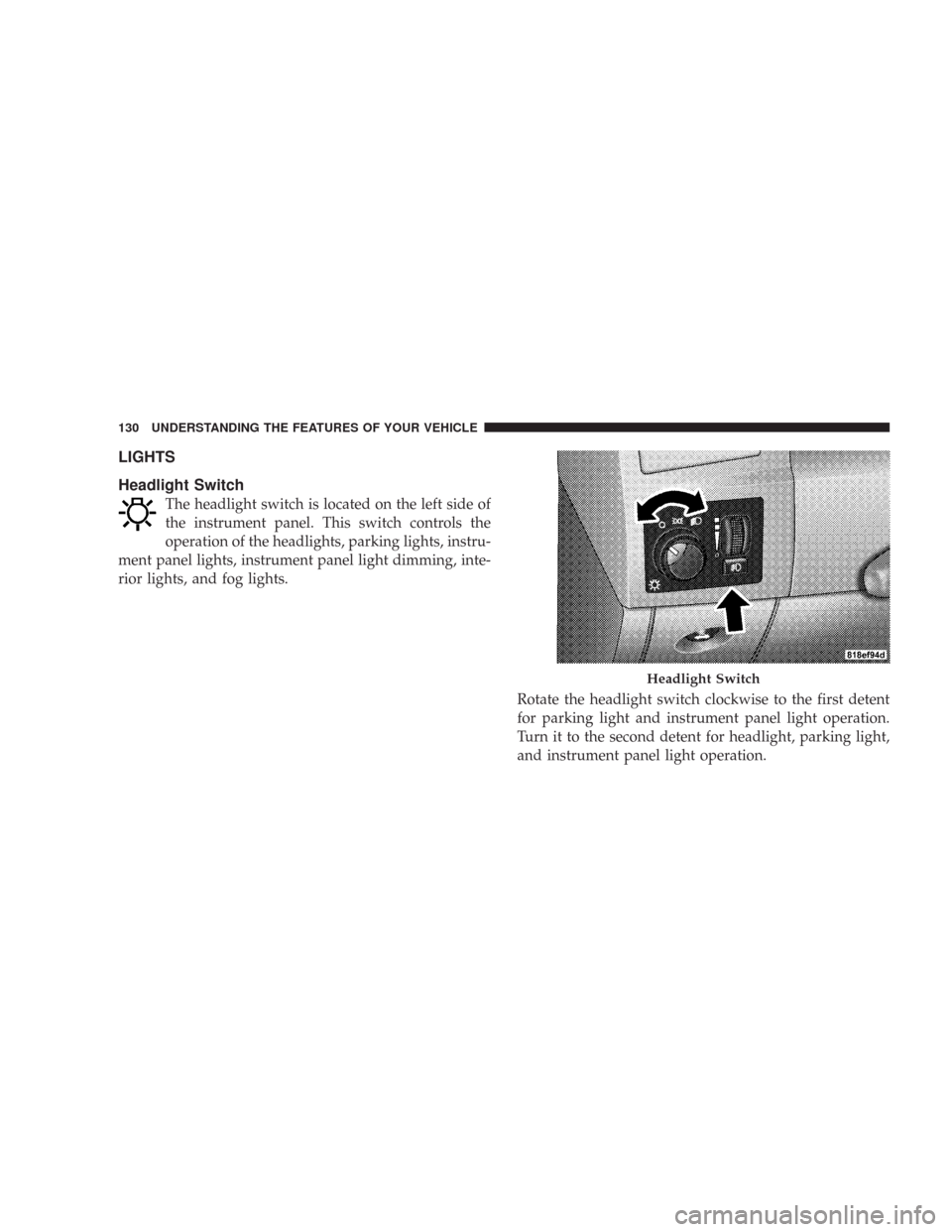

LIGHTS
Headlight Switch
The headlight switch is located on the left side of
the instrument panel. This switch controls the
operation of the headlights, parking lights, instru-
ment panel lights, instrument panel light dimming, inte-
rior lights, and fog lights.
Rotate the headlight switch clockwise to the first detent
for parking light and instrument panel light operation.
Turn it to the second detent for headlight, parking light,
and instrument panel light operation.
Headlight Switch
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Automatic Headlights – If Equipped
This system automatically turns the headlights ON or
OFF according to ambient light levels. To turn the system
ON, rotate the headlight switch counter-clockwise to the
AUTO (A) position. When the system is ON, the Head-
light Time Delay feature is also ON. This means the
headlights will stay ON for up to 90 seconds after you
turn the ignition switch OFF. To turn the Automatic
System OFF, move the headlight switch out of the AUTO
(A) position.
NOTE:The engine must be running before the head-
lights will come ON in the Automatic mode.
Headlight Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131
3

Headlights On with Wipers (Available with Auto
Headlights Only)
When this feature is active, the headlights will turn on
approximately 10 seconds after the wipers are turned on
if the headlight switch is placed in the AUTO position. In
addition, the headlights will turn off when the wipers are
turned off if they were turned on by this feature.
The Headlights On with Wipers feature can be turned on
or off through the Electronic Vehicle Information Center
(EVIC) — if equipped. For details, refer to ”Headlights
On with Wipers,” under “Personal Settings (Customer
Programmable Features),” under “Electronic Vehicle In-
formation Center” in Section 4 of this manual.
SmartBeams — If Equipped
The SmartBeam system provides increased forward light-
ing at night by automating high beam control through
the use of a digital camera mounted on the inside
rearview mirror. This camera detects vehicle specific lightand automatically switches from high beams to low
beams until the approaching vehicle is out of view.
To Activate:
1. Select “Automatic High Beams — ON” through the
Electronic Vehicle Information Center (EVIC). For details,
refer to “Personal Settings (Customer Programmable
Features),” under “Electronic Vehicle Information Cen-
ter” in Section 4 of this manual.
2. Rotate the headlight switch counter-clockwise to the
AUTO (A) position.
3. Push the Multi-Function Lever away from you to
switch the headlights to the HIGH BEAM position.
NOTE:This system will not activate until the vehicle is
at or above 25 mph (40 km/h).
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
