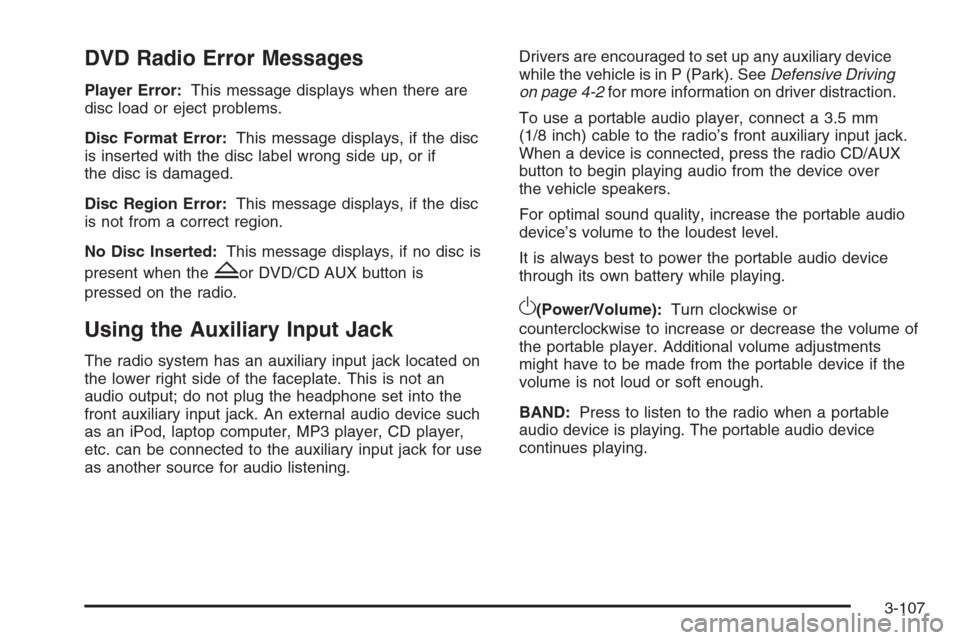

DVD Radio Error Messages
Player Error:This message displays when there are
disc load or eject problems.
Disc Format Error:This message displays, if the disc
is inserted with the disc label wrong side up, or if
the disc is damaged.
Disc Region Error:This message displays, if the disc
is not from a correct region.
No Disc Inserted:This message displays, if no disc is
present when the
Zor DVD/CD AUX button is
pressed on the radio.
Using the Auxiliary Input Jack
The radio system has an auxiliary input jack located on
the lower right side of the faceplate. This is not an
audio output; do not plug the headphone set into the
front auxiliary input jack. An external audio device such
as an iPod, laptop computer, MP3 player, CD player,
etc. can be connected to the auxiliary input jack for use
as another source for audio listening.Drivers are encouraged to set up any auxiliary device
while the vehicle is in P (Park). SeeDefensive Driving
on page 4-2for more information on driver distraction.
To use a portable audio player, connect a 3.5 mm
(1/8 inch) cable to the radio’s front auxiliary input jack.
When a device is connected, press the radio CD/AUX
button to begin playing audio from the device over
the vehicle speakers.
For optimal sound quality, increase the portable audio
device’s volume to the loudest level.
It is always best to power the portable audio device
through its own battery while playing.
O(Power/Volume):Turn clockwise or
counterclockwise to increase or decrease the volume of
the portable player. Additional volume adjustments
might have to be made from the portable device if the
volume is not loud or soft enough.
BAND:Press to listen to the radio when a portable
audio device is playing. The portable audio device
continues playing.
3-107

StabiliTrak®System
Your vehicle may have the StabiliTrak®system which
combines antilock brake, traction and stability control
systems and helps the driver maintain directional control
of the vehicle in most driving conditions.
When you rst start your vehicle and begin to drive away,
the system performs several diagnostic checks to ensure
there are no problems. You may hear or feel the system
working. This is normal and does not mean there is a
problem with your vehicle. The system should initialize
before the vehicle reaches 20 mph (32 km/h). In some
cases, it may take approximately two miles of driving
before the system initializes.
If the system fails to turn on or activate, the StabiliTrak
®
light along with one of the following messages will be
displayed on the Driver Information Center (DIC):
TRACTION CONTROL OFF, SERVICE TRACTION
CONTROL, STABILITRAK OFF, SERVICE
STABILITRAK. If these DIC messages appear, make
sure the StabiliTrak
®system has not been turned
off using the StabiliTrak®on/off button.Then turn the steering wheel clockwise from the nine
o’clock position to the three o’clock position. If this clears
the message(s), your vehicle does not need servicing. If
this does not clear the message(s), then turn the vehicle
off, wait 15 seconds, and then turn it back on again to
reset the system. If any of these messages still appear on
the Driver Information Center (DIC), your vehicle should
be taken in for service. For more information on the DIC
messages, seeDriver Information Center (DIC) on
page 3-56.
The StabiliTrak
®light will
ash on the instrument
panel cluster when
the system is both on and
activated.
You may also feel or hear the system working; this is
normal.
4-6

{CAUTION:
Adding only plain water to your cooling
system can be dangerous. Plain water, or
some other liquid such as alcohol, can boil
before the proper coolant mixture will. Your
vehicle’s coolant warning system is set for the
proper coolant mixture. With plain water or the
wrong mixture, your engine could get too hot
but you would not get the overheat warning.
Your engine could catch re and you or others
could be burned. Use a 50/50 mixture of clean,
drinkable water and a proper coolant.
Notice:In cold weather, water can freeze and crack
the engine, radiator, heater core and other parts.
Use the recommended coolant and the proper
coolant mixture.
{CAUTION:
You can be burned if you spill coolant on hot
engine parts. Coolant contains ethylene glycol
and it will burn if the engine parts are hot
enough. Do not spill coolant on a hot engine.
1. Remove the coolant
surge tank pressure
cap when the cooling
system, including
the coolant surge tank
pressure cap and
upper radiator hose,
is no longer hot.
Turn the pressure cap slowly counterclockwise
about one full turn. If you hear a hiss, wait for that to
stop. A hiss means there is still some pressure left.
2. Then keep turning the pressure cap slowly, and
remove it.
5-38

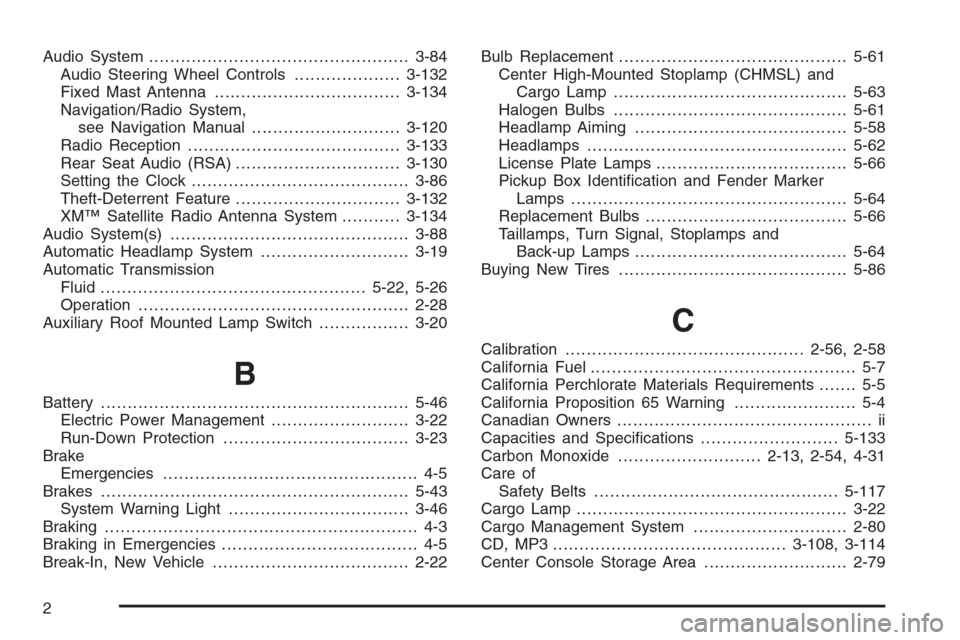

Audio System.................................................3-84
Audio Steering Wheel Controls....................3-132
Fixed Mast Antenna...................................3-134
Navigation/Radio System,
see Navigation Manual............................3-120
Radio Reception........................................3-133
Rear Seat Audio (RSA)...............................3-130
Setting the Clock.........................................3-86
Theft-Deterrent Feature...............................3-132
XM™ Satellite Radio Antenna System...........3-134
Audio System(s).............................................3-88
Automatic Headlamp System............................3-19
Automatic Transmission
Fluid..................................................5-22, 5-26
Operation...................................................2-28
Auxiliary Roof Mounted Lamp Switch.................3-20
B
Battery..........................................................5-46
Electric Power Management..........................3-22
Run-Down Protection...................................3-23
Brake
Emergencies................................................ 4-5
Brakes..........................................................5-43
System Warning Light..................................3-46
Braking........................................................... 4-3
Braking in Emergencies..................................... 4-5
Break-In, New Vehicle.....................................2-22Bulb Replacement...........................................5-61
Center High-Mounted Stoplamp (CHMSL) and
Cargo Lamp............................................5-63
Halogen Bulbs............................................5-61
Headlamp Aiming........................................5-58
Headlamps.................................................5-62
License Plate Lamps....................................5-66
Pickup Box Identication and Fender Marker
Lamps ....................................................5-64
Replacement Bulbs......................................5-66
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps........................................5-64
Buying New Tires...........................................5-86
C
Calibration.............................................2-56, 2-58
California Fuel.................................................. 5-7
California Perchlorate Materials Requirements....... 5-5
California Proposition 65 Warning....................... 5-4
Canadian Owners................................................ ii
Capacities and Specications..........................5-133
Carbon Monoxide...........................2-13, 2-54, 4-31
Care of
Safety Belts..............................................5-117
Cargo Lamp...................................................3-22
Cargo Management System.............................2-80
CD, MP3 ............................................3-108, 3-114
Center Console Storage Area...........................2-79
2

Center High-Mounted Stoplamp (CHMSL) and
Cargo Lamp...............................................5-63
Center Seat...................................................1-12
Chains, Tire...................................................5-92
Charging System Light....................................3-45
Check
Engine Light...............................................3-49
Checking Things Under the Hood......................5-12
Chemical Paint Spotting.................................5-122
Child Restraints
Child Restraint Systems...............................1-42
Infants and Young Children...........................1-39
Lower Anchors and Tethers for Children..........1-45
Older Children.............................................1-35
Securing a Child Restraint in a
Rear Seat Position...................................1-54
Securing a Child Restraint in the
Center Front Seat Position........................1-57
Securing a Child Restraint in the
Right Front Seat Position..........1-57, 1-62, 1-66
Where to Put the Restraint...........................1-44
Cigarette Lighter.............................................3-24
Cleaning
Aluminum or Chrome-Plated Wheels.............5-120
Exterior Lamps/Lenses................................5-118
Fabric/Carpet............................................5-115
Finish Care...............................................5-119Cleaning (cont.)
Instrument Panel, Vinyl, and Other Plastic
Surfaces...............................................5-117
Interior.....................................................5-114
Leather....................................................5-116
Tires........................................................5-121
Underbody Maintenance.............................5-122
Washing Your Vehicle.................................5-118
Weatherstrips............................................5-117
Windshield and Wiper Blades......................5-120
Climate Control System...........................3-25, 3-28
Dual Automatic............................................3-29
Outlet Adjustment........................................3-35
Clock, Setting.................................................3-86
Collision Damage Repair..................................7-11
Compass...............................................2-56, 2-58
Content Theft-Deterrent....................................2-18
Control of a Vehicle.......................................... 4-3
Coolant
Engine.......................................................5-29
Engine Temperature Gage............................3-48
Surge Tank Pressure Cap.............................5-32
Cooling System..............................................5-35
Cruise Control................................................3-13
Cruise Control Light........................................3-54
Cupholders....................................................2-78
3

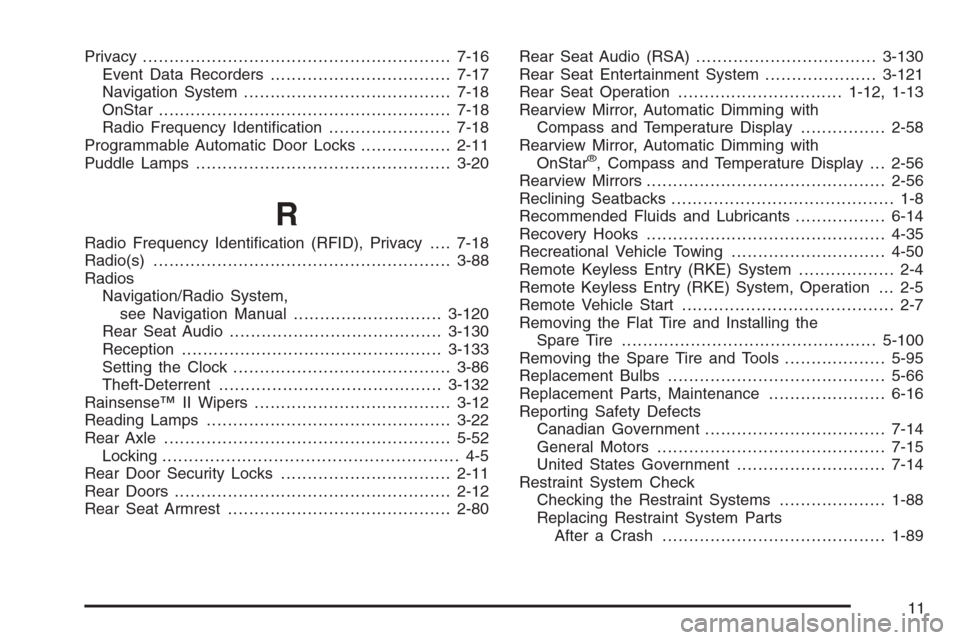

Privacy..........................................................7-16
Event Data Recorders..................................7-17
Navigation System.......................................7-18
OnStar.......................................................7-18
Radio Frequency Identication.......................7-18
Programmable Automatic Door Locks.................2-11
Puddle Lamps................................................3-20
R
Radio Frequency Identication (RFID), Privacy....7-18
Radio(s)........................................................3-88
Radios
Navigation/Radio System,
see Navigation Manual............................3-120
Rear Seat Audio........................................3-130
Reception.................................................3-133
Setting the Clock.........................................3-86
Theft-Deterrent..........................................3-132
Rainsense™ II Wipers.....................................3-12
Reading Lamps..............................................3-22
Rear Axle......................................................5-52
Locking........................................................ 4-5
Rear Door Security Locks................................2-11
Rear Doors....................................................2-12
Rear Seat Armrest..........................................2-80Rear Seat Audio (RSA)..................................3-130
Rear Seat Entertainment System.....................3-121
Rear Seat Operation...............................1-12, 1-13
Rearview Mirror, Automatic Dimming with
Compass and Temperature Display................2-58
Rearview Mirror, Automatic Dimming with
OnStar
®, Compass and Temperature Display . . . 2-56
Rearview Mirrors.............................................2-56
Reclining Seatbacks.......................................... 1-8
Recommended Fluids and Lubricants.................6-14
Recovery Hooks.............................................4-35
Recreational Vehicle Towing.............................4-50
Remote Keyless Entry (RKE) System.................. 2-4
Remote Keyless Entry (RKE) System, Operation . . . 2-5
Remote Vehicle Start........................................ 2-7
Removing the Flat Tire and Installing the
Spare Tire................................................5-100
Removing the Spare Tire and Tools...................5-95
Replacement Bulbs.........................................5-66
Replacement Parts, Maintenance......................6-16
Reporting Safety Defects
Canadian Government..................................7-14
General Motors...........................................7-15
United States Government............................7-14
Restraint System Check
Checking the Restraint Systems....................1-88
Replacing Restraint System Parts
After a Crash..........................................1-89
11

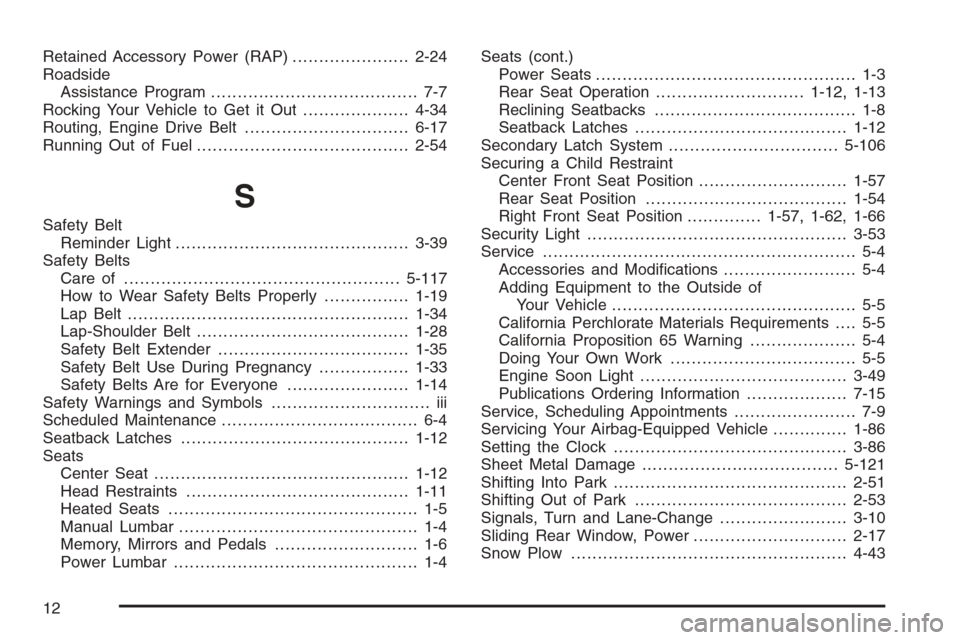

Retained Accessory Power (RAP)......................2-24
Roadside
Assistance Program....................................... 7-7
Rocking Your Vehicle to Get it Out....................4-34
Routing, Engine Drive Belt...............................6-17
Running Out of Fuel........................................2-54
S
Safety Belt
Reminder Light............................................3-39
Safety Belts
Care of ....................................................5-117
How to Wear Safety Belts Properly................1-19
Lap Belt .....................................................1-34
Lap-Shoulder Belt........................................1-28
Safety Belt Extender....................................1-35
Safety Belt Use During Pregnancy.................1-33
Safety Belts Are for Everyone.......................1-14
Safety Warnings and Symbols.............................. iii
Scheduled Maintenance..................................... 6-4
Seatback Latches...........................................1-12
Seats
Center Seat................................................1-12
Head Restraints..........................................1-11
Heated Seats............................................... 1-5
Manual Lumbar............................................. 1-4
Memory, Mirrors and Pedals........................... 1-6
Power Lumbar .............................................. 1-4Seats (cont.)
Power Seats................................................. 1-3
Rear Seat Operation............................1-12, 1-13
Reclining Seatbacks...................................... 1-8
Seatback Latches........................................1-12
Secondary Latch System................................5-106
Securing a Child Restraint
Center Front Seat Position............................1-57
Rear Seat Position......................................1-54
Right Front Seat Position..............1-57, 1-62, 1-66
Security Light.................................................3-53
Service........................................................... 5-4
Accessories and Modications......................... 5-4
Adding Equipment to the Outside of
Your Vehicle.............................................. 5-5
California Perchlorate Materials Requirements.... 5-5
California Proposition 65 Warning.................... 5-4
Doing Your Own Work................................... 5-5
Engine Soon Light.......................................3-49
Publications Ordering Information...................7-15
Service, Scheduling Appointments....................... 7-9
Servicing Your Airbag-Equipped Vehicle..............1-86
Setting the Clock............................................3-86
Sheet Metal Damage.....................................5-121
Shifting Into Park............................................2-51
Shifting Out of Park........................................2-53
Signals, Turn and Lane-Change........................3-10
Sliding Rear Window, Power.............................2-17
Snow Plow....................................................4-43
12
