Recommended Fluids and
Lubricants
This maintenance section applies to vehicles with a
gasoline engine. If your vehicle has a diesel engine, see
the maintenance schedule section in the DURAMAX
®
Diesel manual.
Fluids and lubricants identified below by name, part
number, or specification can be obtained from your
dealer/retailer.
Usage Fluid/Lubricant
Engine OilEngine oil which meets
GM Standard GM6094M and
displays the American Petroleum
Institute Certified for Gasoline
Engines starburst symbol. To
determine the proper viscosity for
your vehicle’s engine, seeEngine
Oil (Gasoline Engine) on page 5-15.
Usage Fluid/Lubricant
Engine Coolant50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant. SeeEngine Coolant
on page 5-24.
Hydraulic Brake
SystemDelco
®Supreme 11 Brake Fluid or
equivalent DOT-3 brake fluid.
Windshield
WasherOptikleen
®Washer Solvent.
Parking Brake
Cable GuidesChassis Lubricant
(GM Part No. U.S. 12377985, in
Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Power Steering
SystemGM Power Steering Fluid
(GM Part No. U.S. 89021184, in
Canada 89021186).
Automatic
TransmissionDEXRON
®-VI Automatic
Transmission Fluid.
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
6-13

Maintenance Replacement Parts
If your vehicle has the DURAMAX®Diesel engine, see the DURAMAX®Diesel manual for more information.
Replacement parts identified below by name, part number, or specification can be obtained by your dealer/retailer.
Part GM Part Number ACDelco®Part Number
Engine Air Cleaner/Filter 15950115 —
Engine Oil Filter
4300 V6 25010792 PF47
4800 V8, 5300 V8, 6000 V8 89017524 PF48
Spark Plugs
4300 V6 12607234 41-993
4800 V8, 5300 V8, 6000 V8 12571164 41-985
Wiper Blades
22 inches (56.0 cm)15214346 —
6-15

Engine Drive Belt Routing
If your vehicle has the DURAMAX®Diesel engine, see
the DURAMAX®Diesel manual for more information.
V6 Engine
V8 Engine
6-16

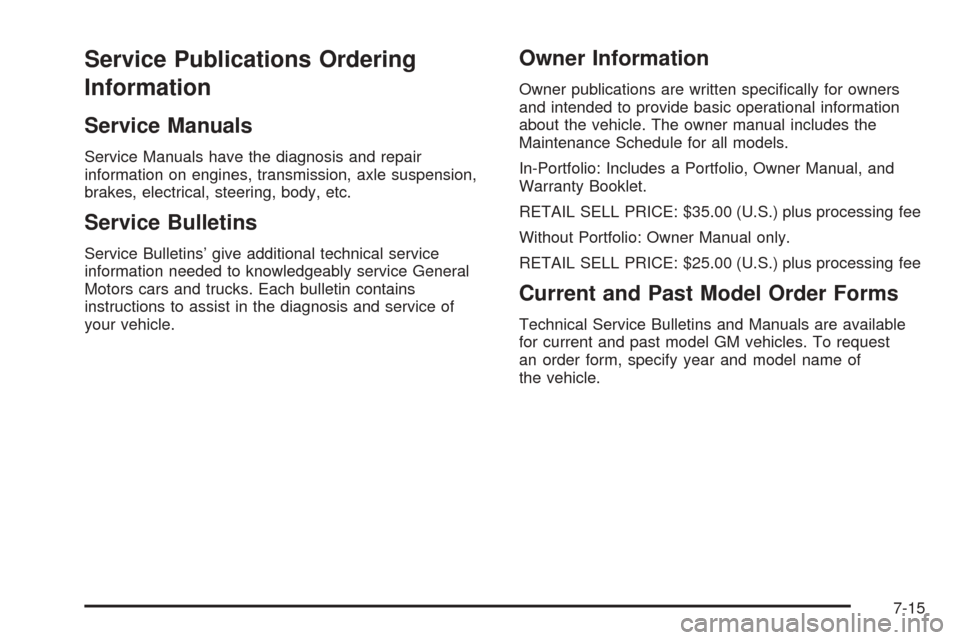

Service Publications Ordering
Information
Service Manuals
Service Manuals have the diagnosis and repair
information on engines, transmission, axle suspension,
brakes, electrical, steering, body, etc.
Service Bulletins
Service Bulletins’ give additional technical service
information needed to knowledgeably service General
Motors cars and trucks. Each bulletin contains
instructions to assist in the diagnosis and service of
your vehicle.
Owner Information
Owner publications are written specifically for owners
and intended to provide basic operational information
about the vehicle. The owner manual includes the
Maintenance Schedule for all models.
In-Portfolio: Includes a Portfolio, Owner Manual, and
Warranty Booklet.
RETAIL SELL PRICE: $35.00 (U.S.) plus processing fee
Without Portfolio: Owner Manual only.
RETAIL SELL PRICE: $25.00 (U.S.) plus processing fee
Current and Past Model Order Forms
Technical Service Bulletins and Manuals are available
for current and past model GM vehicles. To request
an order form, specify year and model name of
the vehicle.
7-15

ORDER TOLL FREE: 1-800-551-4123
Monday-Friday 8:00 AM - 6:00 PM
Eastern Time
For Credit Card Orders Only
(VISA-MasterCard-Discover), visit Helm, Inc. on the
World Wide Web at: www.helminc.com
Or you can write to:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
Prices are subject to change without notice and without
incurring obligation. Allow ample time for delivery.
Note to Canadian Customers: All listed prices are
quoted in U.S. funds. Canadian residents are to make
checks payable in U.S. funds.
Vehicle Data Recording and
Privacy
Your GM vehicle has a number of sophisticated
computers that record information about the vehicle’s
performance and how it is driven. For example,
your vehicle uses computer modules to monitor and
control engine and transmission performance, to monitor
the conditions for airbag deployment and deploy
airbags in a crash and, if so equipped, to provide
antilock braking to help the driver control the vehicle.
These modules may store data to help your
dealer/retailer technician service your vehicle. Some
modules may also store data about how you operate the
vehicle, such as rate of fuel consumption or average
speed. These modules may also retain the owner’s
personal preferences, such as radio pre-sets, seat
positions, and temperature settings.
7-16

A
Accessories and Modifications............................ 5-3
Adding Equipment to Your Airbag-Equipped
Vehicle.......................................................1-74
Additives, Fuel................................................. 5-7
Add-On Electrical Equipment...........................5-109
Air Cleaner/Filter, Engine.................................5-20
Air Conditioning..............................................3-19
Airbag
Off Light.....................................................3-30
Passenger Status Indicator...........................3-31
Readiness Light..........................................3-29
Airbag System................................................1-57
What Will You See After an Airbag Inflates?....1-64
When Should an Airbag Inflate?....................1-62
Where Are the Airbags?...............................1-60
Airbag Systems
Adding Equipment to Your Airbag-Equipped
Vehicle...................................................1-74
Airbag Off Switch........................................1-66
How Does an Airbag Restrain?......................1-64
Passenger Sensing System...........................1-69
Servicing Your Airbag-Equipped Vehicle..........1-73
What Makes an Airbag Inflate?......................1-64
All-Wheel Drive...............................................5-46
All-Wheel-Drive (AWD) System........................... 4-7
Antenna, Fixed Mast.......................................3-88
Antilock Brake System (ABS)............................. 4-4Antilock Brake, System Warning Light................3-35
Appearance Care
Aluminum Wheels......................................5-104
Care of Safety Belts...................................5-102
Chemical Paint Spotting..............................5-106
Cleaning Exterior Lamps/Lenses..................5-103
Fabric/Carpet............................................5-101
Finish Care...............................................5-103
Finish Damage..........................................5-106
Instrument Panel, Vinyl, and Other Plastic
Surfaces...............................................5-101
Interior Cleaning..........................................5-99
Sheet Metal Damage..................................5-105
Tires........................................................5-105
Underbody Maintenance.............................5-106
Vehicle Care/Appearance Materials...............5-107
Washing Your Vehicle.................................5-102
Weatherstrips............................................5-102
Windshield and Wiper Blades......................5-104
Appointments, Scheduling Service....................... 7-9
Ashtray.........................................................3-19
Audio System.................................................3-66
Audio Steering Wheel Controls......................3-87
Fixed Mast Antenna.....................................3-88
Radio Reception..........................................3-88
Setting the Clock.........................................3-68
Theft-Deterrent Feature................................3-86
Audio System(s).............................................3-70
Automatic Door Lock......................................... 2-8
1

Automatic Door Unlock...................................... 2-8
Automatic Headlamp System............................3-16
Automatic Transmission
Fluid..........................................................5-21
Operation...................................................2-24
B
Battery..........................................................5-40
Electric Power Management..........................3-17
Run-Down Protection...................................3-18
Brake
Emergencies................................................ 4-5
Brakes..........................................................5-37
System Warning Light..................................3-34
Braking........................................................... 4-3
Braking in Emergencies..................................... 4-5
Break-In, New Vehicle.....................................2-20
Bulb Replacement...........................................5-50
Center High-Mounted Stoplamp (CHMSL)........5-52
Front Turn Signal, Sidemarker and
Parking Lamps.........................................5-52
Halogen Bulbs............................................5-50
Headlamps.................................................5-50
Replacement Bulbs......................................5-54
Taillamps....................................................5-53
Buying New Tires...........................................5-74
C
Calibration.....................................................3-50
California Fuel.................................................. 5-6
California Perchlorate Materials Requirements....... 5-4
California Proposition 65 Warning....................... 5-4
Canadian Owners................................................ ii
Capacities and Specifications..........................5-116
Carbon Monoxide...........................2-31, 4-16, 4-28
Care of
Safety Belts..............................................5-102
Cargo Door Relocking....................................... 2-7
CD, MP3 .......................................................3-81
Center High-Mounted Stoplamp (CHMSL)...........5-52
Chains, Tire...................................................5-80
Charging System Light....................................3-33
Check
Engine Light...............................................3-38
Checking Things Under the Hood......................5-12
Chemical Paint Spotting.................................5-106
Child Restraints
Child Restraint Systems...............................1-35
Infants and Young Children...........................1-32
Lower Anchors and Tethers for Children..........1-39
Older Children.............................................1-29
Securing a Child Restraint in a Rear
Seat Position...........................................1-45
2

Child Restraints (cont.)
Securing a Child Restraint in the Right
Front Seat Position...........................1-48, 1-52
Where to Put the Restraint...........................1-38
Cigarette Lighter.............................................3-19
Cleaning
Aluminum Wheels......................................5-104
Exterior Lamps/Lenses................................5-103
Fabric/Carpet............................................5-101
Finish Care...............................................5-103
Instrument Panel, Vinyl, and Other Plastic
Surfaces...............................................5-101
Interior.......................................................5-99
Tires........................................................5-105
Underbody Maintenance.............................5-106
Washing Your Vehicle.................................5-102
Weatherstrips............................................5-102
Windshield and Wiper Blades......................5-104
Climate Control System...................................3-19
Outlet Adjustment........................................3-22
Rear Air Conditioning and Heating System......3-23
Rear Heating System...................................3-22
Clock, Setting.................................................3-68
Collision Damage Repair..................................7-11
Compass.......................................................3-50
Control of a Vehicle.......................................... 4-3
Coolant
Engine Temperature Gage............................3-36
Heater, Engine............................................2-23Cooling System..............................................5-29
Cruise Control................................................3-11
Cruise Control Light........................................3-42
Customer Assistance Information
Courtesy Transportation.................................. 7-9
Customer Assistance for Text
Telephone (TTY) Users............................... 7-5
Customer Assistance Offices........................... 7-5
Customer Satisfaction Procedure..................... 7-2
GM Mobility Reimbursement Program............... 7-6
Reporting Safety Defects to General Motors....7-14
Reporting Safety Defects to the Canadian
Government............................................7-14
Reporting Safety Defects to the United
States Government...................................7-14
Roadside Assistance Program......................... 7-6
Service Publications Ordering Information........7-15
D
Daytime Running Lamps..................................3-15
Defensive Driving............................................. 4-2
Delayed Locking............................................... 2-7
DIC Compass.................................................3-50
Disc, MP3......................................................3-81
Doing Your Own Service Work........................... 5-4
Dome Lamp Override......................................3-17
Dome Lamps.................................................3-17
3
