2008 CADILLAC ESCALADE ESV engine coolant

ENGINE OVERHEATED IDLE ENGINE Notice: If you drive your vehicle while the engine is
overheating, severe engine damage may occur. If
an overheat warning appears on the instrument
panel cluster and/or DIC, stop the vehicle as soon
as possible. See Engine Overheating on page 5-26
for more information.
This message displays when the engine coolant
temperature is too hot. Stop and allow the vehicle to
idle until it cools down. See Engine Coolant
Temperature Gage on page 3-42 .
See Overheated Engine Protection Operating Mode on
page 5-28 for information on driving to a safe place
in an emergency.
ENGINE OVERHEATED STOP ENGINE Notice: If you drive your vehicle while the engine
is overheating, severe engine damage may occur. If
an overheat warning appears on the instrument
panel cluster and/or DIC, stop the vehicle as soon
as possible. See Engine Overheating on page 5-26
for more information. This message displays and a chime sounds if the
engine cooling system reaches unsafe temperatures for
operation. Stop and turn off the vehicle as soon as it
is safe to do so to avoid severe damage. This message
clears when the engine has cooled to a safe operating
temperature.
ENGINE POWER IS REDUCED This message displays and a chime sounds when the
cooling system temperature gets too hot and the engine
further enters the engine coolant protection mode.
See Engine Overheating on page 5-26 for further
information.
This message also displays when the vehicle’s engine
power is reduced. Reduced engine power can affect the
vehicle’s ability to accelerate. If this message is on,
but there is no reduction in performance, proceed
to your destination. The performance may be reduced
the next time the vehicle is driven. The vehicle may
be driven at a reduced speed while this message is on,
but acceleration and speed may be reduced. Anytime
this message stays on, the vehicle should be taken
to your dealer/retailer for service as soon as possible.
3-55

Turn Signals When Towing a Trailer The arrows on your instrument panel will ash whenever
you signal a turn or lane change. Properly hooked up,
the trailer lamps will also ash, telling other drivers
you’re about to turn, change lanes or stop.
When towing a trailer, the arrows on your instrument
panel will ash for turns even if the bulbs on the trailer
are burned out. Thus, you may think drivers behind
you are seeing your signal when they are not. It’s
important to check occasionally to be sure the trailer
bulbs are still working.
Driving On Grades Reduce speed and shift to a lower gear before you start
down a long or steep downgrade. If you don’t shift
down, you might have to use your brakes so much that
they would get hot and no longer work well.
You can tow in DRIVE (D). You may want to shift the
transmission to THIRD (3) or, if necessary, a lower gear
selection if the transmission shifts too often (e.g.,
under heavy loads and/or hilly conditions). You may also want to activate the tow/haul mode if the
transmission shifts too often. See “Tow/Haul Mode”
earlier.
When towing at high altitude on steep uphill grades,
consider the following: Engine coolant at higher altitudes
will boil at a lower temperature than at or near sea level.
If you turn your engine off immediately after towing at
high altitude on steep uphill grades, your vehicle may
show signs similar to engine overheating. To avoid this,
let the engine run while parked (preferably on level
ground) with the automatic transmission in PARK (P) for
at least ve minutes before turning the engine off. If you
do get the overheat warning, see Engine Overheating on
page 5-26 .
4-54

Service ........................................................... .5-3
Accessories and Modications ......................... .5-3
California Proposition 65 Warning .................... .5-3
California Perchlorate Materials Requirements .... .5-4
Doing Your Own Service Work ........................ .5-4
Adding Equipment to the Outside of Your
Vehicle ..................................................... .5-4
Fuel ............................................................... .5-5
Gasoline Octane ........................................... .5-5
Gasoline Specications ................................... .5-5
California Fuel .............................................. .5-5
Additives ...................................................... .5-6
Fuels in Foreign Countries .............................. .5-6
Filling the Tank ............................................. .5-7
Filling a Portable Fuel Container .................... .5-10
Checking Things Under the Hood ................... .5-10
Hood Release ............................................. .5-11
Engine Compartment Overview ...................... .5-12
Engine Oil .................................................. .5-14
Engine Oil Life System ................................. .5-16
Engine Air Cleaner/Filter ............................... .5-17
Automatic Transmission Fluid ........................ .5-20
Engine Coolant ............................................ .5-24
Coolant Surge Tank Pressure Cap ................. .5-26
Engine Overheating ...................................... .5-26 Overheated Engine Protection
Operating Mode ....................................... .5-28
Cooling System ........................................... .5-29
Engine Fan Noise ........................................ .5-33
Power Steering Fluid .................................... .5-34
Windshield Washer Fluid ............................... .5-35
Brakes ....................................................... .5-36
Battery ....................................................... .5-39
Jump Starting .............................................. .5-40
All-Wheel Drive ............................................. .5-45
Rear Axle ...................................................... .5-46
Front
Axle ..................................................... .5-47
Headlamp Aiming .......................................... .5-48
Bulb Replacement ......................................... .5-51
High Intensity Discharge (HID) Lighting ........... .5-51
Back-Up Lamps ........................................... .5-51
License Plate Lamp ..................................... .5-53
Replacement Bulbs ...................................... .5-53
Windshield Wiper Blade Replacement ............. .5-54
Tires ............................................................. .5-56
Tire Sidewall Labeling .................................. .5-57
Tire Terminology and Denitions .................... .5-59
Ination - Tire Pressure ................................ .5-62
High-Speed Operation .................................. .5-63
Tire Pressure Monitor System ........................ .5-64Section 5 Service and Appearance Care
5-1

Filling a Portable Fuel Container
{ CAUTION: Never ll a portable fuel container while it is
in your vehicle. Static electricity discharge
from the container can ignite the fuel vapor.
You can be badly burned and your vehicle
damaged if this occurs. To help avoid injury to
you and others:
Dispense fuel only into approved
containers.
Do not ll a container while it is inside a
vehicle, in a vehicle’s trunk, pickup bed, or
on any surface other than the ground.
Bring the ll nozzle in contact with the
inside of the ll opening before operating
the nozzle. Contact should be maintained
until the lling is complete.
Do not smoke while pumping fuel.
Do not use a cellular phone while
pumping fuel. Checking Things Under
the Hood
{ CAUTION: An electric fan under the hood can start up
and injure you even when the engine is not
running. Keep hands, clothing, and tools away
from any underhood electric fan.
{ CAUTION: Things that burn can get on hot engine parts
and start a re. These include liquids like fuel,
oil, coolant, brake uid, windshield washer and
other uids, and plastic or rubber. You or
others could be burned. Be careful not to drop
or spill things that will burn onto a hot engine.
5-10

A. Engine Air Cleaner/Filter. See Engine Air
Cleaner/Filter on page 5-17 .
B. Air Filter Restriction Indicator (If Equipped).
See Engine Air Cleaner/Filter on page 5-17 .
C. Coolant Surge Tank and Pressure Cap. See Cooling
System on page 5-29 and Coolant Surge Tank
Pressure Cap on page 5-26 .
D. Remote Positive (+) Terminal. See Jump Starting
on page 5-40 .
E. Battery. See Battery on page 5-39 .
F. Engine Oil Fill Cap. See “When to Add Engine Oil”
under Engine Oil on page 5-14 .
G. Automatic Transmission Dipstick (Out of View).
See “Checking the Fluid Level” under Automatic
Transmission Fluid on page 5-20 . H. Remote Negative ( − ) Terminal (GND) (Out of View).
See Jump Starting on page 5-40 .
I. Engine Oil Dipstick (Out of View). See “Checking
Engine Oil” under Engine Oil on page 5-14 .
J. Engine Cooling Fan (Out of View). See Cooling
System on page 5-29 .
K. Power Steering Fluid Reservoir (Out of View).
See Power Steering Fluid on page 5-34 .
L. Brake Master Cylinder Reservoir. See “Brake Fluid”
under Brakes on page 5-36 .
M. Underhood Fuse Block. See Underhood Fuse Block
on page 5-111 .
N. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” under Windshield Washer Fluid
on page 5-35 .
5-13

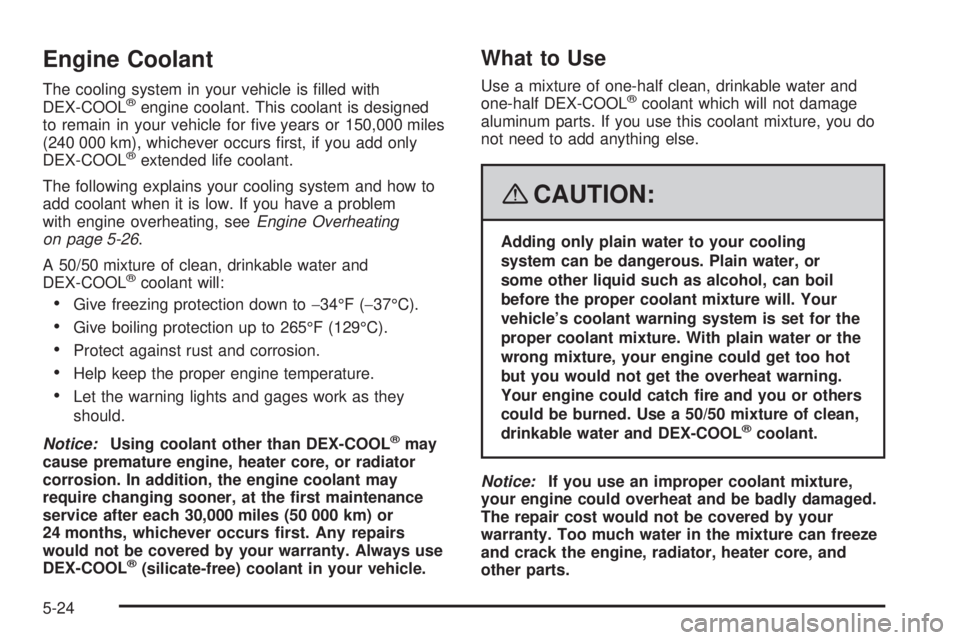

Engine Coolant The cooling system in your vehicle is lled with
DEX-COOL ®
engine coolant. This coolant is designed
to remain in your vehicle for ve years or 150,000 miles
(240 000 km), whichever occurs rst, if you add only
DEX-COOL ®
extended life coolant.
The following explains your cooling system and how to
add coolant when it is low. If you have a problem
with engine overheating, see Engine Overheating
on page 5-26 .
A 50/50 mixture of clean, drinkable water and
DEX-COOL ®
coolant will:
Give freezing protection down to − 34°F ( − 37°C).
Give boiling protection up to 265°F (129°C).
Protect against rust and corrosion.
Help keep the proper engine temperature.
Let the warning lights and gages work as they
should.
Notice: Using coolant other than DEX-COOL ®
may
cause premature engine, heater core, or radiator
corrosion. In addition, the engine coolant may
require changing sooner, at the rst maintenance
service after each 30,000 miles (50 000 km) or
24 months, whichever occurs rst. Any repairs
would not be covered by your warranty. Always use
DEX-COOL ®
(silicate-free) coolant in your vehicle. What to Use Use a mixture of one-half clean, drinkable water and
one-half DEX-COOL ®
coolant which will not damage
aluminum parts. If you use this coolant mixture, you do
not need to add anything else.
{ CAUTION: Adding only plain water to your cooling
system can be dangerous. Plain water, or
some other liquid such as alcohol, can boil
before the proper coolant mixture will. Your
vehicle’s coolant warning system is set for the
proper coolant mixture. With plain water or the
wrong mixture, your engine could get too hot
but you would not get the overheat warning.
Your engine could catch re and you or others
could be burned. Use a 50/50 mixture of clean,
drinkable water and DEX-COOL ®
coolant.
Notice: If you use an improper coolant mixture,
your engine could overheat and be badly damaged.
The repair cost would not be covered by your
warranty. Too much water in the mixture can freeze
and crack the engine, radiator, heater core, and
other parts.
5-24

If you have to add coolant more than four times a year,
have your dealer/retailer check your cooling system.
Notice: If you use extra inhibitors and/or additives
in your vehicle’s cooling system, you could
damage your vehicle. Use only the proper mixture
of the engine coolant listed in this manual for
the cooling system. See Recommended Fluids and
Lubricants on page 6-13 for more information.
Checking Coolant The coolant surge tank is
located in the engine
compartment on the
passenger’s side of the
vehicle. See Engine
Compartment Overview
on page 5-12 for more
information on location. { CAUTION: Turning the surge tank pressure cap when the
engine and radiator are hot can allow steam
and scalding liquids to blow out and burn you
badly. Never turn the surge tank pressure
cap — even a little — when the engine and
radiator are hot.
The vehicle must be on a level surface. When your
engine is cold, the coolant level should be at the FULL
COLD mark.
5-25

Adding Coolant If more coolant is needed, add the proper DEX-COOL ®
coolant mixture at the surge tank, but only when the
engine is cool.
{ CAUTION: You can be burned if you spill coolant on hot
engine parts. Coolant contains ethylene glycol,
and it will burn if the engine parts are hot
enough. Do not spill coolant on a hot engine.
When replacing the pressure cap, make sure it is
hand-tight and fully seated.
Coolant Surge Tank Pressure Cap Notice: If the pressure cap is not tightly installed,
coolant loss and possible engine damage may occur.
Be sure the cap is properly and tightly secured.
The coolant surge tank pressure cap must be fully
installed on the coolant surge tank. See Engine
Compartment Overview on page 5-12 for more
information on location. Engine Overheating You will nd a coolant temperature gage on your
vehicle’s instrument panel. See Engine Coolant
Temperature Gage on page 3-42 .
In addition, the messages ENGINE OVERHEATED
STOP ENGINE, ENGINE OVERHEATED IDLE
ENGINE, or ENGINE POWER IS REDUCED could
appear in the Driver Information Center (DIC) on
the instrument panel. See DIC Warnings and Messages
on page 3-53 .
If Steam Is Coming From Your Engine
{ CAUTION: Steam from an overheated engine can burn
you badly, even if you just open the hood.
Stay away from the engine if you see or hear
steam coming from it. Turn it off and get
everyone away from the vehicle until it cools
down. Wait until there is no sign of steam or
coolant before you open the hood.
CAUTION: (Continued)
5-26
