2008 CADILLAC DTS display

The front display is located on top of the instrument panel
to the right of the driver. The front display will have either
three or six lights to provide distance and system
information. With Adaptive Cruise control (ACC), it will
have three lights along with the ACC lights. Without ACC,
it will have six lights. High-toned beeps from the front
speakers are for objects detected near the front bumper.
The rear display is located near the rear window and
can be seen by looking over your right shoulder.
The rear display uses three color-coded lights to provide
distance and system information. Low-toned beeps
from the rear speakers are for the rear bumper.
How the System Works
UFRPA comes on automatically when the shift
lever is moved out of PARK (P). The system does
not work at a forward or reverse speed greater than
5 mph (8 km/h).
To be detected, objects must be at least 10 inches
(25.4 cm) off the ground and below hood or trunk level.
Objects must also be within 4 feet (1.2 m) in front of
your vehicle and 8 feet (2.5 m) from your rear bumper.
This distance may be less during warmer or humid
weather.
When backing, if objects are detected at the same time
near both the front and rear bumpers, both color-coded
light displays will notify you of objects close to each
bumper. If there are objects detected near both bumpers,
the beeps will only be sounded to notify that objects are
close to the rear bumper. However, if while you are
backing and an object comes within 1 ft (0.3 m) of the
front bumper, and at the same time there is another
object further than 1 ft (0.3 m) from the rear bumper, then
the beeps will only be sounded to notify you of the closer
object that is near the front bumper.
The system can be disabled using the Driver Information
Center (DIC). See “Parking Assist” underDIC Operation
and Displays on page 3-70for more information. Front Parking Assist
Display
Rear Parking Assist
Display
2-41

Moving Forward
When the vehicle is started, the front display will briey
illuminate to let you know the system is working.
The following describes what will occur with the front
display as you get closer to a object detected in the front
of your vehicle:
Description English Metric
amber/amber lights
ACC — one amber light4 ft 1.2 m
four amber lights
ACC — two amber lights40 in 1.0 m
four amber/ two red lights
ACC — two amber
lights/one red light23 in 0.6 m
four amber/ two red lights
and beep for
three seconds
ACC — two amber
lights/one red light and
beep for three seconds1 ft 0.3 m
Backing
URPA comes on automatically when the shift lever is
moved into REVERSE (R). The rear display will then
briey illuminate to let you know the system is working.
The following describes what will occur with the rear
display as you get closer to an object detected in
the rear of your vehicle:
Description English Metric
amber light 8 ft 2.5 m
amber/amber lights 40 in 1.0 m
amber/amber/red lights 23 in 0.6 m
amber/amber/red lights
ashing and beep for
three seconds1 ft 0.3 m
The system can be disabled through the Driver
Information Center (DIC). See “Parking Assist” under
DIC Operation and Displays on page 3-70for more
information.
2-42

When the System Does Not Seem to
Work Properly
The driver disables the system.
The parking brake pedal is depressed.
The ultrasonic sensors are not kept clean. So be
sure to keep your vehicle’s front and rear bumpers
free of mud, dirt, snow, ice and slush. For cleaning
instructions, seeWashing Your Vehicle on
page 5-94.
A trailer was attached to your vehicle, or a bicycle or
an object was hanging out of your trunk during your
last drive cycle, the red light may illuminate in the
rear display. Once the attached object is removed,
UFRPA will return to normal operation.
A tow bar is attached to your vehicle.
The vehicle’s bumper is damaged. Take the vehicle
to your dealer/retailer to repair the system.
Other conditions may affect system performance,
such as vibrations from a jackhammer or the
compression of air brakes on a very large truck.
If the system is still disabled after driving forward at
least 15 mph (25 km/h), take your vehicle to your
dealer/retailer.
Side Blind Zone Alert (SBZA)
Your vehicle may have a Side Blind Zone Alert (SBZA)
system. Read this entire section before using the system.
The SBZA system operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
This device complies with RSS-310 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
Frequency of operation: 24.05GHz – 24.25GHz
Field Strength: Not greater than 2.5V/m peak (0.25V/m
average) at a distance of 3m
2-43

The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modications to
this equipment. Such modications could void the user’s
authority to operate the equipment.
{CAUTION:
SBZA is only a lane changing aid and does not
replace driver vision. SBZA does not detect:
Vehicles outside the side blind zones
which may be rapidly approaching.
Pedestrians, bicyclists, or animals.
Failure to use proper care when changing
lanes may result in damage to the vehicle,
injury, or death. Always check the outside and
rearview mirrors, glance over your shoulder,
and use the turn signal before changing lanes.
When the system detects a vehicle in the side blind zone,
amber SBZA displays will light up in your side mirrors.
This indicates that it may be unsafe for you to change
lanes. Before making a lane change, always check the
SBZA display, check the outside and rearview mirrors,
look over your shoulder for vehicles and hazards, and
use the turn signal.
SBZA Detection Zones
The SBZA sensor covers a zone of approximately one
lane over from both sides of the vehicle, 11 ft. or 3.5 m.
This zone starts at each side mirror and goes back
approximately 16 ft. (5.0 m). The height of the zone is
approximately between 1.5 ft. (0.5 m) and 6 ft. (2.0 m) off
the ground.
The SBZA detection zones do not change if your
vehicle is towing a trailer. So be extra careful when
changing lanes while towing a trailer.
2-44

How the System Works
When the vehicle is started, both outside mirror displays
will briey come on to indicate that the system is
operating. When you are driving forward, the left or right
side mirror SBZA display will light up if a vehicle is
detected in that blind zone. If you activate a turn signal
and a vehicle has been detected on the same side, the
SBZA display will ash to give you extra warning not to
change lanes.
SBZA displays do not come on while your vehicle is
approaching or passing other vehicles. At speeds greater
then 20 mph (32 km/h), SBZA displays may come on
when a vehicle you have passed remains in or drops
back into the detection zone.
SBZA can be disabled through the Driver Information
Center (DIC). SeeDriver Information Center (DIC) on
page 3-70for more information. If the SBZA is disabled
by the driver, the SBZA mirror displays will not light up
during normal driving.
When the System Does Not Seem To Work
Properly
Occasional missed alerts can occur under normal
circumstances and will increase in wet conditions.
The system does not need to be serviced due to an
occasional missed alert. The number of missed
alerts will increase with increased rainfall or road spray.
If the SBZA displays do not light up when the system
is on and vehicles are in the blind zone, the system may
need service. Take your vehicle to your dealer/retailer.
SBZA is designed to ignore stationary objects;
however, the system may occasionally light up due to
guard rails, signs, trees, shrubs, and other stationary
objects. This is normal system operation, your vehicle
does not need service.
SBZA does not operate when the left or right corners of
the rear bumper are covered with mud, dirt, snow,
ice, slush, or in heavy rainstorms. For cleaning
instructions, seeWashing Your Vehicle on page 5-94.
If the DIC still displays the CLEAN SIDE BLIND
ZONE ALERT SYSTEM message after cleaning the
bumper, see your dealer/retailer.
The SBZA displays may remain on if a trailer is attached
to your vehicle, or a bicycle or object is extending out
to either side of the vehicle. Left Side Mirror Display
Right Side Mirror
Display
2-45

When SBZA is disabled for any reason other than the
driver turning it off, the driver will not be able to turn SBZA
back on using the DIC. The SIDE BLIND ZONE ALERT
ON option will not be selectable if the conditions for
normal system operation are not met. Until normal
operating conditions for SBZA are met, you should not
rely upon SBZA while driving.
SBZA Error Messages
The following messages may appear in the DIC:
SIDE BLIND ZONE ALERT SYSTEM OFF:This
message indicates that the driver has turned the
system off.
CLEAN SIDE BLIND ZONE ALERT SYSTEM:This
message indicates that the SBZA system is disabled
because the sensor is blocked and cannot detect
vehicles in your blind zone. The sensor may be blocked
by mud, dirt, snow, ice, slush, or even heavy rainstorms.
This message may also activate during heavy rain or
due to road spray. Your vehicle does not need service.
For cleaning, seeWashing Your Vehicle on page 5-94.
SERVICE SIDE BLIND ZONE ALERT SYSTEM:If
this message appears, both SBZA displays will remain
on indicating there is a problem with the SBZA
system. If these displays remain on after continued
driving, the system needs service. Take your vehicle to
your dealer/retailer.
Lane Departure Warning (LDW)
Your vehicle may have a Lane Departure Warning (LDW)
system. Read this entire section before using the system.
{CAUTION:
The Lane Departure Warning (LDW) system
does not steer the vehicle and is only an aid to
help you stay in your driving lane. The LDW
system may not:
Provide you with enough time to avoid a
lane change collision.
Be loud enough for you to hear the
warning beeps.
Work properly under bad weather
conditions or if the windshield is not kept
clean.
Detect lane markings and will not detect
road edges.
Warn you that your vehicle is crossing a
lane marking if the system does not detect
the lane marking.
CAUTION: (Continued)
2-46

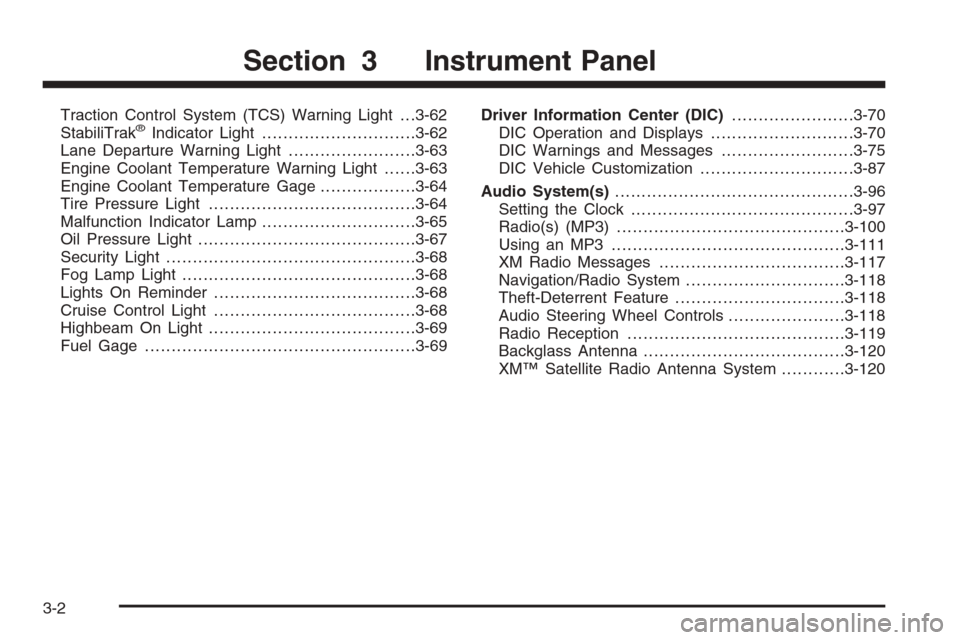

Traction Control System (TCS) Warning Light . . .3-62
StabiliTrak®Indicator Light.............................3-62
Lane Departure Warning Light........................3-63
Engine Coolant Temperature Warning Light......3-63
Engine Coolant Temperature Gage..................3-64
Tire Pressure Light.......................................3-64
Malfunction Indicator Lamp.............................3-65
Oil Pressure Light.........................................3-67
Security Light...............................................3-68
Fog Lamp Light............................................3-68
Lights On Reminder......................................3-68
Cruise Control Light......................................3-68
Highbeam On Light.......................................3-69
Fuel Gage...................................................3-69Driver Information Center (DIC).......................3-70
DIC Operation and Displays...........................3-70
DIC Warnings and Messages.........................3-75
DIC Vehicle Customization.............................3-87
Audio System(s).............................................3-96
Setting the Clock..........................................3-97
Radio(s) (MP3)...........................................3-100
Using an MP3............................................3-111
XM Radio Messages...................................3-117
Navigation/Radio System..............................3-118
Theft-Deterrent Feature................................3-118
Audio Steering Wheel Controls......................3-118
Radio Reception.........................................3-119
Backglass Antenna......................................3-120
XM™ Satellite Radio Antenna System............3-120
Section 3 Instrument Panel
3-2

The main components of the instrument panel are the following:
A. Air Outlets. SeeOutlet Adjustment on page 3-48.
B. Driver Information Center (DIC) Buttons. SeeDriver
Information Center (DIC) on page 3-70.
C. Exterior Lamp Controls. SeeExterior Lamps on
page 3-32.
D. Instrument Panel Cluster. SeeInstrument Panel
Cluster on page 3-54.
E. Horn. SeeHorn on page 3-6.
F. Audio Steering Wheel Controls. SeeAudio Steering
Wheel Controls on page 3-118.
G. Ultrasonic Front and Rear Parking Assist and
Adaptive Cruise Control Display (If Equipped). See
Ultrasonic Front and Rear Parking Assist (UFRPA)
on page 2-40andAdaptive Cruise Control on
page 3-19.
H. Analog Clock. SeeAnalog Clock on page 3-42.
I. Hazard Warning Flashers Button. SeeHazard
Warning Flashers on page 3-6.
J. Radio. SeeAudio System(s) on page 3-96.
K. Trunk Release Button. SeeTrunk on page 2-12.
L. Instrument Panel Brightness Control. SeeInstrument
Panel Brightness on page 3-37.
M. Lane Departure Warning. SeeLane Departure
Warning (LDW) on page 2-46.N. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 3-8.
O. Hood Release. SeeHood Release on page 5-12.
P. Parking Brake. SeeParking Brake on page 2-30.
Q. Heated Steering Wheel Button (If Equipped).
SeeHeated Steering Wheel on page 3-7.
R. Cruise Control or Adaptive Cruise Control. See
Cruise Control on page 3-16orAdaptive Cruise
Control on page 3-19.
S. Tilt Wheel. SeeTilt Wheel on page 3-6. Power Tilt
and Telescopic Steering Wheel (If Equipped).
SeePower Tilt Wheel and Telescopic Steering
Column on page 3-7.
T. Climate Controls. SeeDual Climate Control System
on page 3-42.
U. Traction Control System Button (Console-Shift
Vehicles). SeeTraction Control System (TCS) on
page 4-5.
V. Shift Lever. SeeAutomatic Transmission Operation
on page 2-27.
W. Accessory Power Outlet. SeeAccessory Power
Outlet(s) on page 3-40.
X. Glove Box. SeeGlove Box on page 2-59. Valet
Lockout Switch. SeeValet Lockout Switch on
page 2-18.
3-5
