2008 BMW M5 service indicator

Cockpit
12

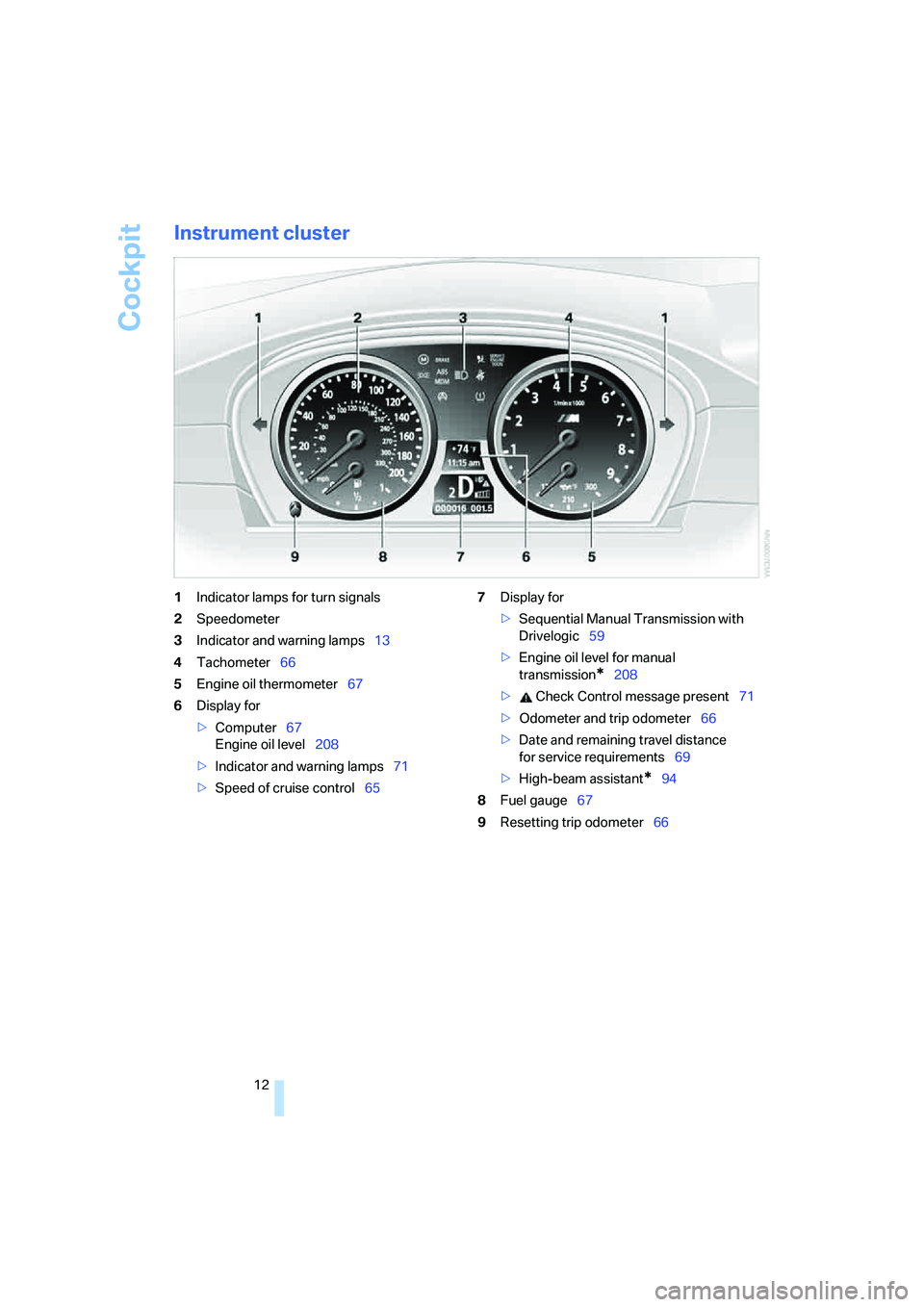

Instrument cluster
1Indicator lamps for turn signals
2Speedometer
3Indicator and warning lamps13
4Tachometer66
5Engine oil thermometer67
6Display for
>Computer67
Engine oil level208
>Indicator and warning lamps71
>Speed of cruise control657Display for
>Sequential Manual Transmission with
Drivelogic59
>Engine oil level for manual
transmission
*208
> Check Control message present71
>Odometer and trip odometer66
>Date and remaining travel distance
for service requirements69
>High-beam assistant
*94
8Fuel gauge67
9Resetting trip odometer66

Controls
71Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility
7.Select "State inspection" and press the
controller.
8.Select "Set service date" and press the
controller. The month is selected.
9.Turn the controller to make the adjustment.
10.Press the controller to apply the setting.
The year is selected.
11.Turn the controller to make the adjustment.
12.Press the controller to apply the setting.
The date entry is stored.
To exit the menu:
Select the arrow and press the controller.
Check Control
The concept
The Check Control monitors functions in the
vehicle and issues a message if there is a mal-
function in the monitored systems. This kind of
Check Control message consists of indicator
and warning lamps in the instrument cluster,
and if necessary an acoustic signal and text
messages at the bottom of the Control Display.
Indicator and warning lamps
The indicator and warning lamps can light up in
different combinations and colors.
means that a Check Control message has
been generated. The symbol continues to be
visible even when the Check Control message
disappears after a short time. The warning
lamps and text messages are stored and can be
displayed later, also refer to page72.
Explanatory text messages
Text message at the bottom edge of the Con-
trol Display explain the meaning of the dis-
played indicator and warning lamps.

Technology for comfort, convenience and safety
88 or a workshop that works according to BMW
repair procedures with correspondingly trained
personnel and has the required explosives
licenses. Otherwise unprofessional attempts to
service the system could lead to failure in an
emergency or undesired airbag triggering,
either of which could result in personal injury.<
Warnings and information on the airbags is also
provided on the sun visors.
Automatic deactivation of front
passenger airbags
The occupation of the seat is detected by eval-
uating the impression on the occupied seat sur-
face of the front passenger seat. The front and
side airbags on the front passenger side are
activated or deactivated accordingly by the sys-
tem.
The current status of the front passenger
airbag, i.e. deactivated or activated, is
indicated by the indicator lamp over the interior
rearview mirror, refer to Operating state of front
passenger airbags in the following.<
Before transporting a child on the front
passenger seat, observe the safety infor-
mation and handling instructions under Trans-
porting children safely refer to page53.
The front and side airbags on the front passen-
ger side can be deactivated for teenagers and
adults in certain sitting positions; then the indi-
cator lamp for the front passenger airbags lights
up. In these cases, change the sitting position
so that the front passenger airbags are acti-
vated and the indicator lamp goes out. If the
desired status cannot be produced by changing
the sitting position, transport the correspond-
ing person on the rear seat. Do not fit seat cov-
ers, seat cushion padding, ball mats or other
items onto the front passenger seat unless they
are specifically recommended by BMW. Do not
lay objects under the seat which could press
against the seat from below. Otherwise a cor-
rect evaluation of the occupied seat surface
cannot be ensured.<
Operating state of front passenger
airbags
Depending on the vehicle's equipment, the
arrangement of the switches and indicator
lamps may differ somewhat.
The indicator lamp for the front passenger air-
bags indicates the operating status of the front
and side airbags on the front passenger side
depending on the seat occupation. The indica-
tor lamp shows whether the front passenger
airbags are activated or deactivated.
>The indicator lamp lights up when a child in
a child restraint system intended for the
purpose is properly detected on the seat.
The front and side airbags on the front pas-
senger side are not activated.
Most child's seats are detected by the
system. Especially the child's seats
required by the NHTSA at the time the vehicle is
manufactured. After installing a child's seat,
make sure that the indicator lamp for the front
passenger airbags lights up. This indicates that
the child's seat has been detected and the front
passenger airbags are not activated.<
>The indicator lamp does not light up when,
for example, a correctly seated person of
sufficient height is detected on the seat.
The front and side airbags on the front pas-
senger side are activated.
>The indicator lamp does not light up when
the seat is empty.
However, the front and side airbags on the
front passenger side are not activated.

BMW Assist
190 In addition, you can be provided with other ser-
vices, e.g. the concierge service or information
on route planning, traffic conditions, and the
weather. With Critical Calling, you can make a
limited number of calls via the BMW Assist
Response Center, e.g. if you do not have your
mobile phone with you.
Press the SOS button to contact the BMW
Assist Response Center, see below.
You also have access to the BMW Assist con-
cierge service via the Internet.
Characteristics of the offered services
The following characteristics apply to the ser-
vices:
>The offered services are country-specific.
>Voice contact is established or data are
transmitted, depending on the equipment
and the country. In some countries, it is
possible to do both.
>The data transmitted can, for example, be
the vehicle data, your current position or the
CBS Condition Based Service data.
Using services
Contacting BMW Assist Response
Center
You can contact the BMW Assist Response
Center via the SOS button.
1.Briefly press protective cover to open.
Depending on the vehicle's equipment, the
arrangement of the switches and indicator
lamps may differ somewhat.
2.Press the button for at least 2 seconds.The BMW Assist Response Center is con-
tacted.
Roadside assistance
iDrive, for operating principle refer to page16.
1.Press the button.
This opens the start menu.
2.Move the controller forward to select
"Communication".
3.Change to upper field if necessary. Turn the
controller until "BMW Assist" is selected
and press the controller.
4.Select "Roadside Assistance" and press
the controller.
If the location can be determined, the cur-
rent vehicle position is displayed.

Mobility
203Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Wear indicators at the tread-groove base, refer
to arrow, are distributed over the tire's circum-
ference and are marked on the side of the tire
with TWI – Tread Wear Indicator. If the tire tread
has been driven down to the wear indicators, a
tread depth of 0.063 in/1.6 mm has been
reached.
Wheel/tire damage
Please note that low-profile tires cause wheels,
tires and suspension parts to be more suscep-
tible to road hazards and consequential dam-
ages.
Unusual vibrations encountered during normal
vehicle operation can indicate tire failure or
some other vehicle defect. This can, for exam-
ple, be caused by driving over curbs. These
kinds of problems may also be signaled by other
changes in vehicle response, such as a strong
tendency to pull to the left or right.
In these cases, reduce speed immedi-
ately and have wheels and tires thor-
oughly checked. To do so, drive carefully to the
nearest BMW center or tire shop that works
according to BMW repair procedures with cor-
respondingly trained personnel. If necessary,
have the vehicle towed there. Otherwise, tire
damage can be extremely dangerous to vehicle
occupants and other road users.<
New wheels and tires
Have new wheels and tires installed only
by your BMW center or tire shop that
works according to BMW repair procedures
with correspondingly trained personnel. If this
work is not carried out properly, there is a dan-
ger of subsequent damage and related safety
hazards. Make sure that the new wheels are bal-
anced.<
Retreaded tires
BMW does not recommend that you use
retreaded tires, as driving safety may be
impaired. The causes for this include the possi-
bly different tire casing structures and the often
wide variations in their age, which can result in a
limited service life.<
The right wheels and tires
BMW recommends that you use only
wheel and tire combinations that BMW
has tested and approved for your particular
vehicle. Variations in factors such as manufac-
turing tolerances mean that even wheels and
tires with identical official size ratings could
actually have different dimensions than the
approved units – these differences could lead to
body contact, and with it the risk of severe acci-
dents. When selecting the tires, also ensure
that they have a sufficient load-carrying capac-
ity. If non-approved wheels and tires are used,
BMW cannot evaluate their suitability, and
therefore cannot be held liable for driving
safety.<
You can inquire about the right wheel/tire com-
bination at your BMW center.
The correct wheel/tire combination also affects
various systems whose function would other-
wise be impaired, e.g. ABS or DSC.
To maintain good handling and vehicle
response, use only tires of a single tread config-
uration from a single manufacturer. Following
tire damage, have the original wheel and tire
combination remounted on the vehicle as soon
as possible.

Mobility
223Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Giving and receiving assistance
Emergency request
Conditions for an emergency request:
>Full preparation package mobile phone.
With this equipment, an emergency request
is still possible when no mobile phone is
paired in the vehicle.
>BMW Assist is activated.
Activating BMW Assist, refer to page194.
>Radio readiness is activated.
>The BMW Assist system is logged on to a
mobile phone network.
>The emergency request system is opera-
ble.
Once your BMW Assist subscription expires,
the BMW Assist system can be deactivated by
a BMW center without you having to visit a
workshop. Once the BMW Assist system has
been deactivated, emergency requests are not
possible. The BMW Assist system can be reac-
tivated by a BMW center after signing a new
contract.
Initiating an emergency request
1.Briefly press protective cover to open.
Depending on the vehicle's equipment, the
arrangement of the switches and indicator
lamps may differ somewhat.
2.Press the SOS button for at least 2 sec-
onds.
The LED in the button lights up. As soon as the
voice connection to the BMW Assist Response
Center has been established, the LED flashes.Even if you are unable to answer, the BMW
Assist Response Center can take further steps
to help you under certain conditions.
If conditions allow, remain in the vehicle until
the connection has been established. You will
then be able to provide a detailed description of
the situation.
If the current position of your vehicle can be
determined, it will be transmitted to the BMW
Assist Response Center.
If the LED is flashing but the BMW Assist
Response Center cannot be heard over the
hands-free system, it is possible that the
hands-free system is malfunctioning. You may
still be heard by the BMW Assist Response
Center, however.
Under certain conditions, an emergency
request is automatically initiated immediately
after a severe accident. The automatic collision
notification is not affected by the button being
pressed.
For technical reasons, the emergency request
cannot be guaranteed under unfavorable condi-
tions.
You can also use other services of
BMW Assist with this button, refer to
page189.<
Warning triangle*
The warning triangle is located in the luggage
compartment lid.
Loosen the wing nut to open.

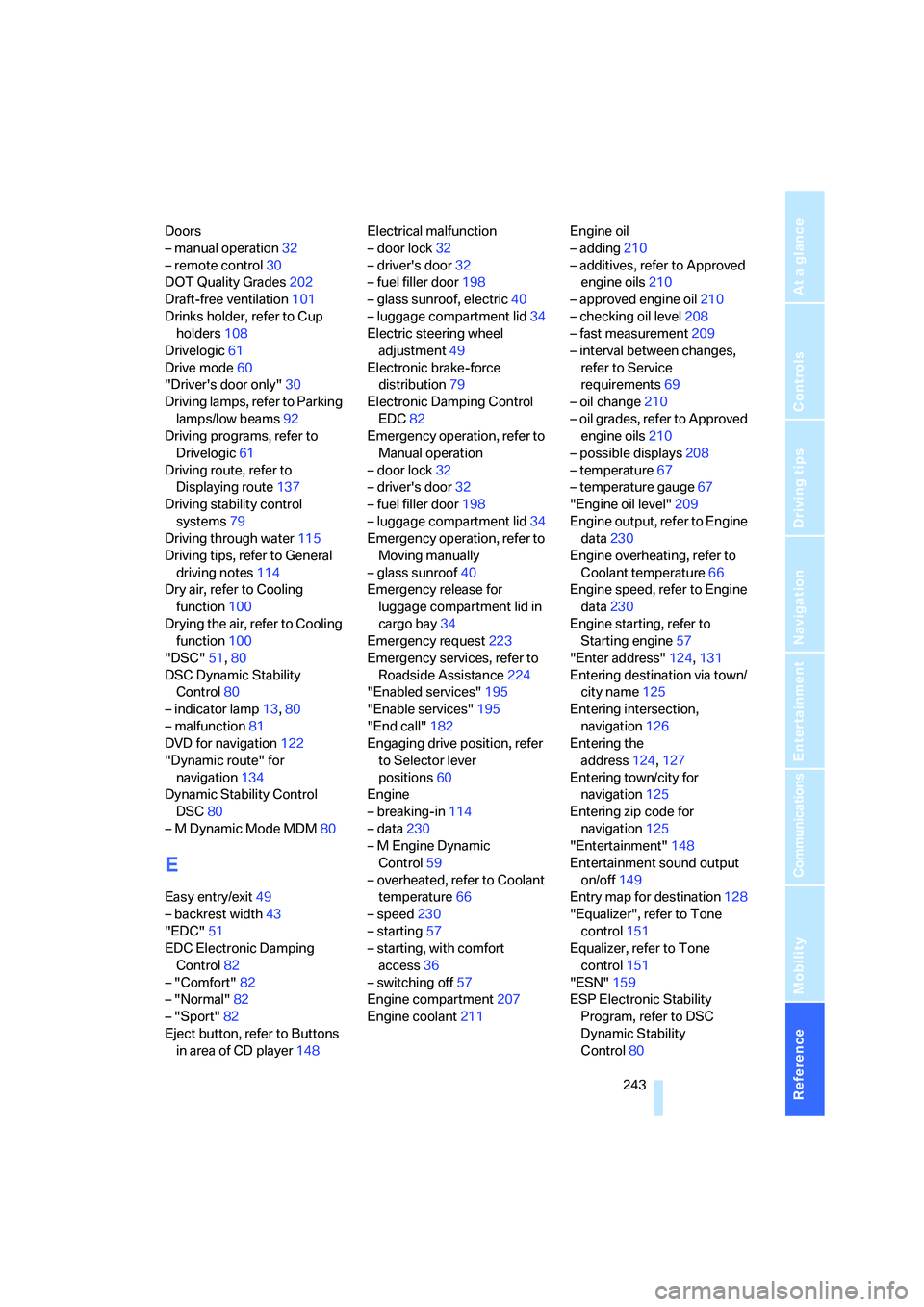

Reference 243
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Doors
– manual operation32
– remote control30
DOT Quality Grades202
Draft-free ventilation101
Drinks holder, refer to Cup
holders108
Drivelogic61
Drive mode60
"Driver's door only"30
Driving lamps, refer to Parking
lamps/low beams92
Driving programs, refer to
Drivelogic61
Driving route, refer to
Displaying route137
Driving stability control
systems79
Driving through water115
Driving tips, refer to General
driving notes114
Dry air, refer to Cooling
function100
Drying the air, refer to Cooling
function100
"DSC"51,80
DSC Dynamic Stability
Control80
– indicator lamp13,80
– malfunction81
DVD for navigation122
"Dynamic route" for
navigation134
Dynamic Stability Control
DSC80
– M Dynamic Mode MDM80
E
Easy entry/exit49
– backrest width43
"EDC"51
EDC Electronic Damping
Control82
– "Comfort"82
– "Normal"82
– "Sport"82
Eject button, refer to Buttons
in area of CD player148Electrical malfunction
– door lock32
– driver's door32
– fuel filler door198
– glass sunroof, electric40
– luggage compartment lid34
Electric steering wheel
adjustment49
Electronic brake-force
distribution79
Electronic Damping Control
EDC82
Emergency operation, refer to
Manual operation
– door lock32
– driver's door32
– fuel filler door198
– luggage compartment lid34
Emergency operation, refer to
Moving manually
– glass sunroof40
Emergency release for
luggage compartment lid in
cargo bay34
Emergency request223
Emergency services, refer to
Roadside Assistance224
"Enabled services"195
"Enable services"195
"End call"182
Engaging drive position, refer
to Selector lever
positions60
Engine
– breaking-in114
– data230
– M Engine Dynamic
Control59
– overheated, refer to Coolant
temperature66
– speed230
– starting57
– starting, with comfort
access36
– switching off57
Engine compartment207
Engine coolant211Engine oil
– adding210
– additives, refer to Approved
engine oils210
– approved engine oil210
– checking oil level208
– fast measurement209
– interval between changes,
refer to Service
requirements69
– oil change210
– oil grades, refer to Approved
engine oils210
– possible displays208
– temperature67
– temperature gauge67
"Engine oil level"209
Engine output, refer to Engine
data230
Engine overheating, refer to
Coolant temperature66
Engine speed, refer to Engine
data230
Engine starting, refer to
Starting engine57
"Enter address"124,131
Entering destination via town/
city name125
Entering intersection,
navigation126
Entering the
address124,127
Entering town/city for
navigation125
Entering zip code for
navigation125
"Entertainment"148
Entertainment sound output
on/off149
Entry map for destination128
"Equalizer", refer to Tone
control151
Equalizer, refer to Tone
control151
"ESN"159
ESP Electronic Stability
Program, refer to DSC
Dynamic Stability
Control80

Reference 247
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Lighting
– instruments96
– lamps and bulbs214
– of the vehicle, refer to
Lamps92
Light switch92
"Limit"73
Loading
– securing cargo117
– stowing cargo117
– vehicle116
Load securing equipment,
refer to Securing cargo117
"Lock after driving"33
Lock buttons in the doors,
refer to Locking33
Locking30
– confirmation signals31
– from inside33
– from outside30
– without key, refer to Comfort
access36
Locking and unlocking doors
– confirmation signals31
– from inside32
– from outside30
Low beams92
– automatic92
– indicator lamp13
Lower back support, refer to
Lumbar support42
Lug bolts220
– tightening torque, refer to
After mounting221
– wrench220
Luggage compartment lid33
– comfort access37
– emergency release34
– locking with remote
control30
– opening from inside33
– opening from outside33
– opening with remote
control31
– unlocking and locking from
inside32Luggage rack, refer to Roof-
mounted luggage rack118
Lumbar support42
LW, waveband152
M
M Dynamic Mode MDM80
– indicator lamp13,80
M Engine Dynamic Control59
– "P 400"59
– "P 500"59
– "P 500 Sport"59
M Mobility System217
M+S tires, refer to Winter
tires204
Maintenance212
– refer to Service and
Warranty Information
Booklet for US models212
– refer to Service
requirements69
– refer to Warranty and
Service Guide Booklet for
Canadian models212
Maintenance system212
Malfunction warnings, refer to
Check Control71
Manual air distribution99
"Manual" on the radio153
Manual operation
– door lock32
– driver's door32
– fuel filler door198
– glass sunroof40
– luggage compartment lid34
Manual transmission58
– tow-starting226
"Map direction of travel"138
Map display138
"Map facing north"138
Map for navigation
– changing scale138
– destination entry128
Map view facing north138
Master key, refer to Keys/
remote control28Maximum cooling100
Maximum speed with winter
tires204
MDM, refer to M Dynamic
Mode80
MDrive50
"M Dynamic Mode"80
Measurements, refer to
Dimensions231
Memory, refer to Seat, mirror
and steering wheel
memory43
MENU, button refer to Start
menu17
Menus, refer to iDrive16
Message list for traffic
information141
Microfilter101
Microphone
– for telephone14
– for voice command
system14
Mirror dimming feature49
Mirrors48
– automatic curb monitor48
– folding in and out48
– heating48
– memory, refer to Seat, mirror
and steering wheel
memory43
"Missed calls"182
Missed calls183
Mobile phone
– accepted calls183
– adjusting volume180
– calling181
– ending call181
– installation location, refer to
Center armrest106
– missed calls183
– operation by voice185
– operation via iDrive180
– redialing183
– refer to separate operating
instructions
– Top 8183
– touch tone dialing, refer to
Tone dialing method184
