Table of Contents
Page
BMW Ultimate Service™ ............................................ 1
The BMW Maintenance Program ...................................... 1
Coverage ......................................................1
Maintenance Upgrade Option .........................................2
Intervals .......................................................2
Condition Based Service (CBS) ....................................... 2
Service Interval Display . . .......................................... 3
Info Display screen contents .........................................3
Possible displays .................................................4
Supplementary information (vehicles with optional iDrive) ......................5
Red Sectors ....................................................5
Yellow Sectors ...................................................5
Green lamps ....................................................5
Symbols .......................................................6
Special Note ....................................................6
1200 Mile Service ................................................7
Quality Certification I ...............................................7
Maintenance Summary . ............................................ 7
Standard operations ...............................................7
Engine oil ......................................................7
Microfilter (not displayed in the CBS) ....................................7
Frontbrake .....................................................7
Rearbrake......................................................7
Vehicle Check ...................................................8
Brake fluid ......................................................8
Spark plugs (not displayed in the CBS) ..................................8
Emission Control Maintenance Schedule ................................ 8
Evidence of Maintenance Work ....................................... 8
BatteryCare .................................................... 17
Corrosion Protection ............................................. 17
Restoring corrosion protection .......................................17
Underbody maintenance ...........................................17
Body Inspection ................................................. 18
Customer Assistance Information .................................... 24
Customer Assistance - Notification ....................................24
BBB Auto Line .................................................. 25
California Residents ..............................................25
Special Programs ................................................ 27
BMW Roadside Assistance ......................................... 27
Owners Eligibility ................................................27
Getting Started .................................................28
Calling For Assistance .............................................28

Oil changes performed outside the recom-
mended maintenance intervals as indicated
by the Service Interval Display
Maintenance Upgrade Option
Please contact your authorized BMW center for
information and availability on the optional Main-
tenance Program Upgrade for coverage up to
6 years and 100,000 miles.
Intervals
Time intervals should be followed using the
maintenance interval as indicated by the BMW
Service Interval Display.
Maintenance intervals on motor vehicles have
conventionally been specified based upon accu-
mulated mileage. However, driving conditions
have a major influence on routine maintenance
requirements; distance traveled is only one of
the significant factors. A vehicle driven for
50,000 miles of short trips in the city with
numerous cold starts, prolonged periods of
idling, stop-and-go driving, and high engine
speeds during acceleration requires more fre-
quent maintenance intervals than a vehicle
driven for 50,000 miles for long distances at low
engine speeds primarily at operating
temperature.
The advanced technologies at BMW have led to
the development of the unique BMW Condition
Based Service (CBS) system which computes
the actual optimum maintenance requirements
based not only upon the accumulated mileage,
but taking into account important factors such
as high or low engine speeds, short or long trip
driving, and condition of the engine oil and
brake pads.
Condition Based Service (CBS)
CBS is a further development of the Service
Interval Indicator System. Sensors and sophisti-
cated algorithms take even more detailed
account of the various conditions of vehicle use.
The remaining times for selected maintenance
tasks as well as any legally prescribed dates are
displayed to you individually:
 Engine oil
 Brakes - front and rear separately
 Brake fluid
 Vehicle check
 Required State Inspection(s)
CBS thus determines the current and future
maintenance requirements. This data can also
be read from the vehicle key by your BMW Ser-
vice Advisor and used to propose the optimum
scope of maintenance.
Disconnecting the battery during periods
of long-term storage will interrupt the
calculation of time-based services. Have all
items requiring time-based maintenance, such
as brake fluid and possibly also the engine oil
and microfilter, brought up to date by your BMW
center. Also see the section on battery care on
page 17 of this statement.
2

Service Interval Display
Info Display screen contents
The distance remaining until your next service
briefly appears when you switch on the ignition.
The Info Display immediately switches to
its compute mode when you press one
of the two buttons in the turn signal indicator
lever.
For certain maintenance operations, you can
view the respective distance remaining or due
date individually in the instrument cluster.
1. Push button 1 in the turn indicator lever up
or down repeatedly until the appropriate
symbol appears in the display, accompanied
by the words “SERVICE-INFO”.
2. Press button 2.
3. Use button 1 to scroll through the individual service items.
3

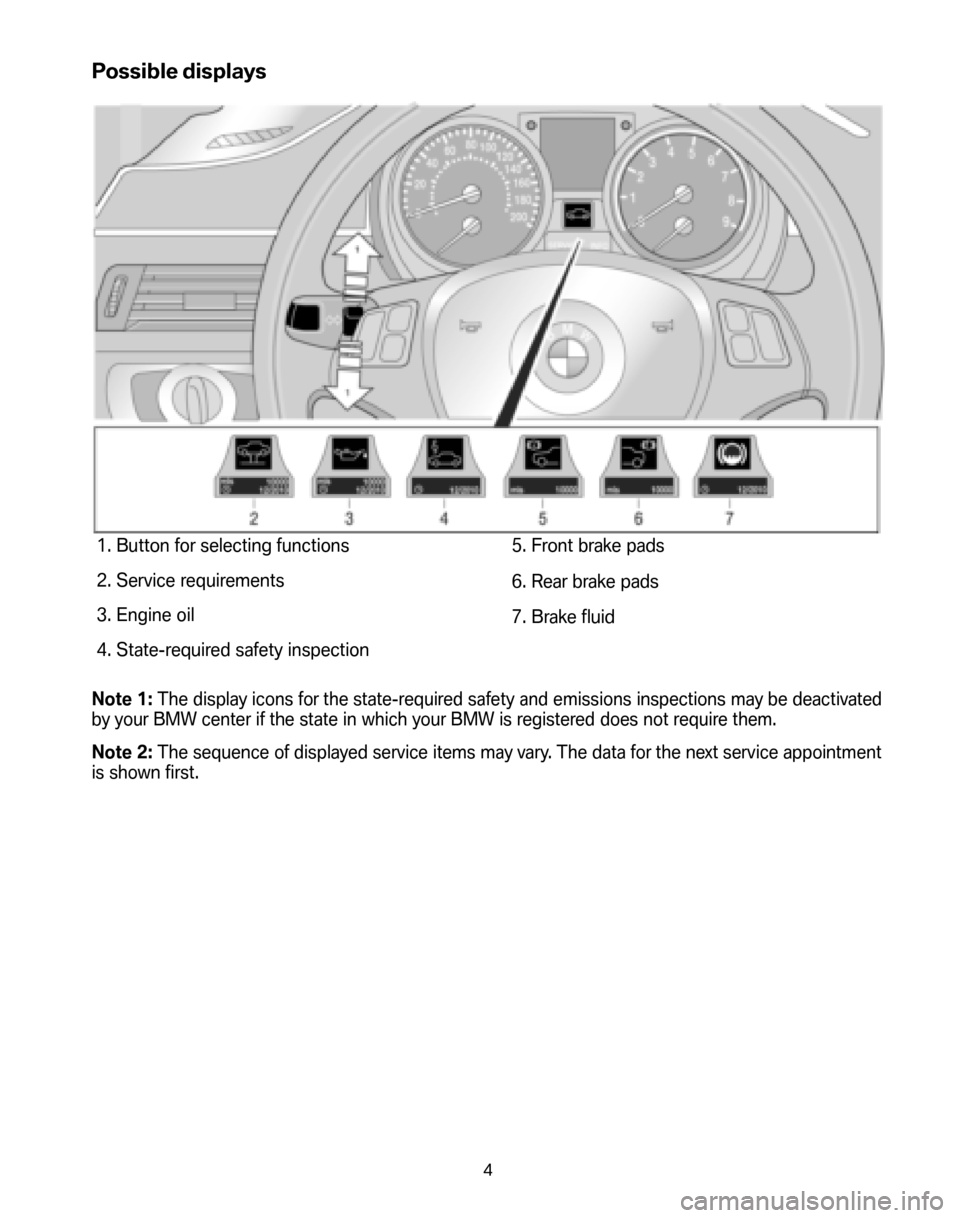

Possible displays
1. Button for selecting functions
2. Service requirements
3. Engine oil
4. State-required safety inspection 5. Front brake pads
6. Rear brake pads
7. Brake fluid
Note 1:
The display icons for the state-required safety and emissions inspections may be deactivated
by your BMW center if the state in which your BMW is registered does not require them.
Note 2: The sequence of displayed service items may vary. The data for the next service appointment
is shown first.
4

Supplementary information (vehicles
with optional iDrive)
You can have further information on the scope
of maintenance displayed on the Control
Display.
1. Open the start menu.
2. Press the controller to open the i-menu.
3. Select “Info sources” and press the controller.
4. Select “Service” and press the controller.
5. If necessary, move the highlight marker to the uppermost field. Turn the controller until
“Service requirements” is selected and
press the controller.
6. If necessary, move the highlight marker to the second field from the top. Turn the con-
troller until “Status” is selected and press
the controller.
A list of selected maintenance operations and, if
applicable, inspections required by law is
displayed.
You can request more detailed information on
every entry.
Select the entry and press the controller.
To exit from the menu:
Select the
arrow and press the controller.
Red Sectors
The service deadline has already passed.
Yellow Sectors
The deadline for service or a state inspection is
approaching. Please contact your BMW center
for an appointment.
Green lamps
No service is currently required.
5

1200 Mile Service
The engine in your BMW M3 is a race-bred
engine design which includes increased power
output and maximum engine speeds compared
to conventional BMW 3 Series engines. The
increased power output also affects other major
drivetrain components such as the transmission
and the rear axle differential. The 1200 Mile Ser-
vice requires changing the oil in the engine, as
well as in the transmission and the differential.
The engine air cleaner element must also be
replaced during this service.
Quality Certification I
For a detailed list of items inspected, refer to the
Quality Certification I form provided to the
Owner at time of delivery. A copy of the form is
on file at the selling BMW center.
Maintenance Summary
The Condition Based Service (CBS) system will
determine the requirement for performance of
the maintenance services described on this and
the following page. These services may be
required either individually or in conjunction with
other maintenance services.
Standard operations
Maintenance work:
 Brief diagnostic test
 Verify Check Control messages.
 Check indicator and warning lights.
 Reset CBS display.
 Inspect tires, adjust tire pressures and reset
Tire Pressure Monitor.
Engine oil
Maintenance work:
 Change the engine oil and oil filter. Use only
Castrol TWS Motorsport 10W-60 Synthetic
Oil P/N 07 51 0 009 420.
 At every engine oil change: Intake air cleaner:
replace air filter element (reduce replacement
interval in dusty operating conditions).
 Parking brake: Check function and
pre-burnish.
Microfilter (not displayed in the CBS)
Maintenance work:
 Replace ventilation microfilter.
Front brake
Maintenance work:
 Replace brake pads, clean brake pad contact
points in calipers.
 Brake discs: Check surface and thickness, if
necessary replace at extra charge.*
Rear brake
Maintenance work:
 Replace brake pads, clean brake pad contact
points in calipers.
 Brake discs: Check surface and thickness, if
necessary replace at extra charge.*
 Parking brake: Check condition, brake lining
thickness and function, if necessary replace
at extra charge.*
*Unless covered by Maintenance Program
7

Vehicle Check
Maintenance work:
 Check operation of horn, headlight flasher
and hazard warning flashers.
 Check instrument and control lighting and
heater/air-conditioning blower.

Check lighting system: turn signals, back-up,
license plate, interior (incl. map, reading lights),
glovebox, flashlight, luggage area lights.
 Safety belts: Check condition and function.
 Check windshield wiper and washer jet
positions.
 Body: Check for corrosion (except cavities).
 Tires: Check tread depth, wear pattern, outer
condition, inflation pressure. If necessary, cor-
rect pressure.
 Reset Tire Pressure Monitor.
 Battery: Check state of charge (magic eye)
and charge if required.
 Power steering reservoir: Check fluid level.
 Visually inspect all SRS airbag units for torn
covers, obvious damage or attachment of
stickers.
 Rear-view mirrors
 Coolant: Check fluid level and concentration.
 Windshield washer and intensive cleaning
system: Check protection level, fluid level, top
if necessary.
 Check expiration date on the M Mobility Sys-
tem sealant bottle. Change sealant bottle if
needed at additional charge.
 Brake system connections and lines: Check
for leaks, damage and correct positioning.
 Underbody, incl. all visible parts (i.e. transmis-
sion, rear axle, fuel lines, exhaust system):
Check for damage, leaks and corrosion.
 Steering components: Check for clearance,
leaks, damage and wear.
 Final Inspection: Road test with check of
– Brakes, including burnishing of parking
brake pads
– Steering
– Shock absorbers (visual)
– Transmission
Brake fluid
Maintenance work:
 Replace brake fluid.
Spark plugs (not displayed in the
CBS)
Maintenance work:
 Replace spark plugs at intervals of
37,000 miles.
Emission Control Maintenance
Schedule
The maintenance schedule as shown is required
for the proper functioning of the emission con-
trol systems for optimum vehicle performance
and fuel economy.
Basic Engine
Engine oil As specified by CBS
Engine oil filter As specified by CBS
Fuel System
Air filter 1200 miles, then every
engine oil change
Ignition System
Spark plugs 37,000 miles
Emission Control
Components
Oxygen sensor 120,000 miles
Evidence of Maintenance Work
This BMW Service and Warranty Information
Booklet should be presented to your BMW cen-
ter when maintenance is required. Make sure
that confirmation of maintenance work is always
entered in this Service and Warranty Information
Booklet. You may need this for any warranty
claims that become necessary, and later on as
evidence that your car has been given the cor-
rect and regular maintenance that justifies its
resale or trade-in value.
8

Trip Interruption Benefits
Trip interruption benefits are provided for
mechanical breakdowns as follows:
 Breakdowns that are warranty related, and;
 Must occur in excess of 100 miles from the
drivers residence, and;
 Repairs cannot be completed during normal
business hours on the same day of
breakdown.
Reimbursements will be made for meals, lodg-
ing, car rentals, and alternate transportation to
bring the driver and the BMW automobile
together after the vehicle has been repaired by
an authorized BMW center. Original receipts
must accompany all reimbursement requests.
Trip interruption coverage is limited to $750.00
per incident, for a maximum of five days per
incident.
Always contact BMW Roadside Assistance for
trip interruption benefits. They will assist in
making all the necessary arrangements.
Car Rental Discounts
Discounts are available from Hertz and Enter-
prise car rental companies. Benefits may vary
with each company and location, and are sub-
ject to change without notice.
Simply display your Roadside Assistance card
(showing the applicable Plan number) during
reservation and at the time of rental to secure
your discount.
Exclusions
Specifically excluded from coverage are:
 Fines, taxes, or impound towing fees caused
by a violation of local or state law.
 Expenses related to extreme adverse weather
conditions, including, but not limited to
floods, hurricanes and tornadoes (removal
from water, snow, ice, etc.).
 Expenses for the removal of snow tires, and
mounting or removal of snow chains.
30
