2008 BMW 4.8I dimensions

Mobility
239Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment

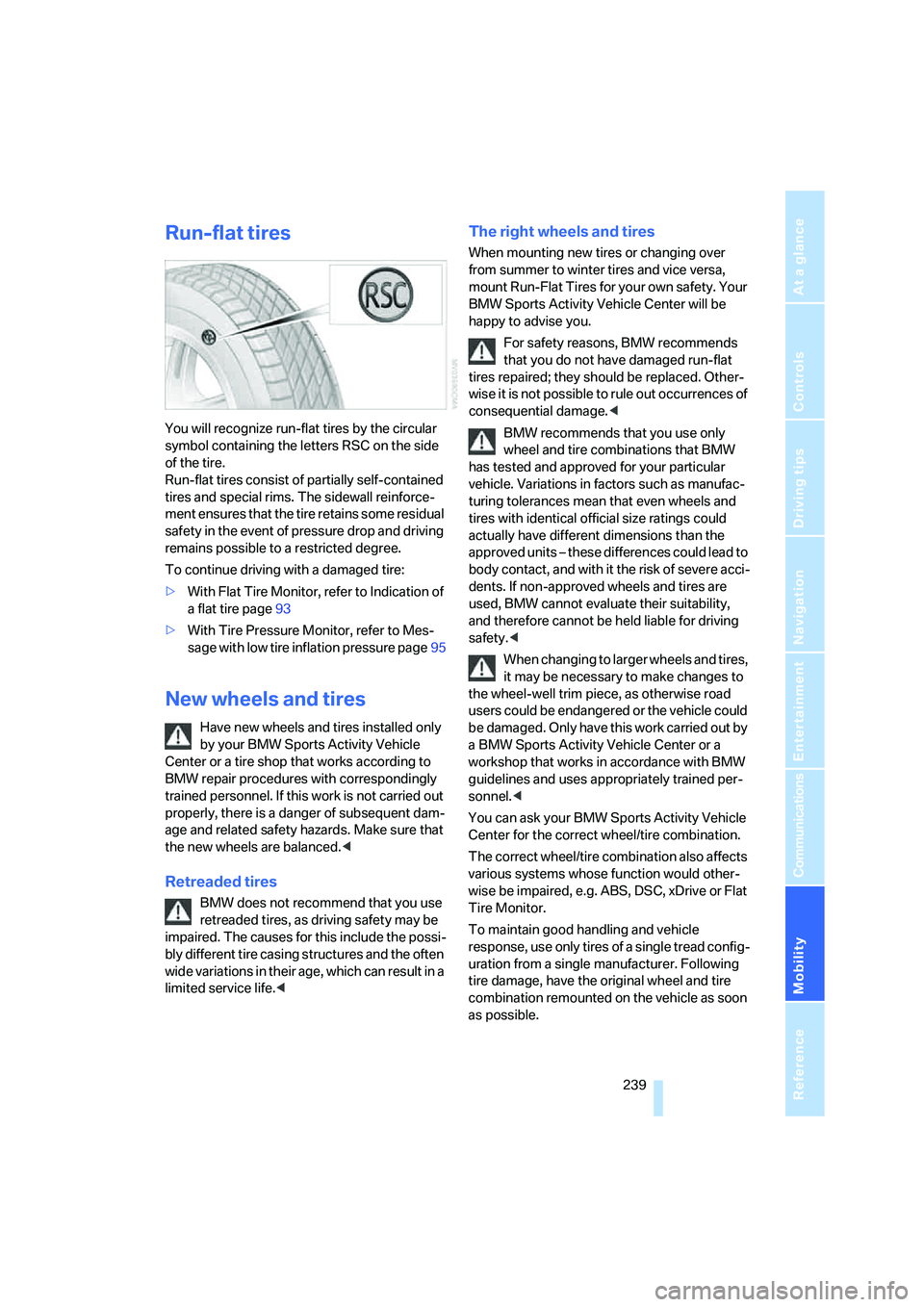

Run-flat tires
You will recognize run-flat tires by the circular
symbol containing the letters RSC on the side
of the tire.
Run-flat tires consist of partially self-contained
tires and special rims. The sidewall reinforce-
ment ensures that the tire retains some residual
safety in the event of pressure drop and driving
remains possible to a restricted degree.
To continue driving with a damaged tire:
>With Flat Tire Monitor, refer to Indication of
a flat tire page93
>With Tire Pressure Monitor, refer to Mes-
sage with low tire inflation pressure page95
New wheels and tires
Have new wheels and tires installed only
by your BMW Sports Activity Vehicle
Center or a tire shop that works according to
BMW repair procedures with correspondingly
trained personnel. If this work is not carried out
properly, there is a danger of subsequent dam-
age and related safety hazards. Make sure that
the new wheels are balanced.<
Retreaded tires
BMW does not recommend that you use
retreaded tires, as driving safety may be
impaired. The causes for this include the possi-
bly different tire casing structures and the often
wide variations in their age, which can result in a
limited service life.<
The right wheels and tires
When mounting new tires or changing over
from summer to winter tires and vice versa,
mount Run-Flat Tires for your own safety. Your
BMW Sports Activity Vehicle Center will be
happy to advise you.
For safety reasons, BMW recommends
that you do not have damaged run-flat
tires repaired; they should be replaced. Other-
wise it is not possible to rule out occurrences of
consequential damage.<
BMW recommends that you use only
wheel and tire combinations that BMW
has tested and approved for your particular
vehicle. Variations in factors such as manufac-
turing tolerances mean that even wheels and
tires with identical official size ratings could
actually have different dimensions than the
approved units – these differences could lead to
body contact, and with it the risk of severe acci-
dents. If non-approved wheels and tires are
used, BMW cannot evaluate their suitability,
and therefore cannot be held liable for driving
safety.<
When changing to larger wheels and tires,
it may be necessary to make changes to
the wheel-well trim piece, as otherwise road
users could be endangered or the vehicle could
be damaged. Only have this work carried out by
a BMW Sports Activity Vehicle Center or a
workshop that works in accordance with BMW
guidelines and uses appropriately trained per-
sonnel.<
You can ask your BMW Sports Activity Vehicle
Center for the correct wheel/tire combination.
The correct wheel/tire combination also affects
various systems whose function would other-
wise be impaired, e.g. ABS, DSC, xDrive or Flat
Tire Monitor.
To maintain good handling and vehicle
response, use only tires of a single tread config-
uration from a single manufacturer. Following
tire damage, have the original wheel and tire
combination remounted on the vehicle as soon
as possible.

Reference 263
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

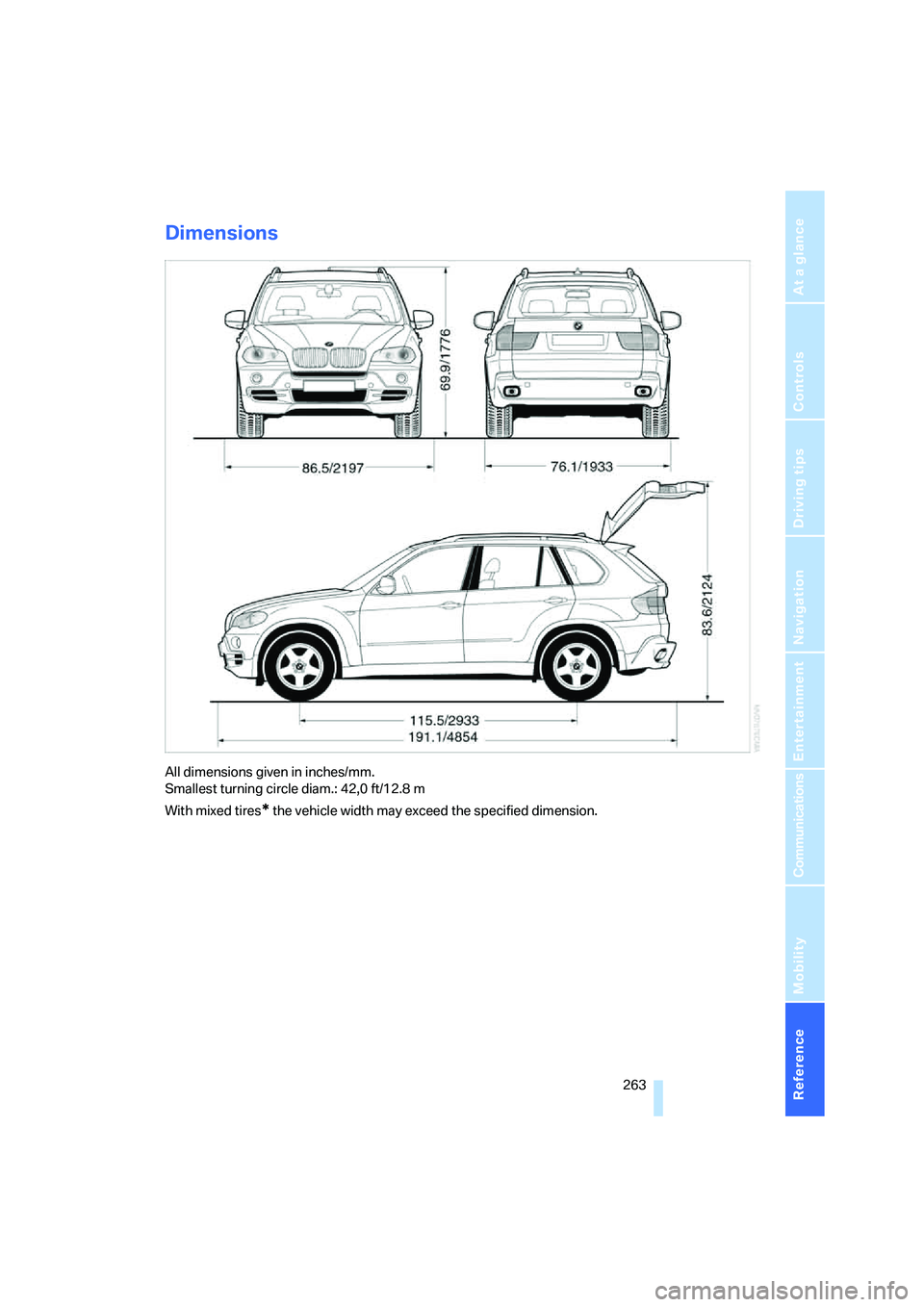

Dimensions
All dimensions given in inches/mm.
Smallest turning circle diam.: 42,0 ft/12.8 m
With mixed tires
* the vehicle width may exceed the specified dimension.

Everything from A to Z
274 Control Display, refer to
iDrive16
– setting brightness82
Controller, refer to iDrive16
Controls, refer to Cockpit10
Controls of DVD system in
rear192
Convenient operation
– panorama glass
sunroof30,32
– panorama glass sunroof with
comfort access37
– windows30,32
– windows with comfort
access37
– with comfort access37
Coolant244
– checking level244
– temperature72
Cooling, maximum109
Cornering Brake Control
CBC88
Courtesy lamps, refer to
Interior lamps105
Cradle for telephone or mobile
phone119
Cruise control69
Cruising range73
Cup holders120
Curb weight, refer to
Weights264
Current fuel consumption72
"Current position"157
Current position
– displaying157
– entering146
– storing146
"Customer
Relations"218,226
Cylinders, refer to Engine
data262
D
Dashboard, refer to
Cockpit10
Data262
– capacities264
– dimensions263
– engine262
– technical data262
– weights264
"Date"82
Date71
– display format82
– retrieving71
– setting82
"Date format"82
"Daytime running lamps"103
Daytime running lamps103
"Deactivated"45
Decommissioning the vehicle,
refer to Caring for your
vehicle brochure
Defrosting windows108
Defrosting windows and
removing condensation108
Defrost position, refer to
Defrosting windows108
"Delete address book" for
navigation system147
"Delete all numbers" on the
mobile phone217
"Delete data" for navigation
system147
"Delete" for mobile
phone217
Destination address
– deleting147
– entering139,141
Destination for navigation
– destination list145
– entry138
– selecting from address
book147
– selecting using
information144
– selecting using voice141
– storing146Destination guidance150
– canceling voice
instructions54
– changing specified
route148
– displaying route151
– distance and arrival150
– ending/continuing150
– starting150
– voice instructions153
– volume of voice
instructions154
Destination list for navigation
system
145
Destinations recently driven
to145
"Details"
– DVD system in the rear200
– in audio mode190
"Dial" for mobile phone215
"Dial number"215
"Diamond button"54
Digital clock71
Digital compass117
Digital radio, refer to High
Definition Radio169
Dimensions263
Directional indicators, refer to
Turn signals66
Direction instructions, refer to
Voice instructions153
Directory for navigation, refer
to Address book146
Direct selection buttons21
Displacement, refer to Engine
data262
"Display"82
Display, refer to iDrive16
Displaying images200
Display lighting, refer to
Instrument lighting105
"Display off"21
Displays, refer to Instrument
panel12
"Display settings"82,99
Displays on the windshield,
refer to Head-Up Display99

Reference 277
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
G
Garage door opener, refer to
Integrated universal remote
control115
Gasoline, refer to Required
fuel233
Gasoline display, refer to Fuel
gauge72
Gear changes, automatic
transmission with
Steptronic65
General driving
notes128,129
Glass sunroof, electric
– convenient operation from
outside32
– convenient operation with
comfort access37
– remote control30
Glove compartment118
– lighting118
– opening manually118
GPS navigation, refer to
Navigation system136
Grills, refer to Ventilation110
Grills of the automatic climate
control106
Gross vehicle weight, refer to
Weights264
H
Handbrake, refer to Parking
brake60
– Automatic Hold61
Hands-free system, refer to
Microphone14
Hazard warning flashers15
HDC Hill Descent Control90
"HD radio"169
HD radio, refer to High
Definition Radio169
Head airbags97
Headlamp control,
automatic102
Headlamp flasher66Headlamps102
– care, refer to Caring for your
vehicle brochure
– cleaning, refer to Washer/
wiper system67
– replacing bulbs247
Head Light, refer to Adaptive
Head Light104
Head restraints46
– sitting safely42
"Head-Up Display"100
Head-Up Display99
Heated
– mirrors52
– rear window108
– seats50
– steering wheel53
Heating106
– exterior mirrors52
– interior106
– rear window108
– residual heat110
– seats50
– steering wheel53
Heating with engine switched
off, refer to Residual
heat110
Heavy cargo, refer to Securing
cargo132
Height, refer to
Dimensions263
Height adjustment
– seats43
– steering wheel52
High beams66,104
– headlamp flasher66
– indicator lamp13
High Definition Radio169
Highs, refer to Treble and
bass163
High water, refer to Driving
through water129
Highway, refer to Route
criteria148
Hill Descent Control HDC90
Hills130
Holder for cups120Home address148
"Home address" for
navigation system148
Homepage4
Hood241
Horn10
Hot exhaust system129
"Hour memo"82
"House number" for
destination entry141
Hydraulic brake assistant,
refer to Brake assistant89
Hydroplaning129
I
IBOC, refer to High Definition
Radio169
Ice, refer to Outside
temperature warning71
Ice warning, refer to Outside
temperature warning71
ID3 tag, refer to Information on
track177
Identification, tire240
Identification mark, run-flat
tires239
iDrive16
– assistance window20
– changing language83
– changing menu page19
– changing settings81
– changing units of measure
and display type82
– confirming selection or
entry19
– controller16
– controls16
– displays, menus17
– selecting menu item19
– setting brightness82
– setting date82
– setting time81
– start menu17
– status information20
– symbols18

Everything from A to Z
278 Ignition59
– switched off59
– switched on59
Ignition key, refer to Keys/
remote control28
Ignition key position 1, refer to
Radio readiness59
Ignition key position 2, refer to
Ignition on59
Ignition lock59
– starting engine with comfort
access37
Independent ventilation, refer
to Parked car ventilation113
Indicator/warning lamps13
– active steering96
– airbags99
– DSC13,89
– DTC90
– fasten safety belt49
– Flat Tire Monitor93
– fog lamps13
– TPM Tire Pressure
Monitor95
Individual air distribution109
Individually programmable
buttons on steering
wheel53
Individual settings, refer to
Personal Profile28
Inflation pressure, refer to Tire
inflation pressure234
Inflation pressure monitoring
– refer to FTM Flat Tire
Monitor92
– refer to TPM Tire Pressure
Monitor94
Information
– on another location144
– on country144
– on current position144
– on destination location144
"Information on
destination"145
"Info sources"76Initializing
– Flat Tire Monitor92
– refer to Power failure253
– refer to Setting date82
– refer to Setting time81
– seat, mirror and steering
wheel memory44
"Input map"143
Installation location
– drive for navigation DVD136
– mobile phone119
Instructions for navigation
system, refer to Voice
instructions153
Instrument cluster, refer to
Instrument panel12
Instrument illumination, refer
to Instrument lighting105
Instrument lighting105
Instrument panel12
– refer to Cockpit10
Integrated key28
Integrated universal remote
control115
Interesting destination for
navigation144
"Interim time"80
Interior lamps105
– switching on with remote
control30
Interior motion sensor36
– switching off36
Interior rearview mirror52
– automatic dimming
feature52
– compass117
Intermittent mode of the
wipers67
J
Jacking points252
Joystick
– refer to iDrive16
– refer to Selector lever,
selecting transmission
positions64
Jump starting256
K
Keyless-Go, refer to Comfort
access36
Keyless opening and closing,
refer to Comfort access36
Key Memory, refer to Personal
Profile28
"Keypad"218
Keys28
– key-related settings, refer to
Personal Profile28
Kick-down, automatic
transmission with
Steptronic65
Knock control233
L
Lamps, refer to Parking lamps/
low beams102
Lamps and bulbs247
"Language / Units"82,83
– for navigation
system137,153
"Language" for DVD system
in rear196,197
"Languages"83
– for navigation
system137,153
Lashing eyes, refer to
Securing cargo132
Last destinations, refer to
Destination list145
"Last seat pos."45
LATCH child restraint fixing
system56
LEDs light-emitting
diodes248
Length, refer to
Dimensions263
License plate lamp, replacing
bulbs250

Everything from A to Z
286 "Top 8" for mobile phone216
Torque
– engine262
– lug bolts, refer to After
mounting252
Touch tone dialing218
Tow fitting257
Towing257
– tow fitting257
"Town / City" for destination
entry139
Town/city for destination
entry139
Tow-starting257,258
"TPM"95
TPM Tire Pressure
Monitor94
– resetting system94
– system limits94
– warning lamp95
Tracks
– finding177
– random sequence178
– sampling, scan177
Track width, refer to
Dimensions263
Traction-assist feature, refer
to DSC Dynamic Stability
Control89
Traction control, refer to
DSC Dynamic Stability
Control89
Traffic congestion
– bypassing157
– displaying traffic
information154
Traffic information for
navigation
– depiction in route map156
– displaying155
– during destination
guidance157
– switching on/off155
– symbols156
"Traffic Info settings"155Transmission
– automatic transmission with
Steptronic64
– manually releasing
transmission lock on
automatic transmission with
Steptronic65
– starting assistant91
Transmission positions, refer
to Automatic transmission
with Steptronic64
Transporting children
safely55
Transport securing device,
refer to Securing cargo132
Tread depth, refer to Minimum
tread depth238
Treble, refer to Tone
control
163
"Treble / Bass" for DVD
system in rear197
"Trip computer"74
Trip computer74
Trip-distance counter, refer to
Trip odometer71
"Triple turn signal"67
Trip odometer71
Turning circle, refer to
Dimensions263
Turn signals66
– indicator lamp12
– replacing bulbs248
U
Underbody protection, refer to
Caring for your vehicle
brochure
Uniform Tire Quality Grading/
UTQR237
"Units"83
Units
– average fuel
consumption82
– temperature82
Universal garage-door
opener, refer to Integrated
universal remote
control115Universal remote control115
"Unlock button"30
Unlocking
– from inside32
– liftgate30
– using remote control30
– without key, refer to Comfort
access36
Unlocking and locking doors,
using remote control30
Unlocking without key, refer to
Comfort access36
"Unlock rear menu" for DVD
system in rear192
"Update services"227
USB audio interface189
"USB" in audio
mode188,190
Used batteries
– refer to Disposal253
– refer to Replacing battery38
V
Valve screw caps, refer to
After mounting252
Vehicle
– battery253
– breaking-in128
– care246
– care, refer to Caring for your
vehicle brochure
– decommissioning, refer to
Caring for your vehicle
brochure
– loading131
– measurements, refer to
Dimensions263
– parking60
– washing, refer to Caring for
your vehicle brochure
– weights264
"Vehicle / Tires" for
unlocking30
Vehicle jack251
– jacking points252
Vehicle position, refer to
Displaying current
position157

Reference 287
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Ventilation110
– draft-free110
– in the rear111
– rear automatic climate
control113
– 3rd row seats111
– while stationary113
Vent outlets of automatic
climate control106
Vents, refer to Ventilation110
"Vent settings"109
"Video settings" for DVD
system in rear196
Voice, refer to Voice
instructions for navigation
system153
Voice command system23
– short commands265
Voice instructions for
navigation system153
– muting54,154
– repeating54,154
– switching on/off54,153
– volume154
Voice phone book220
Volume
– mobile phone214
– setting speed-
dependent164
– voice instructions154
Volume distribution in audio
mode
– front/rear164
– right/left164
Volume of warning tones83
W
Warning lamps, refer to
Indicator and warning
lamps13
Warning messages, refer to
Check Control78
Warning tone, volume83
Warning triangle255
Warranty and Service Guide
Booklet for Canadian
models245Washer/wiper system67
– rain sensor67
– washer fluid68
– windshield washer
nozzles68
Washer fluid68
– capacity of the reservoir69
Washing the vehicle, also refer
to Caring for your vehicle
brochure
Water on roads, refer to
Driving through water129
Waveband for radio166
"WB"171
Wear indicators in tires, refer
to Minimum tread depth238
Weather Band171
Website4
Weights264
"Welcome light"103
Wheel/tire combination, refer
to New wheels and tires239
Wheel/tire damage238
Wheelbase, refer to
Dimensions263
Wheels and tires234
Width, refer to
Dimensions263
Windows38
– convenient operation30
– convenient operation from
outside32
– convenient operation with
comfort access37
– opening, closing38
– pinch protection system38
– safety switch39
Windshield
– cleaning, refer to Washer/
wiper system67
– defrosting, refer to
Defrosting windows108
– displays, refer to Head-Up
Display99
Windshield washer system
– refer to Washer/wiper
system67
– windshield washer
nozzles68Windshield wipers, refer to
Washer/wiper system67
– replacing wiper blades247
Winter tires240
– storage
240
"With highways" for
navigation system148
Word matching principle for
navigation149
Working in the engine
compartment241
Wrenches/screwdrivers, refer
to Onboard toolkit247
X
xDrive90
Z
"Zoom" for DVD system in
rear197
