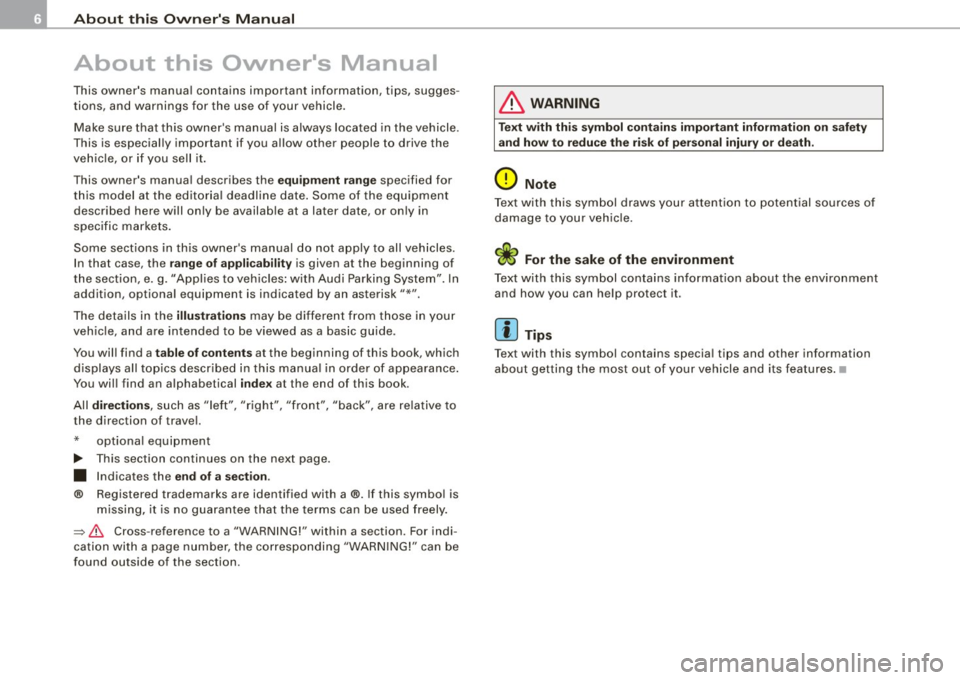

About this Own er's M anu al
About this Owner's Manual
This owner's manual contains important information, tips, sugges­
tions, and warnings for the use of your vehicle.
Make sure that this owner's manual is always located in the vehicle .
This is especial ly important if you allow other people to drive the
veh ic le, or if you sell it.
This owner's manua l describes the
equ ip m ent r an ge specified for
this model at the editorial deadline date. Some of the equipment
descr ibed here will only be availab le at a later date, or only in
specific markets.
Some sections in this owner's manual do not apply to all veh icles.
In that case, the
range of appl icability is giv en at the beginning of
the section, e.g . "Appl ies to veh icles : with Audi Parking System". In
addition, optional equipment is indicated by an asterisk" *".
The deta ils in the
illu strations may be different from those in your
veh ic le, and are intended to be viewed as a bas ic guide .
You wil l find a
table of content s at the beginning of this book, which
displays all topics descr ibed in this manua l in order of appearance .
You wil l find an alphabetical
inde x at the end of this book.
All
dir ection s, such as "left", "right", "front", "back", are re lative to
the direction of trave l.
* optiona l equipment
.,. This section continues on the next page .
a Indicates the end of a section .
® Registered tradema rks are identified with a®. If this symbol is
m issing, it is no guarantee that the terms can be used freely.
=> &. Cross -reference to a "WARN ING! " within a section . For indi ­
cation with a page number, the corresponding "WARN ING!" can be
found outside of the section .
& WARNING
Text w ith thi s symbol cont ains impo rtant inform ation on saf ety
and how to reduce the ri sk of personal injury or death .
0 Note
Text with this symbol draws your attention to potent ial sources of
damage to your veh ic le.
W For th e sake of the environment
Text with this symbol contains in fo rmation about the environment
and how you can he lp protect it.
[ i ] Tips
Text with this symbol contains specia l tips and other information
about getting the most out of your vehicle and i ts features .•

Inst rum ent s a nd warning /indi cato r li ghts
Instruments and warning/indicator lights
Instruments
Instrument cluster and controls
The instrument cluster is your central source of informa­
tion .
6
Fig . 2 Ove rv iew of the ins trum ent cluster
0
0
0
©
©
©
G)
©
Tachometer with time and date display ......•.....
Warning/indicator lights .. ... ..... ... ........ .. .
Coolant temperature gaug e .... ... ...... ...... .. .
Fuel gauge .. .... ... .. ...... .... ... ..... ... ... .
Speedome ter with odometer ..... .... ... .. .. ... .
Set/Chec k button ..... ... ..... ..... ... ........ .
Driver information display
Reset but ton for
~
"' N 9
i
12, 13
16
13
14
14
15
22
- trip odometer
- Service indicator
[ i ] Tip s
14
25
The illumination for the instrument cluster lights up whenever you
switch on the ign ition with the
ve hicle hea dlight s off. As the
daylight fades, the instrument cluster illumination likewise dims
automatically and wil l go out completely when the outside light is
very low. This feature is meant to remind you to switch on th e head ­
lights when outside light conditions become poor. •
Tachometer (engine rev counter)
The tachometer indicates the engine RPM (revolutions per
minutes) .
The tachometer 0 ~ fig. 2 is the left of the two large c lock -type
displays.
The engine turns at a speed
1,000 times the single digit in the
display, e.g . if th e ne edle is pointing a t the
"2" the engine is turning
at 2,000 RPM .
If engine RPM drops below 1,500, you should downshif t to the next
lower gear . The red ar ea at the end of th e scale indica tes maximum
permissible engine RPM after the break- in period. Before reaching
th is area , shift into the next higher gear (manua l transmission),
move the selec tor lever to position "D (Drive)" (automatic) or ease
your foot off the accelerator pedal.
0 Note
T he tachometer need le should not move into the red range . If it
does, then on ly for a very short period of time . You could damage
your engine by driving a t high RPM. ...

<£> For the sake of the environment
Upshifting early saves fuel and reduces engine noise. •
Digital clock with date display
Your vehicle is equipped with a quartz controlled digital
clock.
To set the hour
Fig. 3 Instrument
c luste r with the digital
c lock
- Pull the knob (hour display flashes) and turn it to the left
or right.
To set the minutes
- Pull the knob as many times as necessa ry until the
m in ute display flashes.
- Turn the knob to the left or right.
To set the date
-Pull the knob as many times as necessary until the day,
month or year display flashes.
- Turn the knob to the left or right.
Con tro ls and eq uip­
ment
Instruments and warning /indicator lights
To hide or display the date
- Pull the knob as many times as necessary until the date
display flashes .
- Turn the knob to the left or right.
When the date display stops blinking, this means the time and date
have been successfully stored.
With the ignition off, pushing or pulling the Set/Check button
~ page 12, fig. 2 ©-depending on the instrument cluster configu ­
ration - can turn on the display field lighting for a few seconds .•
Engine coolant temperature gauge
The engine coolant gauge~ page 12, fig. 2 © only works when the
ignition is on. To preven t damage to your engine, please note the
following important points:
Engine cold
As long as the needle remains at the left end of the gauge, the
engine still has not reached its operating temperature . Avoid high
engine speeds, heavy engine loads and heavy throttle.
Normal temperature
When the engine has reached its operating temperature, the needle
will move into the middle of the gauge and remain there. If the
engine is working hard at high outside temperatures, the needle
may turn further to the right. This is no cause for concern as long as
the -~- warning light in the instrument cluster does not illuminate.
When the
_J _ warning light starts to flash, this can mean one of two
things: either the coolant
temperature is too high , or the coolant
level is too low~ page 32 . ~
Vehicle care I I irechnical data

With the ignition off, pushing of the Set/Check button~ page 12,
fig. 2 © can turn on the display field lighting for a few seconds .
Malfunction message
If there is a malfunction somewhere in the instrument cluster, dEF
will appear in the trip odometer and will stay on. Contact your
authorized Audi dealer to have the problem corrected.
Immobilizer
When the ignition is switched on, the data on the ignition key are
scanned automatically.
If an unauthorized key was used, SAFE is displayed continuously in
the odometer display field. The vehicle cannot be operated
~ page 49.
[ i ] Tips
• The digital c lock and the odometer are turned on for about 30
seconds when the driver's door is opened.
• When the ignition is turned off, the odometer reading and the
digital clock with date display can be switched on for about
30 seconds by pressing the Set/Check button~
page 12, fig. 2 @ . •
Set /Check button
Con tro ls and eq uip­
ment
Fig . 5 Section of
in strument cluster:
Set/Check button
Instruments and warning /indicator lights
The button performs the following functions:
Switching on the clock and odometer
With the ignition turned off, the odometer reading and the digital
clock with date display can be switched on for about 30 seconds by
pressing the button~ fig. 5 .
Starting the Auto -Check sequence
The Auto -Check system ~ page 29 constantly monitors certain indi ­
v idual functions and components of the vehicle when the ignition is
turned on and when the vehicle is moving.
With the ignition turned on, you can start the "Auto -Check
sequence" by pressing the button. You can perform an Auto-Check
sequence when the vehicle is stationary and the ignition is turned
on or when the vehicle is moving not faster than 3 mph (5 km/h).
Calling up the driver information
A yellow or red symbol appears in the instrument cluster display,
usually with a driver message. The driver message display disap­
pears after about 5 seconds. The driver message can be displayed
again by briefly pressing the button.
Setting the speed warning
By press ing the button brief ly, you can set threshold 1 of the speed
warning while you are driving~
page 38. By maintaining pressure
on the button, you delete the warning threshold.•
Vehicle care I I irechnical data

Driver inf ormation sy ste m
Driver information system
Introduction
General notes
The driver information display inside the instrument
cluster provides you, the driver, with important informa­
tion.
F ig. 7 In st rum ent
c luster : center d is p lay
The driver information display is located in the center of the instru­
ment cluster => fig . 7 .
The driver information system updates important information in the center display in clear view of the driver. In an easy to understand
format, the display tells you how your vehicle is functioning
at t he
cu rre nt m omen t.
For example, the display can tell you how many
miles (kilometers) you can still drive until it is time to bring your
vehicle to your authorized Audi dealer for a scheduled Maintenance Service . This feature helps preventing costly repairs. It is just one of
many different items of information availab le for recall. The display
a lso gives you a "status report" whenever the
so und s ystem , tel e­
ph on e, a nd navi gation
systems are being used.
Detailed instructions for operating the Audi Navigation System* are provided in separate manuals . The Driver Information System provides the following functions:
Sound system display
Outside air temperature
Door open indicator
Service interval display
Auto Check system
Speed limiter
Selector lever (S t ronic)
[ i ] Tip s
=> page 23
=> page23
=> page 24
=> page25
=> page29
=> page30
=> page 26
=> page 39
=> page 115
• If your vehicle has an automatic transmission, the various
display contents will appear only after you have moved the selector
lever into
R , D or S.
• In the event of a malfunction, e ither a red or yellow icon appears
in the display. Red symbols indicate
D anger => page 31 . Yellow
sy mbols indicate a
W arning => page 34 . •

Sound system display
Fig. 8 Ce nte r di spl ay:
sou nd s ystem
If priority 1 or priority 2 faults ar e not shown by th e Au to Check
Control, the name of the radio station you are tuned to or the
frequency and the reception range are shown in the upper area of
t h e display .
When the CD is in use , the title of the track being p layed is shown .
T h e number of th e CD (CD 1 to CD6) curr ently being played is also
shown. •
Outside temperature display
Fig . 9 Ce nter di spl ay:
o utside tem pe ratur e
The outside tempe ra ture wil l be displayed when you switch on the
ignition~ fig. 9. If your vehic le has an automa tic transmiss ion , the
Con tro ls and eq uip­
ment
Dri ver in form ati on syst em
outside temperature will appear in the display only after you have
moved the selector lever into a gear (for example, when yo u shift
into
" D ") .
The snowflake symbo l a lso appears when the outs ide temperature
is below 41 °F ( +5 °C). This is to warn you, the driver, to be extra
cautious becaus e the road surfaces may be
icy . If the vehicle is at a
standstil l, or i f you are driving at a very low speed, the temperature
shown in the display might be sligh tly high er than the ac tual
outside temperature . This is caused by the heat being radiated from
the engine .
Remember , if your vehicle is equipped with air conditioning and you
change the display from °F (Fahrenhei t) to °C (Centigrade) , then the
outside temperature will automatical ly be displayed in °C (Centi ­
grade) .
& WARNING
• Never r ely e xclusive ly o n th e out side t emperature di sp la y to
determin e if a ro ad surf ace is icy or not. K eep in mind that road
s urface s, esp ecially bridge s and overpa sses, co uld be ice c overed
and slippery even at an out side temper ature above 41 °F
1+5 ° C I.
• Alwa ys re m embe r, even if th e "s nowflak e" sy mbol lic e
wa rning ) does not app ear i n the display , b lack ice cou ld be on the
road .
• Alway s re duce your speed and driv e with sp eci al c are in cold
wea ther condition s when the ch an ce of en count ering i cy road
s urf ace s in creas es.
[ i ] Tip s
When using the navigation system feature "Destination", the
outside temperature is also displayed .•
Vehicle care I I irechnical data
