2008 AUDI S8 window

Opening and closing
anti-theft a larm switched on, the emergency flashe rs wi ll blink and
t he horn wil l so un d only a fter y ou have cl ose d t he do or or lid.
[ i ] Tips
For t he anti -th eft a larm sy stem to func tion p roperl y, ma ke su re a ll
veh ic le doors and windows are closed before leaving the vehicle .•
Power windows
Controls
Fig . 48 Driver' s doo r:
power window
switches
Fig . 49 Driver' s door :
S w itches (veh icl es
with power child safety
lock )
Switches for front door windows
© opera tes the wi ndow in the driver 's d oor.
@ opera tes the windo w in the fr ont pass enger's door.
Switches for rear windows
© operates t he left rea r w in dow.
@ operates the r ight rear window.
Safety switch
© Safety switch for rear window operation .
& WARNING
• Do not leave children unattended in the vehicle , especially with
access to vehicle keys. Unsupervised use of the keys can result in
starting of the engine and use of vehicle systems such as power
windows , etc. which could result in serious injury.
• Remember -you can still open or close the power windows for
about ten minutes after the ignition is switched off . Only when
either of the front doors are opened are the power windows
switched off .
• Be careful when closing the windows. Check to see that no one
is in the way, or serious injury could result!
• Always remove the ignition key whenever you leave your
vehicle.
• If you lock your vehicle from the outside , no one , especially chil­
dren , should remain in the vehicle.
• Do not stick anything on the windows or the windshield that
may interfere with the driver 's field of vision .
[ i] Tips
• I n addition to the switches in the driver 's door there is a separate
switch in each doo r fo r the powe r window in that
door => page 6 4,
fi g. 50 . ..

• The driver can lower or raise the power side blinds * in the side
windows by using switches
© and @ . •
Switches in the driver's door
The driver can operate all windows.
If the respective switch is pus hed or pulled the window will
open or c lose. The power window switches have a
two-po si­
tion fun ction :
Opening th e windows
- Pu sh the switch to the first stop and hold it the re until the
window has lowered to t he desired pos ition.
- Push the sw itch briefly to the
s e cond stop : the wi ndow
will aut omatical ly open a ll the way .
Closing th e windows
- Pull the switch up to the first stop and hold it t here until
the window has risen to the desired position.
- Pu ll the switch quick ly to the
se cond position: the
window will automatica lly close all the
way => & in
"Contro ls" on
page 62.
A cti vating /dea ctivating r ear windows
- Pus h the switch © => page 62, fig . 48 t o th e depressed
pos it ion to a ctivate the rear windows - the light i n the
sw itch wi ll go out .
- Brie fly press the switch © to
deactivate the rear
windows -the swi tch will return t o th e safety posi tion
and the
l ig ht ~ w ill illuminate.
Controls and equip­
ment
Openin g and clo sing
Switching th e pow er t o th e re ar wind ows on or
off on v ehi cle s with pow er child s afe ty lo ck
- Press the left 00 button=> page 62, fig. 49 to swit ch off
the power window in the le ft door only. The LED in the
button illum inates .
- Press the right
00 button to switch off the power window
in t he
right door only. The LED in the button illum inates.
- Press the
00 button again to switch the power back on .
The LED in the button will go off.
By pressing the sa fet y swi tc h ® => page 62, fig. 48, the function of
some sw itches in the rear can be turned off . When
the ~ symbol in
the safety switch illuminates, the following functions are switched
off:
• The power windows in the rear doors.
• The buttons for t he interior lights.
• The buttons for the power sun b linds* in side windows .
• The button for the power sun bl ind* in the rear w indow.
• I n vehic les with rear climate contro l* the PASSIVE mode is acti ­
vated . In this mode the rear air conditioning can be operated only
from contro ls in the driver's
area => page 125 .
This feature has been provided for the safety of smal l ch ildren rid ing
in the rear of the vehic le.
On vehicles wit h the
powe r child saf ety lo ck* => page 62, fig. 49
these features can likewise be switched off . Both
CI) buttons ®
must be pressed.
• If
only the left CI) button is pressed, then only the re ar left door
power window is switched off and the door is locked.
• If
only th e right CI) button is pressed, then only the rear right
door
power window is switched off and the door is locked.

Opening and clo sing
[ i J Tip s
• The windows can st ill be opened and closed for about ten
minutes after the ignition has been turned off . The power windows
are not shut off until one of the front doors is opened .
• To switch on the chi ld safety lock in both rear doors, you must
press both child safety switches. Make sure the LEDs i n the sw itches
are illuminated. •
Switch in the front passenger 's door and on
the rear doors
Fig . 50 Swit ch lo ca­
tion fr ont p assengers
do or
T he power window switch has a two-position function :
Opening the windows
-Press the switch to the first position and ho ld it u ntil y ou
hav e opened the w indow as fa r as you want .
- Press the sw it c h q uickly to the
s econd position a nd the
w in dow wi ll a uto ma tica lly o pen all t he way .
Closing the windows
-Pull the switch to the first position and hold it unt il you
have closed the w indow as far as you want. - P
ull the switch q uic kly to the
second po sition an d the
wind ow will a uto matically cl ose all t he way.
[ i J Tips
The windows can st ill be opened and closed for about ten minutes
afte r the ignition has been turned off. The power windows are not
shut off until one of the front doors is opened .•
Convenience open feature
The driver can open all windows.
Fig . 5 1 Driv er's door:
po we r wi ndow
swit ch es
The Convenience open fun ctio n is onl y av ailable if it is ac ti­
vated in the MM I
Windows menu=> page 65, "Settings".
- With the ignition off and the driver 's door open, push the
power window switch
@ to the second stage for more
than 2 seconds to ope n all the
window s automatically.
The open ing procedure is terminated if the power window switch is
released. For safety reasons it is not possib le to open the windows
with the remote control. •

Settings
The driver can determine in the MM/ which windows can
be opened using the convenience functio n.
Fig. 5 2 MMI dis pla y:
W indows menu
- Press the (CAR ) funct ion b utton.
- Sele ct
System s in the CAR menu .
- Selec t
Window s. The Window s menu appears =} fig . 52 .
- Select
Convenience open and activate ( on) for the doors
whose windows are to be opened using the Convenience open function .
The windows can be opened centra lly . To enab le convenience
opening of the front and rear w indows, the
Front door s and Rear
door s
functions must be switched On.•
Reactivating the system after battery
disconnection
If t he ve hicle batter y is disco nnected a nd then reconnected,
the au tomat ic c losing and opening functio n will no t work
unt il it is rea ctivated. To reactivate t his fea ture, perform th e
f o llow ing steps:
Contro ls a nd eq uip­
ment
Op ening and clo sing
Re activating clos e/open f eature
- Pull and hold the power w indow switch unt il the window
is comple tely c losed.
- Re lease the sw itch .
- Pull the switch aga in for one second. T he automat ic
clos ing/opening is now reactivated. •
Sliding/tilting power sunroof
Hovv the povver sunroof vvorks
111111111
0
111111111
0 Fig . 53 Sec tio n of th e
he adline r: sun roof
swi tch po siti ons
The roof wil l slide open or til t up at the rear as required . When the
ignition is on, you can slide the roof open or close it to the desired
position by turning the ro tary control switch located overhead next
to the interior light . The roof is tilted open or closed by pressing or
pull ing the control switch at
posit ion © ~ fig. 53 .
You can still close or open the sunroof for up to ten minutes after
you have sw itched off the ignition with the key remaining in the igni­
tion lock . If either door is opened , powered operation of the sunroof
wi ll be deactivated . _.,
Vehicle care I I irechnical data

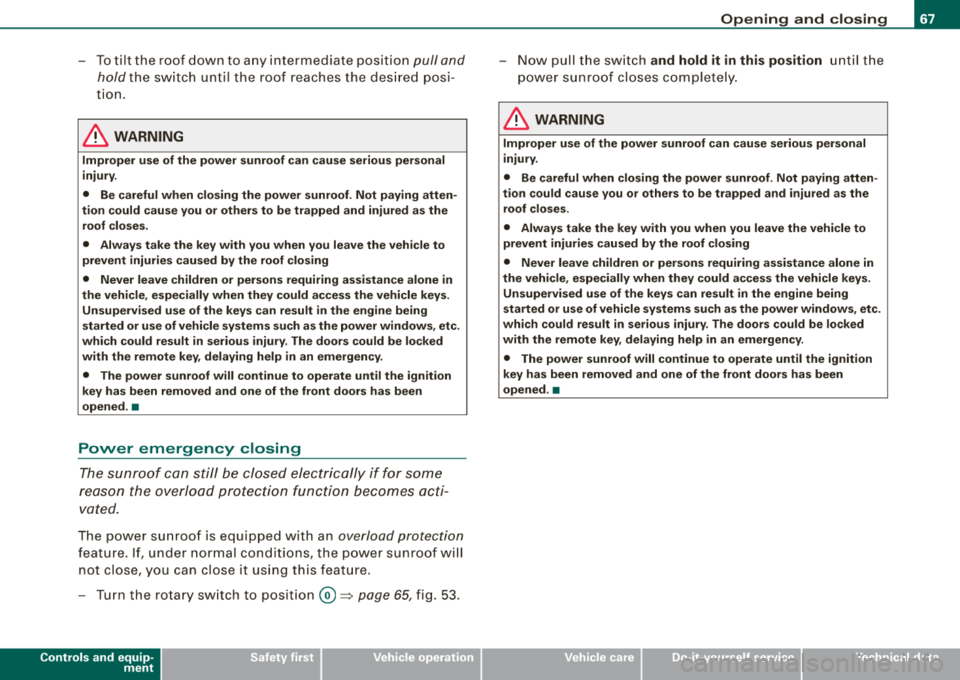

-To tilt the roof down to any intermediate position pull and
hold
the switch until the roof reaches the desired posi­
tion.
& WARNING
Improper use of the power sunroof can cause serious personal
injury.
• Be careful when closing the power sunroof. Not paying atten­
tion could cause you or others to be trapped and injured as the
roof closes.
• Always take the key with you when you leave the vehicle to
prevent injuries caused by the roof closing
• Never leave children or persons requiring assistance alone in
the vehicle, especially when they could access the vehicle keys.
Unsupervised use of the keys can result in the engine being
started or use of vehicle systems such as the power windows, etc.
which could result in serious injury. The doors could be locked
with the remote key, delaying help in an emergency.
• The power sunroof will continue to operate until the ignition
key has been removed and one of the front doors has been
opened. •
Power emergency closing
The sunroof can still be closed electrically if for some
reason the overload protection function becomes acti­
vated.
The power sunroof is equipped with an overload protection
feature. If, under normal conditions, the power sunroof will
not close, you can close it using this feature .
-Turn the rotary switch to position @=>page 65, fig. 53.
Controls and equip­
ment
Opening and closing
-Now pull the switch and hold it in this position until the
power sunroof closes completely.
& WARNING
Improper use of the power sunroof can cause serious personal
injury.
• Be careful when closing the power sunroof. Not paying atten­
tion could cause you or others to be trapped and injured as the
roof closes.
• Always take the key with you when you leave the vehicle to
prevent injuries caused by the roof closing
• Never leave children or persons requiring assistance alone in
the vehicle, especially when they could access the vehicle keys.
Unsupervised use of the keys can result in the engine being
started or use of vehicle systems such as the power windows, etc.
which could result in serious injury. The doors could be locked
with the remote key, delaying help in an emergency.
• The power sunroof will continue to operate until the ignition
key has been removed and one of the front doors has been
opened. •

Clear vision
Reading lights
~
Press one of the switches to turn the right or left reading
light on or
off~ page 75, fig. 66.
With the door contact circuit, 00 the interior lights turn on as soon
as you unlock the vehicle or open the doors. The interior lights are
also turned on when the ignition key is removed . The light goes out
about 2 minutes after the doors are closed. When the vehicle is
locked or when the ignition is turned on, the interior lights are
turned off.
When a door is open, the interior lights are turned off after about 10 minutes to prevent draining the battery .
[ i) Tips
• By pressing the safety switch @~ page 62, fig. 48, the function
of some switches in the rear can be turned off. If the symbol in
the safety switch illuminates, the window regulators in the rear
doors, the switches for the interior lights and the switch for the elec ­
tric sun shade* are inoperative.
• The interior lights can be dimmed by holding the
(I] switch
pressed down. •
Applies to vehic les: w ith backg round lightin g
Background lighting
Four different lighting profiles for the interior lighting can
be selected and dimmed through the MM/.
~/®~~
111111111 ~ 111111111
0 ~ 0
Fig . 67 MMI display :
Background lighting
Fig. 68 Roof module
cutout: Light profile
switch
- Press the Systems control button in the car menu.
- Select
Background lighting .
- Select a lighting profile~ fig. 67 or select Off to deacti-
vate the lighting profile.
- Press the control knob to activate the desired lighting
profile .

-Rotate the control knob clockwise to increase the bright­
ness, and
Rotate the control knob
counterclockwise to reduce the
brightness.
When the vehicle is unlocked, the standard lighting turns on auto­
matically and dims after approx. 2 minutes, and when the ignition is
turned on it switches off immediate ly.
A background lighting profile can be switched on manually using
the light profile
switch ~ page 76, fig. 68. This wi ll turn off automat ­
ically after 30 minutes when the ignition is off. To reac tivate , press
the lighting profile switch.
Lighting profiles that were selected while driving remain active
during the course of travel.
The following lighting profiles can be adjusted and
dimmed in the MMI:
Driver's side footwell
Passenger's side foot -
well
Rear footwell
Rear door trim panel
Front interior lighting
Rear interior lighting
[ i J Tips
Highway
X
X
X
X X
X X
X
X
Cockpit Rear
X
X
X
X
X
X
X
Lighting profiles are stored on the remote control key being used. •
Controls a nd eq uip­
ment
Clear vision
Vision
Sun visors
Using the sun visors makes driving safer.
] ~
J_~---~..r-:::Jli
WAANINO ..,
f,":a(S) ::-,....= ~ =­
=:.:=-..:GJ
- -, - ~~ ,.. __ ..... _ ... -----__ ..., ______ ---
~
,l,
\,;....l--------:.:r.::Jli
WAANINO ATTENTIOH
-- ---­
_____ ,.. ..
-----··
___ .. _
-·- ------------- ·----·---... -------------·-----
Fig . 69 Sun visor
Fig. 70 Sun visor with
two-part vanity mirror
The sun visors for the driver and front passenger can be removed
from their center mountings and moved toward the door windows
G) ~ fig. 69 to protect against side glare. After you have moved the
sun visors so that they are parallel to the door windows, you can pull
out the extensions.
Between the visors for the driver and the passenger there is a
folding visor which can be used to cover the space above the rear
view mirror.
Vehicle care I I Technical data

Clear vision
Make-up mirror
The vanity mirrors in the sun visors are equipped with lids . When the
lid is opened
G) , the mirror light in the rooflining turns on automat­
ically. It turns off when the lid is closed and the visor is folded up
again.
Two-part vanity mirror*
The vanity mirrors in the sun visors are in two parts => page 77,
fig. 70 . When the
lid @ is slid open, a normal magnifying mirror is
available and when the
lid © is slid open , a mirror with high-power
magnification is available. In addition, when one of the lids is
opened, the mirror light in the rooflining turns on automatically . It
turns off when the lid is closed and the visor is folded up again. •
Applies to veh icles: with sun shade
Sun Shade
The rear window is equipped with a sun shade.
-
Fig. 71 Cockpit :
Switch for sun shade
' '
Fig. 72 Rear rooflining
Switch for sun shade
The sunshade can be operated with the switch 1~•-, 1 in the
driver's area and in the rear.
Instrument panel switch
-Press the l::!:1 switch to extend or retract the electric
sunshade for the rear
window=> fig. 71.
Rear switch
- Press the l..t.l switch to extend or retract the electric
sunshade for the rear
window=> fig. 72.
After the sun shade for the rear window has reached either of its end
positions, it turns off automatically.
Briefly press the switch a second time to reverse the movement of
the sun shade before it reaches its end position. If the ignition is
turned off while the shade is still moving, the shade will continue
until it reaches the end position before turning off.
[ i ] Tips
• If the sun shade is operated repeatedly within a short time, the
built-in overload protection circuit may be tripped. If this occurs,
you will have to wait briefly before you can operate the shade again.
• Because of the decrease in the flexibility of the shade material at
temperatures below freezing, the electrical circuit which operates .,_
