Seats and storage
Rear seats
General information
Safe transportation of passengers on the rear seats
requires proper safety precautions.
All passengers on the rear seats must be seated in compliance with
the safety guidelines explained
in => page 209 and => page 218. The
correct seating position is critica l for the safety of front and rear
seat passengers
alike => page 202.
& WARNING
• Occupants in the front and rear seats must always be properly
restrained.
• Do not let anyone ride in the vehicle without the head restraints
provided . Head restraints help to reduce injuries.
• Loose items inside the passenger compartment can fly forward
in a crash or sudden maneuver and injure occupants. Always store
articles in the luggage compartment and use the tie-down eyelets.
• Read and heed all WARNINGS
=> page 202, "Proper seating
positions for passengers in rear seats".•
Applies to vehi cles : wi th rea r lumb ar su pp ort
Rear seat lumbar support
Th e outer rear seats have a lumbar support.
Adjusting curvature
Fig . 97 Rear bench
seat: Controls
- Push the switch shell forward to increase the curvature.
- Push the switch shell to the rear to dec rease the curva-
ture.
Height adjustment
-Push the switch shell up to move the curvature higher.
- Push the switch shell down to move the curvature lower.
The lumb ar support is particularly effective in supporting the
natural curvature of the spine so that the seating position is more
comfortable over long distances.
•

Applies to vehi cles : w it h in d iv idual rear seats
Head restraint adjustment
Fig . 101 Individual
rear seats : Head
restraint adjustment
Push the switch forward or back to make the head
restraint angle flatter or more upright.
0 Note
If a child seat is at tached to one of the rear sea ts , this seat mus t no t
be adjusted using the power controls under any circumstances . The
easy entry function for this seat must also be deactivated in the MMI
~ page 100. The child seat as well as the rear seat can be damaged
by the adjustment process. •
Contro ls a nd eq uip­
ment
Seats and storage
A pp lies to veh ic les: w ith ind iv idua l rear seats
Lumbar support
The lumbar support can be adjusted to the natural curva­
ture of the spine.
0
Adjusting curvature
Fig. 102 Individual
rear seats : Lumbar
support
Push the switch shell forward to increase the curvature.
Push the switch shell to the rear to decrease the curva ­
ture.
Height adjustment
Push the switch shell up to move the curvature higher.
Push the switch shell down to move the curvature lower.
The lumbar support is particularly effective in supporting the
natural curva ture of the spine so that the seating posi tion is more
comfortable over long distances. •
Vehicle care
I I irechnical data

___ O_ n_t_ h_ e_ ro_ a_d __________________________________________________ _
On the road
Steering
Adjusting steering wheel position
The steering wheel position can be adjusted for height
and reach .
First, adjust t he driver's seat correctly.
Height adjustment
Fig . 14 3 Sw itch fo r
s te erin g whe el a dju st­
me nt
-P u sh the sw itch @ up or down :=> fig. 143 . The steering
wheel height changes fo r as l ong as you press the sw itch.
Rea ch adjustment
Push the switch @forward o r bac kward => fig. 143 . The
steering wheel reach changes for as long as you press
the switch.
There must be at least 10 inches (25 cm) between your chest and the
center of the steer ing wheel. If you cannot sit more than 10 inches
(25 cm) from the steering wheel, see if adaptive equipment is avail- able to help you reach the pedals and increase the distance from the
steering wheel.
For detailed in formation on how to adjust the driver's seat, see
=> page 87 .
The steering wheel can be adjusted even when the ig nition is turned
Of f. For vehicles w ith seat memory, the individual positions for the
steering wheel can be stored a long with the seat position.
& WARNING
Improper u se of steering wheel adju stment and improper seating
po sition can cause se rious per sonal inju ry .
• Adjust the steering wheel column only when the vehicle is not
mo ving to prevent los s of vehi cle control.
• Adjust the driver' s seat or steering wheel so that there is a
minimum of 10 in ches (25 cm ) bet ween your chest and the
s teering wheel
=> pag e 200 , fig. 216 . If you cannot maintain this
minimum di sta nce , the ai rbag sy stem can not prote ct you prop ­
erly .
• If physical limitations prevent you from s itting 10 inche s (25
cm ) or more from the steering wheel , check with your authori zed
Audi dealer to see if adapti ve equipment i s available .
• If the steering whee l is aligned with your face, the supple­
mental drive r's airbag cannot provide as mu ch pr otection
in an
ac cident. Alway s make sure that the steerin g wheel i s aligned with
your che st .
• Alway s hold the steering wheel with your hand s at the 9 o'clock
and 3 o'clo ck posit ion s to reduce the ri sk of pers ona l injury if the
driv er's airbag deploys.
• Never hold the ste ering wheel at th e 12 o' clo ck position or with
your hand s inside the steerin g wheel rim or on the steering wheel
hub . Holding the steering wheel the wrong wa y can cau se ser ious ..,,

___ D_ r
_ i_v _i_n ..;::g :;_ S_ a_ f_ e_, ly'----------------------------------------------------
Driving Safely
General notes
Safe driving habits
Please remember -safety first!
This chapter conta ins important informat ion, tips, instructions and
warnings that you need to read and observe for your own safety, the safety of your passenge rs and othe rs. We have summarized here
what you need to know about safety be lts, airbags, child restraints
as wel l as chi ld safety . Y o ur safety is for us
priority number 1 . Always
observe the information and warnings in this section
-for your own
safety as we ll as that of your passengers .
The information in this sect ion appl ies to al l model vers ions of your
vehic le. Some of the features described in this sections may be
standard equ ipmen t on some mode ls, or may be op tiona l equip ­
ment on others. If you are not sure, ask your authorized Audi dealer .
& WARNING
• Always mak e sure that you follo w the instru ctions and heed
the WARNINGS in this Manual. It is in your interest and in the interest of your passengers .
• Alway s keep the complete Owner' s Liter ature in your Audi
when you lend or sell your vehi cle so that th is important informa­
tion will always be available to the driver and pas seng ers.
• Always keep the Owner's literature handy so that you can find
it e asily if you have question s. •
Safety equipment
The s afe ty featur es are par t of the occu pant restraint
system an d wor k together t o help red uce the risk of injury
in a wide variety of accident situati ons.
Your safety and the safety of your passengers should not be left to
chance . Advances in technology have made a variety of features
avai lable to help reduce the risk of injury in an accident. The
fo llo w ing is a l ist of just a few of the sa fe ty feat ures in your A udi :
• sophisticated safety belts for driver and a ll passenger seating
posit ions,
• safety be lt pretensioners,
• safety be lt force l imiters for the fr ont seats,
• safety be lt height adjustment systems for the front seats,
• front airbags,
• knee airbags for the front seats
• side airbags in the front seats and outer rear seats,
• side curtain a irbags (SIDEGUARD),
• special LATCH anchorages for chi ld restra ints,
• head restraints for each seating position,
• adjus table steer ing colum n.
T hese individua l safety features, can work together as a system to
help protect you and you r passengers in a wide ra nge of acc idents .
T hese features cannot work as a system if they are not always
correctly adjusted and correct ly used .
Safety i s everybody' s responsibility! •

-Safety belts
---=---------------------------------
Automatic safety belt retractors
Every safety belt is equipped with an automatic belt retractor on the
shoulder belt. This feature locks the belt when the belt is pulled out
fast, during hard braking and in an accident. The belt may also lock
when you drive up or down a steep hill or through a sharp curve. During normal driving the belt lets you move freely.
Safety belt pretensioners
The safety belts are equipped with a belt pretensioner that helps to
tighten the safety belt and remove slack when the pretensioner is
activated. The function of the pretensioner is monitored by a
warning
light=> page 19.
Switchable locking feature
Every safety belt except the one on the driver seat is equipped with
a switchable locking feature that
must be used when the safety belt
is used to attach a child seat. Be sure to read the important informa­
tion about this
feature => page 253.
& WARNING
Improperly positioned safety belts can cause serious injury in an
accident=> page 214, "Safety belt position" .
• Safety belts offer optimum protection only when the seat back
is upright and belts are properly positioned on the body.
• Never attach the safety belt to the buckle for another seat.
Attaching the belt to the wrong buckle will reduce safety belt
effectiveness and can cause serious personal injury.
• A passenger who is not properly restrained can be seriously
injured by the safety belt itself when it moves from the stronger
parts of the body into critical areas like the abdomen.
• Always lock the convertible locking retractor when you are
securing a child seat in the vehicle
=> page 255. •
Safety belt position
Correct belt position is the key to getting maximum
protection from safety belts.
., N
8
~
Fig . 226 Head restraint
and safety belt
posi­
tion as seen from the
side
Use the height adjustment to change the position of the shoulder
belt of the front safety belts.
& WARNING
Improperly positioned safety belts can cause serious personal
injury in an accident .
• The shoulder belt portion of the safety belt must be positioned
over the middle of the occupant's shoulder and never across the
neck or throat.
• The safety belt must lie flat and snug on the occupant's upper
body
=> fig. 226. Pull on the belt to tighten if necessary.
• The lap belt portion of the safety belt must be positioned as
low as possible across pelvis and never over the abdomen. Make
sure the belt lies flat and snug
=> fig. 226. Pull on the belt to
tighten if necessary.
• A loose-fitting safety belt can cause serious injuries by shifting
its position on your body from the strong bones to more vulner-
able, soft tissue and cause serious injury.
...

___ s_a _f _e _t -=-y _ b_ e_lt _s ______________________________________________ _
Adjusting safety belt height Use the safety belt height adjustment to change belt posi­
tion on the shoulder.
Fig . 229 Adjusting
shoulder belt height
The safety belt height adjustors for the front seats can be
used to adjust the height of the shoulder portion of the
safety belt so that it is positioned correctly.
- Push the
latch ~ fig. 229 up or down so that the shoulder
portion of the safety belt is positioned nearly midway
over the
shoulder ~ & in "Safety belt position" on
page 214.
& WARNING
Always read and heed all WARNINGS and other important informa­
tion
~ page 212. •
Improperly worn safety belts
Incorrectly positioned safety belts can cause severe inju­
ries.
Wearing safety belts improperly can cause serious injury or
death. Safety belts can only work when they are correctly positioned on the body. Improper seating
positions reduce
the effectiveness of safety belts and will even increase the
risk of injury and death by moving the safety belt to critical
areas of the body. Improper seating positions also increase
the risk of serious injury and death when an airbag deploys
and strikes an occupant who is not in the correct seating position. A driver is responsible for the safety of all vehicle
occupants and especially for children. Therefore:
- Never permit anyone to assume an incorrect sitting posi­
tion in the vehicle while
traveling ~& .
& WARNING
Improperly worn safety belts increase the risk of serious personal
injury and death whenever a vehicle is being used.
• Always make sure that all vehicle occupants are correctly
restrained and stay in a correct seating position whenever the
vehicle is being used.
• Always read and heed all WARNINGS and other important infor­
mation
~ page 212. •
Safety belt pretensioners
How safety belt pretensioners work
In front, side and rear-end collisions above a particular
severity, safety belts are tensioned automatically.
The safety belts are equipped with safety belt pretensioners . The
system is activated by sensors in front, side and rea r-end collisions
of great severity . This tightens the belt and takes up belt
slack ~ &
in "Service and disposal of safety belt pretensioner" on page 217.
Taking up the slack helps to reduce forward occupan t movement
during a collision.
•

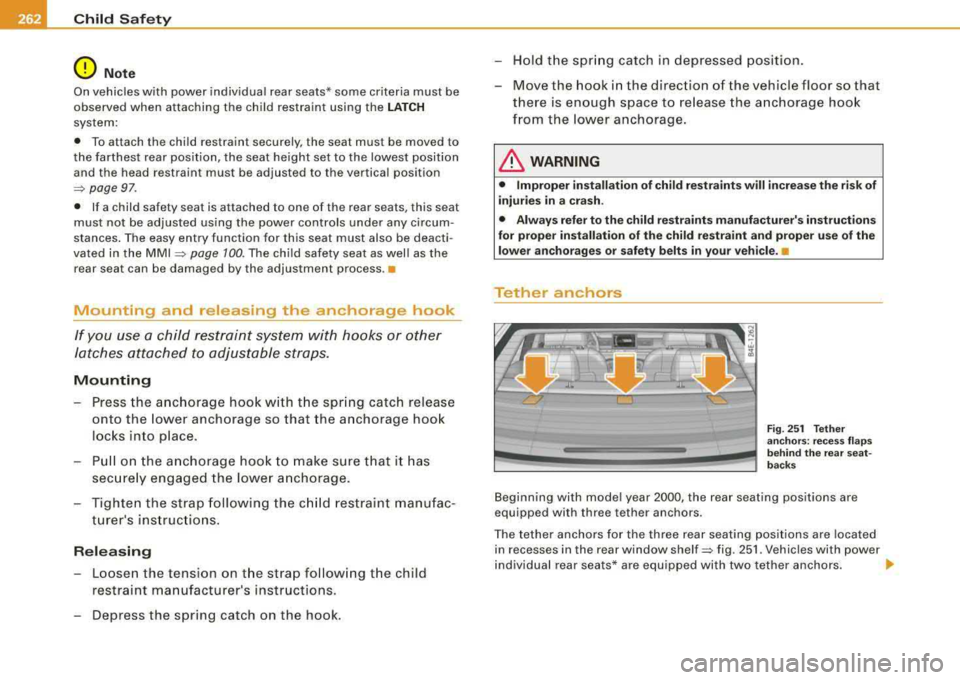

___ C_h _i_ld _ S_a _f_e _t ~y ____________________________________________ _
0 Note
On vehicles with power individual rear seats* some criteria must be
observed when attaching the child restraint using the
LATCH
system:
• To attach the child restraint securely, the seat must be moved to
the farthest rear position, the seat height set to the lowest position and the head restraint must be adjusted to the vertical position
=> page 97.
• If a child safety seat is attached to one of the rear seats, this seat
must not be adjusted using the power controls under any circum­
stances. The easy entry function for this seat must also be deacti ­
vated in the
MMI => page 100 . The child safety seat as well as the
rear seat can be damaged by the adjustment process .•
Mounting and releasing the anchorage hook
If you use a child restraint system with hooks or other
latches attached to adjustable straps.
Mounting
- Press the anchorage hook with the spring catch release
onto the lower anchorage so that the anchorage hook
locks into place .
- Pull on the anchorage hook to make sure that it has
securely engaged the lower anchorage.
- Tighten the strap following the child restraint manufac­
turer's instructions.
Releasing
-Loosen the tension on the strap following the child
restraint manufacturer's instructions .
- Depress the spring catch on the hook. -
Hold the spring catch in depressed position.
-Move the hook in the direction of the vehicle floor so that
there is enough space to release the anchorage hook
from the lower anchorage.
& WARNING
• Improper installation of child restraints will increase the risk of
injuries in a crash.
• Always refer to the child restraints manufacturer's instructions
for proper installation of the child restraint and proper use of the
lower anchorages or safety belts in your vehicle.
•
Tether anchors
Fig . 251 Tether
anchors: recess flaps
behind the rear seat­
backs
Beginning with model year 2000 , the rear seating positions are
equipped with three tether anchors .
The tether anchors for the three rear seating positions are located
in recesses in the rear window
shelf=> fig. 251 . Vehicles with power
individual rear seats* are equipped with two tether anchors.
.,

______________________________________________ A_ l_,_ p _h_ a_ b_e _t_i c_ a_l _in _ d_e _ x __ llll
Rear light
Defe ctive ....... .... .... .......... 26
Rear seat Contro ls ... .. .... .... ... .... .... . 97
Easy entry . . . . . . . . . . . . . . . . . . . . . . . 100
Head restraint adjustment . ......... 99
Lumbar support .. ... .... .... ... 96, 99
Massage function ......... ...... .. 98
Seat adjustment . ...... .... .... ... 98
Setting in the MMI ..... .. .... .... . 100
Rear view
See Rear -v iew cam era .... .... .... . 170
Rear w indow def ogger ...... .... .... . 12 4
Rear window shelf ... .... ...... .... .. 97
Rear -view camera . ....... ... .... 1 70, 173
Parking mode 1 ....... ... .... .... 175
Parkingmode2 ... .... ... .... .... 176
Red sym bols . ...... .... .... ... .... .. 30
Refuelling .. ... .... .... .... ......... 303
Re lease leve r for hood . ...... .... .... 306
Remote control . .... .... .... ... .... .. 48
Unlock ing and locking . ...... .... .. 51
Remo te con trol garage door opener
(Homelink®) . ....... ... .... .... 1 91
Remo te rear lid release . ....... .... ... 55
Repair manuals ... .. .... .... ... .... . 380
Repa irs
Airbag system . ....... ... .... .... 232
Replacing Wheel rims .. .. .. ...... .... .... .. 338
Replacing a fuse . ...... .... .... .... . 358
Rep lacing light bulbs .... .... ...... .. 362
Controls and equip­
ment Safety first
Replacing tires and wheels
......... .. 337
Report ing Safety Defects ... .. .... 207, 208
Reset button ..... .. ...... .... .... ... 14
Retractor .. ... ... .. ...... .... .... .. 213
Ri ms
Cast alloy .. ...... .... .... ... .... 293
Replaci ng .. ...... .... ... .... .... 338
Roof rack .. .... .... ...... .... ... .. . 103
L oading .. ... .... ... .... .... .... . 104
Mounting locat ions ... .... ........ 104
Roof w eight .... .... ...... .... ... .. . 10 4
s
SA FE ...... .... ....... .... .... .... .. 14
Sa fe driving hab its ...... .... .... .... 1 98
Safe ty bel t height adjustment ... .. .... 2 16
Safety belt position ... .... .... .... ... 214
Saf ety belt h eight adjustm ent .. ... . 216
Saf ety bel ts worn by pr egnan t wom en ..
215
Safety bel t pretensioner .. ...... .... .. 216
Service and disposal . ....... ... .. . 217
Safety belt warning light ... .. .... . 20, 209
Safety belts . .... .... .... .... .... ... 213
clean ing ... .. .... .... .... .... ... 299
Danger t o passengers who do no t wear a
safety belt ... .... .... .... ... ... 211
Fastening .... ...... .... .... .... . 213
I mp roper ly worn . .......... .... .. 216
Not worn . .... ...... .... ... .... .. 211
Sa fety belt position ... .... .... .... 214
Sa fety instruc tions ... .. .... ... .... 212 Securing child safety seats
....... .. 2 53
Specia l considerations for pregnant
wome n ...... .... ... .... .... ... 215
U nfastening ...... .... .. . .... .. .. 215
Warning /ind icator light .... .... .... 209
Why YOU MUST wear them . .... ... 209
Worn properly ...... .. ...... .... . 212
Safety co mpliance st icke r .... .... .... 374
Safety equipment ..... .. .... .... .... 198
Safety features for occ upant rest raint and
protection .. .... .... .... .... ... . 198
Safety guide lines
S eat adjustment .. .. .. .... .... ..... 86
Safety instruct ions
Engine compartment ...... .... ... . 307
for a booster seat ...... ... .... .... 251
for side curtain airbags .. ..... ... .. 241
for using a convertible chi ld sa fety seat .
2 49
f or us ing an in fan t seat . ....... .... 248
f or using chi ld safety seats ....... .. 246
f or us ing sa fe ty bel ts .. .... .... .... 212
Monitoring the Advanced Airbag System 231
Safety lock Ignit ion key, automatic transmission 130
Seat adjustmen t
Adj usting the sea tback ... .. ..... .. . 89
Driver 's seat ...... .... .... .... .... 86
Driver 's seat memory ...... .... .... . 94
Front passenger's seat .... .... .... . 87
Front seats ... .... .... ... .... .... . 86
Head restraints .... .... ... .... . 91, 203
Lumbar suppor t .. .... .... .... ... .. 90
Vehicle operation Vehicle care Do-it-yourself service Technical data
