2008 AUDI R8 light

Overview9
MMI componentsMMI control consoleMulti-function steering wheelTelephone handsetVoice control
Overview
Controls and displays at a glance
The various controls of the MMI are arranged centrally
and are easily accessible.
Multi-function steering wheel* . . . . . . . . . . . . . . . . . . .
Driver information system . . . . . . . . . . . . . . . . . . . . . . .
MMI display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CD changer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ON/OFF button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MMI control console . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Note
•Please note that only the MMI and its components are described
in this operating manual. For more information about your vehicle's
equipment and features, please refer to your Owner's Manual.
•The arrangement of the MMI switches and controls on right-
hand drive models* may be slightly different from the layout shown
in
page 8, fig. 1. However, the symbols used to identify the
controls are the same.
MMI: Multi Media Interface
The Audi Multi Media Interface (MMI) combines different
communication and entertainment systems in your Audi.
With your MMI you can listen to the radio or CDs, watch television*
and even connect portable players*1). The navigation system*
guides you directly to your destination. You can also follow your
individual route plan with up to three stopovers. Information about traffic conditions is taken into account when calculating your route.
Of course, you can use many your mobile phone's* functions in
conjunction with the MMI. Alternatively, a handset is available for
the integrated Bluetooth car telephone kit*. In addition, the MMI
combines various driver assistance systems of your vehicle.
You can access the comprehensive infotainment system in several
ways. On the one hand, you can reach all functions via the MMI
control console with its intuitive and standardised operation
concept. On the other hand, you can access frequently used MMI
functions via the multi-function steering wheel or the speech
dialogue system.
Notes on traffic safety
You should only perform important functions, e.g. enter a naviga-
tion destination, while the vehicle is stationary. Please always bear
in mind: Be prepared to stop operating the system in the interest of
your safety and that of other road users.
WARNING
•Today's driving conditions require your full attention. As the
driver, you have full responsibility for the safety of the vehicle and
other road users. For this reason, only operate the MMI when the
traffic conditions allow you to do so safely and when you can
maintain proper control of your vehicle - risk of injury.
•The volume of the audio sources (radio, CD player, etc.) should
only be set at a level which enables you to hear distant police and
emergency vehicles clearly - failure to do so could result in an acci-
dent.
•Please heed laws regulating the use of telephones in vehicles.
1)Still under development at the time of printing.
A1128
A2128
A342
A412
A540
A641










Media drives11
MMI componentsMMI control consoleMulti-function steering wheelTelephone handsetVoice control
Media drives
General notes on CD/DVD operation
These general notes apply to audio CDs and navigation
DVDs.
Requirements for good sound reproduction
Please note the following in order to ensure perfect high-quality
sound reproduction and avoid damage to media drives:
•Do not use damaged or scratched CDs or DVDs .
•Do not use single CDs (diameter 8 cm / 3 inches) .
•Do not use non-circular CDs (shape CDs) .
•Do not use labels .
•Do not use protective rings .
•Do not use dirty CDs or DVDs.
•Do not use a CD cover or a stabiliser.
•Always store unused CDs/DVDs in a suitable CD case and do not
expose them to direct sunlight.
Cleaning media drives, CDs and DVDs
Never use a CD player cleaning disc to clean the media drives.Clean CDs and DVDs with a soft, lint-free cloth. Wipe the disc in a
straight line from the centre outwards. If necessary, dirt can be
removed with a commercially available CD cleaner or with isopropyl
alcohol. Please never use petrol, paint thinner or record cleaner, as
these can damage CDs and DVDs.
Use of laser equipment
Laser devices are divided into the safety classes 1 to 4, as specified
by DIN IEC 76 (CO) 6/ VDE 0837. The audio devices used on your
vehicle are classified as safety class 1. Lasers used in devices that
fall into this category are very weak and well screened, so there is
no danger if used correctly.
Read errors
If the display indicates a read error, any of the following causes are
possible:
Note
•Under certain circumstances audio CDs that are copy-protected
or CDs that do not comply with the standard audio format cannot be
Fig. 2 CDs that should
not be used.
AA
AB
AC
AD
AE
ProblemRemedy
CD/DVD is dirty.Clean the CD/DVD.
CD/DVD is scratched.Replace the CD/DVD with a
scratch-free CD/DVD.
CD/DVD was inserted upside
down.Insert the CD/DVD with the text
facing upwards.
Condensation has formed on
the CD/DVD.Wait until the CD/DVD is dry.
A mechanical malfunction has
occurred on the media drive.Contact an Audi dealer or quali-
fied workshop.










Media drives13
MMI componentsMMI control consoleMulti-function steering wheelTelephone handsetVoice control
Loading a CD
– Press the button
page 12, fig. 3. When the
CD changer is ready for loading, the red diodes in the CD
slot will flash.
– Insert the CD (text facing upwards) into the CD slot ,
holding it straight. The CD will automatically be loaded
into the next available position in the CD changer. The
diode light in the corresponding button will stop
flashing.
Loading all CDs
– Press and hold the button for more than 2
seconds.
– Wait until the red diodes in the CD slot flash.
– Insert all six CDs (text facing upwards) one at a time into
the CD slot , holding them straight. The button diodes
for the occupied positions will stop flashing.
Loading a CD in a specific empty position
– Press the button . The button diodes for any
empty positions will begin flashing.
– Press one of the flashing buttons .
– Wait until the diodes in the CD slot flash.
– Insert the CD (text facing upwards) into the CD slot ,
holding it straight.
Loading a CD in a specific occupied position
– Press the button . The diodes in buttons will
be illuminated to indicate which positions are already
loaded with a CD.– Press one of the illuminated buttons . The CD at that
position will then be ejected.
– Remove the CD from the slot .
– Insert the CD that you wish to load (text facing upwards)
into the slot , holding it straight.
If you press the button again while loading all CDs, the
loading process will be stopped.
After it has been ejected, the CD will automatically be pulled back
into the CD changer after about 30 seconds if it is not removed from
the CD slot.
Note
Please observe the notes for handling CDs
page 11.
Changing CDs
– Press one of the illuminated buttons
page 12, fig. 3.
The CD inserted at this position will then be played.
Ejecting CDs
Ejecting a CD
– To eject the CD that is currently playing, press the eject
button
page 12, fig. 3.
– To eject any CD, press the eject button and then one
of the illuminated buttons
page 12, fig. 3.
Ejecting all CDs
– Press and hold the eject button for at least two
seconds. All of the CDs are ejected one after the other.
LOADA3
A2
A2
A4
LOADA3
A2
A2
A4
LOADA3A4
A4
A2
A2
LOADA3A4
A4
A2
A2
LOAD
A4
A1
A1
A4
A1










Handset for the Bluetooth car telephone kit 30
Handset for the Bluetooth car telephone kit
Applies to vehicles: with handset for the car telephone kit
Introduction
Requirements for the use of the telephone
•The car telephone kit must be switched on
page 26.
•The handset must be switched on
page 140.
•A Bluetooth connection must exist between the handset and the
car telephone kit
page 27.
•A SIM card must be in the handset
page 31, or
•If a mobile phone with SIM Access Profile is connected, the SIM
card must be in the mobile phone
page 24.
•The PIN code for the SIM card must have been entered

page 31.
SIM card
If there is a SIM card in the handset and a mobile phone with SIM
card is connected, the SIM card in the handset is used.
For more information on how to insert the SIM card in the handset,
please refer to
page 31.
Twin card
A twin card is a second SIM card for one telephone number. If you
are using a twin card in the handset, you should activate the PIN
query
page 98. The SIM card in the vehicle is then only activated
when you enter the PIN.
Note
•You can still place an emergency call without a SIM card

page 147.
•The handset supports “Supplementary Services”, for example if
you want to check how much credit is still available on a prepaid
card.
•When using twin cards, calls can be disconnected suddenly if
two or more cards are in operation at the same time. Please contact
your mobile network service provider if you have any questions.
•These telephone functions depend on your mobile network
service provider. For more information, contact your service
provider.
•Some mobile telephones with Hands-Free Profile do not support
the handset. If this is the case, delete the handset from the Blue-
tooth device list
page 96 or insert the SIM card into the handset.
For further information, please ask an Audi dealer or specialist
retailer.
Applies to vehicles: with handset for the car telephone kit
Cleaning and care
Take good care of the handset.
Storing and handling
Keep the handset out of the reach of small children.
Always place the handset back into the carrier after use. Otherwise,
you could place yourself or others at risk when braking or during an
accident.
The handset is ideally protected against scratches and sunlight in
the carrier.
Keep the handset away from water etc.
Do not open the device or any other parts of the system. The device
could be damaged if it is not serviced by a professional.










Handset for the Bluetooth car telephone kit31
MMI componentsMMI control consoleMulti-function steering wheelTelephone handsetVoice control Do not let the handset fall and avoid shaking and knocking as much
as possible.
Care and cleaning
Use a cloth dampened with a mild detergent to clean the unit.
Do not use solvents or other harsh chemicals.
Caution
Do not expose the handset to strong sunlight.
Setting up
Applies to vehicles: with handset for the car telephone kit
Inserting and removing the SIM card
Inserting SIM card
– Open the centre armrest.
– Press the release button on the handset carrier.
– Remove the handset. The SIM card slot is at the top end
of the handset
fig. 22.
– Insert the SIM card into the card holder
fig. 22. Make
sure that the card slides all the way into the slot. The cut-
away corner of the SIM card should be at the bottom left.
The correct position of the SIM card is shown on the
handset display.
– If necessary, enter the PIN on the keypad
page 140,
fig. 124 and press the control button for OK.
Removing SIM card
– Open the centre armrest.
– Press the release button on the handset carrier.
– Remove the handset. The SIM card slot is at the top end
of the handset.
Fig. 22 Position for
SIM card when
inserting
Fig. 23 Removing SIM
card










Handset for the Bluetooth car telephone kit33
MMI componentsMMI control consoleMulti-function steering wheelTelephone handsetVoice control
Charging the battery
– Place the handset into the carrier. The battery is charged
in the handset.
Changing the battery
– Switch off the handset
page 140.
– Release the latch
page 32, fig. 24.
– Lift the cover.
– Remove the old battery
fig. 25.
– Insert the new battery with the contacts facing down
(Audi symbol facing upwards). Note the installation
instructions on the battery.
– Place the notches of the cover into the lower section of
the handset and press the cover back into place.
Charging the battery
The battery level indicator
page 142, fig. 126 shows the power
level of the battery. If all of the segments (vertical bars) are shown,
the battery is fully charged. The battery level indicator flashes while
the battery is being charged.A new battery only reaches its full capacity if it is fully charged and
discharged several times.
Changing the battery
Batteries have a limited service life. When the operating time of the
battery has considerably reduced, it is time to replace the battery.
WARNING
•Batteries can cause injuries and property damage.
−Keep battery contacts away from conducting materials such
as jewellery or keys.
−Do not heat the battery, as this can cause chemical
substances to be released. Note the symbols on the battery.
−Do not dismantle the battery. This could cause a battery
short-circuit or the release of chemical substances.
−Keep the battery away from naked flames to prevent explo-
sion.
•The handset and battery should not be exposed to extremely
hot or cold environments.
•Always keep the battery out of the reach of children.
Caution
•Prevent the battery from coming into contact with liquids.
•Do not expose the handset or battery to strong sunlight.
•Do not drop the handset or battery.
For the sake of the environment
Batteries contain toxic substances. They must be disposed of appro-
priately and must not be discarded with ordinary household waste.
Fig. 25 Changing the
battery
WARNING (continued)










Basic operation 42
MMI display
“Standard” menus
After pressing a function selector button
page 41, a menu will
appear in the MMI display.
Fig. 30 Setup Naviga-
tion
Fig. 31 Radio
submenu
LegendSymbol /
MarkingExplanation
Heading
Selected mode (e.g. radio
fig. 31).
Display in Setup menu: Setup menu in
the selected mode (e.g. Setup Naviga-
tion
fig. 30).
In vehicles with a telephone* the net-
work provider and, if applicable, the
roaming symbol
 will be shown.
TMC symbolsReception of TMC traffic messages

page 121.
Arrows
pointing
up/downIndicate further menu options
(next/previous page).
CursorPoints to the item selected in a menu.
Selected
optionA selected item is highlighted in white.
Selection boxSelection possibilities for selected
item.
ArrowIndicates more selection or setting
possibilities.
Temperature
display*Selected temperature setting in vehi-
cles with automatic air conditioner*.
Signal
strength indi-
cator*Quality of mobile phone connection,
or
PIN: Entering PIN
page 88
PUK: Entering PUK
page 88
SIM: Inserting SIM card
Envelope*
Unread text message
page 100.
Crossed-out envelope: No more text
messages can be received (SIM card
memory is full)
page 100.
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10











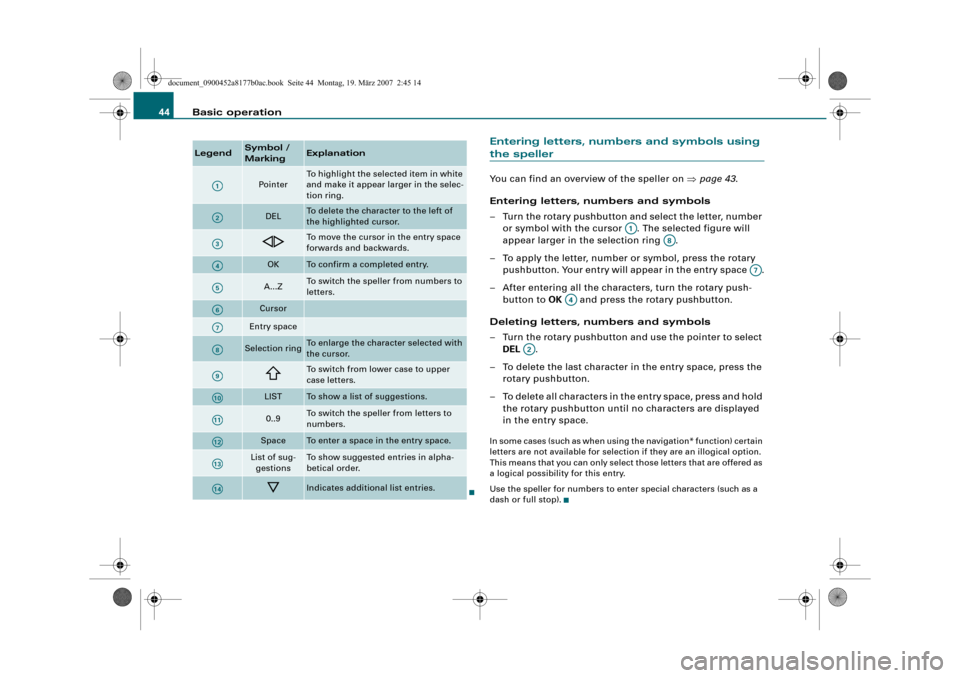

Basic operation 44
Entering letters, numbers and symbols using
the speller
You can find an overview of the speller on
page 43.
Entering letters, numbers and symbols
– Turn the rotary pushbutton and select the letter, number
or symbol with the cursor . The selected figure will
appear larger in the selection ring .
– To apply the letter, number or symbol, press the rotary
pushbutton. Your entry will appear in the entry space .
– After entering all the characters, turn the rotary push-
button to OK and press the rotary pushbutton.
Deleting letters, numbers and symbols
– Turn the rotary pushbutton and use the pointer to select
DEL .
– To delete the last character in the entry space, press the
rotary pushbutton.
– To delete all characters in the entry space, press and hold
the rotary pushbutton until no characters are displayed
in the entry space.
In some cases (such as when using the navigation* function) certain
letters are not available for selection if they are an illogical option.
This means that you can only select those letters that are offered as
a logical possibility for this entry.
Use the speller for numbers to enter special characters (such as a
dash or full stop).
LegendSymbol /
MarkingExplanation
Po i n t e rTo highlight the selected item in white
and make it appear larger in the selec-
tion ring.
DELTo delete the character to the left of
the highlighted cursor.
To move the cursor in the entry space
forwards and backwards.
OKTo confirm a completed entry.
A...ZTo switch the speller from numbers to
letters.
Cursor
Entry space
Selection ringTo enlarge the character selected with
the cursor.
To switch from lower case to upper
case letters.
LISTTo show a list of suggestions.
0..9To switch the speller from letters to
numbers.
SpaceTo enter a space in the entry space.
List of sug-
gestionsTo show suggested entries in alpha-
betical order.
Indicates additional list entries.
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A1
A8
A7
A4
A2
