If a failure is indicated, stop the car, turn
the engine off and then clean the sen-
sors. Make sure to be far from possible
ultrasound sources (e.g.: truck pneu-
matic brakes or pneumatic hammers).
If failure cause has been eliminated the
system will resume regular operation
and message + symbol on the display
will turn off.
If the warning light stays on, contact Al-
fa Romeo Authorized Services to have
the system inspected, although the sys-
tem keeps on working. If the failure de-
tected does not impair system operation,
the system keeps on working and fail-
ure is stored in order to be then detect-
ed by Alfa Romeo Authorized Services
at next inspection.GENERAL WARNINGS
When parking, take the utmost care to
obstacles that may be set above or un-
der the sensors. Objects set close to the
car, under certain circumstances are not
detected and could therefore cause dam-
ages to the car or be damaged.
Indications sent by the sensors can be
altered by dirt, snow or ice deposited on
the sensors or by ultrasound systems
(e.g.: truck pneumatic brakes or pneu-
matic hammers) set nearby the car.
TOWING TRAILERS
Sensors are reactivated automatically
when removing the trailer cable plug.
FAILURE INDICATIONS
The system control unit checks every
system component each time the key is
fitted into the ignition device. Sensors
and relevant electrical connections are
then constantly monitored during sys-
tem operation.
Sensor failure is indicated by message
+ symbol on the display (see section
“Warning lights and messages”).
Sensors operation is de-
activated automatically
when the trailer electric
cable plug is fitted into the car
tow hook socket.

109
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
TYRE PRESSURE MONITORING SYSTEM -
T.P.M.S. (where provided)
(optional for versions/markets
where applicable)
The car can be equipped with the
T.P.M.S. (Tyre Pressure Monitoring Sys-
tem). This system consists of a radio-fre-
quency sensor, installed on each wheel
(on the rim inside the tyre) that sends
pressure information to the control unit.IMPORTANT NOTES
Failure indications will not be stored and
therefore will not be displayed when
turning the engine off and on again. If
failure persists, the control unit will send
warning indications to the instrument
panel only after a few seconds when the
car is moving.
Tyre pressure should be checked with
tyres cold. Should it become necessary
for whatever reason to check pressure
with hot tyres, do not reduce pressure
although it is higher than the prescribed
value but repeat the check when tyres
are cold (see section “Wheels” in sec-
tion “Technical Specifications”).T.P.M.S. cannot indicate sudden tyre
pressure drops (e.g.: tyre burst). In this
event, brake the car cautiously and
avoid sudden steering.
The T.P.M.S. system requires special
equipment. Consult Alfa Romeo Autho-
rized Services to know what type of ac-
cessories are compatible with the sys-
tem (wheels, wheel caps, etc.). Using
other accessories could cause system
malfunctioning. Due to inflation valve
special characteristics, use only tyre re-
pair sealants approved by Alfa Romeo;
other sealants could cause system mal-
functioning.
The T.P.M.S. does not
exempt the driver from
checking tyre pressure, includ-
ing the space-saver spare
wheel (where provided) at
regular intervals.
WARNING

110
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
If the car is fitted with T.P.M.S. system,
when changing a tyre, change also the
rubber seal of the valve and the fas-
tening ring of the sensor. Contact Alfa
Romeo Authorized Services.
Strong radio-frequency disturbances
could inhibit proper TPMS system oper-
ation. This condition is indicated by a
dedicated massage on the display. This
indication will go off automatically as
soon as the radio-frequency disturbance
ceases.If after repairing a punctured tyre with
the Fix&Go automatic kit and restoring
the initial conditions the flat tyre warn-
ing light continues to stay on, contact
Alfa Romeo Authorized Services.
Tyre pressure could change according to
outside temperature. For this reason the
T.P.M.S. system could temporarily indi-
cate low tyre pressure. In this event
check pressure with cold tyres and re-
store proper inflation values if required.If the car is fitted with T.P.M.S. system,
tyre and/or rim removal and refitting
operations involve special precautions;
to prevent damages or wrong sensor re-
fitting, contact Alfa Romeo Authorized
Services to have tyre and/or rim
changed.

111
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
In order to use the system properly, refer to the following table when you have to change wheels/tyres:
Failure Indication
YES
YES
YES
NO
NO
NOAlfa Romeo Authorized
Services operation
Contact Alfa Romeo
Authorized Services
Repair damaged
wheel
Contact Alfa Romeo
Authorized Services
–
–
– Sensor presence
–
NO
NO
YES
YES
YES
(*) Given as an alternative on the owner's manual and to be found in Lineaccessori Alfa Romeo.
(**) Not crossed (tyres shall remain on the same side).
Operation
–
Wheel change
with space-saver spare wheel
Wheel change
with snow tyres
Wheel change
with snow tyres
Wheel change
with others of different
size (*)
Wheel cross switching
(front/rear) (**)

114
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

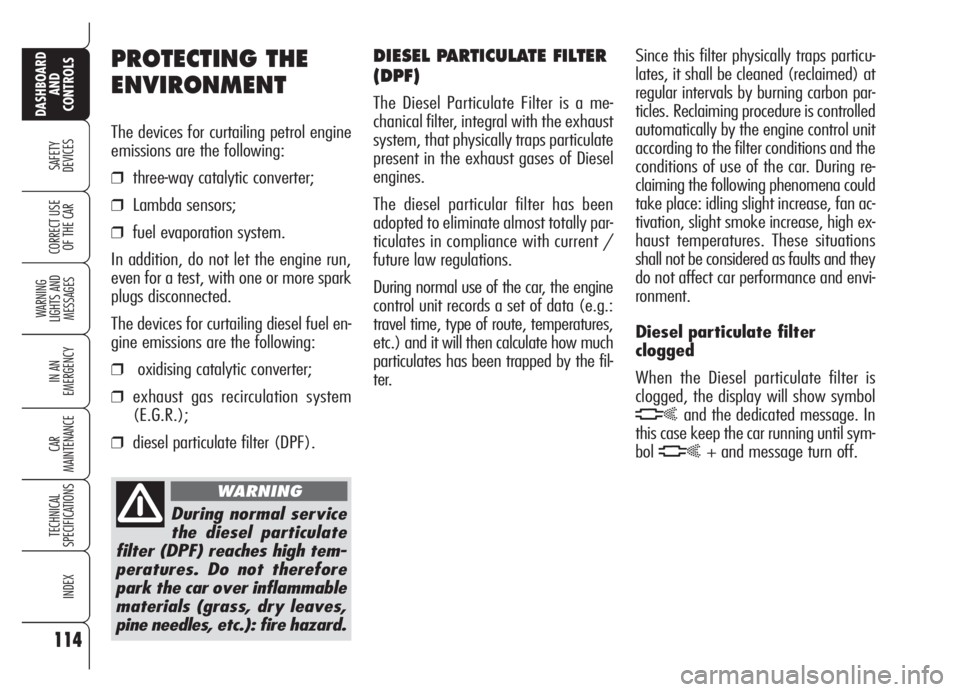

PROTECTING THE
ENVIRONMENT
The devices for curtailing petrol engine
emissions are the following:
❒three-way catalytic converter;
❒Lambda sensors;
❒fuel evaporation system.
In addition, do not let the engine run,
even for a test, with one or more spark
plugs disconnected.
The devices for curtailing diesel fuel en-
gine emissions are the following:
❒oxidising catalytic converter;
❒exhaust gas recirculation system
(E.G.R.);
❒diesel particulate filter (DPF).
During normal service
the diesel particulate
filter (DPF) reaches high tem-
peratures. Do not therefore
park the car over inflammable
materials (grass, dry leaves,
pine needles, etc.): fire hazard.
WARNING
DIESEL PARTICULATE FILTER
(DPF)
The Diesel Particulate Filter is a me-
chanical filter, integral with the exhaust
system, that physically traps particulate
present in the exhaust gases of Diesel
engines.
The diesel particular filter has been
adopted to eliminate almost totally par-
ticulates in compliance with current /
future law regulations.
During normal use of the car, the engine
control unit records a set of data (e.g.:
travel time, type of route, temperatures,
etc.) and it will then calculate how much
particulates has been trapped by the fil-
ter.Since this filter physically traps particu-
lates, it shall be cleaned (reclaimed) at
regular intervals by burning carbon par-
ticles. Reclaiming procedure is controlled
automatically by the engine control unit
according to the filter conditions and the
conditions of use of the car. During re-
claiming the following phenomena could
take place: idling slight increase, fan ac-
tivation, slight smoke increase, high ex-
haust temperatures. These situations
shall not be considered as faults and they
do not affect car performance and envi-
ronment.
Diesel particulate filter
clogged
When the Diesel particulate filter is
clogged, the display will show symbol
hand the dedicated message. In
this case keep the car running until sym-
bol
h+ and message turn off.

153
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
W W
A A
R R
N N
I I
N N
G G
L L
I I
G G
H H
T T
S S
A A
N N
D D
M M
E E
S S
S S
A A
G G
E E
S S
LOW BRAKE FLUID/
HANDBRAKE ON ................................................. 155
BRAKE PAD WEAR ............................................. 155
SEAT BELTS NOT FASTENED ................................. 155
AIR BAG FAILURE................................................ 156
PASSANGER’S FRONT AIR BAGS DEACTIVATED ........ 157
ENGINE COOLANT HIGH TEMPERATURE.................. 157
ENGINE OIL HIGH TEMPERATURE .......................... 158
LOW ENGINE OIL PRESSURE/ EXHAUST OIL .......... 158
LOW BATTERY CHARGE ....................................... 158
INCOMPLETE DOOR LOCKING ............................... 159
BONNET OPEN ................................................... 159
BOOT OPEN....................................................... 159
INJECTION SYSTEM FAILURE/
EOBD SYSTEM FAILURE....................................... 159
CAR PROTECTION SYSTEM FAILURE/
STEERING LOCK INHIBITION................................. 160
ALARM FAILURE/BREAK-IN ATTEMPT/
ELECTRONIC KEY NOT RECOGNIZED ...................... 160

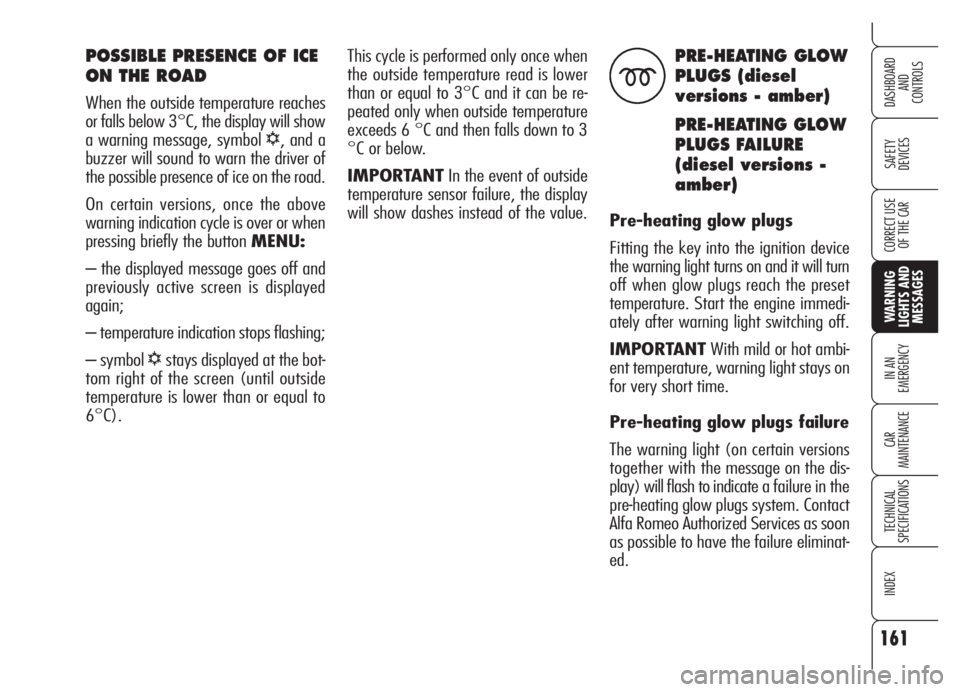

POSSIBLE PRESENCE OF ICE ON THE ROAD............ 161
PRE-HEATING GLOW PLUGS/
PRE-HEATING GLOW PLUG FAILURE ....................... 161
WATER IN DIESEL FUEL FILTER ............................. 162INERTIAL FUEL CUT-OFF SWITCHED ON ................. 162
ABS SYSTEM FAILURE......................................... 162
EBD SYSTEM FAILURE......................................... 163
VDC SYSTEM .................................................... 163
HILL HOLDER FAILURE ........................................ 163
ASR SYSTEM (WHEEL ANTISKID SYSTEM) ............. 163
EXTERNAL LIGHTS FAILURE .................................. 164
BRAKE LIGHTS FAILURE ....................................... 164
REAR FOGLIGHTS ............................................... 164
FRONT FOG LIGHTS ............................................ 164
SIDE/TAILLIGHTS/FOLLOW ME HOME .................. 164
DIPPED BEAM HEADLIGHTS.................................. 164
MAIN BEAM HEADLIGHTS .................................... 164
LEFT-HAND DIRECTION INDICATOR ........................ 165
RIGHT-HAND DIRECTION INDICATOR ...................... 165
LIGHT SENSOR FAILURE........................................ 165
RAIN SENSOR FAILURE......................................... 165
PARKING SENSORS FAILURE ................................ 165
FUEL RESERVE - LIMITED CRUISING RANGE ............ 165
CRUISE CONTROL .............................................. 165
DIESEL PARTICULATE FILTER CLOGGED .................. 166
ANTIPINCH SYSTEM FAILURE ............................... 166
WINDSCREEN WASHER FLUID LOW LEVEL ............. 166
SPEED LIMIT EXCEEDED ...................................... 166
T.P.M.S. SYSTEM FAILURE ................................... 166
CHECK TYRE PRESSURE ...................................... 167
LOW INFLATION PRESSURE ................................. 167
TYRE PRESSURE UNSUITABLE FOR SPEED ............. 167

155
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
SEAT BELTS NOT
FASTENED (red)
With car stationary, the warn-
ing light turns on glowing steadily in the
following cases:
❒driver’s seat belt not fastened;
❒passenger’s seat belt not fastened,
heavy objects placed on the passen-
ger’s seat;
❒when unfastening driver’s or passen-
ger’s seat belt.
For the same reasons, with the car mov-
ing, the warning light will turn on flash-
ing and the warning buzzer will sound for
a while.
The warning light will then stay on glow-
ing steadily.
BRAKE PAD WEAR
(amber)
The display will show message
+ symbol when front brake pads are
worn; in this case have them changed
as soon as possible.
IMPORTANTSince the car is fitted
with wear sensors for the front brake
pads, when changing them, check also
the rear brake pads.
d
turns on when travel-
ling, check that the handbrake
is not engaged. If the warning
light stays on with handbrake
disengaged, stop the car im-
mediately and contact Alfa
Romeo Authorized Services.
WARNINGLOW BRAKE FLUID
(red)
HANDBRAKE ON
(red)
Fitting the key into the ignition device
the warning light turns on, but it should
go off after few seconds.
Low brake fluid level
The warning light turns on (with a ded-
icated message on the display) when
the level of the brake fluid in the reser-
voir falls below the minimum level, due
to possible leak in the circuit.
Handbrake on
The warning light turns on when the
handbrake is on.
x

161
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
This cycle is performed only once when
the outside temperature read is lower
than or equal to 3°C and it can be re-
peated only when outside temperature
exceeds 6 °C and then falls down to 3
°C or below.
IMPORTANTIn the event of outside
temperature sensor failure, the display
will show dashes instead of the value.PRE-HEATINGGLOW
PLUGS (diesel
versions - amber)
PRE-HEATING GLOW
PLUGS FAILURE
(diesel versions -
amber)
Pre-heating glow plugs
Fitting the key into the ignition device
the warning light turns on and it will turn
off when glow plugs reach the preset
temperature. Start the engine immedi-
ately after warning light switching off.
IMPORTANTWith mild or hot ambi-
ent temperature, warning light stays on
for very short time.
Pre-heating glow plugs failure
The warning light (on certain versions
together with the message on the dis-
play) will flash to indicate a failure in the
pre-heating glow plugs system. Contact
Alfa Romeo Authorized Services as soon
as possible to have the failure eliminat-
ed.
m
POSSIBLE PRESENCE OF ICE
ON THE ROAD
When the outside temperature reaches
or falls below 3°C, the display will show
a warning message, symbol
√, and a
buzzer will sound to warn the driver of
the possible presence of ice on the road.
On certain versions, once the above
warning indication cycle is over or when
pressing briefly the button MENU:
– the displayed message goes off and
previously active screen is displayed
again;
– temperature indication stops flashing;
– symbol
√stays displayed at the bot-
tom right of the screen (until outside
temperature is lower than or equal to
6°C).
