The car is fitted with a safety switch that
in the event of a crash comes into op-
eration by cutting off fuel and turning
off the engine as a consequence.
Certain versions are equipped with an
additional safety switch that in the event
of a crash comes into operation by cut-
ting off the power supply.
If, after a crash, you
smell fuel or see leaks
from the fuel system, do not
reset the switches to avoid
fire risk.
WARNINGThese two safety switches therefore pre-
vent dangerous fuel leaks due to fuel
line cracking, and sparks or electric dis-
charges due to damaging or malfunc-
tioning of the electric components of the
car in the event of a crash.
IMPORTANTAfter a crash, remem-
ber to remove the key from the ignition
device to prevent battery run-down.

78
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
If central door locking
has been activated
from inside the car and after a
crash the fuel cut-off switch
cannot activate automatic door
unlocking, it will not be pos-
sible to get into the car. In any
case, door opening from the
outside depends on door con-
ditions after the crash: if a
door is badly damaged it will
be impossible to open it. In this
event try to open one of the
other doors.
WARNINGDoor unlocking in the event of
a crash
In the event of a crash that triggers the
fuel cut-off switch, the doors will unlock
automatically to enable getting into the
car and at the same time the passen-
ger’s compartment light will turn on. It
is however always possible to open the
doors from the passenger’s compart-
ment by means of the internal door han-
dles. If, after a crash no fuel leaks or
damages to the electric devices (e.g.
headlights) are found and the car can
be started again, reset the fuel cut-off
switch and the power supply cut-off
switch (where provided). Follow the in-
structions given below.Resetting the fuel cut-off
switch
Before resetting the fu-
el cut-off switch care-
fully inspect the car for fuel
leaks or damages to electric
devices (e.g. headlights).
WARNING
To reset the fuel cut-off switch, press but-
tonA-fig. 53.
A0F0221mfig. 53

79
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CARResetting the power supply
cut-off switch
(where provided)The switch is located inside the fuse box
at battery positive terminal.
To reset the power supply cut-off switch,
proceed as follows:
❒press button A-fig. 53to reset the
fuel cut-off switch;
❒open the bonnet;
A0F0126mfig. 54
Before resetting the
power supply cut-off
switch carefully inspect the car
for fuel leaks or damages to
electric devices (e.g. head-
lights).
WARNING
A0F0071mfig. 55
❒operate the retaining clips A-fig.
54and remove the protection cov-
erB;
❒press buttonC-fig. 55to reset the
power supply.

80
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
INTERIOR FITTINGS
CENTRAL ARMREST
The central armrest is located between
the front seats. Inside the armrest is
housed an air-conditioned food box
(where provided) (see next paragraph).
A0F0141mfig. 57
Pay attention not to
spill the drinks into the
food box.
A0F0039mfig. 56
Air-conditioned food box
(where provided)
The food box is located inside the cen-
tral armrest. Turn wheel A-fig. 57 to
adjust the air flow inside the food box.
IMPORTANTFunction of the food
box is to keep the temperature of the
drinks placed inside it; drinks shall be
warmed or cooled as required before be-
ing put inside the food box. Oddment compartment
To open the oddment compartment,
press button A-fig. 56and raise the
coverB.

81
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CARREAR ARMREST

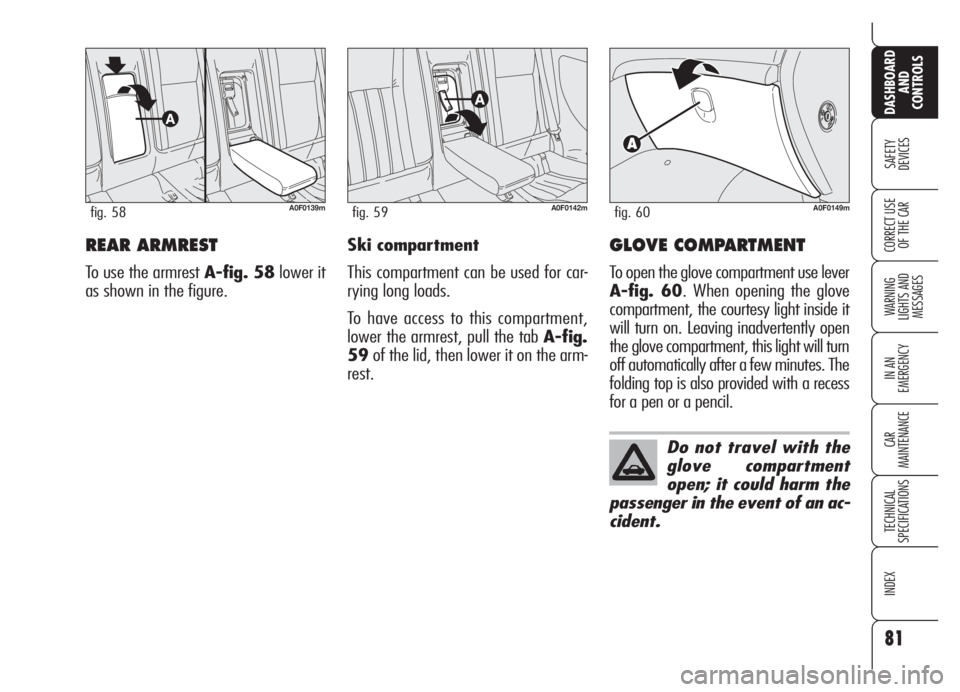

To use the armrest A-fig. 58lower it
as shown in the figure.
A0F0139mfig. 58
Ski compartment
This compartment can be used for car-
rying long loads.
To have access to this compartment,
lower the armrest, pull the tab A-fig.
59of the lid, then lower it on the arm-
rest.
A0F0142mfig. 59
GLOVE COMPARTMENT
To open the glove compartment use lever
A-fig. 60. When opening the glove
compartment, the courtesy light inside it
will turn on. Leaving inadvertently open
the glove compartment, this light will turn
off automatically after a few minutes. The
folding top is also provided with a recess
for a pen or a pencil.
A0F0149mfig. 60
Do not travel with the
glove compartment
open; it could harm the
passenger in the event of an ac-
cident.

82
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CARASHTRAY AND CIGAR
LIGHTER
Ashtray
To use the ashtray, lift cover A-fig. 61.
The ashtray can be removed. Pull it up-
wards to removeit.
IMPORTANTDo not use the ashtray
as paper bin: it could set on fire on con-
tact with cigarette stubs.
A0F0140mfig. 61
Cigar lighter
It is located inside the cigar lighter. To
use the cigar lighter, lift cover A-fig.
61.
Press button Bto switch on the cigar
lighter with key fitted into ignition de-
vice.
IMPORTANTAlways check that the
cigar lighter has turned off.
IMPORTANTThe cigar lighter gets
very hot. Handle it with care and make
sure that it is not used by children: dan-
ger of fire and/or burns.
IMPORTANTDo not plug electric ac-
cessories with power exceeding 100W
to the cigar lighter seat.
IMPORTANTPlugs too big could
damage the cigar lighter outlet tabs.
Do not plug electric ac-
cessories with absorp-
tion exceeding the max.
specified value. Prolonged cur-
rent absorption could drain the
battery and impair next engine
start up.
IMPORTANTTo safeguard the light-
ing life of certain internal devices (e.g.:
cigar lighter ring and ashtray), when
switching on the external lights, these
devices will switch on according to the
passenger's compartment brightness:
with enough daylight these devices will
not switch on. On the contrary they will
switch on with poor daylight.

83
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
ODDMENTS
COMPARTMENTS
Front
They are located on the central console
fig. 62 and on front doorsfig. 63
(one per door).
A0F0101mfig. 62
A0F0248mfig. 63
A0F0245mfig. 64
A0F0246mfig. 65
A0F0102mfig. 66
SUN VISORS
These are positioned to the sides of the
rear-view mirror. They can swing to the
sides and up or down.
On certain versions, sun visors are fitted
on the back with a courtesy mirror and
a light which enables to use the mirror
also with poor sunlight.
To use the mirror open cover A-fig.
66.
Mirror lights will turn on automatically
when lifting the cover and they will turn
off when lowering it or few minutes af-
ter removing the electronic key from the
ignition device. Rear
They are located on the central console
fig. 64and near the rear seats fig.
65.

84
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
FIXED PANORAMA
ROOF
(where provided)
It consists of a wide pane and it is fitted
with a powered sun curtain A-fig. 67
sliding longitudinally.
SUN CURTAIN
The sun curtain shall be used to adjust
brightness inside the passenger com-
partment and it can only be operated
with key fitted into ignition device.Opening/closing the sun
curtain
To open the sun curtain press button B-
fig. 68set on the front ceiling light:
the sun curtain will slide towards the
back of the car. Sun curtain will open
in 3 different "steps” to be obtained by
pressing repeatedly button B-fig. 68.
Sun curtain can be re-closed by pressing
buttonBagain. Closing takes place in
one “step”.Anti-crushing safety system
The anti-crushing safety system is active
during the closing operation of sun cur-
tain. The anti-crushing safety system will
cut in when it finds an obstacle (e.g.:
finger, hand, etc …) by guaranteeing
sun curtain reversal for a short section.
When an obstacle is found, the sun cur-
tain stroke is stopped immediately and
their stroke is reversed to the preset po-
sition.
A0F0070mfig. 67A0F0238mfig. 68
