2008 Alfa Romeo 8C technical specifications

181
7
CAPACITIES AND TECHNICAL SPECIFICATIONS
LUBRICATION SYSTEM
The lubrication system uses a wet sump system
and oil pump with the relative suction screen,
incorporated in the crankcase.TRANSMISSION
Clutch
Dry double-plate clutch with servo-assisted
hydraulic control. COOLING SYSTEM
Engine cooling is obtained by means of an anti-
freeze mixture circulating inside a system with
radiator, centrifugal pump and expansion tank.

183
7
CAPACITIES AND TECHNICAL SPECIFICATIONS
SUSPENSION
Front and rear
Articulated quadrilateral suspension.
STEERING
Rack and pinion hydraulic steering, with pump
driven by the drive shaft and tank. Articulated
steering column, with energy absorption and
adjustable inclination and height.
- Steering diameter = 10.7 m
- Number of steering wheel turns = 1.3
(to the left and right)WHEELS
Wheel rims and tyres
Wheel rim size Tyre size
front 8.5”J x 20” 245/35 ZR20
rear 10.5”J x 20” 285/35 ZR20
*front 8.5”J x 20” 245/35 ZR20 VM+S
*rear 10.5”J x 20” 275/35 ZR20 VM+S
* Winter tyres
CAUTION
Alternatively, you may use winter tyres having the same dimensions as
those provided with the vehicle.
CAUTION
When winter tyres are fitted, it is advisable not to exceed a speed of 220
km/h. Always observe the regulations in force in the country where you are
driving and follow the instructions provided by the tyre manufacturer.
Spare wheel (Japan only)
Alloy wheel rim.Tyre size Tyre brand
175/55 R18 VREDESTEIN

185
7
910 mm 2645 mm
4381 mm826 mm
1590 mm
1341 mm
1589 mm
1894 mm
CAPACITIES AND TECHNICAL SPECIFICATIONS
DIMENSIONS

8VEHICLE IDENTIFICATION DATA
ACTIVE AND PASSIVE SAFETY
INSTRUMENTS AND CONTROLS
BEFORE YOU DRIVE
USING THE VEHICLE
IN AN EMERGENCY
CAPACITIES AND TECHNICAL SPECIFICATIONS
MAINTENANCE
TABLE OF CONTENTS

200
8

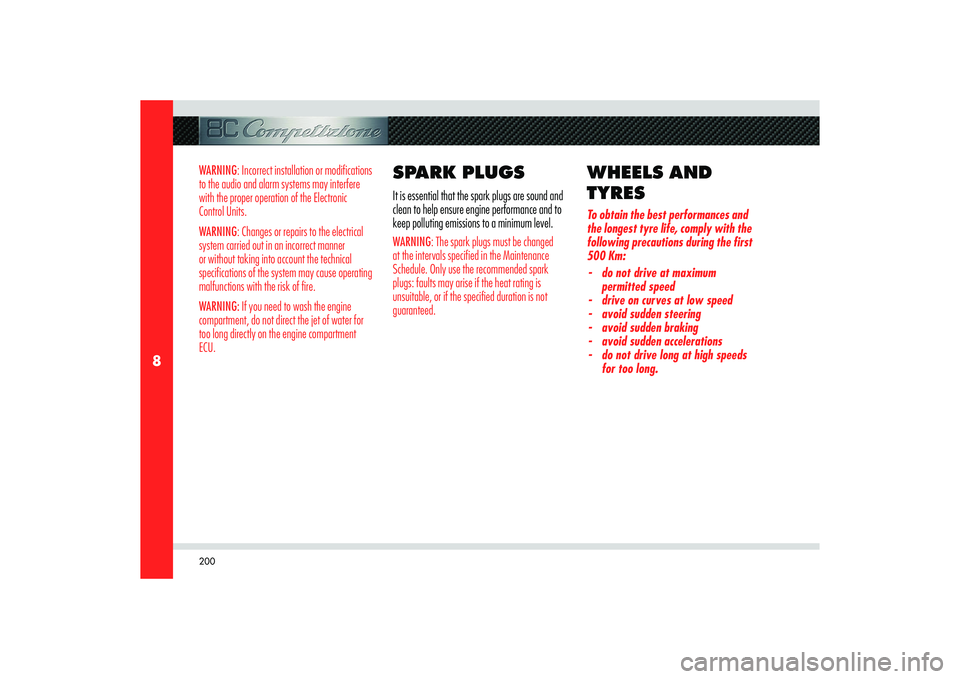

WARNING: Incorrect installation or modifications
to the audio and alarm systems may interfere
with the proper operation of the Electronic
Control Units.
WARNING: Changes or repairs to the electrical
system carried out in an incorrect manner
or without taking into account the technical
specifications of the system may cause operating
malfunctions with the risk of fire.
WARNING: If you need to wash the engine
compartment, do not direct the jet of water for
too long directly on the engine compartment
ECU.
SPARK PLUGSIt is essential that the spark plugs are sound and
clean to help ensure engine performance and to
keep polluting emissions to a minimum level.WARNING: The spark plugs must be changed
at the intervals specified in the Maintenance
Schedule. Only use the recommended spark
plugs: faults may arise if the heat rating is
unsuitable, or if the specified duration is not
guaranteed.
WHEELS AND
TYRESTo obtain the best performances and
the longest tyre life, comply with the
following precautions during the first
500 Km:
- do not drive at maximum
permitted speed
- drive on curves at low speed
- avoid sudden steering
- avoid sudden braking
- avoid sudden accelerations
- do not drive long at high speeds
for too long.
