2008 Acura MDX display

ÛÝ

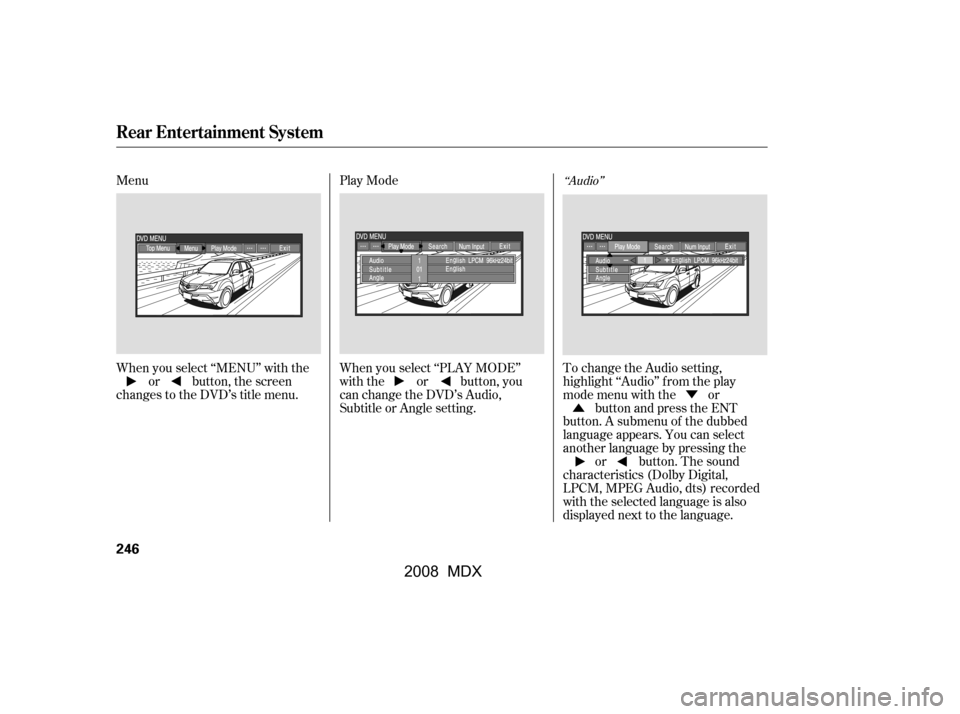

Menu Play Mode
When you select ‘‘MENU’’ with the
or button, the screen
changes to the DVD’s title menu. When you select ‘‘PLAY MODE’’
with the or button, you
can change the DVD’s Audio,
Subtitle or Angle setting.To change the Audio setting,
highlight ‘‘Audio’’ f rom the play
mode menu with the or
button and press the ENT
button. A submenu of the dubbed
language appears. You can select
another language by pressing the or button. The sound
characteristics (Dolby Digital,
LPCM, MPEG Audio, dts) recorded
with the selected language is also
displayed next to the language.
‘‘Audio’’
Rear Entertainment System
246
\f—\f—\fy\f\fy
()-
\fy\f
y
2008 MDX

ÝÛ
Select and enter the second digit
number the same way. The cursor
will automatically move to the ‘‘ENT’’
icon when you press the ENT button.
Press the ENT button to enter the
number command. To go back to the
DVD screen, press the RETURN
button or select EXIT and press the
ENT button.
When you press the SETUP button
while a DVD is playing, the setup
menu appears. The menu options are
DISP ADUSTMENT, ASPECT
RATIO, and PERSONAL
SURROUND.
To change a setup, use the orbutton to highlight your
selection and press the ENT button.
To return to the DVD video screen,
select EXIT. To adjust the display, highlight ‘‘Disp
Adjust’’ f rom the setup menu with
the or button and press
the ENT button. You can adjust
these display settings:
Brightness
Contrast
Black Level
Tint
Color
Disp Adjust
Rear Entertainment System
SETUP Button
250
\f—\f—\fy\fy
()-
\fy\fy
2008 MDX

ÝÛ
Û
Ý
CONT INUED
Select the quality you want to adjust
by pressing the or button.
Adjust the setting by pressing the
or button. When you are
f inished with your adjustment,
cursor back to the top of the setup
menu, or press the RETURN button
to exit. If you want to set the display to the
def ault setting, select ‘‘Reset’’ by
pressing the or button, and,
then pressing the ENT button.
The display changes as shown above.
Select ‘‘Yes,’’ and press the ENT
button. You will see the message
‘‘Def ault display settings applied’’ on
the display f or 5 seconds.
Rear Entertainment System
Features
251
\f—\f—\fy\fy
()-
\fy\fy
2008 MDX

Select the ‘‘Aspect Ratio’’ by pressing
the or button, then press
the ENT button.The selected setting will be
highlighted in blue f or one second,
and the screen returns to the play
mode in the selected setting.
The selectable setting menu is
displayed, and the current setting is
highlighted in blue.
You can set the screen mode to
these settings:
Normal
Wide
Zoom
Full
Select the desired setting by
pressing the or button,
then press the ENT button.
Aspect Ratio
Rear Entertainment System
252
\f—\f—\fy\fy
()-
\fy\fy
2008 MDX

Û
Ý
CONT INUED
To change the Personal Surround
setting, highlight ‘‘PERSONAL
SURROUND’’ from the setup menu
with the or button and
press the ENT button. The ef f ect
selection appears. If you select ‘‘Of f ,’’ the logo
disappears, and there will be no
special sound ef f ect.
Select ‘‘Cinema,’’ ‘‘Music,’’ or ‘‘Voice’’
by pressing the or button,
and enter your selection by pressing
the ENT button. The ‘‘PERSONAL
SURROUND’’ logo is displayed in
the upper right corner of the screen.
Personal Surround
Rear Entertainment System
Features
253
\f—\f—\fy\f\f
y
()-
\fy\fy
2008 MDX

ÝÛ
When you press the SETUP button
on the rear control panel when a
DVD is not playing, the ‘‘INITIAL
SETTINGS’’ menu is displayed. When you select ‘‘Language’’ with
the or button, the menu
shown above appears.
There are two selectable menus:
‘‘Language’’ and ‘‘Others.’’ Menu Language
To return to the stop or prestop
screen, select ‘‘Exit’’ using the or button, and then press
the ENT, or the SETUP button. To select the language used in the
DISC menus, select ‘‘Menu
Language’’ by pressing the or
button.
INITIAL SETTINGS Menu INITIAL SETTINGS (Language)
Rear Entertainment System
254
\f—\f—\fy\f
\fy
()-
\fy\fy
2008 MDX

If you want another language than
those listed, you need to enter the
code number of the desired language.
Select ‘‘other,’’ and press the ENT
button. The display changes as
showninthenextcolumn.If you select ‘‘No,’’ and press the
ENT button, the display returns to
the initial screen of the ‘‘Language’’
menu.
The selectable languages are,
English, French, Spanish, German,
Italian, Dutch, Chinese, Korean, Thai,
Japanese or others.
Select the desired language by
pressing the or button,
and then pressing the ENT button.
CONT INUED
Rear Entertainment System
Features
255
\f—\f—\fy\f
y
()-
\fy\f\fy
2008 MDX

ÝÛ
Audio Language
If you select ‘‘Yes,’’ the display
changes to the language code input
mode. Select the f irst number digit
usingthe,,,or button, and press the ENT
button to enter it. Repeat this until all
f our digits are f illed. When the
f ourth digit is entered, the cursor
automatically moves to ‘‘ENT’’ on the
display. Press the ENT button on the
control panel to enter the new
language code. If you made a mistake entering a
number digit, select ‘‘DEL’’ on the
display with the , , ,
or button, and press the ENT
buttononthecontrolpanel.Then
select and enter the correct number
digit as described. The display
returns to the initial ‘‘Language’’
menu screen.
You can select the dubbed language
bef ore playing DVDs.
Select ‘‘Audio Language’’ by pressing
the or button. You will see the
submenu next to ‘‘Audio Language.’’
Follow the same instructions you
used to set the menu language.
Rear Entertainment System
256
\f—\f—\fy\fy
()-
\fy\f
y
2008 MDX
