Page 4 of 153
8
Interior
INSTRUMENTS AND CONTROLS
1. Lights and direction indicators
stalk.
2. Instrument panel with display.
3. Wipers, wash-wipe, trip
computer controls.
4. Ignition.
5. Audio equipment, hands-free kit
control.
6. Driver’s air bag, horn.
7. Steering wheel height and depth
adjustment.
8. Cruise control, speed limiter
switch.
9. Control pad, parking assistance,
headlamp beam adjustment,
ESP.
10. Bonnet release.
11. Electric exterior mirror
adjustment.
Page 7 of 153
3
3
3
3
4
11
1
FAMILIARISATION
Interior
Lights off.
Side lights.
Main beam headlamps (blue).
Dipped headlamps (green).
Wipers stalk
2 fast.
1 normal.
I intermittent.
0 off.
single wipe.
AUTO, press the stalk down.
AUTO, automatic
switching on of the lights.
40
Lights stalk
43 Cruise control, Speed limiter
In cruise control mode, the vehicle
speed must be higher than 25 mph
(40 km/h) with at least 4th gear
engaged.
Hill start assistance
45,
48
39
SEE CLEARLY
DRIVE SAFELY
Motorway function: press up or down
once, without passing the point of
resistance; the corresponding direction
i n d i c a t o r s w i l l fl a s h t h r e e t i m e s .
Wip Sound, hands-free kit
This system can play MP3 CDs and
you can match a Bluetooth telephone
with the hands-free kit. 78
Page 21 of 153
READY TO SET OFF
25 25
22
Instruments and controls
INSTRUMENTS AND CONTROLS
INSTRUMENT PANEL
Dials
1. Distance recorder in kilometres/
miles.
2. Display.
3. Fuel level, coolant temperature.
4. Rev counter.
5. Trip distance recorder/service
indicator zero reset.
6. Instrument panel lighting rheostat. Displays
- Speed limiter/cruise control.
- Kilometres/Miles travelled.
- Service indicator, engine oil level
indicator, total kilometres/miles.
- Presence of water in the diesel fi l t e r .
- Diesel pre-heating. Screens
The information is presented on board
the vehicle in different display formats
according to the vehicle’s equipment.
Page 28 of 153
32
Instruments and controls
Warning light on the
display
is indicates Solution - action
Cruise
control lit. cruise control selected. Manual selection. Chapter 3, "Steering wheel
controls" section.
Speed limiter lit. speed limiter selected. Manual selection. Chapter 3, "Steering wheel
controls" section.
Diesel pre-
heating lit. climatic conditions requiring
pre-heating. Wait until the warning light is switched off before
operating the starter.
Presence of
water in the
d i e s e l fi l t e r
lit and
accompanied by
a message on
the display.
w a t e r i n t h e d i e s e l fi l t e r . H a v e t h e fi l t e r b l e d b y a P E U G E O T d e a l e r
without delay. Chapter 7, "Checks" section.
According to country.
Service
spanner lit. that a service will be due
shortly. Refer to the list of checks in the servicing booklet.
Have the service carried out by a PEUGEOT
dealer.
Time fl a s h i n g . adjustment of the time. Use the left-hand button on the instrument panel.
Chapter 2, at the beginning of the "Instruments
and controls" section.
Page 43 of 153
45
Steering wheel controls
ERGONOMICS and COMFORT
3

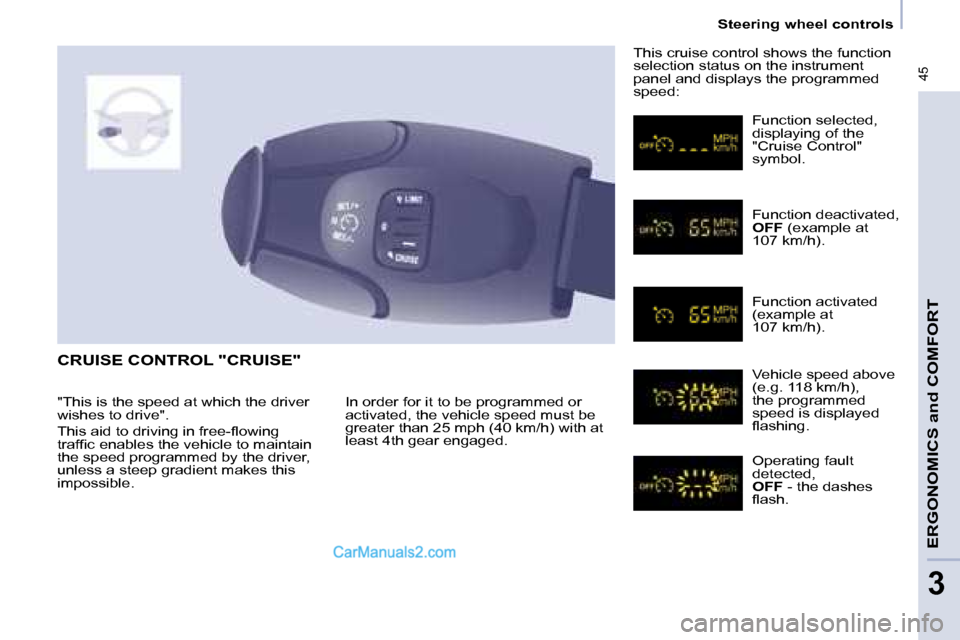

CRUISE CONTROL "CRUISE"
In order for it to be programmed or
activated, the vehicle speed must be
greater than 25 mph (40 km/h) with at
least 4th gear engaged. This cruise control shows the function
selection status on the instrument
panel and displays the programmed
speed:
Function selected,
displaying of the
"Cruise Control"
symbol.
Function deactivated,
OFF (example at
107 km/h).
Function activated
(example at
107 km/h).
Vehicle speed above
(e.g. 118 km/h),
the programmed
speed is displayed
fl a s h i n g .
Operating fault
detected,
OFF - the dashes
fl a s h .
"This is the speed at which the driver
wishes to drive".
T h i s a i d t o d r i v i n g i n f r e e - fl o w i n g
t r a f fi c e n a b l e s t h e v e h i c l e t o m a i n t a i n
the speed programmed by the driver,
unless a steep gradient makes this
impossible.
Page 44 of 153
46
Steering wheel controls

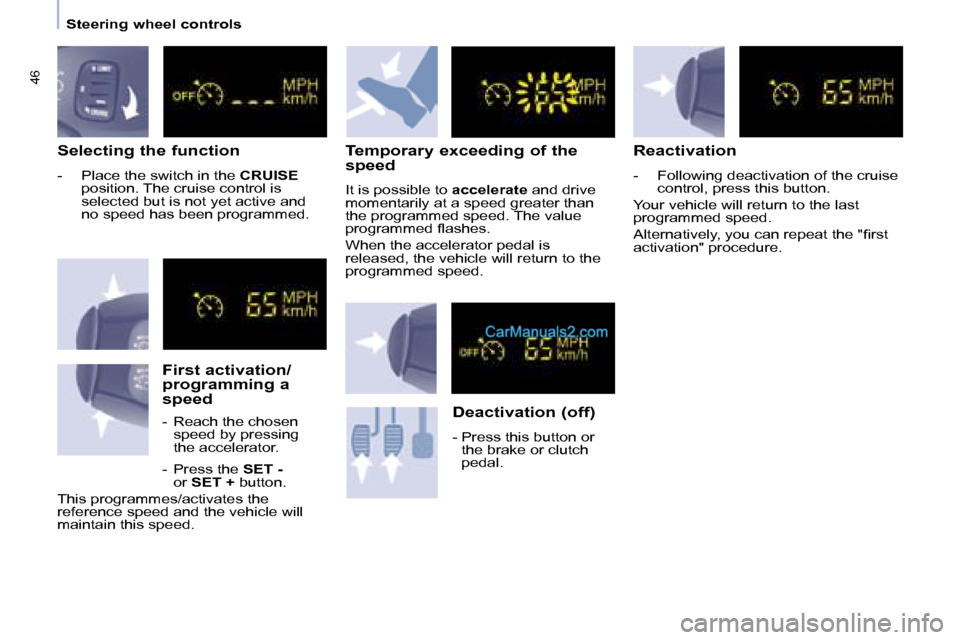

Selecting the function
- Place the switch in the CRUISE
position. The cruise control is
selected but is not yet active and
no speed has been programmed.
First activation/
programming a
speed
- Reach the chosen speed by pressing
the accelerator.
- Press the SET -
or SET + button.
This programmes/activates the
reference speed and the vehicle will
maintain this speed. Temporary exceeding of the
speed
It is possible to
accelerate and drive
momentarily at a speed greater than
the programmed speed. The value
p r o g r a m m e d fl a s h e s .
When the accelerator pedal is
released, the vehicle will return to the
programmed speed.
Deactivation (off)
- Press this button or the brake or clutch
pedal. Reactivation
- Following deactivation of the cruise
control, press this button.
Your vehicle will return to the last
programmed speed.
A l t e r n a t i v e l y , y o u c a n r e p e a t t h e " fi r s t
activation" procedure.
Page 45 of 153
47
Steering wheel controls
ERGONOMICS and COMFORT
3

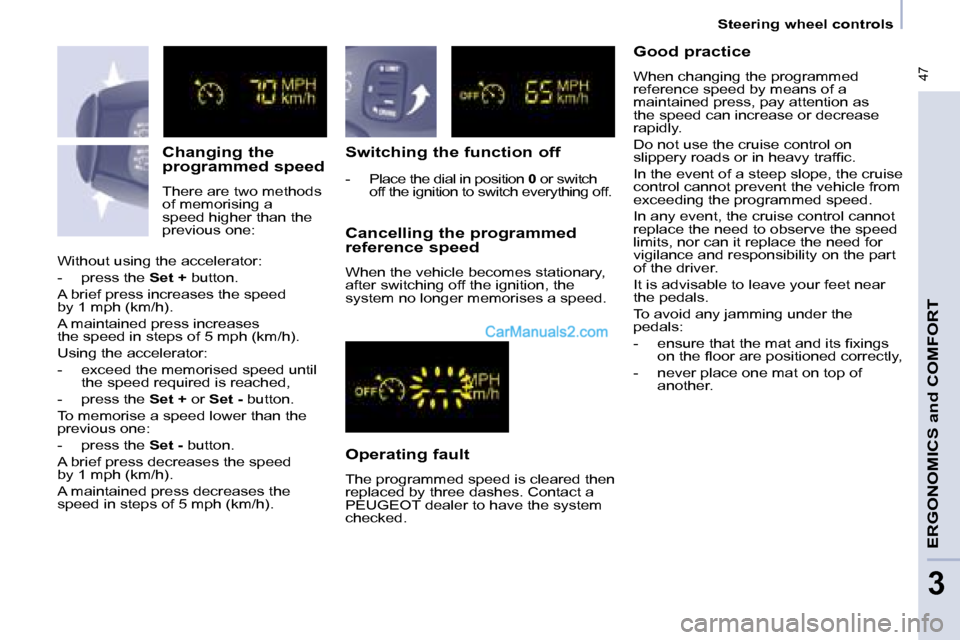

Changing the
programmed speed
There are two methods
of memorising a
speed higher than the
previous one: Switching the function off
Operating fault
The programmed speed is cleared then
replaced by three dashes. Contact a
PEUGEOT dealer to have the system
checked.
Cancelling the programmed
reference speed
When the vehicle becomes stationary,
after switching off the ignition, the
system no longer memorises a speed.
Without using the accelerator:
- press the
Set + button.
A brief press increases the speed
by 1 mph (km/h).
A maintained press increases
the speed in steps of 5 mph (km/h).
Using the accelerator:
- exceed the memorised speed until the speed required is reached,
- press the Set + or Set - button.
To memorise a speed lower than the
previous one:
- press the Set - button.
A brief press decreases the speed
by 1 mph (km/h).
A maintained press decreases the
speed in steps of 5 mph (km/h). - Place the dial in position
0 or switch
off the ignition to switch everything off. Good practice
When changing the programmed
reference speed by means of a
maintained press, pay attention as
the speed can increase or decrease
rapidly.
Do not use the cruise control on
s l i p p e r y r o a d s o r i n h e a v y t r a f fi c .
In the event of a steep slope, the cruise
control cannot prevent the vehicle from
exceeding the programmed speed.
In any event, the cruise control cannot
replace the need to observe the speed
limits, nor can it replace the need for
vigilance and responsibility on the part
of the driver.
It is advisable to leave your feet near
the pedals.
To avoid any jamming under the
pedals:
- e n s u r e t h a t t h e m a t a n d i t s fi x i n g s
o n t h e fl o o r a r e p o s i t i o n e d c o r r e c t l y ,
- never place one mat on top of another.
