PRESENTATION
This handbook has been designed to make you familiar with
your new vehicle from day one, and to make you full y aware of
how to use its various functions.
Reading the handbook is made easy by a Familiarisa tion
chapter, followed by 8 identified chapters which can be located
by means of a colour code specific to each one. Its sections
cover, by theme, all of the functions of the vehicle in its most
complete specification.
Chapter 2 indicates all of the technical data relating to your
vehicle. At the end of the handbook, exterior and i nterior
views of the vehicle will assist you in locating equipment or a
function, and will refer you to the relevant page.
Within the chapters symbols draw your attention to specific
information:
directs you to the chapter and section which contains
detailed information concerning a function,
indicates important information relating to use of the
equipment,
alerts you to the safety of individuals and equipm ent on
board.
Page 59 of 140
2
Dimensions
TECHNICAL DATA
DIMENSIONS
The light van "L1" is the standard model, the "L2 - Worksite Pack" version is a model sold according to country:
Light van (in mm)
L1 L2 (Worksite Pack)
L Overall length
3 864 3 881
H Overall height 1 721 1 742
Height with roof bars 1 782 1 803
A Wheelbase 2 513
B Front overhang 760 777
C Rear overhang 591
D Overall width 2 019
Width (with mirrors folded) 1 816
E Width of front tracks 1 469 1 464
F Width of rear tracks 1 465
G Height of load sill 527 544
I L e n g t h o f i n t e r i o r fl o o r 1 523
J Maximum interior load height 1 205
K M a x i m u m i n t e r i o r w i d t h ( 1 0 c m f r o m t h e fl o o r ) 1 473
M Maximum interior width (at the sides) 1 046
Volume
(m
3
) 2.5
Page 61 of 140
55
2
Dimensions
TECHNICAL DATA
Combi (in mm)
Standard Raised
L Overall length 3 959 3 970
H Overall height 1 721 1 742
Height with roof bars 1 782 1 803
A Wheelbase 2 513
B Front overhang 855 866
C Rear overhang 591
D Overall width 2 019
Width (with mirrors folded) 1 816
E Width of front tracks 1 464
F Width of rear tracks 1 465
G Height of load sill 527 544
I L e n g t h o f i n t e r i o r fl o o r
743
L e n g t h o f i n t e r i o r fl o o r
(rear benchseat fully folded) 1 130
J Maximum interior load height
(under rear shelf) 592
K M a x i m u m i n t e r i o r w i d t h ( 1 0 c m f r o m t h e fl o o r ) 1 473
M Maximum interior width (at the sides) 1 046
Page 63 of 140
57
2
Engines
TECHNICAL DATA
PETROL ENGINE
1.4 l 75 hp
Gearbox Manual
Gears 5
EU standard maximum power (kW) 54
Cubic capacity (cm 3
) 1 360
Bore x stroke (mm) 75 x 77
Max power engine speed (rpm) 5 200
EU standard max torque (Nm) 118
Max torque engine speed (rpm) 2 600
Fuel
Unleaded petrol
Engine oil capacity (in litres) 3.0
Page 65 of 140
59
2
Weights
TECHNICAL DATA
WEIGHTS

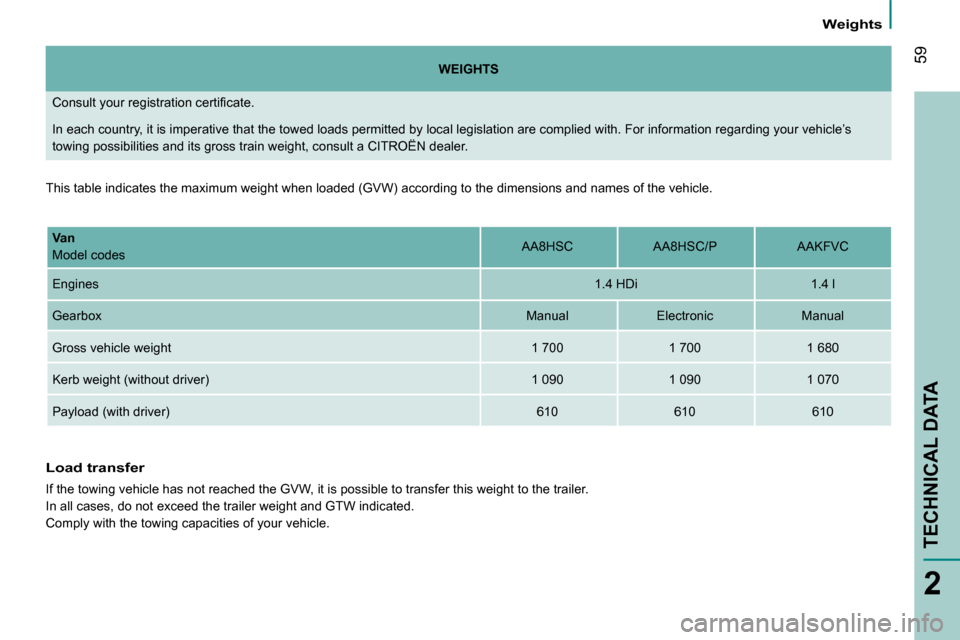

C o n s u l t y o u r r e g i s t r a t i o n c e r t i fi c a t e .
In each country, it is imperative that the towed loads p ermitted by local legislation are complied with. For informati on regarding your vehicle’s
towing possibilities and its gross train weight, consult a C ITROËN dealer.
This table indicates the maximum weight when loaded (GVW) acco rding to the dimensions and names of the vehicle.
Load transfer
If the towing vehicle has not reached the GVW, it is possible to transfer this weight to the trailer.
In all cases, do not exceed the trailer weight and GTW in dicated.
Comply with the towing capacities of your vehicle.
Van
Model codes AA8HSC AA8HSC/P AAKFVC
Engines 1.4 HDi 1.4 l
Gearbox Manual Electronic Manual
Gross vehicle weight 1 700 1 700 1 680
Kerb weight (without driver) 1 090 1 090 1 070
Payload (with driver) 610 610 610
Page 111 of 140
102
Towing a trailer
In certain cases of particularly arduous
use (towing the maximum load up a steep
slope in high temperatures), the engine
automatically limits its power. In this
case, the automatic cutting off of the air
conditioning allows the engine power to be
recovered.
If the coolant temperature
warning light comes on, stop the
vehicle and switch off the engine
as soon as possible.
See the "Levels" section of chapter 7.
Tyres: check the tyre pressures of the
towing vehicle (see the "Identification
features" section of chapter 7) and of
the trailer, observing the recommended
pressure.
Brakes: towing increases the braking
distance. Drive at a moderate speed,
change down early and brake gradually.
Side wind: sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed.
ABS: the system only controls the vehicle,
not the trailer.
Rear parking assistance:
the assistance will be deactivated
automatically when a CITROËN towbar is
used (see the "Rear parking assistance"
section of chapter 4).
Towbar
We recommend the use of CITROËN
towbars and their harnesses, which have
been tested and approved from the design
stage of your vehicle, and that the fitting of
this equipment is entrusted to a CITROËN
dealer .
If this equipment is not fitted by a CITROËN
dealer , it is essential that it is fitted using
the electrical pre-equipment located at the
rear of the vehicle in accordance with the
manufacturer ’s instructions.
The operation of the sensors is deactivated
automatically when the pin of the trailer
cable is inserted in the towbar socket.
When the trailer cable pin is removed, the
sensors are re-activated.
Distribution of loads
Distribute the load in the trailer so that the
heaviest objects are as close as possible
to the axle and the nose weight is close to
the maximum authorised without, however,
exceeding it. The air density decreases with
altitude, so reducing the performance of
the engine. The maximum towed load must
be reduced by 10 % for each 1 000 metres
of altitude. Refer to the "Technical data"
chapter for details of the weights and towed
loads applicable to your vehicle and also to
the administrative documents
(V5 registration document, etc.).
