4 PRESENTATION
Within the chapters symbols draw your attention to specific
information:
This document is designed to familiarise you with
the new vehicle
from the moment you get behind the wheel and to des cribe the
operating features.
Reading the handbook is made easy by a content con sisting of
10 identified chapters which can be located by mean s of a colour
code specific to each one. Its sections cover, by t heme, all of the
functions of the vehicle in its most complete speci fication.
Chapter 9 indicates all of the technical data rela ting to your
vehicle. At the end of the document, diagrams of th e outside
and inside of the vehicle will assist you in locati ng equipment or
functions and page numbers refer you to the relevan t section of
the handbook. directs you to the chapter and section which conta
ins detailed
information concerning a function,
indicates important information relating to use of the equipment,
alerts you to the safety of individuals and equipm ent on board.

143
Opening the bonnet
CHECKS
7
OPENING THE BONNET

From inside:
- lift the cover located at the left foot of the passenger ’s seat.
- pull the control upwards. To close
Lower the bonnet and release it at the end of its
travel. Check that the bonnet is properly locked.

From outside: partially open the bonnet, lift
the catch and raise the bonnet.
Bonnet strut
Secure the strut in one of the two notches,
according to the height required, to hold the
bonnet open.
Before closing the bonnet, replace the strut
in its housing. "Bonnet open" warning
This warning is linked to the
alarm option
only.
With the engine running or the
vehicle moving, a warning light
and a diagram on the display,
accompanied by an audible
signal, warn you that the bonnet is not
properly closed.

163
Changing a fuse
TROUBLESHOOTING
8
CHANGING A FUSE

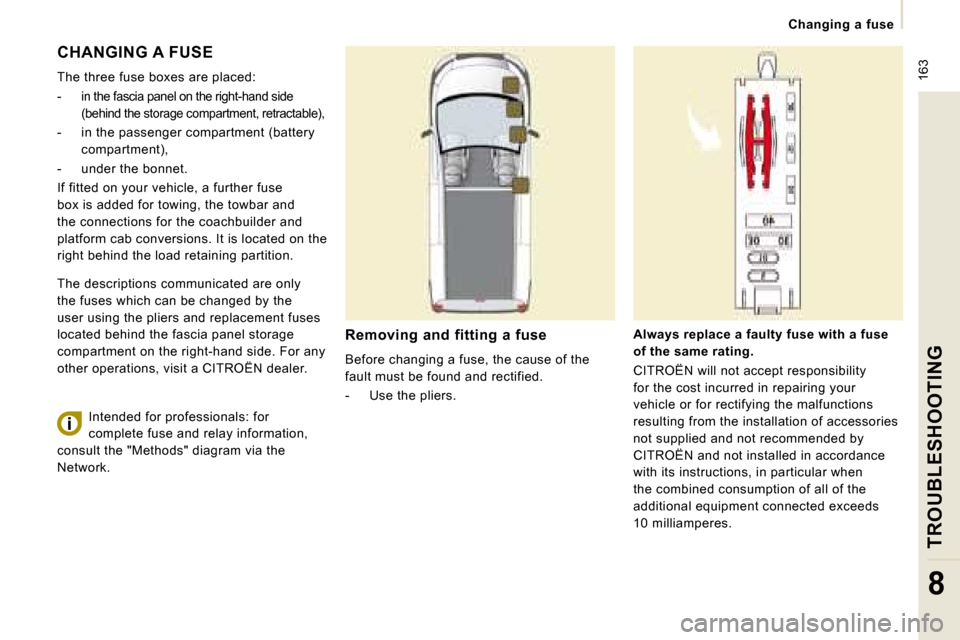

The three fuse boxes are placed:
- in the fascia panel on the right-hand side (behind the storage compartment, retractable),
- in the passenger compartment (battery compartment),
- under the bonnet.
If fitted on your vehicle, a further fuse
box is added for towing, the towbar and
the connections for the coachbuilder and
platform cab conversions. It is located on the
right behind the load retaining partition.
Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified.
- Use the pliers.
Always replace a faulty fuse with a fuse
of the same rating.
CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
CITROËN and not installed in accordance
with its instructions, in particular when
the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes.
The descriptions communicated are only
the fuses which can be changed by the
user using the pliers and replacement fuses
located behind the fascia panel storage
compartment on the right-hand side. For any
other operations, visit a CITROËN dealer.
Intended for professionals: for
complete fuse and relay information,
consult the "Methods" diagram via the
Network.
