2008.5 Citroen JUMPER DAG technical data

4
PRESENTATION
Within the chapters symbols draw your attention to specific
information: This handbook is designed to familiarise you with the new vehicle
from the moment you get behind the wheel and to des cribe the
operating features.
Reading the handbook is made easy by a content consisting of
10 identified chapters which can be located by means of a colour
code specific to each one. Its sections cover, by theme, all of the
functions of the vehicle in its most complete speci fication.
Chapter 9 indicates all of the technical data relating to your
vehicle. At the end of the document, diagrams of th e outside
and inside of the vehicle will assist you in locating equipment or
functions and page numbers refer you to the relevan t section of
the handbook.
directs you to the chapter and section which contains detailed
information concerning a function,
indicates important information relating to use of the equipment,
alerts you to the safety of individuals and equipm ent on board.

147
9
TECHNICAL DATA
Dimensions
DIMENSIONS
Your vehicle is available in 4 lengths (L1..) and 3 heights (H1..), refer to the tables:
Van
L1 L2 L3 L4
H1 H1 H2 H2 H3 H2 H3
L Overall length 4 963 5 413 5 998 6 363
H Overall height 2 254 2 254 2 524 2 524 2 764 2 524 2 764
A Wheelbase 3 000 3 450 4 035
B Front overhang 948
C Rear overhang 1 015 1 380
D Overall width (excluding mirrors) 2 050
E Width of front tracks 1 810
F Width of rear tracks 1 790
G Height of load sill 535 to 565
I Length of interior floor 2 670 3 120 3 705 4 070
J Maximum interior load height 1 662 1 662 1 932 1 932 2 172 1 932 2 172
K Maximum interior width 1 870
M Interior width between wheel arches 1 422
Volume (m3) 8 10 11.5 13 15 15 17

9
TECHNICAL DATA
Dimensions
SIDE DOOR
L1 L2 L3 L4
H1 H1 H2 H2 H3 H2 H3
P Height of the sliding side door 1 485 1 485 1 755
Q Width of the sliding side door 1 075 1 250

9
TECHNICAL DATA
Dimensions
CHASSIS CAB
L1 L2 L2S L3 L4
L Overall length 4 908 5 358 5 708 5 943 6 208
A Wheelbase 3 000 3 450 3 800 4 035 4 035
B Front overhang 948
C Rear overhang 960 1 225
D Overall width (excluding mirrors) 2 050
- Passable width 2 207
- Max passable width 2 350
E Width of front tracks 1 810
- Width of rear tracks 1 790
- Width of increased rear tracks 1 980
F Overall height 2 153
- Max passable height 3 500

153
9
TECHNICAL DATA
Diesel engines

DIESEL ENGINES AND GEARBOXES

2.2 HDi 100 2.2 HDi 120 3 HDi 160

Gearbox Manual Manual
Gears 5 6 6
Power (bhp) 100 120 157
EU standard maximum power (kW) 74 88 115.5
Cubic capacity (cm 3
) 2 198 2 198 2 999
Bore x stroke (mm) 86 x 94.6 86 x 94.6 95.8 x 104
Max power engine speed (rpm) 2 900 3 500 3 600
EU standard max torque (daNm) 25 32 40
Max torque engine speed (rpm) 1 500 2 000 1 600
Fuel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes
Engine oil capacity (in litres) 6.4 6.4 -

155
9
TECHNICAL DATA
Diesel engines

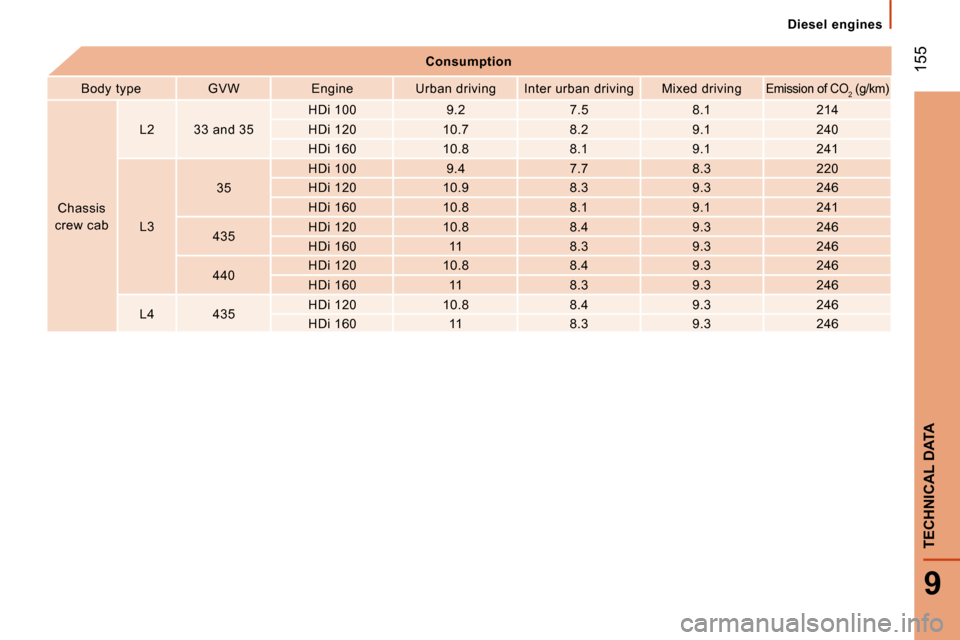

Consumption
Body type GVW Engine Urban driving Inter urb an driving Mixed driving
Emission of CO
2 (g/km)
Chassis
crew cab L2 33 and 35
HDi 100 9.2 7.5 8.1 214
HDi 120 10.7 8.2 9.1 240
HDi 160 10.8 8.1 9.1 241
L3 35
HDi 100 9.4 7.7 8.3 220
HDi 120 10.9 8.3 9.3 246
HDi 160 10.8 8.1 9.1 241
435 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
440 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
L4 435 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246

157
9
TECHNICAL DATA
Diesel engines

Consumption
Body type GVW Engine Urban driving In ter urban driving Mixed driving
Emission of CO
2 (g/km)
Van L3H2
33 and 35
HDi 100 9.4 7.7 8.3 220
HDi 120 10.9 8.3 9.3 246
HDi 160 10.8 8.1 9.1 241
435 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
440 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
L3H3 33 and 35
HDi 100 9.4 7.7 8.3 220
HDi 120 10.9 8.3 9.3 246
HDi 160 10.8 8.1 9.1 241
435 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
440 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
L4H2 435
HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
440 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
L4H3 435
HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246
440 HDi 120 10.8 8.4 9.3 246
HDi 160 11 8.3 9.3 246

159
9
TECHNICAL DATA
Weights
WEIGHTS

Dimensions
Names
GVW in kg
L1 H1 30
3 000
33 3 300
L2 H1 33
3 300
35 3 500
L2 H2 30
3 000
33 3 300
35 3 500
L3 H2 30
3 000
35 3 500
435 3 500
440 4 000
L3 H3 30
3 000
35 3 500
435 3 500
440 4 000
L4 H3 440 4 000
Consult your registration certificate.
In each country, it is imperative that the towed l
oads permitted by local legislation are complied wi th. For information regarding your
vehicle's towing possibilities and its gross train weight, contact a CITROËN dealer.
The speed of a towing vehicle must not exceed 60 m ph (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reducti on in the performance of the vehicle to protect the engine. When the exterior
temperature is higher than 37 °C, limit the weight towed.
This table indicates the gross vehicle weight (GVW ) according to the dimensions and names of the vehi cle.
