ERGONOMICS and COMFORT
3
75
Seats
T h e c e n t r e s e a t m a y b e i n s t a l l e d
i n t h e c e n t r a l p o s i t i o n i n r o w 2 a n d
i n t h e l e f t s i d e p o s i t i o n i n r o w 3 .

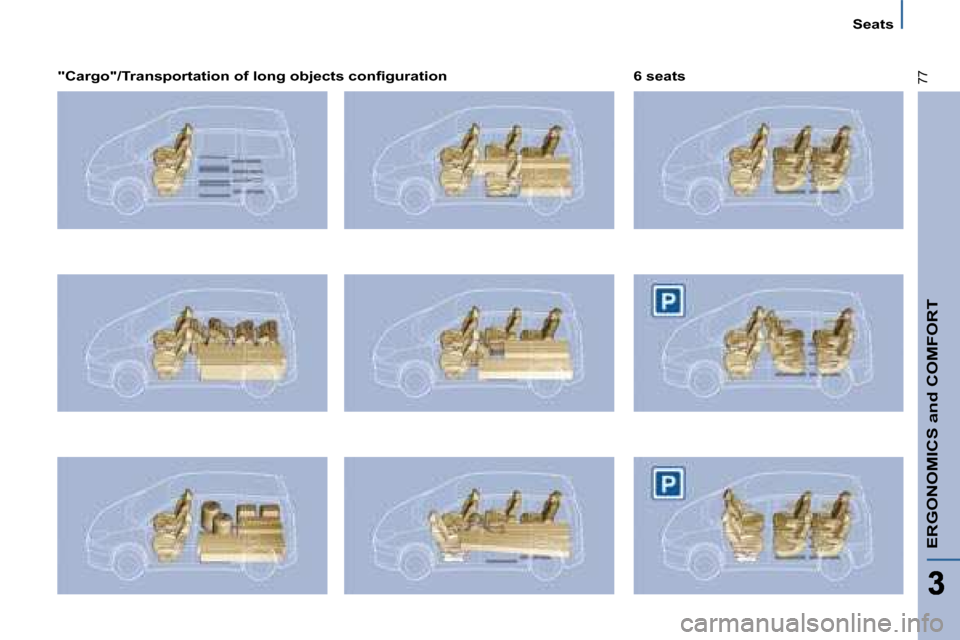

MODULARITY AND POSSIBLE SEAT CONFIGURATIONS
Examples of various
arrangements combining
pleasure and practicality: T h e v a r i o u s o p e r a t i o n s m o d i f y i n g
t h e e x i s t i n g c o n fi g u r a t i o n m u s t
b e c a r r i e d o u t w i t h t h e e n g i n e
s w i t c h e d o f f ( S e e s e c t i o n o n " S e a t s " ) .
I t i s p r o h i b i t e d t o b e i n a r e a r w a r d s
facing position when the vehicle is
b e i n g d r i v e n .
T h e r o t a t i n g o f t h e s e a t s d e p e n d s o n
t h e v e h i c l e e q u i p m e n t a n d t h e c o u n t r y .
5 seats with picnic position when
parked 5 seat arrangements
Page 72 of 250
76
Seats
7 seats with access to row 3 8 seats with bench seat
Page 73 of 250
ERGONOMICS and COMFORT
77
Seats
" C a r g o " / T r a n s p o r t a t i o n o f l o n g o b j e c t s c o n fi g u r a t i o n 6 seats
Page 167 of 250
SAFETY
173
Seat belts
5
FRONT AND REAR SIDE SEAT
BELTS
The front seats and the rear side seats
o f r o w 2 a r e fi t t e d w i t h p r e - t e n s i o n e r s
a n d f o r c e l i m i t e r s . The lap strap must be positioned as
l o w a s p o s s i b l e o n t h e p e l v i s . T h e
chest strap must pass over the hollow
o f t h e s h o u l d e r .
Check that the seat belt is fastened
c o r r e c t l y b y p u l l i n g t h e s t r a p . The force-limiting device reduces the
pressure of the seat belt against the
chest of the occupant, so increasing
h i s p r o t e c t i o n .
A bag placed on the front
passenger seat or a pet sitting on
this seat may trigger the lighting of
t h i s w a r n i n g l i g h t .
SEAT BELTS
Front seat belt warning light
If the driver and/or front
passenger has/have not
fastened his/their seat belt,
t h i s w a r n i n g l i g h t c o m e s o n .
Then, at a speed in excess of
approximately 15 mph (25 km/h), it
fl a s h e s a c c o m p a n i e d b y a n a u d i b l e
signal of increasing volume (for
approximately 90 seconds) and a
m e s s a g e o n t h e d i s p l a y .
Row 2 rear side seat belts
For your comfort, if you are not using
the seat belt, slide the seat belt loop to
the upper stop to prevent the tongue
f r o m v i b r a t i n g .
To adjust the height
- To lower the attachment point,
squeeze control and slide it
d o w n w a r d s .
- To raise the attachment point, slide c o n t r o l u p w a r d s .
To fasten
- Pull the strap, then insert the b u c k l e i n t o t h e s t a l k .
- Check that the seat belt is secured c o r r e c t l y b y p u l l i n g t h e s t r a p . Inertia reel seat belts
T h e s e a r e fi t t e d w i t h a d e v i c e w h i c h
locks the seat belt automatically in
the event of an impact or emergency
b r a k i n g .
Safety in the event of a frontal impact
has been improved by the introduction
of pre-tensioning and force-limiting
s e a t b e l t s . D e p e n d i n g o n t h e
seriousness of the impact, the pre-
tensioning system instantly tightens the
s e a t b e l t s fi r m l y a g a i n s t t h e b o d y o f t h e
o c c u p a n t .
The pre-tensioning seat belts are
a r m e d w h e n t h e i g n i t i o n i s o n .
Row 3 rear side seat belts
T h e r o w 3 r e a r s i d e s e a t s a r e fi t t e d
with two seat belts which are both
three-point inertia reel belts with force
l i m i t e r .
Page 168 of 250
174
Seat belts Triggering of the pretensioners is
accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
c a r t r i d g e i n c o r p o r a t e d i n t h e s y s t e m .
The force limiter reduces the pressure
of the seat belt against the body of the
o c c u p a n t s . T h e e q u i p m e n t fi t t e d t o
these seat belts is operational when
t h e i g n i t i o n i s s w i t c h e d o n .
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a d e v i c e
which automatically locks the strap in
the event of a collision or emergency
b r a k i n g . Y o u c a n r e l e a s e t h e s e a t b e l t
a n d a l l o w t h e s t r a p t o r o l l u p . D o n o t i n v e r t t h e s e a t b e l t b u c k l e s a s
t h e y w i l l n o t f u l fi l t h e i r r o l e c o m p l e t e l y .
I f t h e s e a t s a r e fi t t e d w i t h a r m r e s t s , t h e
lap part of the seat belt should always
p a s s u n d e r t h e a r m r e s t .
Check that the seat belt is fastened
c o r r e c t l y b y p u l l i n g t h e s t r a p fi r m l y .
Good practice
Wherever you are seated in the
vehicle, always fasten your seat belt,
e v e n f o r s h o r t j o u r n e y s .
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n e r t i a
reel which automatically adjusts the
l e n g t h o f t h e s t r a p t o y o u r s i z e . T h e
seat belt is rolled up automatically
w h e n n o t i n u s e .
Ensure that the seat belt is rolled up
c o r r e c t l y a f t e r u s e .
After folding or moving a rear seat or
bench seat, ensure that the seat belt is
rolled up correctly in its compartment
and that the buckle is ready to
a c c o m m o d a t e t h e t o n g u e .
D e p e n d i n g o n t h e n a t u r e a n d
seriousness of any impact, the
pretensioning device may be triggered
b e f o r e a n d i n d e p e n d e n t l y o f i n fl a t i o n
o f t h e a i r b a g s . I t i n s t a n t l y t i g h t e n s
the seat belts against the body of the
o c c u p a n t s .
To install the seat belt, move the
tongue into position to insert it into the
b u c k l e .
Row 2 and 3 rear centre seat
belts
The row 2 rear centre seat and the
rear bench seat centre seat have an
integrated three-point inertia reel seat
b e l t .
The air bag warning light comes on
i f t h e p r e t e n s i o n e r s a r e t r i g g e r e d .
C o n s u l t a C I T R O Ë N d e a l e r .
In order to be effective, a seat belt
must:
- restrain one person only,
- must not be twisted, check by pulling in front of you with an even
movement,
- be tightened as close to the body a s p o s s i b l e .
The upper part of the seat belt should
be positioned in the hollow of the
s h o u l d e r .
The lap part should be placed as low
a s p o s s i b l e o n t h e p e l v i s . Recommendations for children:
- use a suitable child seat if the
passenger is less than 12 years old
o r s h o r t e r t h a n o n e m e t r e fi f t y ,
- never allow a child to travel on your lap, even with the seat belt
f a s t e n e d .
For further information regarding child
seats, refer to the "Children on board"
s e c t i o n o f c h a p t e r 5 .
In accordance with current safety
regulations, your CITROËN dealer
guarantees all work or any checks,
from testing to maintenance, on your
s e a t b e l t e q u i p m e n t .
Have the seat belts checked regularly
(even after a minor impact) by a
CITROËN dealer : they must not show
any signs of wear, cutting or fraying
and they must not be transformed or
m o d i fi e d .
Clean the seat belt straps with soapy
water or a textile cleaning product, sold
b y C I T R O Ë N d e a l e r s .
Page 169 of 250
SAFETY
175
Airbags
5
The air bags have been designed to
maximise the safety of the occupants
(with the exception of the centre
seats of rows 2 and 3) in the event
of a serious collision; they work in
conjunction with the force limiting seat
b e l t s .
In the event of a serious collision, the
electronic detectors record and analyse
the front and side impacts suffered in
the impact detection zones:
- in the event of a serious impact, t h e a i r b a g s i n fl a t e i n s t a n t l y a n d
protect the occupants of the
v e h i c l e .
Immediately after the impact, the air
b a g s d e fl a t e r a p i d l y , s o t h a t t h e y d o n o t
hinder the visibility of the occupants
n o r t h e i r p o s s i b l e e x i t f r o m t h e v e h i c l e . - in the event of a minor or rear
impact and in certain roll-over
conditions, the air bags will not
be deployed; the seat belt alone
i s s u f fi c i e n t t o p r o v i d e m a x i m u m
p r o t e c t i o n i n t h e s e s i t u a t i o n s .
The seriousness of the collision
depends on the nature of the obstacle
and the speed of the vehicle at the
m o m e n t o f i m p a c t . Air bags only operate when the
ignition is switched on.
T h i s e q u i p m e n t o n l y o p e r a t e s o n c e .
If a second impact occurs (during the
same or a subsequent accident), the
a i r b a g w i l l n o t o p e r a t e .
The triggering of an air bag or air bags
is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
c a r t r i d g e i n c o r p o r a t e d i n t h e s y s t e m .
This smoke is not harmful, but
sensitive individuals may experience
s o m e i r r i t a t i o n .
The noise of the detonation may result
in a slight loss of hearing for a short
t i m e .
AIR BAGS
It is imperative that the passenger
air bag is disarmed if a child seat
i s i n s t a l l e d f a c i n g r e a r w a r d s . R e f e r
to the "Children on board" section of
c h a p t e r 5 .
Page 172 of 250
SAFETY
175
Airbags
5
The air bags have been designed to
maximise the safety of the occupants
(with the exception of the centre
seats of rows 2 and 3) in the event
of a serious collision; they work in
conjunction with the force limiting seat
b e l t s .
In the event of a serious collision, the
electronic detectors record and analyse
the front and side impacts suffered in
the impact detection zones:
- in the event of a serious impact, t h e a i r b a g s i n fl a t e i n s t a n t l y a n d
protect the occupants of the
v e h i c l e .
Immediately after the impact, the air
b a g s d e fl a t e r a p i d l y , s o t h a t t h e y d o n o t
hinder the visibility of the occupants
n o r t h e i r p o s s i b l e e x i t f r o m t h e v e h i c l e . - in the event of a minor or rear
impact and in certain roll-over
conditions, the air bags will not
be deployed; the seat belt alone
i s s u f fi c i e n t t o p r o v i d e m a x i m u m
p r o t e c t i o n i n t h e s e s i t u a t i o n s .
The seriousness of the collision
depends on the nature of the obstacle
and the speed of the vehicle at the
m o m e n t o f i m p a c t . Air bags only operate when the
ignition is switched on.
T h i s e q u i p m e n t o n l y o p e r a t e s o n c e .
If a second impact occurs (during the
same or a subsequent accident), the
a i r b a g w i l l n o t o p e r a t e .
The triggering of an air bag or air bags
is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
c a r t r i d g e i n c o r p o r a t e d i n t h e s y s t e m .
This smoke is not harmful, but
sensitive individuals may experience
s o m e i r r i t a t i o n .
The noise of the detonation may result
in a slight loss of hearing for a short
t i m e .
AIR BAGS
It is imperative that the passenger
air bag is disarmed if a child seat
i s i n s t a l l e d f a c i n g r e a r w a r d s . R e f e r
to the "Children on board" section of
c h a p t e r 5 .
Page 174 of 250
SAFETY
177
Airbags
5
Side air bags
I f fi t t e d o n y o u r v e h i c l e , t h i s i s a s y s t e m
which protects the driver and front
passenger in the event of a serious
side impact in order to limit the risk of
i n j u r y t o t h e c h e s t .
Each side air bag is incorporated in the
f r o n t s e a t b a c k f r a m e , o n t h e d o o r s i d e . T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n
the front or rear occupant of the vehicle
a n d t h e w i n d o w s .
Impact detection zones
A. F r o n t i m p a c t z o n e .
B. S i d e i m p a c t z o n e . In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the air bag
m a y n o t b e t r i g g e r e d .
The air bag is not triggered in the event
o f a r e a r o r f r o n t c o l l i s i o n .
Operating fault
Curtain air bags
I f fi t t e d o n y o u r v e h i c l e , t h i s i s a
system which protects the driver and
passengers (with the exception of the
centre seats of rows 2 and 3) in the
event of a serious side impact in order
t o l i m i t t h e r i s k o f h e a d i n j u r i e s .
Each curtain air bag is incorporated
in the pillars and the upper part of the
p a s s e n g e r c o m p a r t m e n t .
Activation
It is triggered unilaterally in the event
of a serious side impact applied to
all or part of the side impact zone
B ,
perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside
t o w a r d s t h e i n s i d e o f t h e v e h i c l e .
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
c o r r e s p o n d i n g d o o r t r i m p a d . Activation
It is triggered at the same time as the
corresponding side air bag in the event
of a serious side impact applied to
all or part of the side impact zone
B ,
perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside
t o w a r d s t h e i n s i d e o f t h e v e h i c l e . If this warning light comes
on on the instrument panel,
accompanied by an audible
signal and a message on the
display, consult a CITROËN
dealer to have the system
c h e c k e d . T h e a i r b a g s m a y n o l o n g e r
be triggered in the event of a serious
i m p a c t .
