2008.5 Citroen C5 gearbox
[x] Cancel search: gearboxPage 1 of 306
22
1
I N S T R U M E N T S a n d C O N T R O L S
PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel grouping together the dials and vehicle operation indicator and warning lamps.
A. Fuel gauge
B. Indicator:
Page 122 of 306
124
9
D R I V I N G
Release
The electric parking brake releases
automatically and progressively
when you press the accelerator:
with a manual gearbox
( fi r s t gear or reverse gear engaged) ,
press down fully on the clutch
pedal then press on the accelera-
tor pedal and move off.
with an automatic gearbox , ac-
celerate with the selector in posi-
tion D , M or R .
Full release of the parking brake is
c o n fi r m e d b y : - the warning lamp P on
control A and on the in-
strument panel going out,
- the display of a message "parking brake released" on the instrument
panel screen.
When stationary, with the engine
running, do not press the accelerator
pedal unnecessarily (particularly
when starting the engine, including
in neutral), as you may release the
parking brake. Activation/Deactivation of the
automatic functions
The automatic application when the en-
gine is switched off and the automatic re-
lease when you press the accelerator can
be deactivated. Activation/deactivation is
p e r f o r m e d u s i n g t h e c o n fi g u r a t i o n m e n u
of the instrument panel screen. To do so,
s e l e c t " P e r s o n a l i s a t i o n / C o n fi g u r a t i o n /
D e fi n e t h e V e h i c l e p a r a m e t e r s / D r i v i n g
assistance/Automatic handbrake".
The deactivation of these
f u n c t i o n s i s c o n fi r m e d b y t h e
lighting of this warning lamp
on the instrument panel.
With the automatic functions deac-
tivated, the application and release
of the parking brake are done manu-
ally.
The deactivation of the auto-
matic functions is recommend-
ed in particularly cold conditions
(ice) and during towing (break-
down, caravan...).
Manual operation
Manual application/release of the
parking brake is always possible.
Application
With the vehicle stationary, to apply the
parking brake whether the engine is
running or off, pull on control A .
The application of the parking brake
i s c o n fi r m e d b y : - the lighting of the warning lamp on control A and of
warning lamp P on the in-
strument panel,
- the display of a message "parking brake applied" on the instrument
panel screen.
When the driver’s door is
opened with the engine run-
ning, a beep is heard and
a message displayed if the parking
brake has not been applied.
Page 123 of 306
124
9
D R I V I N G
Release
The electric parking brake releases
automatically and progressively
when you press the accelerator:
with a manual gearbox
( fi r s t gear or reverse gear engaged) ,
press down fully on the clutch
pedal then press on the accelera-
tor pedal and move off.
with an automatic gearbox , ac-
celerate with the selector in posi-
tion D , M or R .
Full release of the parking brake is
c o n fi r m e d b y : - the warning lamp P on
control A and on the in-
strument panel going out,
- the display of a message "parking brake released" on the instrument
panel screen.
When stationary, with the engine
running, do not press the accelerator
pedal unnecessarily (particularly
when starting the engine, including
in neutral), as you may release the
parking brake. Activation/Deactivation of the
automatic functions
The automatic application when the en-
gine is switched off and the automatic re-
lease when you press the accelerator can
be deactivated. Activation/deactivation is
p e r f o r m e d u s i n g t h e c o n fi g u r a t i o n m e n u
of the instrument panel screen. To do so,
s e l e c t " P e r s o n a l i s a t i o n / C o n fi g u r a t i o n /
D e fi n e t h e V e h i c l e p a r a m e t e r s / D r i v i n g
assistance/Automatic handbrake".
The deactivation of these
f u n c t i o n s i s c o n fi r m e d b y t h e
lighting of this warning lamp
on the instrument panel.
With the automatic functions deac-
tivated, the application and release
of the parking brake are done manu-
ally.
The deactivation of the auto-
matic functions is recommend-
ed in particularly cold conditions
(ice) and during towing (break-
down, caravan...).
Manual operation
Manual application/release of the
parking brake is always possible.
Application
With the vehicle stationary, to apply the
parking brake whether the engine is
running or off, pull on control A .
The application of the parking brake
i s c o n fi r m e d b y : - the lighting of the warning lamp on control A and of
warning lamp P on the in-
strument panel,
- the display of a message "parking brake applied" on the instrument
panel screen.
When the driver’s door is
opened with the engine run-
ning, a beep is heard and
a message displayed if the parking
brake has not been applied.
Page 130 of 306
131
9
D R I V I N G
5-SPEED MANUAL GEARBOX
Starting the vehicle
Check that the gear lever is in
neutral.
Do not touch the accelerator.
For Diesel engines: turn the
key to position M and wait until
the pre-heating warning lamp
switches off if it has come on.
Operate the starter, turning the
key until the engine starts (no
more than ten seconds).
In temperatures lower than 0 °C,
declutch whilst turning the starter
to facilitate starting.
Engaging reverse gear
Push the gear lever to the right
then rearwards.
Only engage reverse gear when the
vehicle is stationary with the engine
at idle.
6-SPEED MANUAL GEARBOX
Engaging reverse gear
Raise the ring A under the knob
and push the gear lever to the
left then forwards.
Only engage reverse gear when the
vehicle is stationary with the engine
at idle.
As a safety precaution and to facili-
tate starting of the engine:
- always select neutral,
- press the clutch pedal.
AUTOMATIC GEARBOX
A u t o m a t i c g e a r b o x w h i c h o f f e r s a
choice between the comfort of fully
automatic operation, enhanced by
the sport and snow programmes, or
manual gear changing.
Therefore, you have a choice of four
driving modes:
- automatic operation for elec-
tronic control of the gears by the
g e a r b o x ,
- the SPORT programme for a
more dynamic driving style,
- the SNOW programme to improve
driving when the grip is poor,
- manual operation for sequential
changing of the gears by the driver.
Page 131 of 306
131
9
D R I V I N G
5-SPEED MANUAL GEARBOX
Starting the vehicle
Check that the gear lever is in
neutral.
Do not touch the accelerator.
For Diesel engines: turn the
key to position M and wait until
the pre-heating warning lamp
switches off if it has come on.
Operate the starter, turning the
key until the engine starts (no
more than ten seconds).
In temperatures lower than 0 °C,
declutch whilst turning the starter
to facilitate starting.
Engaging reverse gear
Push the gear lever to the right
then rearwards.
Only engage reverse gear when the
vehicle is stationary with the engine
at idle.
6-SPEED MANUAL GEARBOX
Engaging reverse gear
Raise the ring A under the knob
and push the gear lever to the
left then forwards.
Only engage reverse gear when the
vehicle is stationary with the engine
at idle.
As a safety precaution and to facili-
tate starting of the engine:
- always select neutral,
- press the clutch pedal.
AUTOMATIC GEARBOX
A u t o m a t i c g e a r b o x w h i c h o f f e r s a
choice between the comfort of fully
automatic operation, enhanced by
the sport and snow programmes, or
manual gear changing.
Therefore, you have a choice of four
driving modes:
- automatic operation for elec-
tronic control of the gears by the
g e a r b o x ,
- the SPORT programme for a
more dynamic driving style,
- the SNOW programme to improve
driving when the grip is poor,
- manual operation for sequential
changing of the gears by the driver.
Page 160 of 306
160
10
C H E C K S
Brake pads Brake wear depends on
the style of driving, par-
ticularly in the case of ve-
hicles used in town, over
short distances. It may be
necessary to have the condition of
the brakes checked, even between
vehicle services.
Unless there is a leak in the circuit, a
d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s
that the brake pads are worn.
Manual gearbox
T h e g e a r b o x d o e s n o t r e -
quire any maintenance (no
oil change).
Automatic gearbox T h e g e a r b o x d o e s n o t r e -
quire any maintenance (no
oil change). Brake disc wear
For information relating to
checking the brake disc
wear, contact a CITROËN
dealer.
Parking brake If the parking brake travel is
too long or if a loss of effec-
tiveness of this system is
noticed, the parking brake
must be adjusted, even be-
tween two services.
This system must be checked by a
CITROËN dealer. Only use products recom-
mended by CITROËN or
products of equivalent
q u a l i t y a n d s p e c i fi c a t i o n s .
In order to optimise the operation
of units as important as the braking
system, CITROËN selects and of-
f e r s v e r y s p e c i fi c p r o d u c t s .
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited .
Refer to the Maintenance and
Warranty Guide for the details of the
level checking interval for this com-
ponent.
Refer to the Maintenance and
Warranty Guide for details of the
level checking interval for this com-
ponent.
Page 195 of 306
192
12
T E C H N I C A L D A T A
MODELS:
ENGINES AND GEARBOXES
Model codes:
RD... RW...
6FYC RFJC RFJF RFJC/FF XFVJ
PETROL ENGINES
1.8 l. 16V
127
hp
2 l. 16V 143
hp
B i o fl e x 2 l .
16V 143
hp 3 l. V6 24V
215 hp
Cubic capacity (cm 3
) 1 749 1 997 1 997 2 946
B o r e x s t r o k e ( m m ) 8 2 . 7 x 8 1 . 4 8 5 x 8 8 8 5 x 8 8 8 7 x 8 2 . 6
E U s t a n d a r d m a x i m u m p o w e r ( k W ) 92 103 103 155
M a x i m u m p o w e r e n g i n e s p e e d ( r p m ) 6 000 6 000 6 000 6 000
E U s t a n d a r d m a x i m u m t o r q u e ( N m ) 170 200 200 290
M a x i m u m t o r q u e e n g i n e s p e e d ( r p m ) 3 750 4 000 4 000 3 750
Fuel Unleaded Unleaded Unleaded/E85 Unleaded
Catalytic converter Yes Yes Yes Yes
GEARBOXES Manual
(5-speed) Manual
(5-speed) Auto.
(4-speed) Manual
(5-speed) Auto.
(6-speed)
OIL CAPACITIES (in litres)
Engine (with cartridge replacement)
5 5 5 - 4.75
G e a r b o x - F i n a l d r i v e - - - - -
Page 196 of 306

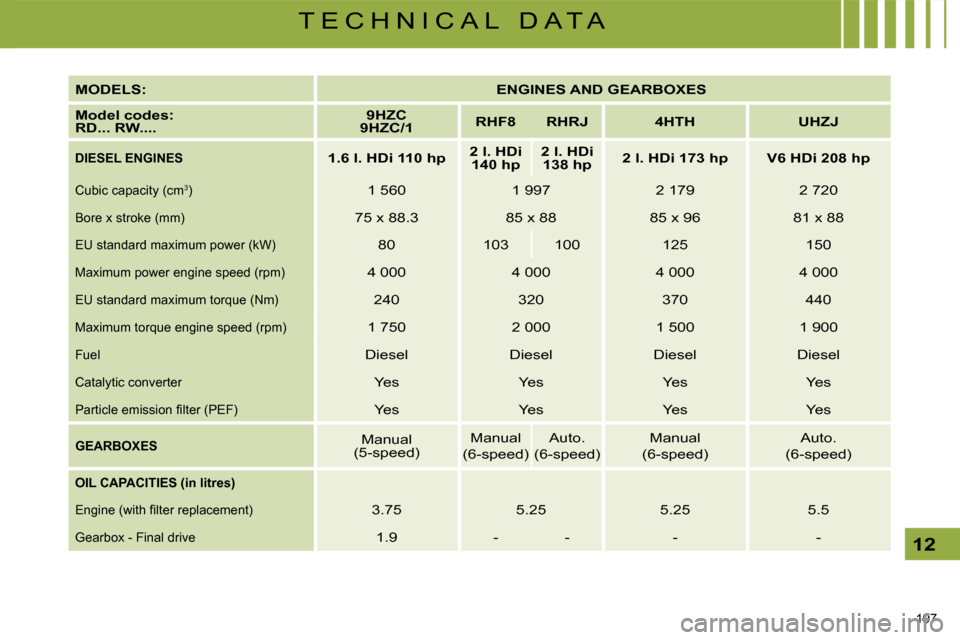

197
12
T E C H N I C A L D A T A
MODELS:
ENGINES AND GEARBOXES
Model codes:
RD... RW....
9HZC
9HZC/1
RHF8 RHRJ 4HTH UHZJ
DIESEL ENGINES
1.6 l. HDi 110
hp
2 l. HDi
140
hp
2 l. HDi
138
hp
2 l. HDi 173
hp V6 HDi 208
hp
Cubic capacity (cm 3
) 1 560 1 997 2 179 2 720
B o r e x s t r o k e ( m m ) 7 5 x 8 8 . 3 8 5 x 8 8 8 5 x 9 6 8 1 x 8 8
E U s t a n d a r d m a x i m u m p o w e r ( k W ) 80 103 100 125 150
M a x i m u m p o w e r e n g i n e s p e e d ( r p m ) 4 000 4 000 4 000 4 000
E U s t a n d a r d m a x i m u m t o r q u e ( N m ) 240 320 370 440
M a x i m u m t o r q u e e n g i n e s p e e d ( r p m ) 1 750 2 000 1 500 1 900
Fuel Diesel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes Yes
P a r t i c l e e m i s s i o n fi l t e r ( P E F ) Yes Yes Yes Yes
GEARBOXES Manual
(5-speed) Manual
(6-speed) Auto.
(6-speed) Manual
(6-speed) Auto.
(6-speed)
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t )
3.75 5.25 5.25 5.5
G e a r b o x - F i n a l d r i v e 1.9 - - - -
