2008.5 Citroen C5 tourer
[x] Cancel search: tourerPage 175 of 306
174
11

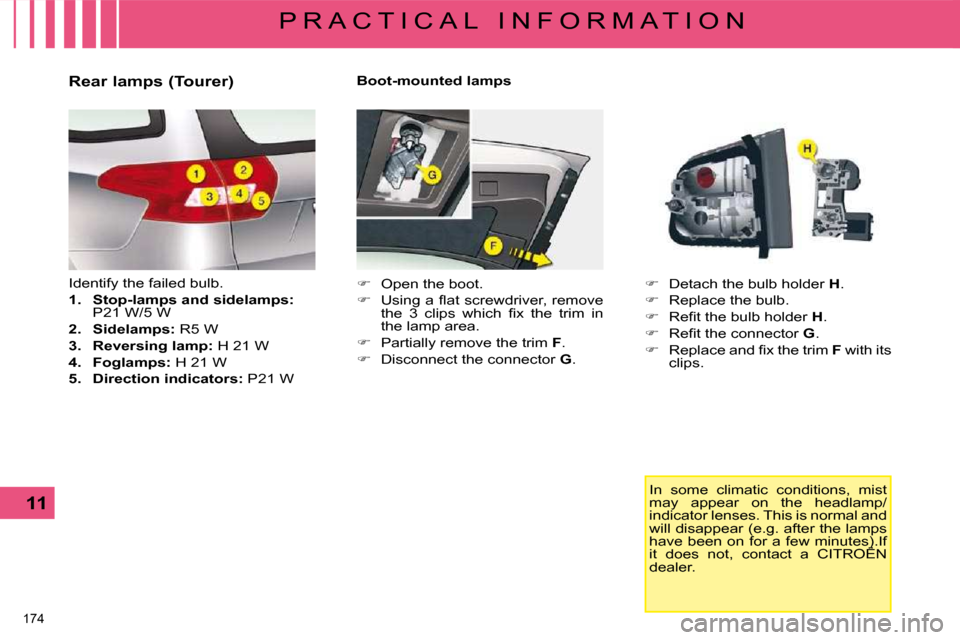

P R A C T I C A L I N F O R M A T I O N Boot-mounted lamps
Open the boot.
U s i n g a fl a t s c r e w d r i v e r , r e m o v e
t h e 3 c l i p s w h i c h fi x t h e t r i m i n
the lamp area.
Partially remove the trim F .
Disconnect the connector G .
Rear lamps (Tourer)
Identify the failed bulb.
1. Stop-lamps and sidelamps:
P21 W/5 W
2. Sidelamps: R5 W
3. Reversing lamp: H 21 W
4. Foglamps: H 21 W
5. Direction indicators: P21 W
In some climatic conditions, mist
may appear on the headlamp/
indicator lenses. This is normal and
will disappear (e.g. after the lamps
have been on for a few minutes). If
it does not, contact a CITROËN
dealer.
Detach the bulb holder H .
Replace the bulb.
R e fi t t h e b u l b h o l d e r H .
R e fi t t h e c o n n e c t o r G .
R e p l a c e a n d fi x t h e t r i m F with its
clips.
Page 178 of 306
177
11
P R A C T I C A L I N F O R M A T I O N
Interior lamps
Roof lamps
Unclip the transparent cover of
the roof lamp to reach the bulb.
Bulb: W 5 W
Rear reading lamps (Tourer)
Detach the cover of the reading
lamp to access the bulb.
Bulb: W 5 W
Map reading lamp
Detach the cover.
If necessary, detach the partition
of the affected map reading lamp. Boot lamp
Detach the cover and use a
W 5 W bulb.
Pavement lighting
Detach the cover and use a
W 5 W bulb. Floor lighting
Detach the cover and use a
W 5 W bulb.
Glovebox
Detach the cover and use a
W 5 W bulb.
Page 179 of 306
177
11
P R A C T I C A L I N F O R M A T I O N
Interior lamps
Roof lamps
Unclip the transparent cover of
the roof lamp to reach the bulb.
Bulb: W 5 W
Rear reading lamps (Tourer)
Detach the cover of the reading
lamp to access the bulb.
Bulb: W 5 W
Map reading lamp
Detach the cover.
If necessary, detach the partition
of the affected map reading lamp. Boot lamp
Detach the cover and use a
W 5 W bulb.
Pavement lighting
Detach the cover and use a
W 5 W bulb. Floor lighting
Detach the cover and use a
W 5 W bulb.
Glovebox
Detach the cover and use a
W 5 W bulb.
Page 182 of 306
179
11
P R A C T I C A L I N F O R M A T I O N
FUSEBOX A Table of fuses
Fuse N° Rating
Function
G29 - -
G30 5 A Heated rear view mirrors
G31 5 A Rain and brightness sensor
G32 5 A Seat belt not fastened warning lamps
G33 5 A Electrochrome rear view mirrors
G34 20 A Sunroof (saloon)
G35 5 A Passenger door lighting - passenger rear view mirror adjustment
G36 30 A Electric tailgate (tourer)
G37 20 A Heated front seats
G38 30 A Driver’s electric seat
G39 30 A P a s s e n g e r ’ s e l e c t r i c s e a t - H I F I a m p l i fi e r
G40 3 A Trailer relay unit supply
FUSEBOX B
Fuse N° Rating
Function
G36
15 A 6 s p e e d a u t o m a t i c g e a r b o x
5 A 4 s p e e d a u t o m a t i c g e a r b o x
G37 10 A Daytime-running lamps - Diagnostic socket
G38 3 A ESP
G39 10 A Hydraulic suspension
G40 3 A STOP switch
Page 183 of 306
180
11
P R A C T I C A L I N F O R M A T I O N
FUSEBOX C
Fuse N° Rating
Function
F1 15 A Rear screen wipe (Tourer)
F2 30 A Locking and deadlocking relay
F3 5 A Airbags
F4 10 A A u t o m a t i c g e a r b o x - a d d i t i o n a l h e a t e r u n i t ( D i e s e l ) - e l e c t r o c h r o m e r e a r v i e w m i r r o r s
F5 30 A Front window - sun roof - passenger door lighting - passeng er rear view mirror adjustment
F6 30 A Rear window
F7 5 A V a n i t y m i r r o r l i g h t i n g - G l o v e b o x l i g h t i n g - i n t e r i o r l a m p s - t o r c h ( t o u r e r )
F8 20 A R a d i o - C D c h a n g e r - C o n t r o l s a t t h e s t e e r i n g w h e e l - D i s p l a
y - D e fl a t i o n d e t e c t i o n - E l e c t r i c
boot ECU
F9 30 A Cigar-lighter - front 12 V socket
F10 15 A Alarm - Controls on the steering wheel, signalling and scre en wipe controls
F11 15 A Low current ignition switch
F12 15 A Driver’s electric seat - instrument panel - seat belt not fasten
ed warning lamps -air
conditioning controls
F13 5 A Engine relay unit - Hydraulic suspension pump cut-off relay - a irbag ECU supply
F14 15 A Rain and brightness sensor - parking assistance - passenger’s electri
c seat - trailer relay
u n i t - H I F I a m p l i fi e r E C U - H a n d s - f r e e k i t - L a n e D e p a r t u r e W a r n i n g S y s t e m
F15 30 A Locking and deadlocking relay
F17 40 A H e a t e d r e a r s c r e e n - e x t e r i o r h e a t e d r e a r v i e w m i r r o r s
FSH SHUNT PARK SHUNT
Page 189 of 306
186
P R A C T I C A L I N F O R M A T I O N
TOWING THE VEHICLE
Procedure for having your vehicle
towed or for towing another vehicle
using a removable towing eye.
Access to the tools
The towing eye is installed in the
j a c k b o x p l a c e d i n t h e s p a r e w h e e l .
To gain access to it:
open the boot,
r a i s e t h e fl o o r ,
remove the towing eye from the
j a c k b o x . Towing your vehicle
On the front bumper, unclip the
cover by pressing at the top.
Screw the towing eye in fully.
Attach the towing bar.
Switch on the hazard warning
lamps on the towed vehicle.
Place the gear lever in neutral
(position N on the automatic
g e a r b o x ) . Towing another vehicle
On the rear bumper, unclip the
cover by pressing:
- on the right (Saloon),
- at the bottom (Tourer).
Screw the towing eye in fully.
Attach the towing bar.
Switch on the hazard warning
lamps on the towed vehicle.
Failure to observe this special con-
dition could result in damage to
certain braking components and
the absence of braking assistance
t h e n e x t t i m e t h e e n g i n e i s s t a r t e d . When towing with all four wheels
on the ground, always use a towing
bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
Page 198 of 306
194
12
T E C H N I C A L D A T A
FUEL
CONSUMPTION (TOURER) In accordance with directive 80/1268/CEE
Petrol
engines
Gearboxes
Model codes:
RW...
Urban
Litres
/100 km
(
mpg
)
Extra
-urban
Litres
/100 km
(
mpg
)
Mixed
Litres
/100 km
(
mpg
)
Emission of
CO 2 by weight
(g/km)
1.8 l. 16V
127
hp
Manual 6FYC 11.1 (25.4) 6.3 (44.8) 8.1 (34.9) 192
2 l. 16V
143
hp
Manual RFJC 12.1 (23.3) 6.4 (44.1) 8.5 (33.2) 200
Auto. RFJF 12.8 (22.1) 6.8 (41.5) 9 (31.4) 214
B i o fl e x 2 l .
16V 143
hp
Manual RFJC/FF 12.1 (23.3) * 6.4 (44.1) * 8.5 (33.2) * 200
*
15.6 (18.1) ** 9.2 (30.7) ** 11.5 (24.6) ** 191 **
3 l. V6 24V
215
hp
Auto. XFVJ 15.7 (18.0) 7.6 (37.2) 10.6 (26.6) 250
T h e f u e l c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These fuel consumption values were established in accordance wi th Directive 80/1268/CEE. They may vary depending
o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e a n d
the use of equipment.
* Unleaded.
** E85.
Page 200 of 306
199
12
T E C H N I C A L D A T A
FUEL
CONSUMPTION (TOURER) In accordance with directive 80/1268/CEE
Diesel
engines
Gearboxes
Model codes:
RW...
Urban
Litres
/100 km
(
mpg
)
Inter-urban
Litres
/100 km
(
mpg
)
Mixed
Litres
/100 km
(
mpg
)
Emission of
CO 2 by weight
(g/km)
1.6 l. HDi
110
hp
Airdream
Manual 9HZC/1 6.6 (42.8) 4.6 (61.4) 5.3 (53.3) 140
1.6 l. HDi
110
hp
Manual 9HZC 7.4 (38.2) 4.8 (58.9) 5.7 (49.6) 150
2 l. HDi 140
hp Manual RHF8 7.6 (37.2) 4.9 (57.6) 5.9 (47.9) 155
2 l. HDi 138
hp Auto. RHRJ 10.0 (28.2) 5.6 (50.4) 7.2 (39.2) 191
2 l. HDi 173
hp Manual 4HTH 8.9 (31.7) 5.3 (53.3) 6.6 (42.8) 175
V6 HDi 208
hp Auto. UHZJ 11.9 (23.7) 6.5 (43.5) 8.5 (33.2) 225
T h e f u e l c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These fuel consumption values were established in accordance wi th Directive 80/1268/CEE. They may vary depending
o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e a n d
the use of accessories.
