Page 179 of 330
144
IX
D R I V I N G
Optional function controls
1. Pick up/Hang up the telephone
(see "NaviDrive" instructions).
2. Rheostat for dashboard lighting.
3. Start of voice recognition (see
chapter "Audio" or "NaviDrive"
instructions).
4. Personalisation button:
- courtesy light on/off or
- diagnostics or
- personalisation of the display- ing of information on the in-
strument panel or
- choice of background colour for the instrument panel.
To view the personalisation menu via this button, press it
for more than two seconds.
5. Air recirculation. Multifunction screen controls
A. Selection of the type of informa-
tion to be displayed on the right
of the screen (radio, trip compu-
ter, navigation/guidance…).
For the multifunction screen A, choice of activation/deactivation
of your functions and adjustment
choices.
B. Access to the "Main Menu" * .
C. Validation of the function chosen
o r o f t h e v a l u e m o d i fi e d .
Pick up/Hang up (see chapter "Audio").
D. Scrolling in the multifunction
screen.
E. Cancellation of the current opera-
tion or return to the previous dis-
play.
* To comply with legislation in certain countries, the "Menu" control may
be deactivated while the vehicle is
in motion.
Page 262 of 330
4

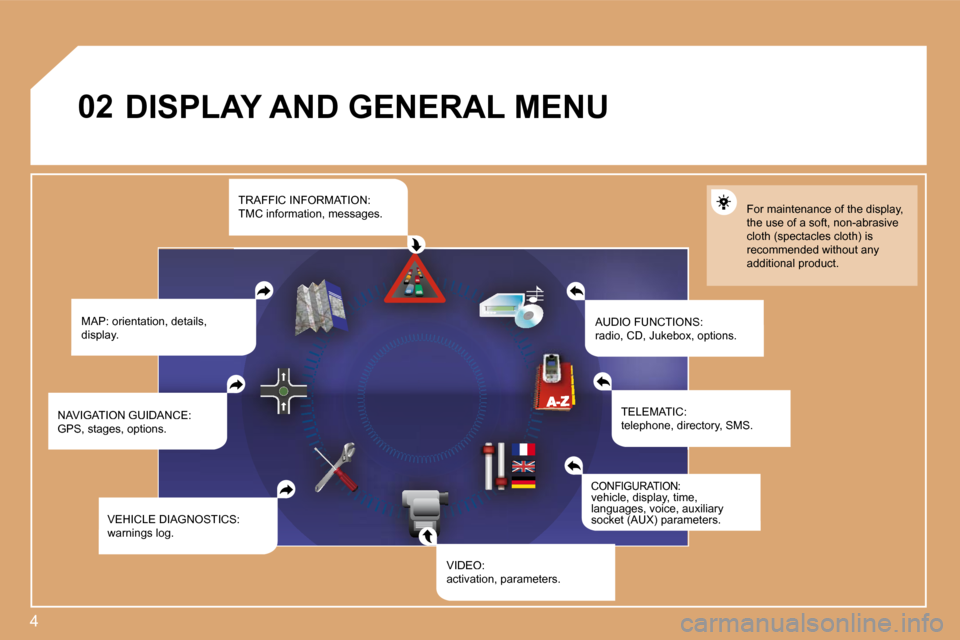

0 2 DISPLAY AND GENERAL MENU
MAP: orientation, details, display. AUDIO FUNCTIONS: radio, CD, Jukebox, options.
For maintenance of the display, the use of a soft, non-abrasive c l o t h ( s p e c t a c l e s c l o t h ) i s recommended without any additional product.
TELEMATIC: telephone, directory, SMS.
CONFIGURATION: vehicle, display, time, l a n g u a g e s , v o i c e , a u x i l i a r y s o c k e t ( A U X ) p a r a m e t e r s .
VIDEO: activation, parameters.
VEHICLE DIAGNOSTICS: w a r n i n g s l o g .
NAVIGATION GUIDANCE: G P S , s t a g e s , o p t i o n s .
TRAFFIC INFORMATION: T M C i n f o r m a t i o n , m e s s a g e s .
Page 297 of 330
39
1
2
2
2
1
1
1
Press the MENU button for more than 2 seconds to access the f o l l o w i n g fl o w c h a r t .
V O I C E C O M M A N D S L I S T
Press the Music button several times in succession to access the f o l l o w i n g s e t t i n g s .
A U T O V O L U M E C O R R E C T I O N
Each audio source (Radio, CD, MP3, J u k e b o x , C D c h a n g e r ) h a s i t s o w n s e p a r a t e s e t t i n g s .
AUDIO/TELEPHONE DIAGNOSTICS
G P S C O V E R A G E
UNIT BACKUP POWER
UNIT DESCRIPTION
N A V I G A T I O N D E M O N S T R A T I O N
S E R V I C E S C O N F I G U R A T I O N
LOUDNESS CORRECTION TREBLE BASS MUSICAL AMBIENCE
F R - R R B A L A N C E L H - R H B A L A N C E
Page 330 of 330
2929
QUESTION SOLUTIONRESPONSE
The TRAFFIC INFO box is ticked. However, c e r t a i n t r a f fi c j a m s along the route are not indicated in real time.
On starting, it is several minutes before the system begins to receive the t r a f fi c i n f o r m a t i o n . W a i t u n t i l t h e t r a f fi c i n f o r m a t i o n i s b e i n g r e c e i v e d c o r r e c t l y ( d i s p l a y i n g o f t h e t r a f fi c i n f o r m a t i o n symbols on the map).
I n c e r t a i n c o u n t r i e s , o n l y m a j o r r o u t e s ( m o t o r w a y s , . . . ) a r e l i s t e d f o r t h e t r a f fi c i n f o r m a t i o n .
The time taken to calculate a route sometimes seems longer than usual.
This phenomenon is normal. The system is d e p e n d e n t o n t h e t r a f fi c i n f o r m a t i o n a v a i l a b l e .
The performance of the system may slow down tempor arily if a CD/DVD is being copied onto the Jukebox at the same time as a route is being calculated.
Wait until the CD/DVD has been copied or stop the copying before starting the guidance function.
The altitude is not displayed. On starting, the initialisation of the GPS may take up to 3 minutes to receive more than 4 satellites correctly. Wait until the system has started up completely. Check that there is a GPS coverage of at least 4 satellites (long press on the MENU button, then select AUDIO/TELEPHONE DIAGNOSTICS, then GPS COVERAGE).
Depending on the geographical environment (tunnel, ...) or the weather, the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system is dependent on the conditions of reception of the GPS signal.
The route calculation is not successful. T h e e x c l u s i o n c r i t e r i a m a y c o n fl i c t w i t h t h e c u r r e n t l o c a t i o n ( e x c l u s i o n o f toll roads on a toll motorway). Check the exclusion criteria.
There is a long waiting time after inserting a CD or SD card.
When a new medium is inserted, the system reads a certain amount of data (directory, title, artist, etc.). This may take a few seconds. This phenomenon is normal.
I cannot connect my Bluetooth telephone. The telephone's Bluetooth function may be deactiva ted or the equipment may not be visible. - Check that your telephone's Bluetooth function is activated. - Check that your telephone is visible.
