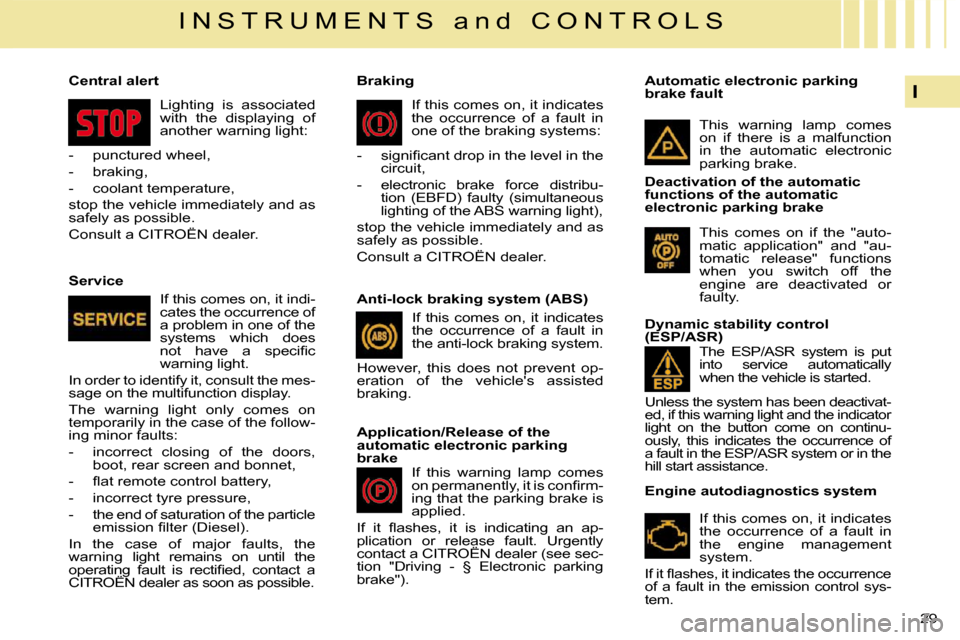

29
I
I N S T R U M E N T S a n d C O N T R O L S
Lighting is associated
with the displaying of
another warning light:
Service If this comes on, it indi-
cates the occurrence of
a problem in one of the
systems which does
n o t h a v e a s p e c i fi c
warning light.
In order to identify it, consult the mes-
sage on the multifunction display.
The warning light only comes on
temporarily in the case of the follow-
ing minor faults:
- incorrect closing of the doors, boot, rear screen and bonnet,
- fl a t r e m o t e c o n t r o l b a t t e r y ,
- incorrect tyre pressure,
- the end of saturation of the particle e m i s s i o n fi l t e r ( D i e s e l ) .
In the case of major faults, the
warning light remains on until the
o p e r a t i n g f a u l t i s r e c t i fi e d , c o n t a c t a
CITROËN dealer as soon as possible. Braking
If this comes on, it indicates
the occurrence of a fault in
one of the braking systems:
- s i g n i fi c a n t d r o p i n t h e l e v e l i n t h e circuit,
- electronic brake force distribu- tion (EBFD) faulty (simultaneous
lighting of the ABS warning light),
stop the vehicle immediately and as
safely as possible.
Consult a CITROËN dealer.
Application/Release of the
automatic electronic parking
brake
If this warning lamp comes
o n p e r m a n e n t l y , i t i s c o n fi r m -
ing that the parking brake is
applied.
I f i t fl a s h e s , i t i s i n d i c a t i n g a n a p -
plication or release fault. Urgently
contact a CITROËN dealer (see sec-
tion "Driving - § Electronic parking
brake"). Automatic electronic parking
brake fault
This warning lamp comes
on if there is a malfunction
in the automatic electronic
parking brake.
Deactivation of the automatic
functions of the automatic
electronic parking brake
This comes on if the "auto-
matic application" and "au-
tomatic release" functions
when you switch off the
engine are deactivated or
faulty.
Dynamic stability control
(ESP/ASR) The ESP/ASR system is put
into service automatically
when the vehicle is started.
Unless the system has been deactivat-
ed, if this warning light and the indicator
light on the button come on continu-
ously, this indicates the occurrence of
a fault in the ESP/ASR system or in the
hill start assistance.
Engine autodiagnostics system
If this comes on, it indicates
the occurrence of a fault in
the engine management
system.
I f i t fl a s h e s , i t i n d i c a t e s t h e o c c u r r e n c e
of a fault in the emission control sys-
tem.
Central alert
- punctured wheel,
- braking,
- coolant temperature,
stop the vehicle immediately and as
safely as possible.
Consult a CITROËN dealer.
Anti-lock braking system (ABS) If this comes on, it indicates
the occurrence of a fault in
the anti-lock braking system.
However, this does not prevent op-
eration of the vehicle's assisted
braking.
Page 29 of 330
30
I
I N S T R U M E N T S a n d C O N T R O L S Air bags If this comes on, it indicates
the occurrence of a fault in
one of the air bag or seat
belt pretensioner systems.
Maximum coolant temperature
If this comes on, it indicates
that the temperature in the
cooling system is too high.
Stop the vehicle immediately
and as safely as possible.
Low fuel level When the tank is full, all the
bars are lit up.
If the fuel low warning lamp
comes on accompanied by
an audible signal and a message on
the multifunction screen, there are ap-
proximately 7 litres of fuel remaining
i n t h e t a n k a n d 2 o r 3 b a r s fl a s h i n
the instrument panel.
When the last bar goes out, there
are approximately 2 litres of fuel
remaining in the tank.
A control located on the panel to the
right of the steering wheel allows
y o u t o o p e n t h e f u e l fl a p f r o m i n s i d e
the vehicle.
Battery charge
If this comes on, it indicates
the occurrence of a fault in
the battery charging circuit
(dirty or loose terminals, slack
or cut alternator belt, ...). Door open
A door, the boot or the rear
screen is open:
-
if the speed is below 6 mph (10 km/h), this
warning light comes on continuously.
- if the speed is higher than 6 mph (10 km/h), this warning light comes on continuously,
accompanied by an audible signal.
Seat belt not fastened/
unfastened
This warning lamp informs
you if the driver’s or front
passenger’s seat belt is
not fastened (depending
on model), and if the front
passenger’s (depending on
model) or the second row
passengers’ seat belts are
unfastened. The lit up positions rep-
resent those whose seat belts are
not fastened/unfastened. Seat belts unfastened during the
journey:
- the point corresponding to the
seat position with seat belt un-
fastened lights up between 0 and
20 km/h. Above 20 km/h (approx.
1 2 m p h ) , i t fl a s h e s a c c o m p a n i e d
by a sound signal for around
120 seconds. The sound signal
stops when the ignition is switched
off or if a door is opened.
Depending on model, the front pas-
s e n g e r s e a t m a y b e fi t t e d w i t h a
presence sensor; the correspond-
ing warning lamp will only come on
if the seat is occupied and the seat
belt not fastened.
Driver’s or front passenger’s seat belt
not fastened with presence sensor:
-
the warning lamp lights up between
0 and 20 km/h. Above 20 km/h
( a p p r o x . 1 2 m p h ) , i t fl a s h e s a c c o m -
panied by a message on the multi-
function screen and a sound signal
for around 120 seconds
.
Rear passengers’ or front passen-
ger’s seat belt not fastened without
presence sensor:
-
when the ignition is switched on, the
points corresponding to the seat po-
sitions with seat belts not fastened
remain lit up for 30 seconds.
Page 194 of 330
160
X
C H E C K S
PETROL ENGINES
T h e y a l l o w y o u a c c e s s f o r c h e c k i n g t h e l e v e l o f t h e v a r i o u s fl u i d s a n d f o r r e p l a c i n g c e r t a i n c o m p o n e n t s .
1. Screenwash and headlamp
wash reservoir.
2. Coolant reservoir.
3. B r a k e fl u i d r e s e r v o i r .
4. Battery/Fuses.
5. Fuse box.
6. Dipstick.
7. E n g i n e o i l fi l l e r c a p .
Page 195 of 330
161
X
C H E C K S * According to engine.
DIESEL ENGINES
T h e y a l l o w y o u a c c e s s f o r c h e c k i n g t h e l e v e l o f t h e v a r i o u s fl u i d s , f o r r e p l a c i n g c e r t a i n c o m p o n e n t s a n d f o r r e p r i m i n g t h e f u e l .
1. Screenwash and headlamp
wash reservoir.
2. Coolant reservoir.
3. B r a k e fl u i d r e s e r v o i r .
4. Battery/Fuses.
5. Fuse box.
6. Dipstick.
7. E n g i n e o i l fi l l e r c a p .
8. Repriming pump * .
9. Degas screw * . As the diesel circuit is pres-
surised, any work on this
circuit is prohibited.
Page 196 of 330
162
C H E C K S
CHECKING LEVELS
Check all of these levels regularly
and top them up if necessary, unless
otherwise indicated.
I f a l e v e l d r o p s s i g n i fi c a n t l y , h a v e t h e
corresponding circuit checked by a
CITROËN dealer.
Oil level
Draining the engine
Refer to the servicing booklet for
details of the interval for this opera-
tion. O i l s p e c i fi c a t i o n
The oil must correspond to your
engine and conform to the manufac-
turer's recommendations.
Brake fluid level
Draining the circuit
Refer to the servicing booklet for
details of the interval for this opera-
tion.
T h i s fl u i d m u s t b e c h a n g e d r e g u l a r l y .
Fluid which has been used exces-
sively may cause a loss of braking
e f fi c i e n c y .
F l u i d s p e c i fi c a t i o n
T h e b r a k e fl u i d m u s t c o n f o r m t o t h e
manufacturer's recommendations
a n d f u l fi l t h e D O T 4 s t a n d a r d s .
Coolant level
Draining the circuit
The coolant does not have to be
changed.
F l u i d s p e c i fi c a t i o n
The coolant must conform to the
manufacturer's recommendations.
The reading will only be
correct if the vehicle is on
level ground and the engine
has been off for more than
15 minutes.
The check is carried out either when
the ignition is switched on using the
oil level indicator on the instrument
panel, or using the dipstick.
Between two oil changes, the con-
sumption should not exceed 0.5 litre
per 600 miles (approx. 1 000 km).
Check this level also between each
scheduled service and before long
journeys. T h e b r a k e fl u i d l e v e l s h o u l d
be close to the "MAX" mark.
If it is not, check the brake
pad wear.
The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the tem-
perature of the coolant is regulated
by the fan. This can operate with the
ignition off.
O n v e h i c l e s w h i c h a r e fi t t e d w i t h
a p a r t i c l e e m i s s i o n fi l t e r , t h e f a n
may operate after the vehicle has
b e e n s w i t c h e d o f f , e v e n i f t h e
engine is cold.
In addition, as the cooling system is
pressurised, wait at least one hour
after switching off the engine before
carrying out any work.
To avoid any risk of scalding,
unscrew the cap by two turns to
allow the pressure to drop. When
the pressure has dropped, remove
the cap and top up the level.
In order to maintain the
reliability of the engine and
emission control system,
the use of additives in the engine
oil is prohibited.
