92
V I S I B I L I T Y
V
Special position of
the windscreen wipers
In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of
the windscreen.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement.
To park the wipers after this has
been done, switch on the ignition
and operate the stalk. For optimum and lasting wiping of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- change them approximately every 6 months,
- avoid using them to retain card- board on the windscreen. COURTESY LIGHTS
Selection and control of the various
passenger compartment lights.
1. Front courtesy light
2. Map reading lights
Front courtesy light
In this position, the courtesy
light comes on gradually: Permanently off.
Permanent lighting.
In permanent lighting mode, different
lighting times are available:
- with the ignition off, approxi- mately ten minutes,
- in energy economy mode, approximately thirty seconds,
- with the engine running, unlimited.
- when the vehicle is unlocked,
- when a door or the boot is opened,
- when the key is removed from the ignition,
- when the remote control locking button is activated, in order to
locate your vehicle. It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Map reading lights
With the ignition on, press the
corresponding switch.
Glass panoramic roof
courtesy lights
These courtesy lights have two
operating modes:
- automatic lighting when a door is opened or when the front cour-
tesy light is in the "permanent
lighting" position,
- permanent lighting.
Opening the boot switches on the
third row courtesy light and the boot
lights.
Page 155 of 330
123
VIII
S A F E T Y
Deactivation
This warning light comes
on on the instrument panel
when the ignition is on and
until the air bag is re-armed.
To guarantee the safety of your child,
it is imperative that the passenger
air bag is disarmed when you install
a "rearwards-facing" child seat on
the front passenger seat.
Otherwise, the child would risk be-
ing seriously injured or killed if the
air bag were triggered. Reactivation
When you remove the child seat,
turn switch
1 to the "ON" position to
re-arm the air bag and so guarantee
the safety of your front passenger in
the event of an impact.
Operating fault
Only the front passenger's air bag
can be disarmed:
with the ignition off , insert the
key in the passenger air bag dis-
arming switch 1 ,
turn it to the "OFF" position,
then, remove the key keeping
the switch in this position.
If this warning light comes on on
the instrument panel, accom-
panied by an audible warning
and a message on the multi-
function display, contact a CITROËN
dealer to have the system checked. The
air bags may no longer be triggered in
the event of a serious impact.
I f t h i s w a r n i n g l i g h t fl a s h e s ,
contact a CITROËN dealer.
If both air bag warning lights come
on continuously, do not install a
"rearwards-facing" child seat on
the front passenger seat.
Have it checked by a CITROËN
dealer.
Page 168 of 330
134
IX
D R I V I N G
5-SPEED MANUAL GEARBOX
Starting the vehicle
Check that the gear lever is in
neutral.
Do not touch the accelerator.
For Diesel engines: turn the key to
position M and wait until the pre-
heating warning light switches off
if it has come on.
Operate the starter, turning the
key until the engine starts (no
more than ten seconds).
In temperatures lower than 0 °C,
declutch whilst turning the starter
to facilitate starting.
(6-SPEED) ELECTRONIC GEARBOX SYSTEM
The (6-speed) electronic gearbox of-
fers a choice between the comfort of
fully automatic operation or the driving
pleasure of manual gear changing.
Therefore, you have a choice of
two driving modes:
- the automatic mode for auto-
matic control of the gears by the
gearbox,
-
the sequential mode for manual
changing of the gears by the driver.
automatic mode: selector 2 in
position A .
manual mode: selector 2 in posi-
tion M .
In automatic mode, instant manual
operation is possible any time you
action one of the levers 1 .
Mode selection
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
Engaging reverse gear
Push the gear lever to the right
then rearwards.
Page 169 of 330
134
IX
D R I V I N G
5-SPEED MANUAL GEARBOX
Starting the vehicle
Check that the gear lever is in
neutral.
Do not touch the accelerator.
For Diesel engines: turn the key to
position M and wait until the pre-
heating warning light switches off
if it has come on.
Operate the starter, turning the
key until the engine starts (no
more than ten seconds).
In temperatures lower than 0 °C,
declutch whilst turning the starter
to facilitate starting.
(6-SPEED) ELECTRONIC GEARBOX SYSTEM
The (6-speed) electronic gearbox of-
fers a choice between the comfort of
fully automatic operation or the driving
pleasure of manual gear changing.
Therefore, you have a choice of
two driving modes:
- the automatic mode for auto-
matic control of the gears by the
gearbox,
-
the sequential mode for manual
changing of the gears by the driver.
automatic mode: selector 2 in
position A .
manual mode: selector 2 in posi-
tion M .
In automatic mode, instant manual
operation is possible any time you
action one of the levers 1 .
Mode selection
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
Engaging reverse gear
Push the gear lever to the right
then rearwards.
Page 265 of 330
7
9 9
1111
1 2 1 2
1 3 1 3
1 5 1 5
1010
1 4 1 4
Select the STORE function to record the address entered in a d i r e c t o r y r e c o r d a n d p r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n . T h e p o i n t s o f i n t e r e s t ( P O I ) i n d i c a t e a l l o f t h e s e r v i c e l o c a t i o n s i n t h e v i c i n i t y ( h o t e l s , v a r i o u s b u s i n e s s e s , a i r p o r t s , . . . ) .
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the letters of t h e t o w n o n e b y o n e c o n fi r m i n g e a c h t i m e b y p r e s s i n g t h e d i a l .
Turn the dial and select OK.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
To speed up the process, the POST CODE can be entered instead of the name of the town. Use the alphanumeric keypad to enter the letters a nd d i g i t s a n d " * " t o c o r r e c t .
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Select OK on the ENTER AN A D D R E S S p a g e .
Repeat steps 8 to 12 for the ROAD and N° functions .
OK
OKSTORE
PARIS
POI
Page 279 of 330
21
6 6
7 7
5 5
2 2
3 3
4 4
11
d i a l t o c o n fi r m .
Select the JUKEBOX MANAGEMENT f u n c t i o n a n d p r e s s t h e d i a l t o c o n fi r m .
JUKEBOX
RENAME
JUKEBOX MANAGEMENT
Press the MENU button.
Select AUDIO FUNCTIONS and p r e s s t h e d i a l t o c o n fi r m .
Select the JUKEBOX function and p r e s s t h e d i a l t o c o n fi r m .
Select the album to be renamed and p r e s s t h e d i a l t o c o n fi r m .
Turn the dial and select the letters of t h e a l b u m t i t l e o n e b y o n e c o n fi r m i n g e a c h t i m e b y p r e s s i n g t h e d i a l .
Use the alphanumeric keypad to enter the letters of the album title one by one.

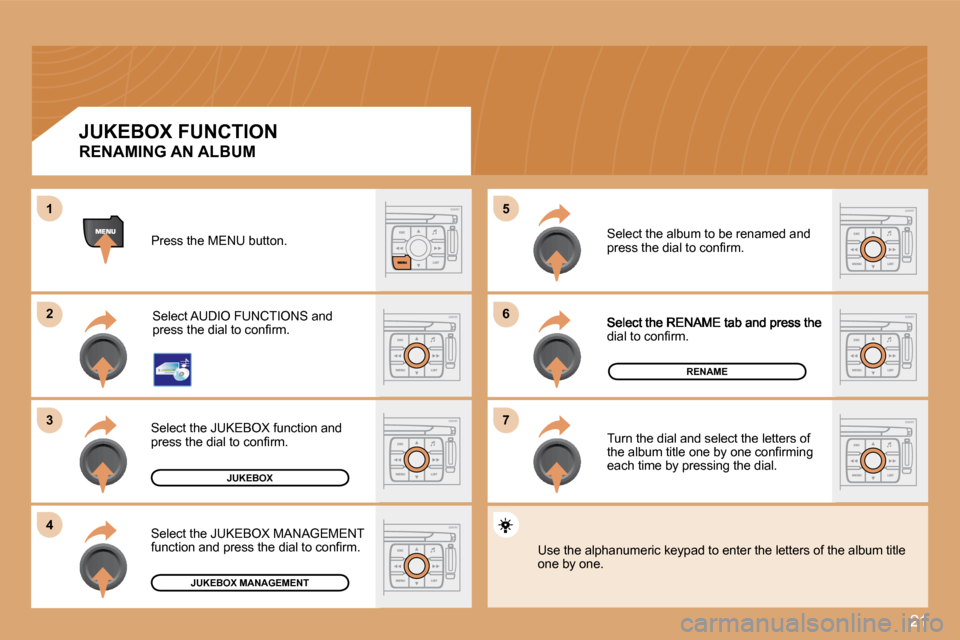

JUKEBOX FUNCTION
RENAMING AN ALBUM
Page 281 of 330
23
11
2 2
11
3 3
2 2
Press the MENU button then select the CONFIGURATION function, t h e n S O U N D S , t h e n A C T I V A T E A U X I L I A R Y S O U R C E t o a c t i v a t e the audio equipment auxiliary input.
Connect the portable equipment (MP3 p l a y e r … ) t o t h e J A C K s o c k e t o r t o t h e a u d i o s o c k e t s ( w h i t e a n d r e d , R C A t y p e ) l o c a t e d i n t h e g l o v e b o x u s i n g a s u i t a b l e cable.
Press the SOURCE button several times in succession and select AUX.
T h e d i s p l a y i n g a n d m a n a g e m e n t o f t h e c o m m a n d s t a k e s p l a c e v i a the portable equipment.
I t i s n o t p o s s i b l e t o c o p y t h e fi l e s o n t o t h e h a r d d i s c f r o m t h e a u x i l i a r y input.
USING THE AUXILIARY INPUT (AUX)
JACK/RCA AUDIO CABLE NOT SUPPLIED
AUDIO CD CHANGER
PLAYING A CD
I n s e r t t h e C D s i n a m u l t i - s l o t c h a n g e r ( n o t M P 3 c o m p a t i b l e ) o n e b y o n e . O n a s i n g l e s l o t c h a n g e r ( M P 3 c o m p a t i b l e ) , p r e s s L O A D , s e l e c t t h e number of the CD, then insert the CD, or press and hold LOAD and insert the CDs one by one.
Press the SOURCE button several times in succession and select CD CHANGER.
Press one of the buttons on the alphanumeric keypad to select the c o r r e s p o n d i n g C D .
Press one of the buttons to select a track on the CD.
I t i s n o t p o s s i b l e t o c o p y t h e fi l e s o n t o t h e h a r d d i s c f r o m t h e C D c h a n g e r .
CD CHANGER
Page 283 of 330
25
11
2 2
3 3
11
2 2
0 6 INTERNAL TELEPHONE
ENTERING THE PIN CODE
A c c e s s t h e s l o t b y p r e s s i n g t h e b u t t o n u s i n g t h e t i p o f a p e n .
Install the SIM card in the holder and then insert it in the slot.
To remove the SIM card, repeat step 1.
Y o u r S I M c a r d m u s t b e i n s t a l l e d a n d r e m o v e d w i t h t h e N a v i D r i v e a u d i o a n d t e l e m a t i c s s y s t e m s w i t c h e d o f f a n d t h e i g n i t i o n o f f .
Enter the PIN code on the keypad.
C o n fi r m t h e P I N c o d e b y p r e s s i n g button #.
PIN CODE
W h e n e n t e r i n g y o u r P I N c o d e , t i c k t h e S T O R E P I N t a b t o g a i n a c c e s s t o t h e t e l e p h o n e w i t h o u t h a v i n g t o e n t e r t h i s c o d e w h e n i t i s used subsequently.
INSTALLING YOUR SIM CARD
(NOT SUPPLIED)
