2008.5 Citroen C4 display

3
1
5
10
2
346
13
11
9
1415
7812
1601
1. On/Off. CD/SD card pause, mute for the radio. Long press: reinitialisation of the system.
2. Volume adjustment.
3. Access to the RADIO menu. Displaying of the list o
f stations.
4. Access to the MUSIC menu. Displaying of the tracks .
3 - 4 Long press: access to the settings: front/rear and left/right balance, bass/treble, equalizer, loudness, automati c volume adjustment, initialise the settings.
5. Access to the SETUP menu. Long press: access to the GPS coverage and the demonstration mode.
6. Access to the PHONE menu. Displaying of the call l ist.
7. Access to the MODE menu. Selection of the successive displaying of: Radio, Map, NAV (if navigation is in progress), Telephone (if a conversation is in progress), Trip Computer. Long press: displaying of a black screen (DARK).
8. Access to the NAVIGATION menu. Displaying of the l ast destinations.
9. Access to the TRAFFIC menu. Displaying of the current traffi c alerts.
10. ESC: abandon the operation in progress.
11. CD eject.
12. Selection of the previous/next radio station from the list. Selection of the previous/next CD. Selection of the previous/next MP3 directory. Selection of the previous/next page of a list.
13. Selection of the previous/next radio station. Selection of the previous/next CD or MP3 track. Selection of the previous/next line of a list.
14. Buttons 1 to 6: Selection of the stored radio station. Selection of the CD in the CD changer. Long press: storing of the current radio station.
15. SD card reader.
16. Dial for selection on the display on the screen and according to the context of the menu. Short press: confi rmation.
FIRST STEPS
MY WAY CONTROL PANEL

4
02 GENERAL OPERATION
For a detailed global view of the menus available, refer to section 10.
Press the MODE button several times in succession to gain access to the following menus:
For maintenance of the display, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, without any addi tional product.
RADIO/MUSIC MEDIAPLAYERS
PHONE (If a conversation is in progress)
TRIP COMPUTER
FULL SCREEN MAP
NAVIGATION (If navigation is in progress)
SETUP: system language, date and time, display, vehicle parameters, units and system parameters, DEMONSTRATION MODE
TRAFFIC: TMC information and messages

5
02
1
2
3
3
2
1
1
1
3
2
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
1
1
2
1
2
2
2
2
2
2
2
1
1
1
1
1
1
GENERAL OPERATION
A press on the OK dial to permits access to short-cut menus according to the display on the screen.
TRIP COMPUTER:
ALERT LOG
STATUS OF FUNCTIONS
MUSIC MEDIA PLAYERS:
TA
PLAY OPTIONS
normal
random track
repeat folder
track intro
SELECT MUSIC
NAV:
ABORT GUIDANCE
REPEAT ADVICE
BLOCK ROAD
ROUTE INFO
show dest.
trip info
route type
avoidance criteria
satellites
zoom/scroll
VOICE ADVICE
ROUTE OPTIONS
RADIO:
IN FM MODE
TA
RDS
radiotext
regional prog. (REG)
AM
IN AM MODE
TA
refresh AM list
FM
MAP:
ABORT/RESUME GUIDANCE
SET DESTINATION
POIS NEARBY
POSITION INFO
MAP SETTINGS
ZOOM/SCROLL
PHONE:
END CALL
HOLD CALL
DIAL
DTMF TONES
PRIVATE MODE
MICRO OFF
DISPLAY ACCORDING TO THE CONTEXT

12
03
6
4
5
1
2
3
NAVIGATION SETTINGS
Select the NAVI VOLUME function and turn the dial to set the volume of each voice synthesiser (traffi c information, alert messages…).
Select HAZARDOUS LOCATION POIs to gain access to the DISPLAY ON MAP, VISUAL ALERT and SOUND ALERT functions.
Select the POI CATEGORIES ON MAP function to select the POIs to be displayed on the map by default.
NAVI VOLUME
Press the NAV button.
Press the NAV button again or select the NAVIGATION MENU function and press the dial to confi rm.
Select the SETTINGS function and press the dial to confi rm.
NAVIGATION MENU
SETTINGS
POI CATEGORIES ON MAP
HAZARDOUS LOCATION POIs
NAVIGATION - GUIDANCE
Contact a CITROËN dealer for details of the procedure for obtaining the HAZARDOUS LOCATION POIs. The updating of the HAZARDOUS LOCATION POIs requir es an SDHC (High Capacity) compatible reader.

14
11
2
3
05
SELECTING A STATION
When the current radio station is displayed on the screen, pressthe dial.
The radio source short-cuts menu appears and providesovides access to the following short-cuts:
Select the function required and press the dial to confi rm to gain access to the corresponding settings.
TA
The RDS, if displayed, allows you to continue listening to the same The RDS, if displayed, allows you to continue listening to the same station by means of the frequency following. Howeve r, in certain station by means of the frequency following. However, in certain conditions, this RDS station cannot be followed throughout the entire conditions, this RDS station cannot be followed throughout the entire country as radio stations do not cover 100 % of the terrie territory. This explains the loss of reception of the station during a journey. explains the loss of reception of the station during a journey.
The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS following mode. Thi s phenomenon is a normal result of the way in which radio waves are transmitted and does n ot in any way indicate a failure of the audio equipment.
RDS - REGIONAL MODE - TRAFFIC INFO
Press the RADIO button to display the list of stations received locally sorted in alphabetical order. Select the station required by turning the dial and press to confi rm.
While listening to the radio, press one of the buttons to select the previous or next station on the list.
Press one of the buttons on the numeric keypad for more than Press one of the buttons on the numeric keypad for more than2 seconds to store the current station. Press the button on the numeric keypad to recall the stored radio Press the button on the numeric keypad to recall the stored radio station.
RDS
RADIOTEXT
REGIONAL PROG. (REG)
WAVEBAND
RADIO
A long press of one of the buttons starts the automatic search for a station with a lower or higher frequency.

18
07
1
3
5
4
2
1
2
The services available depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Refer to your telephone's manual an d your operator to check which services you have access to. A list of mobile telephones which offer the best range of services is available from dealers.

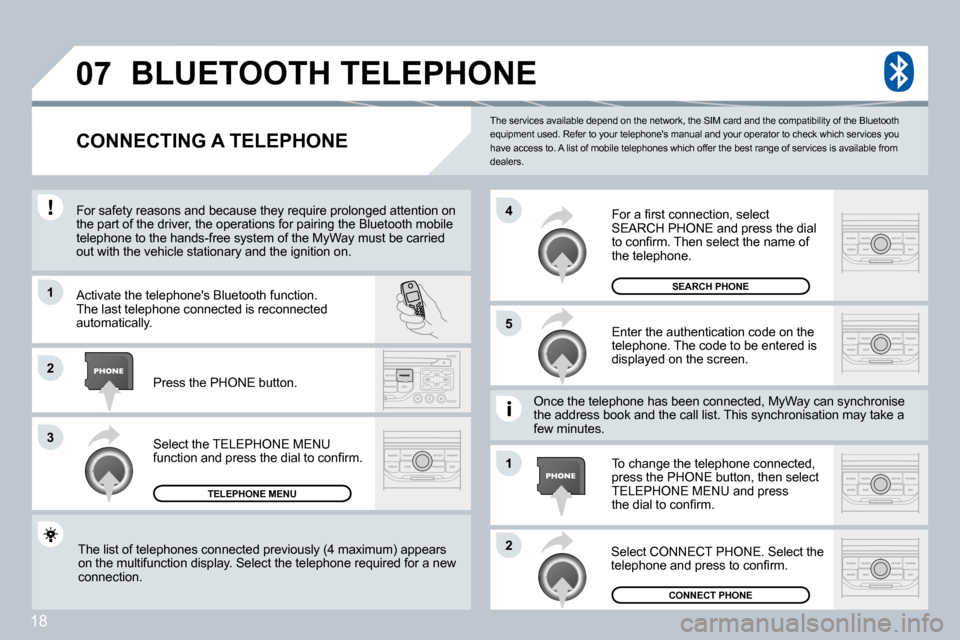

BLUETOOTH TELEPHONE
CONNECTING A TELEPHONE
For safety reasons and because they require prolon ged attention on For safety reasons and because they require prolonged attention on the part of the driver, the operations for pairing the Bluetooth mobile the part of the driver, the operations for pairing the Bluetooth mobile telephone to the hands-free system of the MyWay mus t must be carried out with the vehicle stationary and the ignition on.
Activate the telephone's Bluetooth function. The last telephone connected is reconnected automatically.
Select the TELEPHONE MENU function and press the dial to confi rm.
TELEPHONE MENU
Enter the authentication code on the telephone. The code to be entered is displayed on the screen.
To change the telephone connected, press the PHONE button, then select TELEPHONE MENU and pressthe dial to confi rm.
Once the telephone has been connected, MyWay can s can synchronise the address book and the call list. This synchronis ation ation may take a few minutes.
Select CONNECT PHONE. Select the telephone and press to confi rm. The list of telephones connected previously (4 max imum) appears The list of telephones connected previously (4 maximum) appears on the multifunction display. Select the telephone requir required for a new connection.
Press the PHONE button.
For a fi rst connection, select SEARCH PHONE and press the dial to confi rm. Then select the name of the telephone.
SEARCH PHONE
CONNECT PHONE

19
2
3
11
2
3
Press the end of the steering wheel control to accept the call or end the call in progress.
Select the YES tab to accept or NO to refuse and confi rm by pressing the dial.
RECEIVING A CALL MAKING A CALL
An incoming call is announced by a ring and a superimposed display An incoming call is announced by a ring and a superimposed display on the multifunction display.
YES
To hang up, press the PHONE button or press the dial and select END CALL then confi rm by pressing the dial.
END CALL
Press the PHONE button.
Press the end of the steering wheel control for more than two Press the end of the steering wheel control for more than two seconds to gain access to the address book.
It is also possible to select a number from the address bress book. You can select DIAL FROM ADDRESS BOOK. MyWay permits the re cording select DIAL FROM ADDRESS BOOK. MyWay permits the recording of up to 4 000 entries.
Select DIAL NUMBER, then dial the telephone number using the virtual keypad.
Select the TELEPHONE MENU function and press the dial to confi rm.
DIAL NUMBER
TELEPHONE MENU
The list of the last 20 calls made and received in the vehhe vehicle appears under TELEPHONE MENU. You can select a number and p ress the under TELEPHONE MENU. You can select a number and press the dial to make the call.
NO

21
1
TRIP COMPUTER/VEHICLE PARAMETERS
VEHICLE DIAGNOSTICS
- The "vehicle" tab: The range, the current consumption and the distance remaining. - The "1" (route 1) tab with: The average speed, the average consumption and the distance travelled calculated over route "1". - The "2" (route 2) tab with the same functions for a second route.
Range: displays the distance which can travelled with the remaining displays the distance which can travelled with the remaining fuel detected in the tank, in relation to the average consumption over fuel detected in the tank, in relation to the average consumption over the last few miles (kilometres). This displayed value may vary signifi cantly follow ing a change in the This displayed value may vary signifi cantly following a change in the vehicle speed or the relief of the route. When the range falls below 20 miles (30 km), dashe s are displayed. When the range falls below 20 miles (30 km), dashes are displayed. After fi lling with at least 5 litres of fuel, the range is recalculated and After fi lling with at least 5 litres of fuel, the range is recalculated and is displayed when it exceeds 60 miles (100 km). If, whilst driving, dashes are displayed continuou sly in place of the If, whilst driving, dashes are displayed continuously in place of the digits, contact a CITROËN dealer. If, whilst driving, dashes are displayed continuously in place of the If, whilst driving, dashes are displayed continuously in place of the
Current consumption: only calculated and displayed aayed above 20 mph (30 km/h).
Average consumption: this is the average quantity of fuel this is the average quantity of fuel consumed since the last trip computer zero reset.
Distance travelled: calculated since the last trip compucomputer zero reset.
Distance remaining to the destination: calculated wited with reference to the fi nal destination, entered by the user. If guidance is activated, to the fi nal destination, entered by the user. If guidance is activated, the navigation system calculates it as a current va lue.
Average speed: this is the average speed calculated since the last this is the average speed calculated since the last trip computer zero reset (ignition on).
Each press of the button at the end of the wipers stalk displays the Each press of the button at the end of the wipers stalk displays the various trip computer data in succession, according to the display. various trip computer data in succession, according to the display.
A FEW DEFINITIONS
