i
102
DRIVING
CRUISE CONTROL
System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
The cruise control is switched on
manually: it requires a minimum vehicle
speed of 25 mph (40 km/h) and the en-
gaging of at least 4th gear.
The controls of this system are grouped
together on lever A .
1. Cruise control mode selection dial
2. Speed programming/value decrease
button
3. Speed programming/value increase
button
4. Cruise control off/resume button The programmed information is grouped
together on the instrument panel dis-
play.
5. Cruise control off/resume indication
6. Cruise control mode selection indi-
cation
7. Programmed speed value
Steering wheel controls Displays on the instrument
panel
The cruise control cannot, in any
circumstances, replace the need
to respect speed limits, nor can it
replace the need for vigilance and
responsibility on the part of the
driver.
The cruise control is
switched off manu-
ally or by pressing the brake or clutch
pedal or on triggering of the ESP sys-
tem for safety reasons.
It is possible to exceed the programmed
speed temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.
Page 116 of 204
i
i
104
DRIVING
VISUAL AND AUDIBLE REAR PARKING ASSISTANCE
This system consists of four proximity
sensors, located in the rear bumper,
and a special speaker.
This detects any obstacle (person, vehi-
cle, tree, gate, etc.) behind the vehicle.
Nevertheless, it cannot detect obstacles
located just below the bumper. An object, such as a stake, a road-
works cone or any other similar object
may be detected at the beginning of
the manoeuvre, but may no longer
be detected when the vehicle comes
close to it. Activation
The system is activated as soon as re-
verse gear is engaged, accompanied
by an audible signal. The proximity in-
formation is given by:
- an audible signal, which becomes
more rapid as the vehicle approach-
es the obstacle.
- a graphic on the multifunction dis- play, with blocks which become in-
creasingly closer to the vehicle. The rear parking assistance sys-
tem cannot, in any circumstances,
take the place of the vigilance and
responsibility of the driver.
Detection zone
When the distance between the rear of
the vehicle and the obstacle is less than
thirty centimetres, the audible signal be-
comes continuous and the "Danger" sym-
bol appears on the multifunction display.
On completion of the manoeuvre, when
you exit reverse gear, the system be-
comes inactive.
Page 121 of 204
110
CHECKS
CHECKING LEVELS Brake fluid level
Oil level The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes.
The check is carried out either when the
ignition is switched on using the oil level
indicator on the instrument panel, or us-
ing the dipstick.
Between two oil changes, the consump-
tion should not exceed 0.5 litre per
600 miles (1,000 km). T h e b r a k e fl u i d l e v e l s h o u l d b e
close to the "MAX" mark. If it is
not, check the brake pad wear.
Draining the circuit
Refer to the Maintenance and Warranty
Guide for details of the interval for this
operation.
Coolant level The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the
temperature of the coolant is regulated
by the fan. This can operate with the ig-
nition off.
O n v e h i c l e s w h i c h a r e fi t t e d w i t h a
p a r t i c l e e m i s s i o n fi l t e r , t h e f a n m a y
operate after the vehicle has been
s w i t c h e d o f f , e v e n i f t h e e n g i n e i s
cold.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work. F l u i d s p e c i fi c a t i o n
For optimum cleaning and to avoid
f r e e z i n g , t h i s fl u i d m u s t n o t b e t o p p e d
up or replaced with water.
Draining the engine
Refer to the Maintenance and Warranty
Guide for details of the interval for this
operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
O i l s p e c i fi c a t i o n
The oil must correspond to your engine
and conform to the manufacturer’s re-
commendations. F l u i d s p e c i fi c a t i o n
T h e b r a k e fl u i d m u s t c o n f o r m t o t h e
manufacturer’s recommendations and
f u l fi l t h e D O T 4 s t a n d a r d s .
F l u i d s p e c i fi c a t i o n
The coolant must conform to the manu-
facturer’s recommendations.
Draining the circuit
The coolant does not have to be
changed.
Screenwash fluid level
Top up the level when neces-
sary.
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
I f a l e v e l d r o p s s i g n i fi c a n t l y , h a v e t h e
corresponding circuit checked by a
CITROËN dealer.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.
Page 133 of 204
121
PRACTICAL INFORMATION

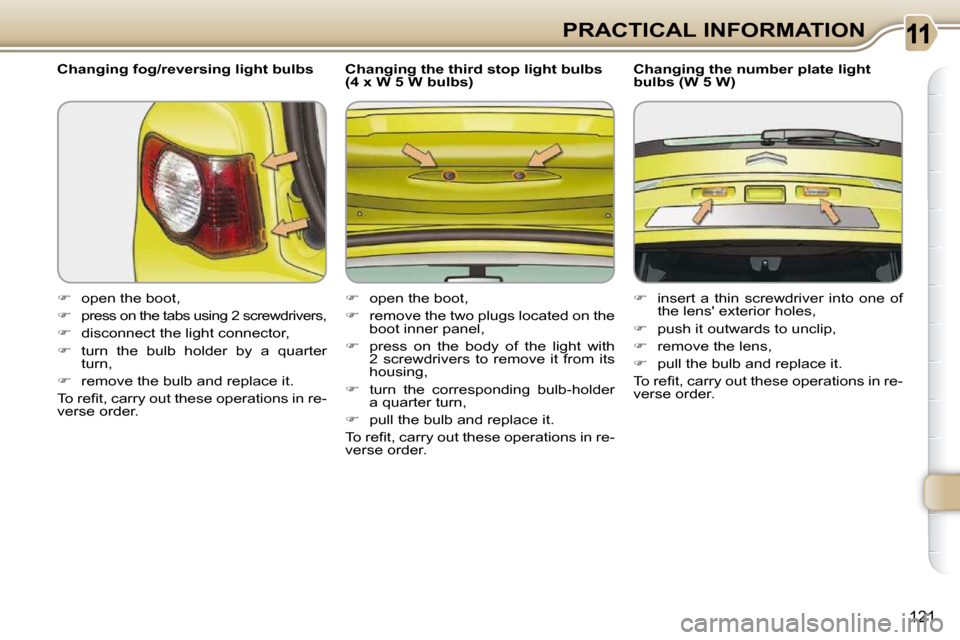

Changing fog/reversing light bulbs
open the boot,
press on the tabs using 2 screwdrivers,
disconnect the light connector,
t u r n t h e b u l b h o l d e r b y a q u a r t e r
turn,
r e m o v e t h e b u l b a n d r e p l a c e i t .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
v e r s e o r d e r . Changing the third stop light bulbs
(4 x W 5 W bulbs)
open the boot,
remove the two plugs located on the
boot inner panel,
press on the body of the light with
2 screwdrivers to remove it from its
housing,
turn the corresponding bulb-holder
a q u a r t e r t u r n ,
p u l l t h e b u l b a n d r e p l a c e i t .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
v e r s e o r d e r . Changing the number plate light
bulbs (W 5 W)
insert a thin screwdriver into one of
the lens' exterior holes,
push it outwards to unclip,
remove the lens,
p u l l t h e b u l b a n d r e p l a c e i t .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
v e r s e o r d e r .
Page 135 of 204
i
!
123
PRACTICAL INFORMATION CITROËN will not accept respon-
sibility for the cost incurred in re-
pairing your vehicle or for rectify-
ing malfunctions resulting from
the installation of accessories not
supplied and not recommended
by CITROËN and not installed in
accordance with its instructions,
in particular when the combined
consumption of all of the addition-
a l e q u i p m e n t c o n n e c t e d e x c e e d s
1 0 m i l l i a m p e r e s .
Installing electrical accessories
Your vehicle's electrical system is
designed to operate with standard
o r o p t i o n a l e q u i p m e n t .
Before installing other electrical
e q u i p m e n t o r a c c e s s o r i e s o n y o u r
v e h i c l e , c o n t a c t a C I T R O Ë N d e a l e r .
CHANGING A FUSE
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
c o r r e s p o n d i n g f u n c t i o n .
Access to the tools
The extraction pliers and the spare fuse
storage compartment are installed on
t h e b a c k o f t h e f a s c i a f u s e b o x c o v e r .
To gain access to them:
Open the glove box,
unclip the fuse access cover by pul-
ling on the side,
remove the cover completely,
r e m o v e t h e p l i e r s . Changing a fuse
Before changing a fuse, the cause of
t h e f a i l u r e m u s t b e i d e n t i fi e d a n d r e c t i -
fi e d .
Identify the faulty fuse by checking
t h e c o n d i t i o n o f i t s fi l a m e n t .
Use the special pliers to extract the
f u s e f r o m i t s h o u s i n g .
Always replace the faulty fuse with a
f u s e o f t h e s a m e r a t i n g .
Check the correspondence between
the number etched on the box, the
rating etched on the fuse and the ta-
b l e s b e l o w .
Correct Incorrect
Page 138 of 204
126
PRACTICAL INFORMATION
Engine compartment fuses
The fuse box is placed in the engine
compartment near the battery (left-hand
s i d e ) .
Access to the fuses
U n c l i p t h e c o v e r .
Change the fuse (see correspond-
i n g p a r a g r a p h ) .
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to guarantee the
s e a l i n g o f t h e f u s e b o x . Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit supply, cooling fan unit control,
m u l t i f u n c t i o n e n g i n e c o n t r o l m a i n r e l a y .
F2 15 A H o r n .
F3 10 A F r o n t / r e a r w a s h - w i p e .
F4 20 A D a y t i m e r u n n i n g l a m p s .
F5 15 A D i e s e l h e a t e r ( d i e s e l e n g i n e ) , f u e l p u m p ( p e t r o l
e n g i n e ) .
F6 10 A ABS/ESP control unit, ABS/ESP cut-off relay,
s e c o n d a r y s t o p s w i t c h .
F7 10 A E l e c t r i c a l p o w e r s t e e r i n g .
F8 25 A S t a r t e r c o n t r o l .
F9 10 A S w i t c h i n g a n d p r o t e c t i o n u n i t .
F10 30 A D i e s e l e n g i n e i n j e c t i o n p u m p v a l v e , i n j e c t o r s a n d
i g n i t i o n c o i l s ( p e t r o l e n g i n e ) .
F11 40 A A i r c o n d i t i o n i n g b l o w e r .
Page 139 of 204
127
PRACTICAL INFORMATION
Fuse N° Rating Functions
F12 30 A W i n d s c r e e n w i p e r s s l o w / f a s t s p e e d .
F13 40 A B u i l t - i n s y s t e m s i n t e r f a c e s u p p l y ( i g n i t i o n p o s i t i v e ) .
F14 30 A V a l v e t r o n i c s u p p l y ( p e t r o l ) .
F15 10 A R i g h t - h a n d m a i n b e a m h e a d l a m p .
F16 10 A L e f t - h a n d m a i n b e a m h e a d l a m p .
F17 15 A L e f t - h a n d d i p p e d h e a d l a m p .
F18 15 A R i g h t - h a n d d i p p e d h e a d l a m p .
F19 15 A Multifunction engine control supply (petrol engine),
a i r c o o l i n g s o l e n o i d v a l v e s ( D i e s e l ) .
F20 10 A Multifunction engine control supply (petrol engine),
T u r b o p r e s s u r e r e g u l a t i o n v a l v e ( D i e s e l ) , e n g i n e
c o o l a n t l e v e l d e t e c t o r ( D i e s e l ) .
F21 5 A Fan assembly control supply, APC, ABS ESP
r e l a y s .
Page 142 of 204
i
!
!
130
PRACTICAL INFORMATION D o n o t d i s c o n n e c t t h e t e r m i n a l s
w h i l e t h e e n g i n e i s r u n n i n g .
D o n o t c h a r g e t h e b a t t e r i e s w i t h o u t
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
The batteries contain harmful sub-
stances such as sulphuric acid and
l e a d . T h e y m u s t b e d i s p o s e d o f i n
accordance with regulations and
must not, in any circumstances, be
d i s c a r d e d w i t h h o u s e h o l d w a s t e .
Take used remote control batteries
and vehicle batteries to a special
c o l l e c t i o n p o i n t .
Charging the battery using a
battery charger
D i s c o n n e c t t h e b a t t e r y f r o m t h e v e -
h i c l e .
Follow the instructions for use pro-
vided by the manufacturer of the
c h a r g e r .
Reconnect starting with the nega-
t i v e t e r m i n a l ( - ) .
Check that the terminals and con-
n e c t o r s a r e c l e a n . I f t h e y a r e c o v -
ered with sulphate (whitish or green-
ish deposit), remove them and clean
t h e m .
At the risk of discharging the bat-
tery, the deactivated functions can
b e r e a c t i v a t e d m a n u a l l y .
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions in relation to the level of
c h a r g e r e m a i n i n g i n t h e b a t t e r y .
When the vehicle is being driven, the
load reduction function temporarily deac-
tivates certain functions, such as the air
c o n d i t i o n i n g , t h e r e a r s c r e e n d e - i c i n g . . .
The deactivated functions are reacti-
vated automatically as soon as condi-
t i o n s p e r m i t .
It is advisable to disconnect the
battery if the vehicle is to be left un-
u s e d f o r m o r e t h a n o n e m o n t h . Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
t h e b a t t e r y .
Close the windows and the doors
b e f o r e d i s c o n n e c t i n g t h e b a t t e r y .
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit in-
i t i a l i s a t i o n o f t h e e l e c t r o n i c s y s t e m s .
H o w e v e r , i f s l i g h t d i f fi c u l t i e s a r e e n -
countered following this operation,
c o n t a c t a C I T R O Ë N d e a l e r .
Referring to the corresponding sec-
tion, you must yourself reinitialise:
- the remote control key,
- the GPS satellite navigation
s y s t e m .
