Page 4 of 99
7
1. Bonnet release
2. Headlamp adjustment
3. Passenger air bag deactivation
4. Adjustable and closing side vent
5. Lighting and direction indicators
stalk
6. Driver's front airbag
Horn
7. Dashboard fuse box
( u n d e r t h e i n s t r u m e n t p a n e l t r i m ,
on the right and on the left)
8. Rev counter
9. Passenger exterior mirror control
10. Passenger electric window
control
11. Gear lever
12. Cup holder
13. Steering wheel height
adjustment
INSTRUMENTS AND CONTROLS
Page 73 of 99
8
66
CHECKS
1.0 LITRE PETROL ENGINE
1. Coolant reservoir
2. Windscreen wash reservoir
3. B r a k e fl u i d r e s e r v o i r
4. Fuse box
5. Battery
6. A i r fi l t e r
7. Engine oil dipstick
8. E n g i n e o i l fi l l e r c a p
1.4 LITRE TURBO DIESEL HDI ENGINE
1. Coolant reservoir
2. Windscreen wash reservoir
3. P r i m i n g p u m p
4. A i r fi l t e r
5. B r a k e fl u i d r e s e r v o i r
6. Fuse box
7. Battery
8. Engine oil dipstick
9. E n g i n e o i l fi l l e r c a p
Page 83 of 99
9
74

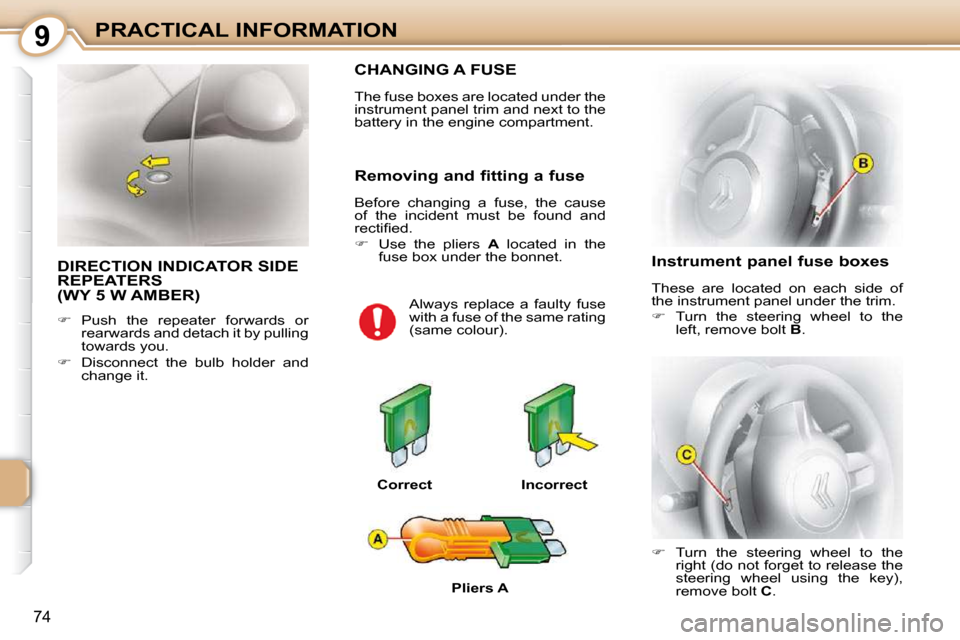

PRACTICAL INFORMATION
DIRECTION INDICATOR SIDE REPEATERS(WY 5 W AMBER)
Push the repeater forwards or
rearwards and detach it by pulling
towards you.
Disconnect the bulb holder and
change it.
CHANGING A FUSE
The fuse boxes are located under the
instrument panel trim and next to the
battery in the engine compartment.
Correct
Removing and fitting a fuse
Before changing a fuse, the cause
of the incident must be found and
r e c t i fi e d .
Use the pliers A located in the
fuse box under the bonnet.
Incorrect
Pliers A Instrument panel fuse boxes
These are located on each side of
the instrument panel under the trim.
Turn the steering wheel to the
left, remove bolt B .
Turn the steering wheel to the
right (do not forget to release the
steering wheel using the key),
remove bolt C .
Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Page 84 of 99
9
74
PRACTICAL INFORMATION
DIRECTION INDICATOR SIDE REPEATERS(WY 5 W AMBER)
Push the repeater forwards or
rearwards and detach it by pulling
towards you.
Disconnect the bulb holder and
change it.
CHANGING A FUSE
The fuse boxes are located under the
instrument panel trim and next to the
battery in the engine compartment.
Correct
Removing and fitting a fuse
Before changing a fuse, the cause
of the incident must be found and
r e c t i fi e d .
Use the pliers A located in the
fuse box under the bonnet.
Incorrect
Pliers A Instrument panel fuse boxes
These are located on each side of
the instrument panel under the trim.
Turn the steering wheel to the
left, remove bolt B .
Turn the steering wheel to the
right (do not forget to release the
steering wheel using the key),
remove bolt C .
Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Page 85 of 99
9
74
PRACTICAL INFORMATION
DIRECTION INDICATOR SIDE REPEATERS(WY 5 W AMBER)
Push the repeater forwards or
rearwards and detach it by pulling
towards you.
Disconnect the bulb holder and
change it.
CHANGING A FUSE
The fuse boxes are located under the
instrument panel trim and next to the
battery in the engine compartment.
Correct
Removing and fitting a fuse
Before changing a fuse, the cause
of the incident must be found and
r e c t i fi e d .
Use the pliers A located in the
fuse box under the bonnet.
Incorrect
Pliers A Instrument panel fuse boxes
These are located on each side of
the instrument panel under the trim.
Turn the steering wheel to the
left, remove bolt B .
Turn the steering wheel to the
right (do not forget to release the
steering wheel using the key),
remove bolt C .
Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Page 87 of 99
9
76
PRACTICAL INFORMATION
* Fuses located behind the instrument panel. To change them, contact a CITROËN dealer.
Fuse N° Rating
Functions
1 10 A Brake lamps - ABS - "SensoDrive" gearbox
2 25 A Central locking/unlocking
3 20 A Rear screen demisting
4 7.5 A Rear lamps - Number plate lamps - Instrument panel - Screen
5 7.5 A Diagnostic socket
6 7.5 A Rear foglamp - Instrument panel - "SensoDrive" gearbox
7 - Not used
8 7.5 A ABS - Power steering - Air conditioning - Fan assembly
9 10 A Rear lamps - Central locking/unlocking - Electric windows - Rear scree
n demisting -
Speedometer - Air conditioning - Heating - Rev counter
10 20 A Front and rear wipers
11 15 A Audio equipment - Electronic engine immobiliser - 12 V socket (120 W max)
12 7.5 A Rear screen demisting - ABS - Fan assembly - Front and rear wipers - Powe
r steering -
Central locking/unlocking - Air conditioning - Electric windows - Speedometer - Rev counter
13 15 A Air bag - Engine control unit - Electronic engine immobiliser - "Se
nsoDrive" gearbox -
Instrument panel
14 7.5 A Air conditioning
15 * 40 A Accessories - Demisting - ABS - Fan assembly relay - Front and rear wipe rs
16 * 30 A Electric windows
17 * 40 A Heating - Air conditioning
Page 88 of 99
9
77
PRACTICAL INFORMATION
Engine compartment fuse box
Unclip the cover, pressing on the
right on lug E , to gain access to
the fuses. Your vehicle's electrical
circuit is designed to operate
with standard or optional
equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a CITROËN dealer.
The pliers A and the replacement
fuses B a r e fi x e d a t t h e f r o n t o f t h e
box.
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover very carefully. Some electrical accessories or the
w a y i n w h i c h t h e y a r e fi t t e d m a y h a v e
an adverse effect on the operation of
your vehicle (audio circuit, control
circuit and electrical charging
circuit).
CITROËN will not accept any responsi-
bility for the costs incurred in repairing
your vehicle or for the malfunctions re-
sulting from the installation of auxiliary
accessories which were not supplied or
recommended by CITROËN and which
were not installed in accordance with
its instructions, in particular in the case
of any equipment the consumption of
which exceeds 10 milliamps.
Page 89 of 99
9
78
PRACTICAL INFORMATION
Fuse N° Rating
Functions
1 50 A "SensoDrive" gearbox - Fan assembly (diesel)
2
10 A Headlamps
20 A Headlamps with daytime running lamps
3 30 A ABS/ESP control unit
4 30 A Ignition switch supply
5 10 A Hazard warning lamps - Instrument panel warning lamps - Direct ion indicators
6 10 A Headlamps
7 15 A Courtesy lamp - Speedometer - Audio equipment - Instrument pan el - Rev counter
8 15 A/25 A Petrol/diesel engine control unit
9 10 A Horn
10 30 A Fan assembly (petrol)
11 50 A ABS/ESP
12 50 A Power steering
